UNI-T UT3248+ Multi-Channel Temperature Recorder – 48 Channels, −200 to 1800°C, J/K/T/E/S/N/B/R Thermocouple, 4.3" LCD, USB / RS-232 / LAN Data Logger
The UNI-T UT3248+ is a 48-channel multi-channel temperature recorder (paperless temperature data logger) for simultaneous multi-point thermocouple measurement and logging. It supports eight thermocouple types across a −200 to 1800°C range with 0.01°C resolution, a 4.3-inch true-colour display (numeric / curve / histogram views) and USB, RS-232 and LAN interfaces with SCPI and MODBUS RTU. Genuine UNI-T product supplied by Digilog.pk.
Key Features
- 48 channels (configured via six 8-channel modules)
- Wide range −200 °C to 1800 °C, resolution 0.01 °C
- Supports J, K, T, E, S, N, B, R thermocouples

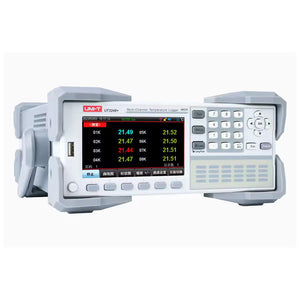

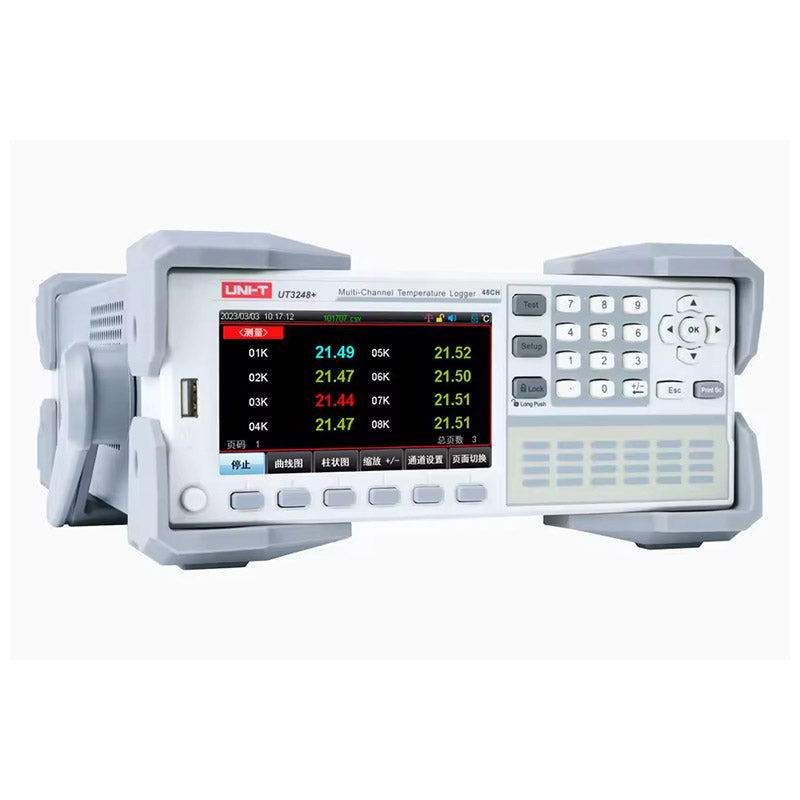

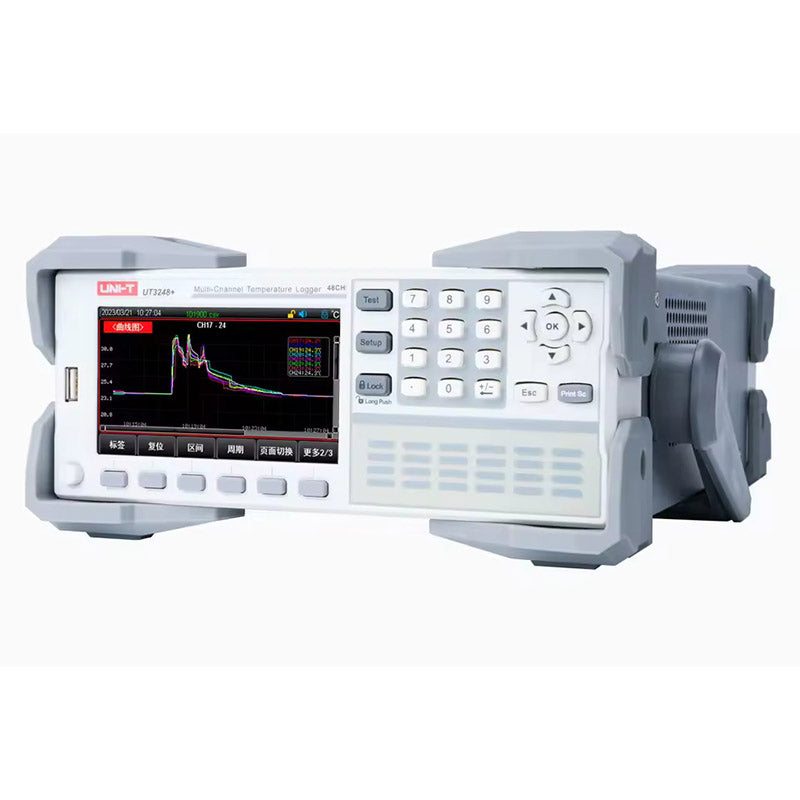

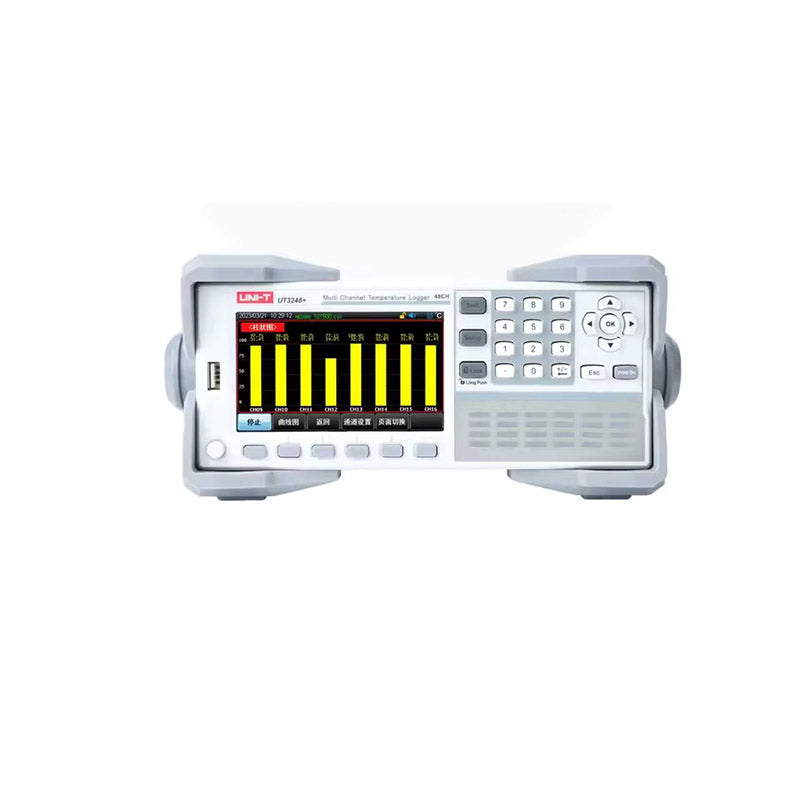

- 4.3-inch true-colour LCD: numerical, curve & histogram display
- Interfaces: USB Host, RS-232C, LAN (RS-485 optional); SCPI & MODBUS RTU
- Channel isolation 350 VDC / 230 VAC; ±0.5 °C cold-junction accuracy
Technical Specifications
| Channels | 48 (six 8-channel modules) |
|---|---|
| Thermocouple Types | J, K, T, E, S, N, B, R |
| Measuring Range | −200 °C to 1800 °C |
| Resolution | 0.01 °C |
| Accuracy (cold junction) | ±0.5 °C |
| Display | 4.3-inch true-colour LCD (numeric / curve / histogram) |
| Interfaces | USB Host, RS-232C, LAN, DC24V (RS-485 optional) |
| Protocols | SCPI, MODBUS RTU |
| Channel Isolation | 350 VDC / 230 VAC |
| Power | AC 100–240 V, 50/60 Hz |
| Dimensions | 214 × 88.2 × 330.3 mm |
| Weight | ≈3.4 kg |
What's in the Box
- UT3248+ multi-channel temperature recorder
- Power cord
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9025.19
