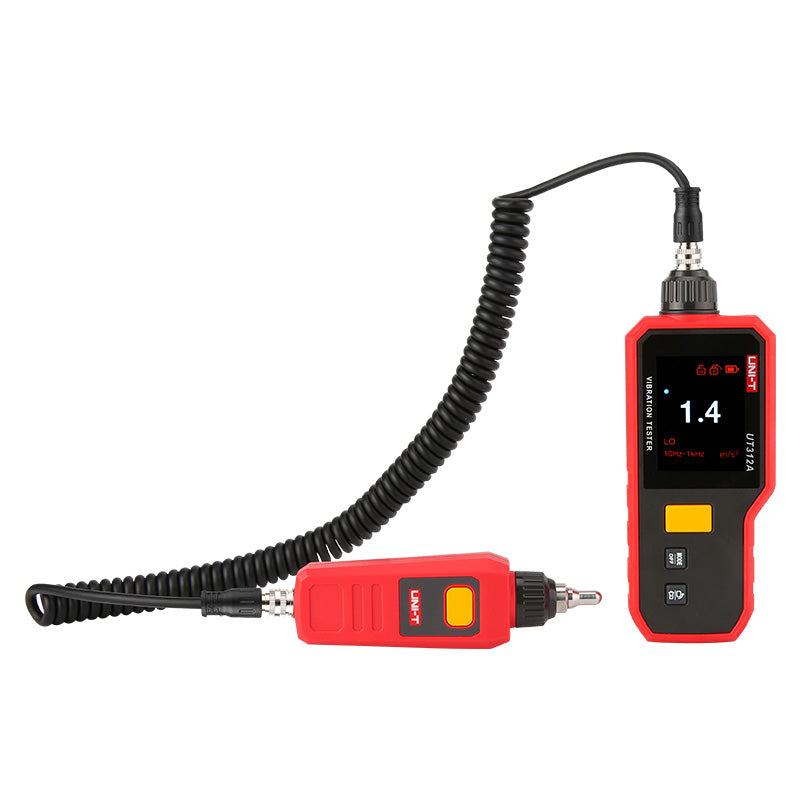

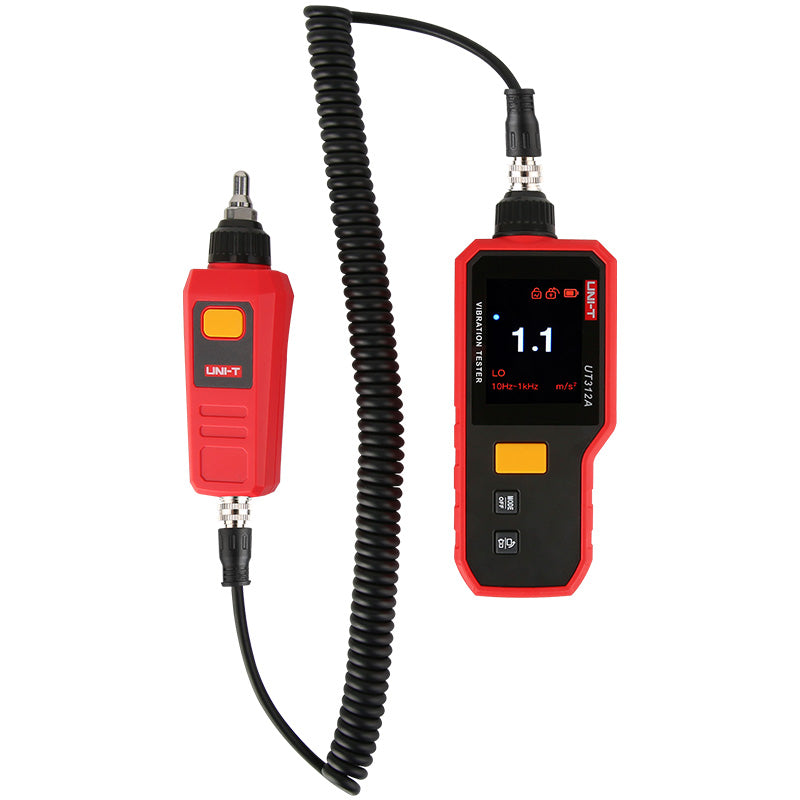

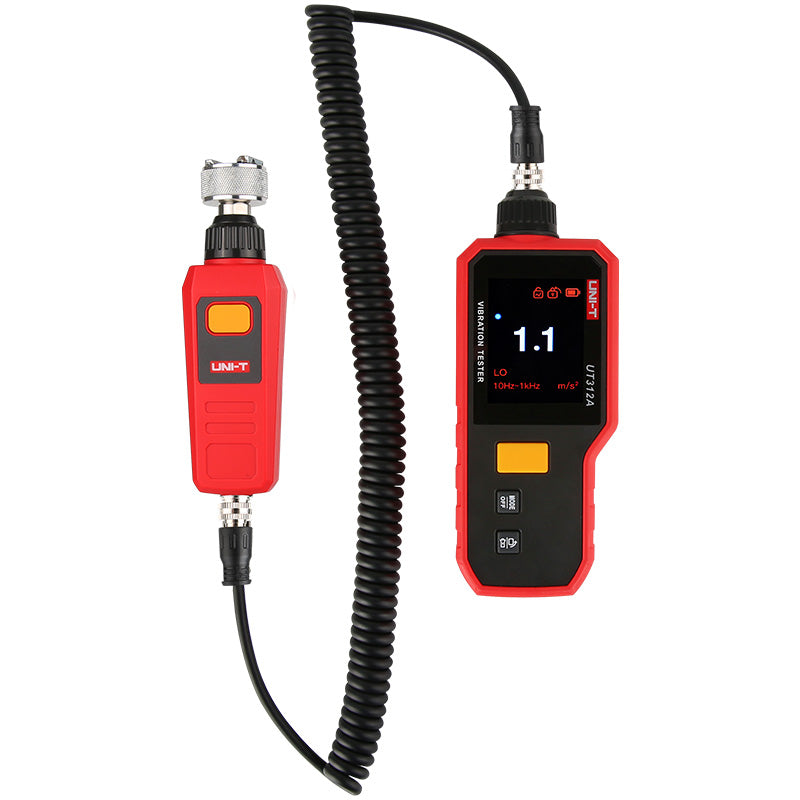

UNI-T UT312A Digital Vibration Tester with Magnetic Base – Acceleration, Velocity & Displacement, 10Hz–15kHz, 2.4" Rotatable TFT Colour Display, USB-C Rechargeable
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT312A Digital Vibration Tester with Magnetic Base – Acceleration, Velocity & Displacement, 10Hz–15kHz, 2.4" Rotatable TFT Colour Display, USB-C Rechargeable
UNI-T UT312A — Professional digital vibration tester with a U-type magnetic base for hands-free mounting on machinery, measuring acceleration, velocity and displacement for condition monitoring. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- Measures acceleration, velocity & displacement
- Included U-type magnetic sucker for hands-free mounting
- Wide frequency: acceleration 10Hz–15kHz (LO/HI), velocity 10Hz–1.5kHz
- 2.4" TFT colour display with auto-rotate full view
- Long & short probes; USB-C rechargeable Li-ion
- Robust 364g body for industrial use
Technical Specifications
| Type | Digital vibration tester with magnetic base |
|---|---|
| Acceleration | 0.1 ~ 199.9 m/s² (10Hz–1kHz / 1kHz–15kHz) |
| Velocity | 0.1 ~ 199.9 mm/s (10Hz–1.5kHz) |
| Displacement | 0.001 ~ 1.999 mm (10Hz–1kHz) |
| Display | 2.4" TFT colour, auto-rotate |
| Mounting | U-type magnetic sucker included |
| Power | USB-C rechargeable Li-ion |
| Weight | 364 g |
What's in the Box
- UT312A vibration tester
- Long & short probes
- U-type magnetic sucker
- USB-C charging cable
- English user manual & safety instructions
Downloads
Certifications: CE, UKCA | HS Code: 9031.8000
