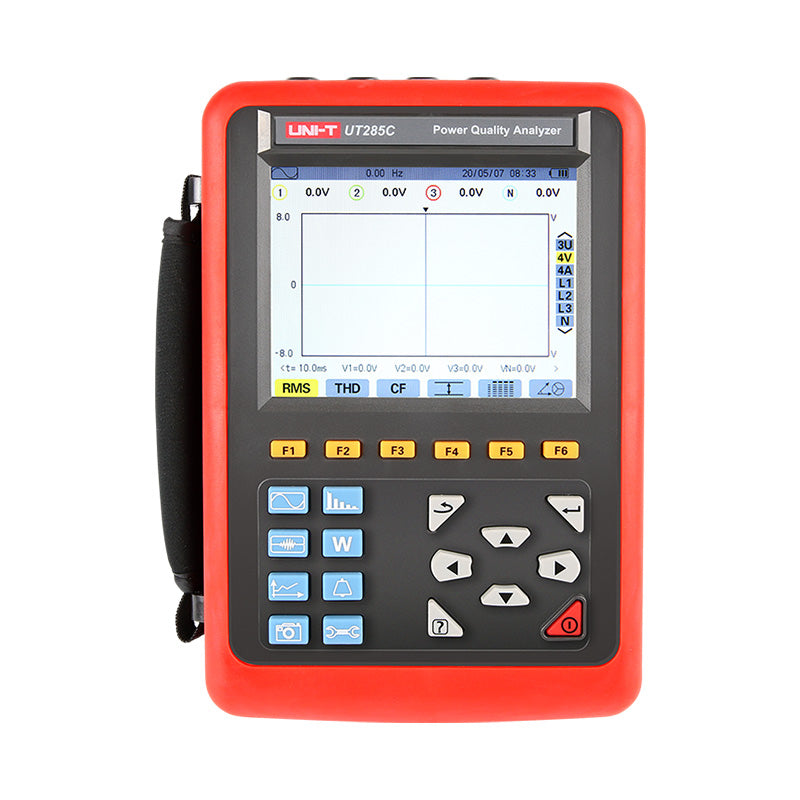

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - in a red and black handheld case with a digital screen, function keys, navigation buttons, and a power button.

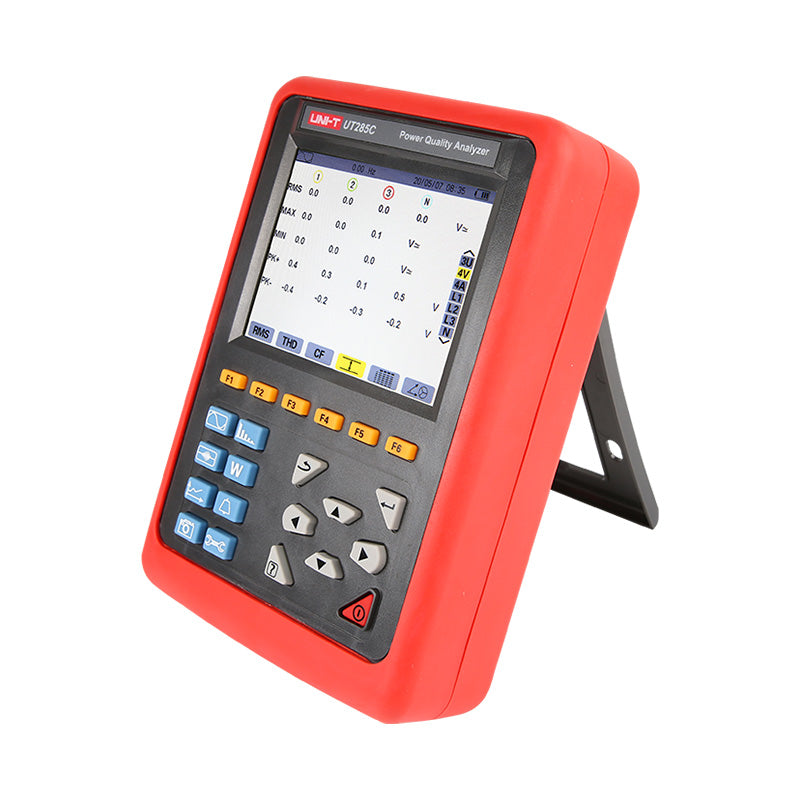

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - in a red protective casing, showing a digital display with measurement data, function keys, and navigation buttons.

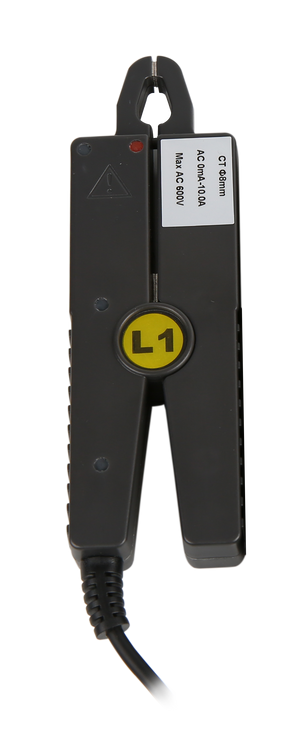

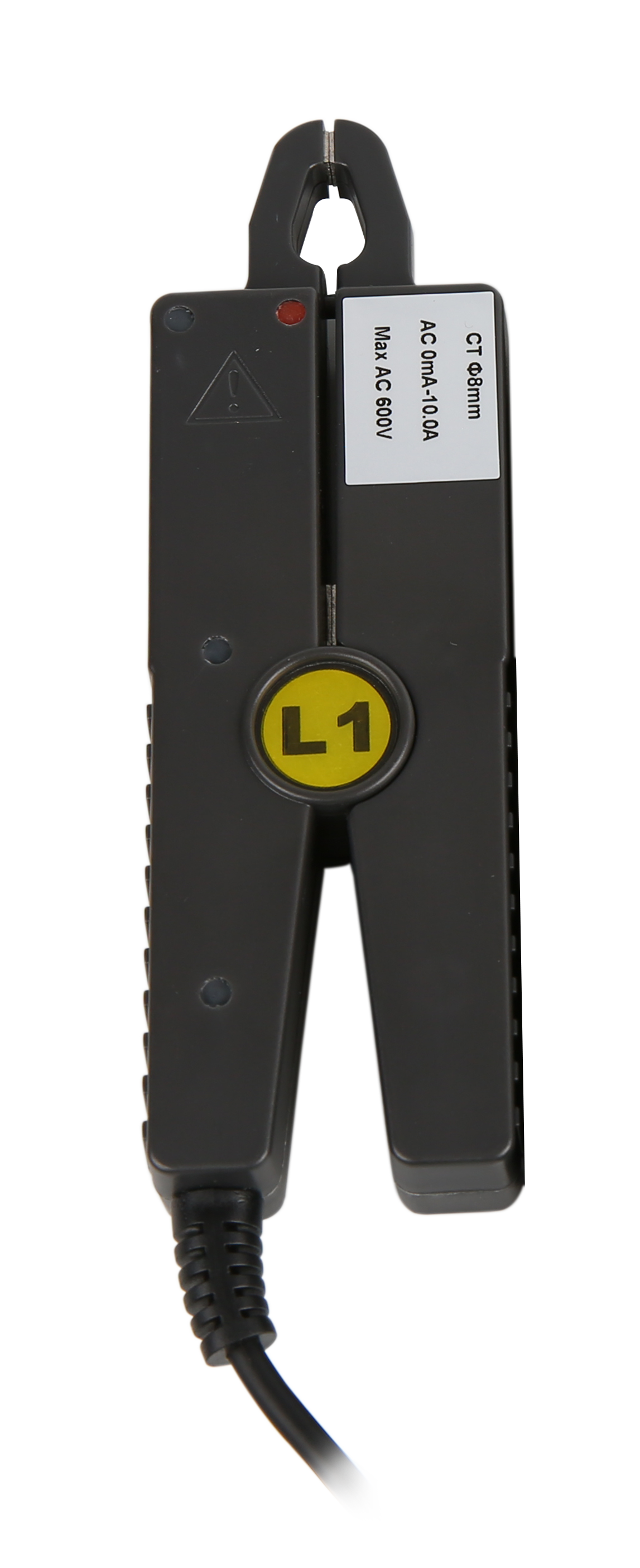

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - a black clamp-on current sensor with a yellow L1 label, a cable, and a white spec sticker.

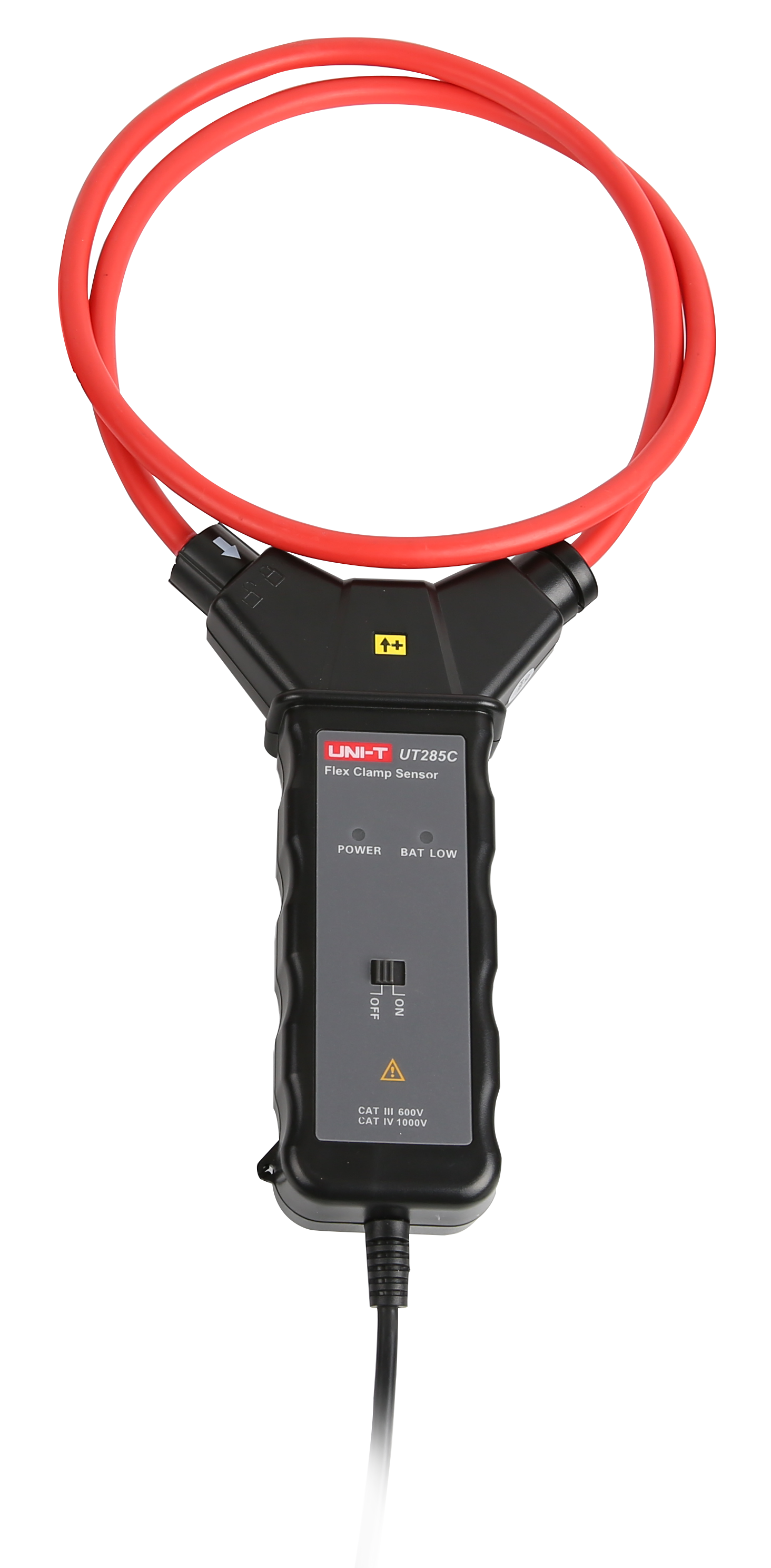

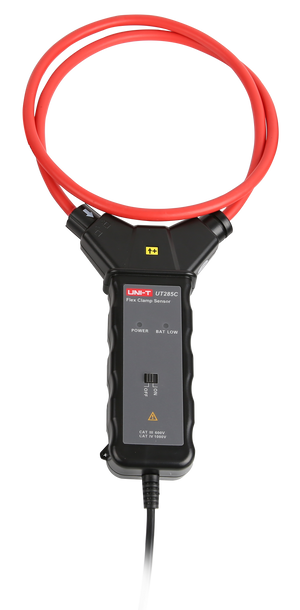

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - a black handheld device with a red flexible loop, power and battery indicators, and an on-off switch.
UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - in a red and black handheld case with a digital screen, function keys, navigation buttons, and a power button.
UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - in a red protective casing, showing a digital display with measurement data, function keys, and navigation buttons.
UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - a black clamp-on current sensor with a yellow L1 label, a cable, and a white spec sticker.
UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - a black handheld device with a red flexible loop, power and battery indicators, and an on-off switch.

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software

Sale price Rs 731,250
SKU: UT285C-5000A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - in a red and black handheld case with a digital screen, function keys, navigation buttons, and a power button.

UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software - in a red and black handheld case with a digital screen, function keys, navigation buttons, and a power button.
UNI-T UT285C Three-Phase Power Quality Analyzer (5000A Flex Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software
Sale priceRs 731,250

UNI-T UT285C (5000A flex configuration) — Professional three-phase power quality analyzer supplied with flexible current sensors for measuring very high currents (up to ~6000A) on large busbars and switchgear. Genuine UNI-T product supplied by Digilog.pk with user manual, PC software and warranty.

Key Features

  • Three-phase True RMS voltage (to 1000V L-N / 2000V L-L) & current
  • Active, reactive & apparent power — per phase and total
  • Power factor, displacement factor (COSΦ), transformer K-factor
  • Harmonics & THD to the 50th order, flicker (PST), 3-phase unbalance
  • 4-channel real-time voltage/current waveform display
  • USB interface + PC software for logging & reporting
  • Supplied with flexible current sensors (to ~5000A) for large conductors

Technical Specifications

Type Three-phase power quality analyzer
Current (this set) Flexible current sensors, ~10A ~ 5000A (300F flex)
Voltage 1.0 ~ 1000 V (L-N), 1.0 ~ 2000 V (L-L)
Power Active / reactive / apparent, per-phase & total
Harmonics THD up to 50th order
Analysis Flicker (PST), unbalance, K-factor, PF/DPF
Interface USB + PC software

What's in the Box

  • UT285C analyzer
  • Flexible current sensors (to ~5000A)
  • 5 test leads + 4 alligator clips
  • Power adapter, carry bag & English user manual

Downloads

Certifications: CE  |  HS Code: 9030.3900
