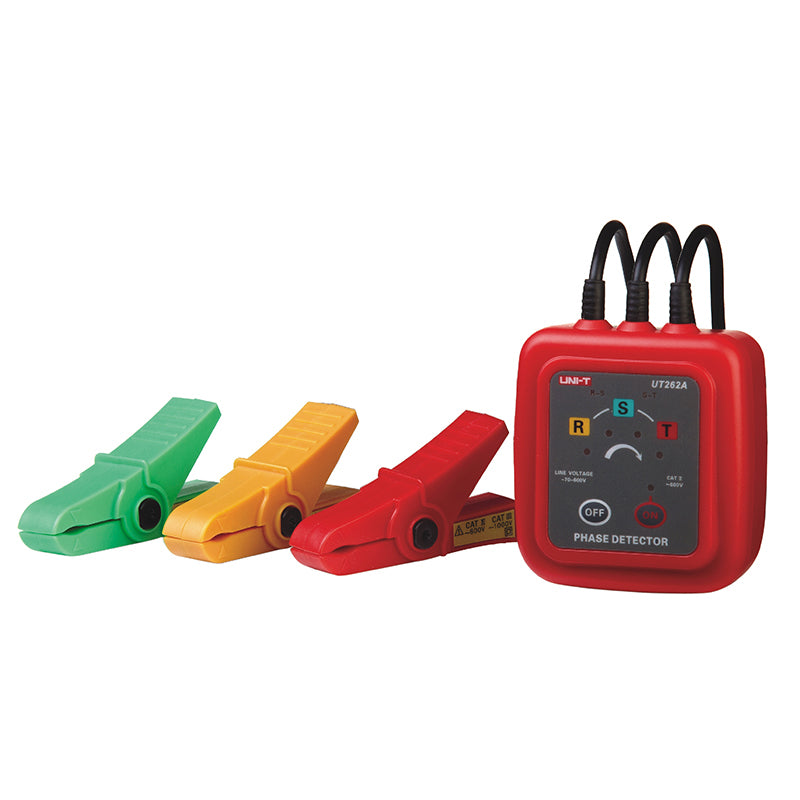

UNI-T UT262A Non-Contact Phase Sequence & Voltage Detector – 3-Phase Rotation, Missing-Phase, Live/Break Detection, AC 70~600 V
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT262A Non-Contact Phase Sequence & Voltage Detector – 3-Phase Rotation, Missing-Phase, Live/Break Detection, AC 70~600 V
The UNI-T UT262A is a non-contact phase sequence detector that checks three-phase rotation, missing phase, live power, circuit breaks and voltage presence — without exposed metal probes, so it's safer and faster for motors, drives, pumps and panel work where wrong rotation can damage equipment.
Four phase lights show positive (clockwise) or negative (anti-clockwise) rotation with distinct beeping/solid tones, and it detects missing phase, live power and circuit breaks across AC 70–600 V, 40–70 Hz. Compact, light (180 g) and battery-powered. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features
- 🔄 Non-contact 3-phase rotation — positive/negative shown by 4 phase lights + tone
- ⚠️ Missing-phase, live-power, circuit-break and voltage detection
- ⚡ Wide range AC 70 ~ 600 V, 40 ~ 70 Hz
- 🛡️ Non-contact / no exposed probes — safer, faster panel checks
- 🔊 Audible + visual indication; compact 70 × 75 × 30 mm, 180 g
- 🔋 Runs on 2× AA batteries
Technical Specifications
| Phase sequence | Positive (CW) / negative (CCW) — 4 phase lights + tone |
|---|---|
| Missing-phase detection | Yes |
| Live-power detection | Yes |
| Circuit-break detection | Yes |
| Voltage detection | Yes |
| AC voltage range | 70 V ~ 600 V |
| Frequency range | 40 Hz ~ 70 Hz |
| Power | 2 × 1.5V AA (R6) |
| Dimensions | 70 × 75 × 30 mm |
| Weight | 180 g |
What's in the Box
- UT262A non-contact phase detector
- 2 × AA batteries
- English user manual
Downloads
Certifications: CE | HS Code: 9030.33
