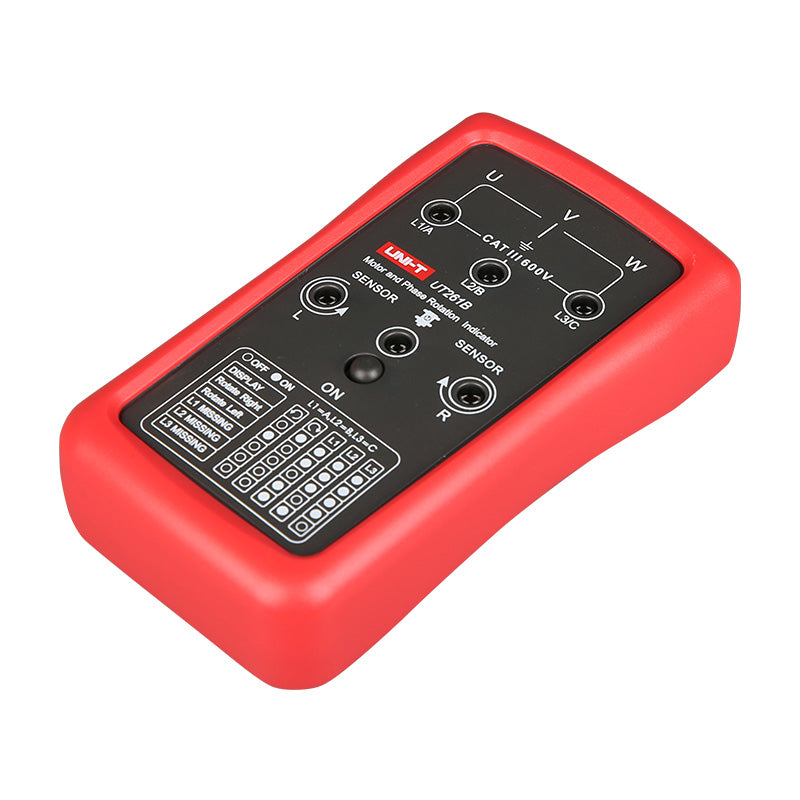

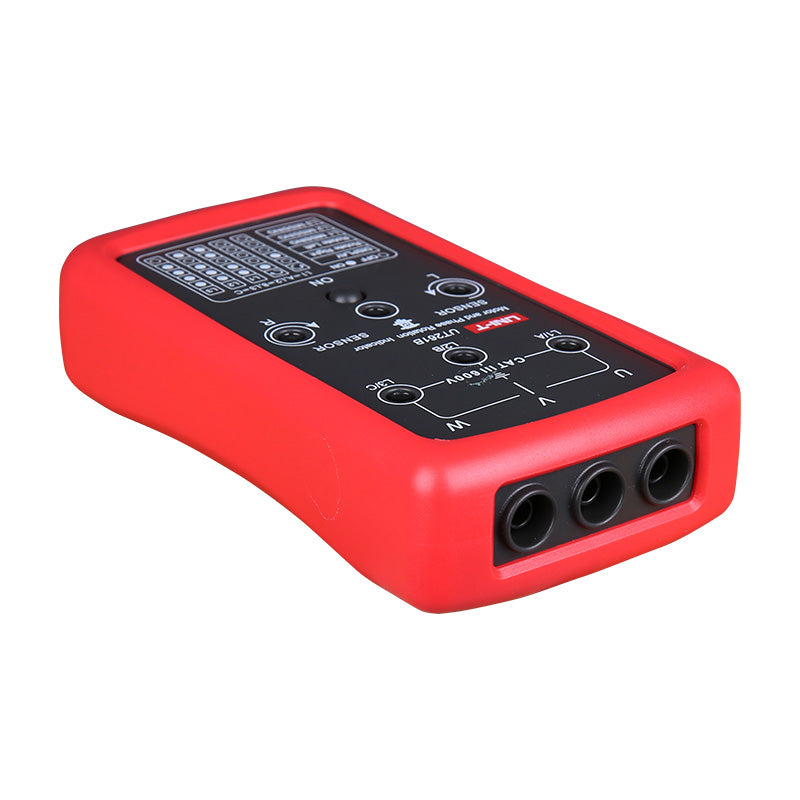

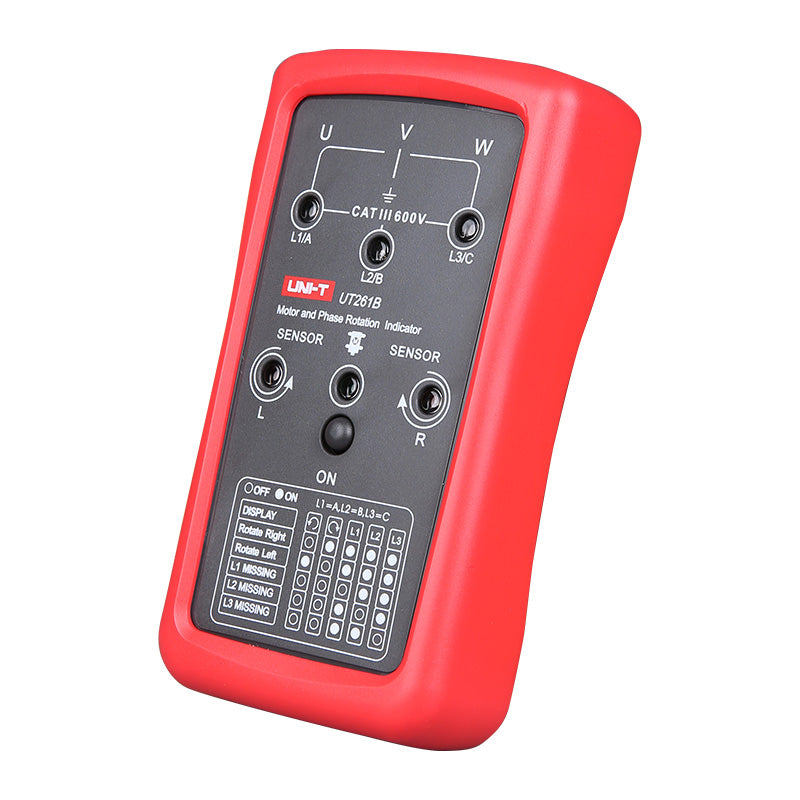

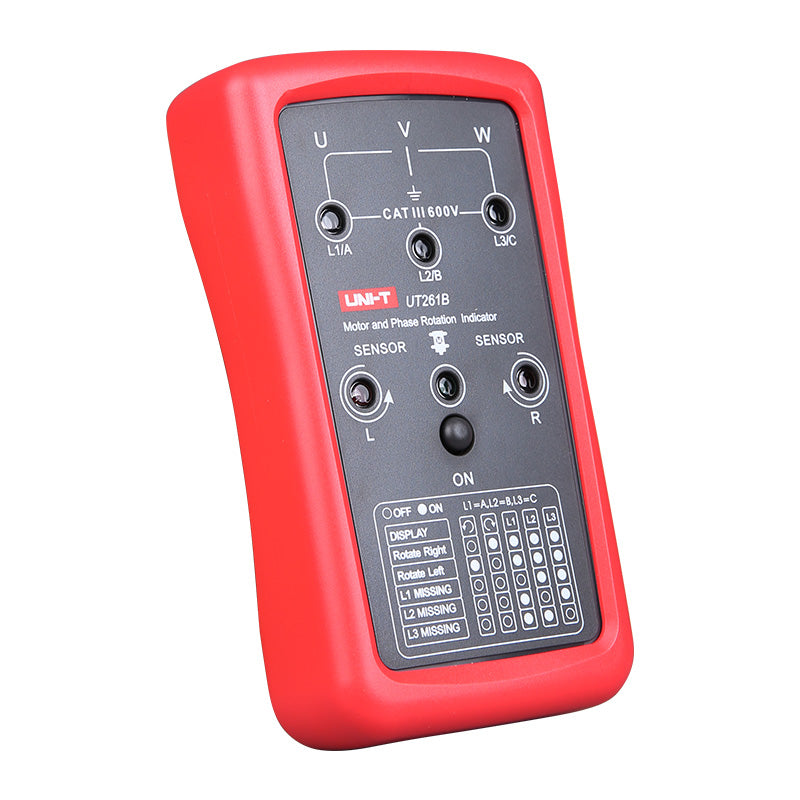

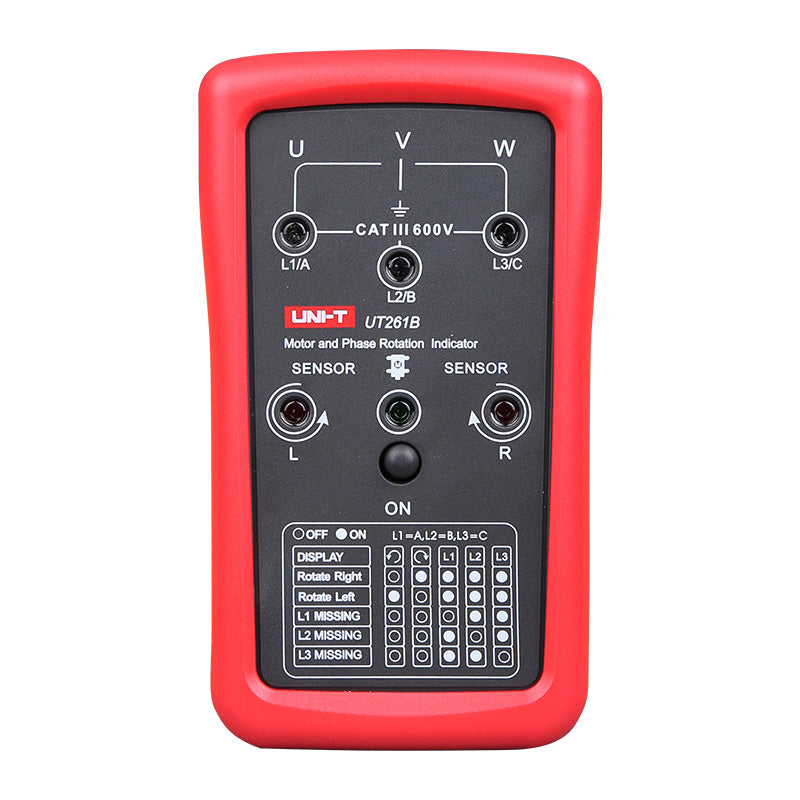

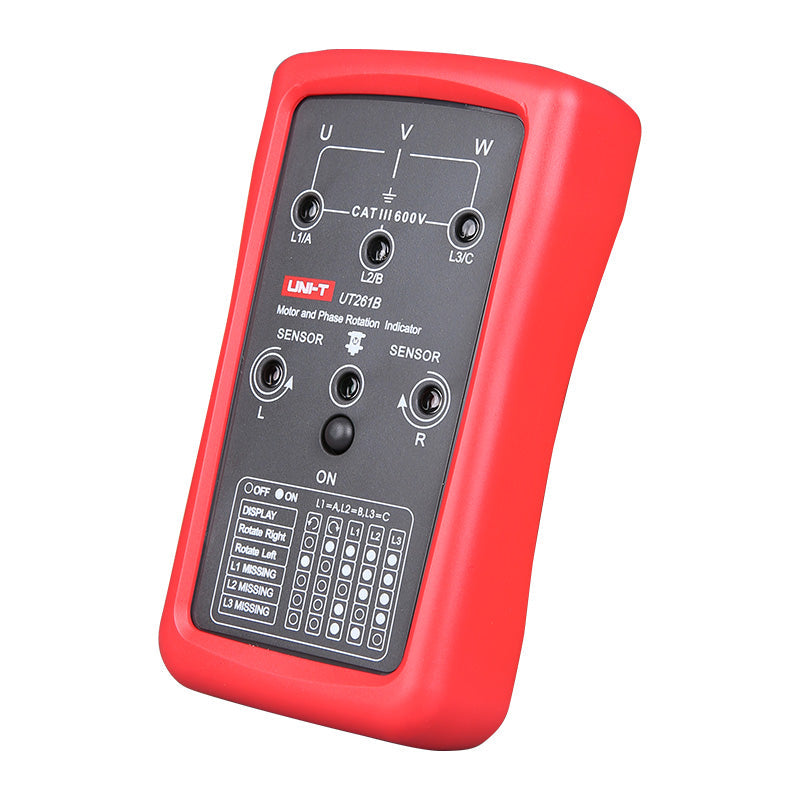

UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red handheld device featuring three top input ports, two sensor indicators, a central button, and a chart.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red, handheld motor and phase rotation indicator featuring three top input ports, two sensor indicators, and a lower status display grid.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red handheld device with three top input ports, two sensor ports, and a status indicator chart.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red, rectangular handheld device featuring three top input ports, two sensor ports, and a front LED display.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - & Motor Rotation Indicator in a red protective rubber case, showing the top panel with buttons, ports, and labels.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red handheld device featuring three top input ports, two sensor indicators, a central button, and a chart.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red, handheld motor and phase rotation indicator featuring three top input ports, two sensor indicators, and a lower status display grid.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red handheld device with three top input ports, two sensor ports, and a status indicator chart.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red, rectangular handheld device featuring three top input ports, two sensor ports, and a front LED display.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - & Motor Rotation Indicator in a red protective rubber case, showing the top panel with buttons, ports, and labels.

UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V

Sale price Rs 13,500
SKU: UT261B
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red handheld device featuring three top input ports, two sensor indicators, a central button, and a chart.

UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V - a red handheld device featuring three top input ports, two sensor indicators, a central button, and a chart.
UNI-T UT261B Phase Sequence & Motor Rotation Indicator – 3-Phase Sequence, Missing-Phase & Motor Rotation Direction, 90–600V, 15–400Hz, 2m Drop-Proof, CAT III 600V
Sale priceRs 13,500

UNI-T UT261B — Non-contact 3-phase sequence and motor rotation indicator with clear LED indication — verify phase order and motor direction quickly and safely. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • Determines 3-phase sequence & missing-phase
  • Motor rotation direction indication
  • LED indicators for fast, clear reading
  • Wide range 90 ~ 600V, 15 ~ 400Hz
  • 2-metre drop-proof, IP40
  • CAT III 600V safety

Technical Specifications

Type Phase sequence & motor rotation indicator (LED)
Voltage Range 90 ~ 600 V AC
Frequency 15 ~ 400 Hz
Working Current < 3 mA
Functions Phase sequence, missing phase, motor rotation
Drop Test 2 m
Protection IP40
Power 9V (6F22) battery
Safety CAT III 600V

What's in the Box

  • UT261B phase/rotation indicator
  • 3 test leads with alligator clips
  • 9V battery
  • Carrying bag & English user manual

Downloads

Certifications: CAT III 600V, IP40, CE  |  HS Code: 9030.3300
