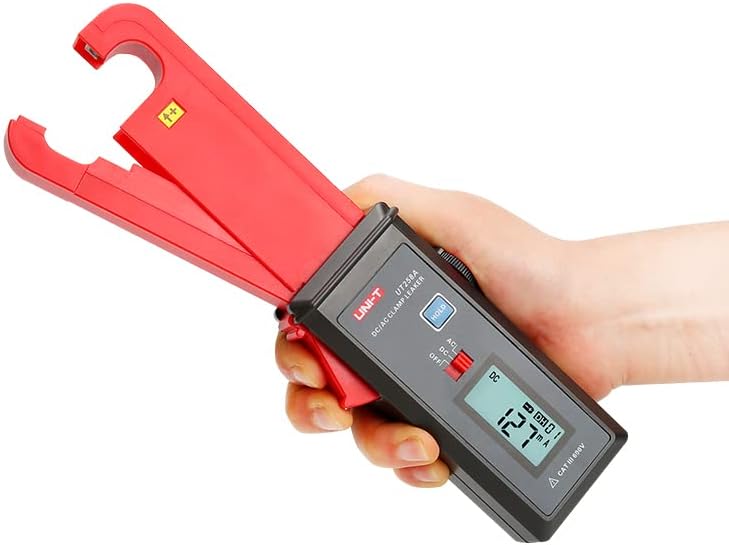

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - with a red jaw, black body, side trigger, mode switch, hold button, and a screen displaying 12.7mA.

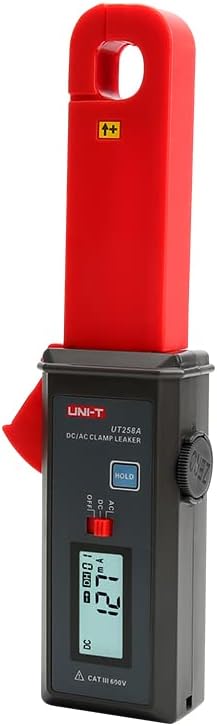

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - a red and black handheld device with a jaw, a mode switch, a hold button, and a digital display showing 127mA DC.

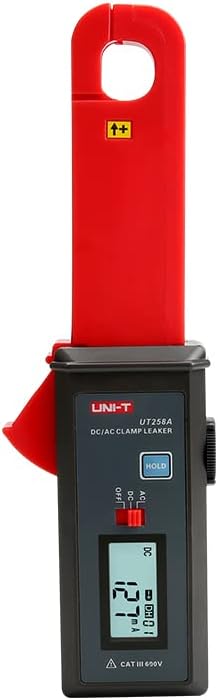

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - a black and red handheld meter with a digital display showing 127mA, a hold button, and a mode selection switch.

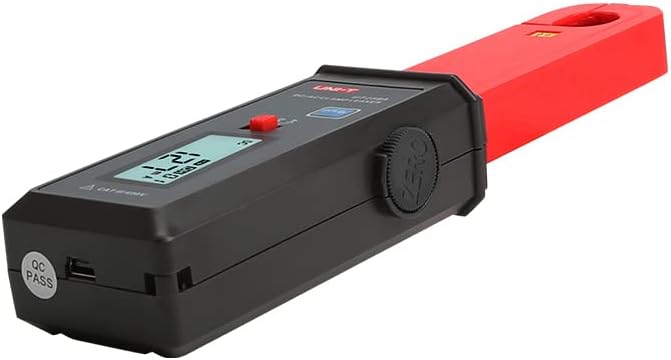

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - a black handle with a red jaw, a digital display reading 1.21, a zero knob, and a side port.

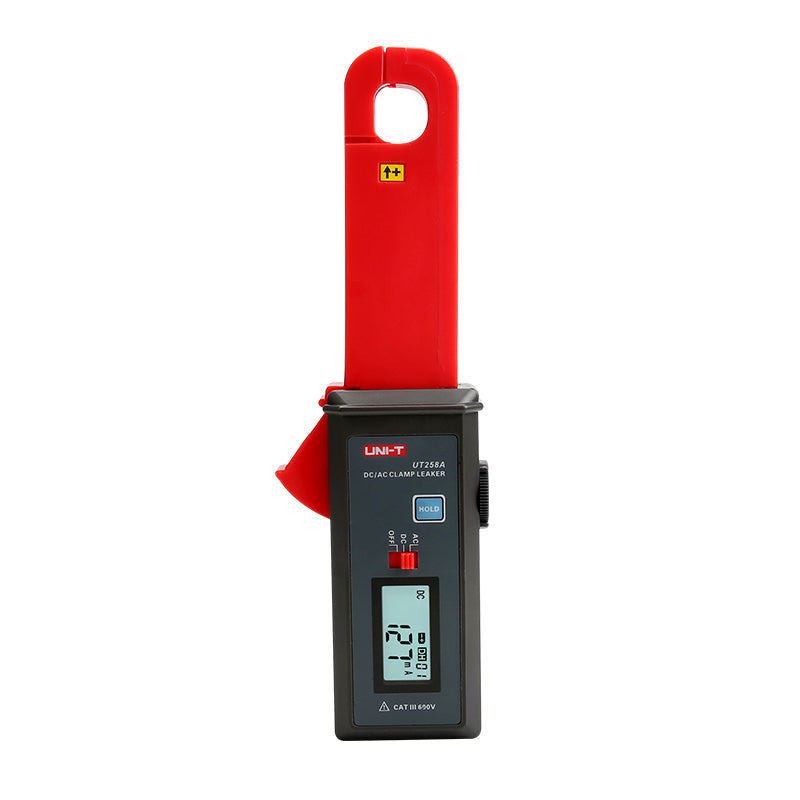

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - the red jaw, black body, mode switch, hold button, and screen reading 127mA DC.
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - with a red jaw, black body, side trigger, mode switch, hold button, and a screen displaying 12.7mA.
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - a red and black handheld device with a jaw, a mode switch, a hold button, and a digital display showing 127mA DC.
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - a black and red handheld meter with a digital display showing 127mA, a hold button, and a mode selection switch.
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - a black handle with a red jaw, a digital display reading 1.21, a zero knob, and a side port.
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - the red jaw, black body, mode switch, hold button, and screen reading 127mA DC.

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment

Sale price Rs 31,250
SKU: UT258A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - with a red jaw, black body, side trigger, mode switch, hold button, and a screen displaying 12.7mA.

UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment - with a red jaw, black body, side trigger, mode switch, hold button, and a screen displaying 12.7mA.
UNI-T UT258A AC/DC Leakage Current Clamp Meter – 0–60A, 1mA Resolution, 7mm Jaw, 10000-Count, RS-232, Zero Adjustment
Sale priceRs 31,250

The UNI-T UT258A is a precision AC/DC leakage current clamp meter built for measuring small leakage and load currents down to the milliamp — essential for insulation fault-finding, RCD/earth-leakage diagnosis and equipment safety testing. Its narrow φ7 mm jaw and 10000-count display resolve currents from 0 mA up to 60 A.

A zero-adjustment function removes residual magnetism for stable low-current readings, and the RS-232 interface with 99-group storage lets you log results to a PC. Genuine UNI-T product supplied by Digilog.pk with warranty — a specialist tool for electrical maintenance, panel and safety-compliance work.

Key Features

  • Measures AC & DC leakage current 0–60 A with 1 mA resolution
  • Narrow φ7 mm jaw for tight cable access; 10000-count display
  • Zero adjustment removes residual magnetism for stable low-current readings
  • RS-232 data transmission with 99-group internal storage and data hold
  • Auto range, auto power-off (5 min) and low-battery indication
  • Rated CAT III 600 V for safe on-line measurement

Technical Specifications

Current 0 mA – 60.0 A AC/DC, ±(2%+5)
Resolution 1 mA
Frequency response AC 45 Hz – 200 Hz
Display 4-digit LCD, 10000 count
Jaw size φ7 mm (max wire O.D.)
Data transmission RS-232
Data storage 99 groups
Line voltage ≤ 600 V
Auto power off 5 min
Safety rating CAT III 600V
Power 9 V battery (6F22)
Weight 180 g
Dimensions 168 × 65 × 34 mm
Colour Red and grey

What's in the Box

  • UT258A leakage clamp meter
  • Monitoring software
  • RS-232 cable
  • Batteries
  • Tool box
  • English user manual

Downloads

Certifications: CE | HS Code: 9030.33
