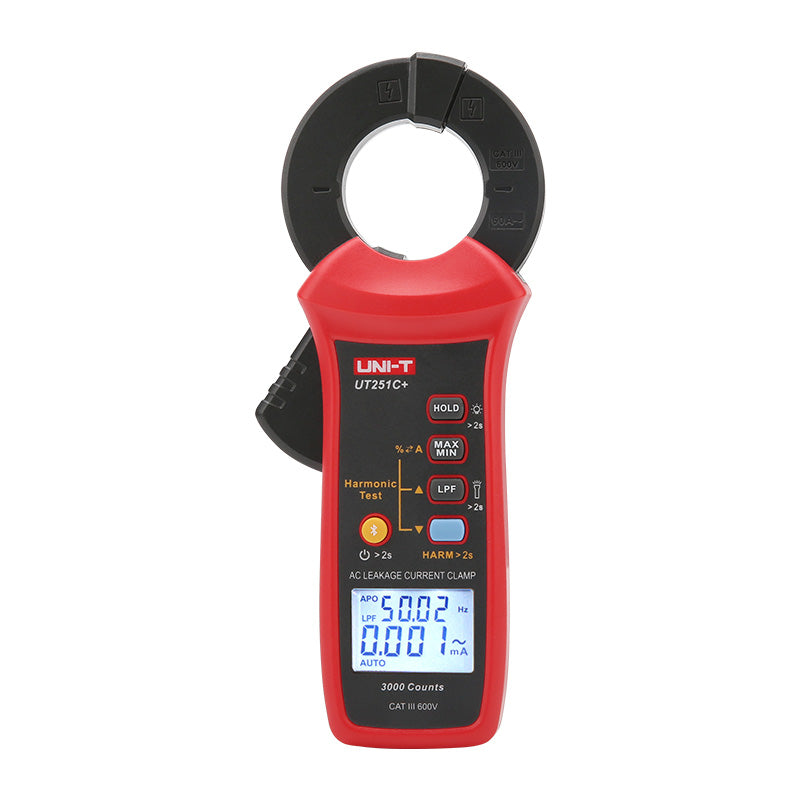

UNI-T UT251C+ AC leakage current clamp meter front view

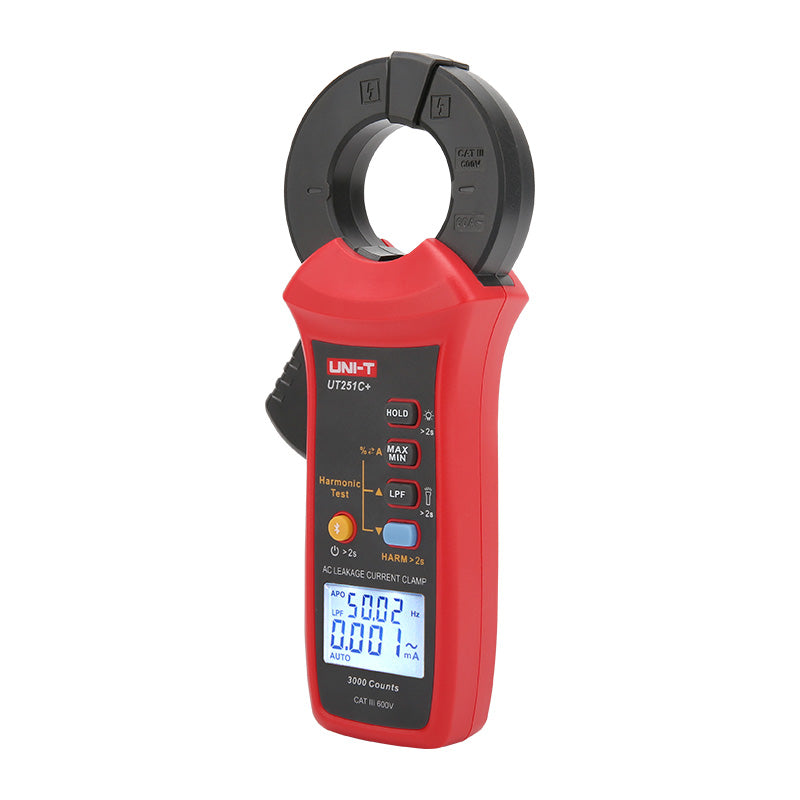

UNI-T UT251C+ leakage current clamp meter angled view

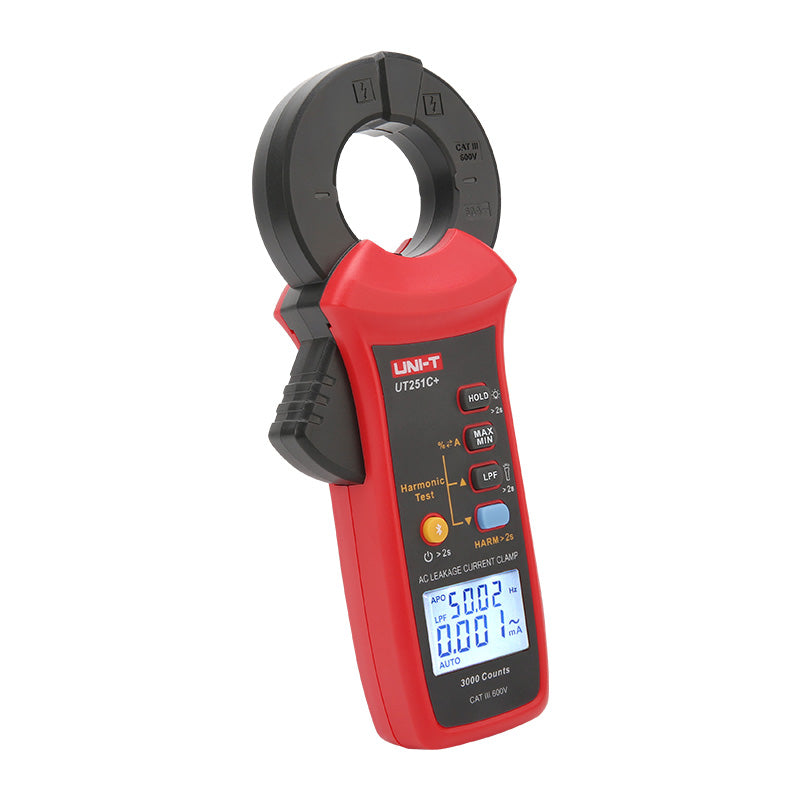

UNI-T UT251C+ leakage clamp meter 40mm jaw

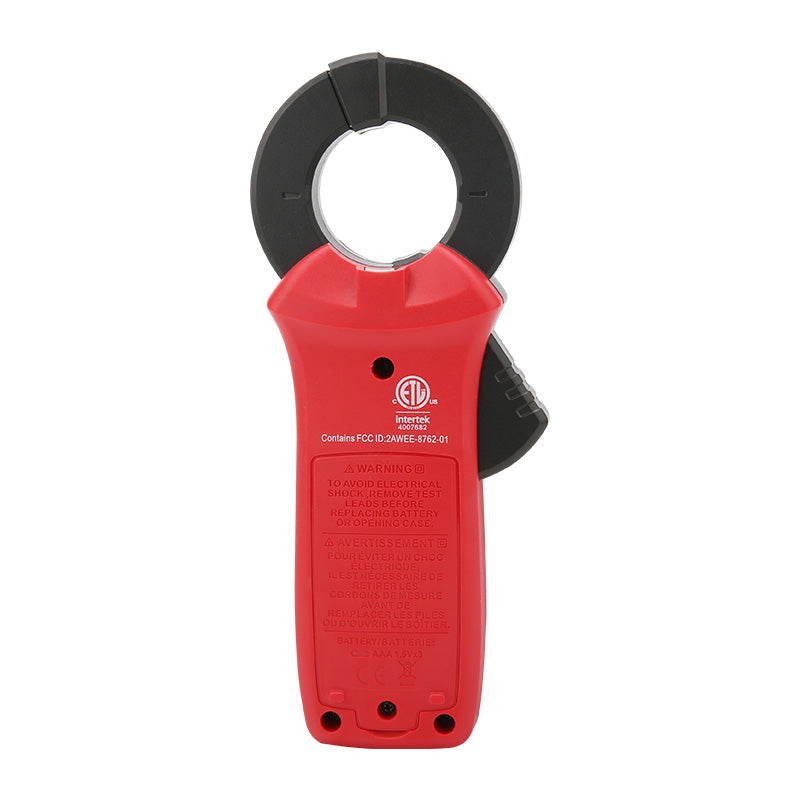

UNI-T UT251C+ leakage clamp meter side view

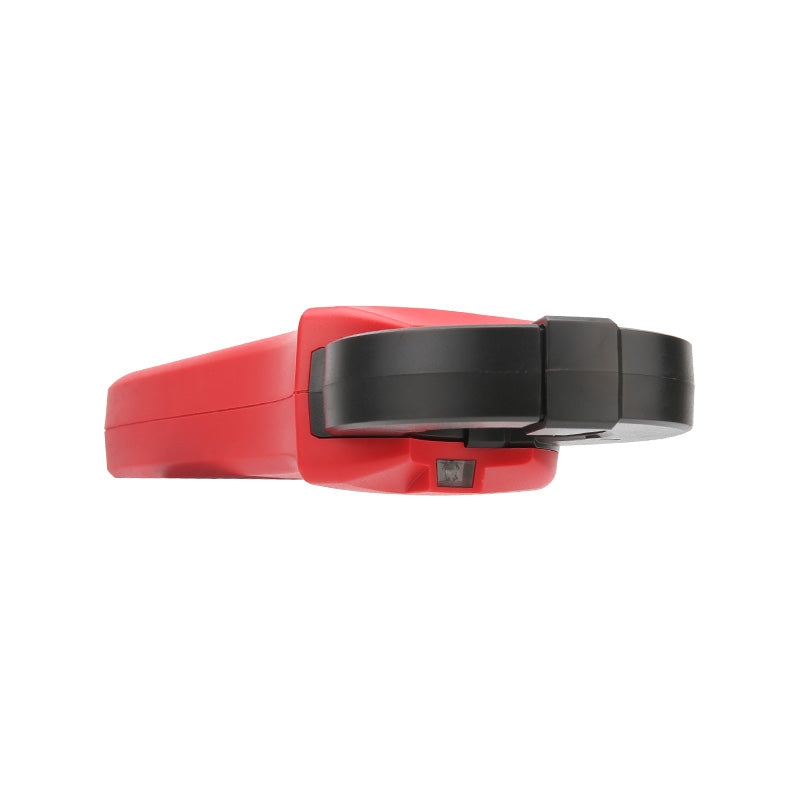

UNI-T UT251C+ leakage clamp meter top view

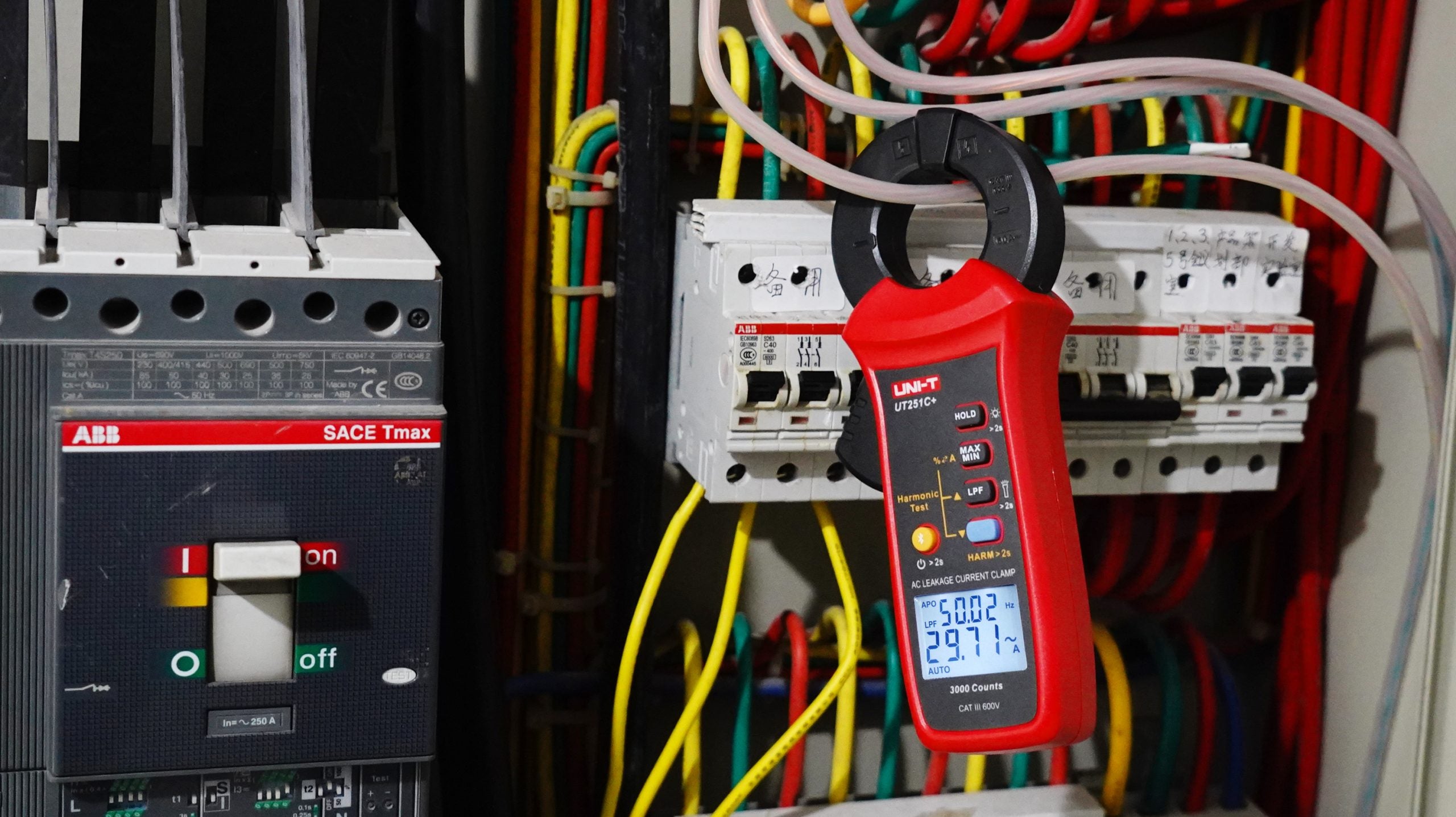

UNI-T UT251C+ AC leakage current clamp meter in field application

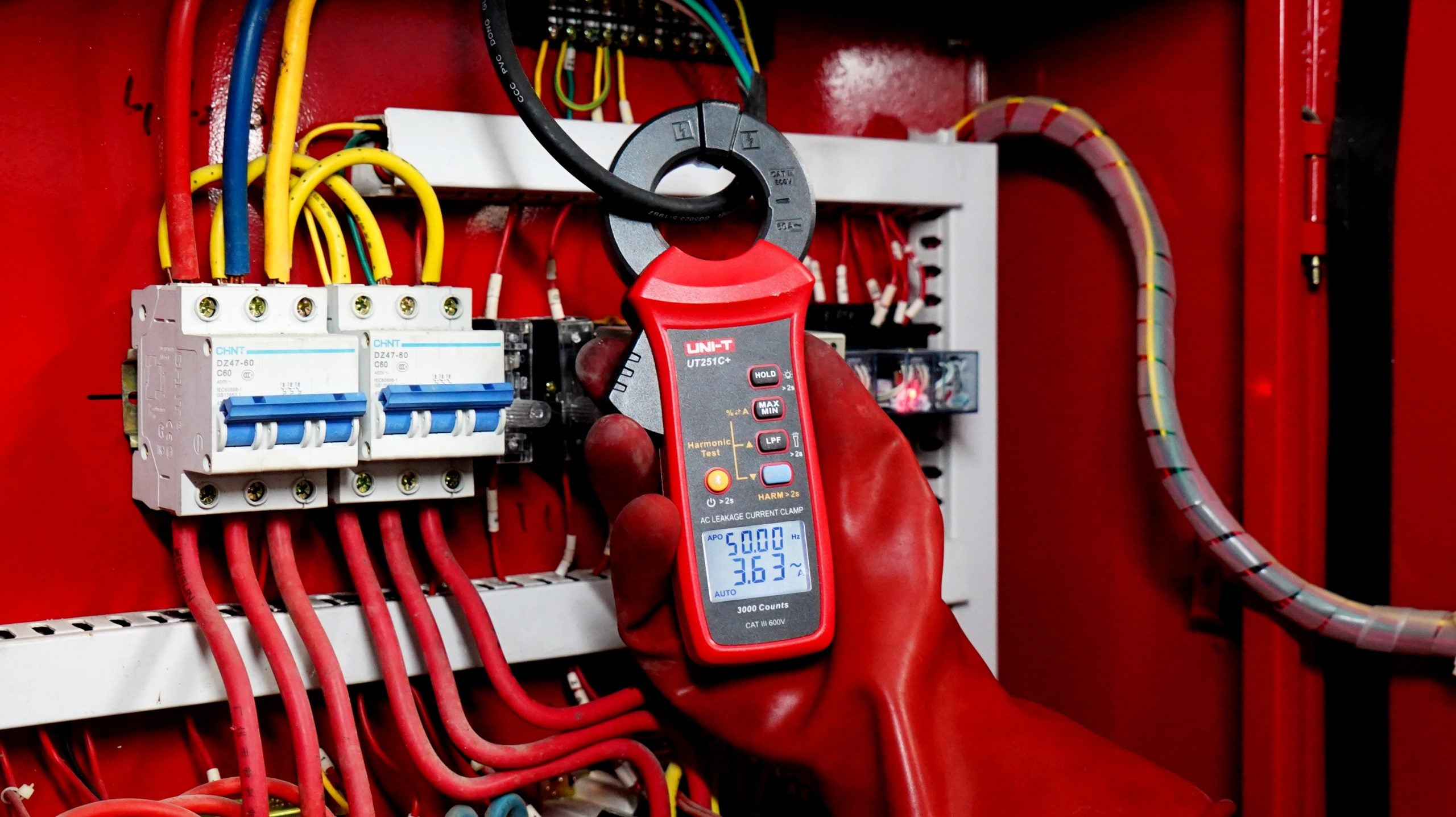

UNI-T UT251C+ leakage clamp meter measuring cable bundle

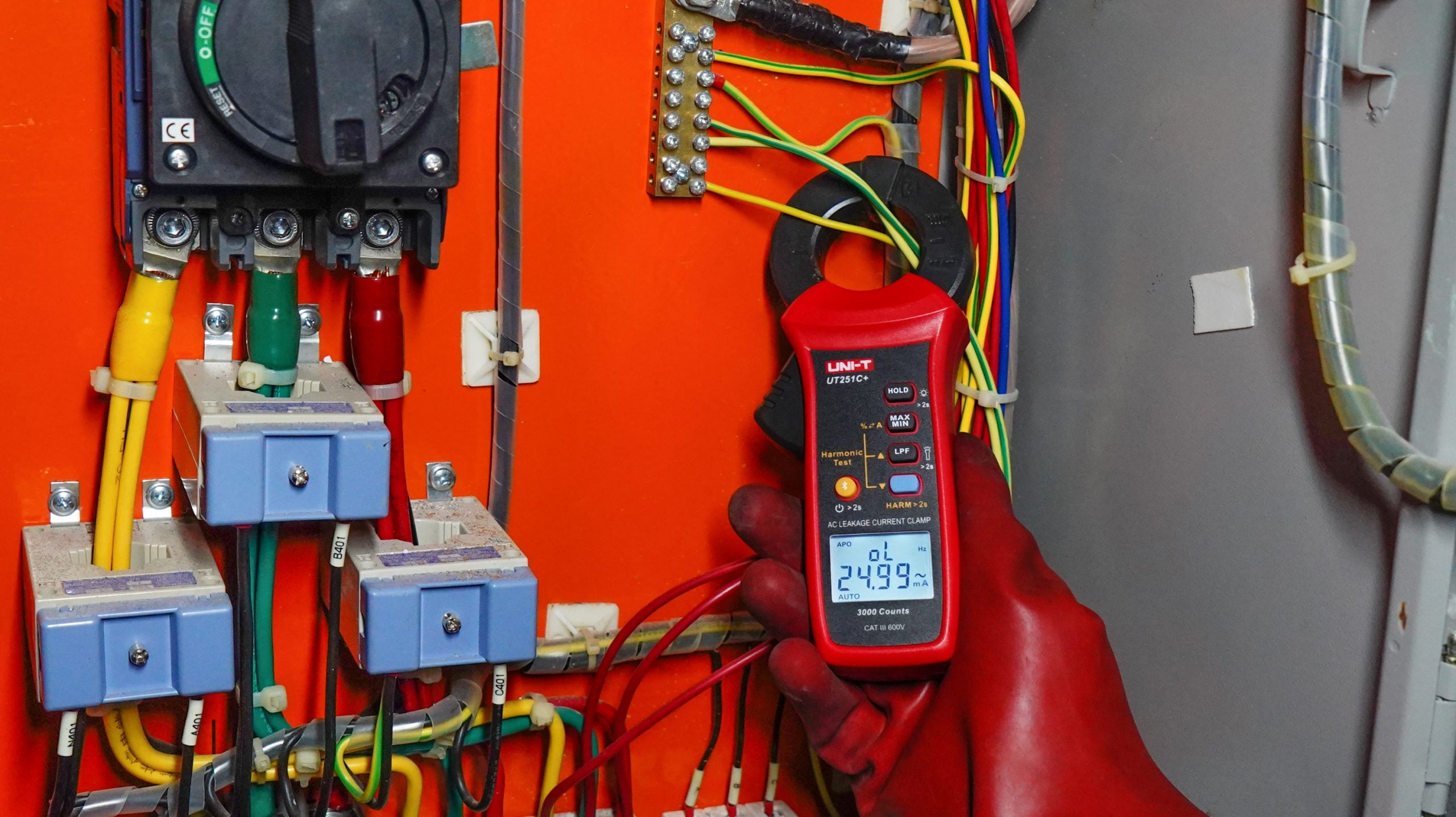

UNI-T UT251C+ leakage clamp meter clamped on conductor

UNI-T UT251C+ AC Leakage Current Clamp Meter – 1µA Resolution, 3mA to 60A, 40mm Jaw, Harmonic Test, LPF, Bluetooth, Dual Display, CAT III 600V

Sale price Rs 34,400
SKU: UT251C+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT251C+ AC leakage current clamp meter front view

UNI-T UT251C+ AC Leakage Current Clamp Meter – 1µA Resolution, 3mA to 60A, 40mm Jaw, Harmonic Test, LPF, Bluetooth, Dual Display, CAT III 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT251C+ AC leakage current clamp meter front view
UNI-T UT251C+ AC Leakage Current Clamp Meter – 1µA Resolution, 3mA to 60A, 40mm Jaw, Harmonic Test, LPF, Bluetooth, Dual Display, CAT III 600V
Sale priceRs 34,400

UNI-T UT251C+ — high-accuracy, high-sensitivity AC leakage current clamp meter built for tracing earth leakage down to 1 µA resolution and up to 60 A. The large 40 mm jaw clamps around cable bundles, while strong anti-interference design and a low-pass filter (LPF) hold the reading stable near noisy loads. Adds harmonic testing, dual display and Bluetooth logging — ideal for checking leakage on motors, home appliances and electrical equipment. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • AC leakage current 3.000 mA – 60.0 A across six ranges
  • 1 µA high resolution on the 3 mA range, ±(2%+5)
  • Large jaw — measurable conductor diameter up to 40 mm
  • Strong anti-interference design for stable readings; LPF low-pass filter
  • Frequency measurement to 5 kHz; frequency response 45 Hz–1.2 kHz
  • Harmonic test; PEAK hold; MAX/MIN; auto range; data hold
  • Bluetooth data transmission; HTN dual display with backlight and flashlight
  • CAT III 600V safety rating

Technical Specifications

Current range 3.000 mA / 30.00 mA / 300.0 mA / 3.000 A / 30.00 A / 60.0 A
Current resolution 1 µA (3 mA range)
Current accuracy ±(2%+5) on 3 mA; ±(1%+5) on 30 mA–60 A
Frequency 99.99 Hz / 999.9 Hz / 5.000 kHz, ±(0.1%+5)
Frequency response 45 Hz–1.2 kHz
Jaw size Measurable diameter 40 mm
Display HTN LCD, dual display
Sample rate 2 times/s
Data transmission Bluetooth
Auto range / MAX-MIN / PEAK hold / data hold Yes
LPF function Yes
Harmonic test Yes
Backlight / flashlight Yes
Power supply 3 × AAA 1.5 V
Product dimensions 200 × 84 × 40 mm
Product colour Grey + red
CAT rating CAT III 600V

What's in the Box

  • UT251C+ AC leakage current clamp meter
  • Batteries
  • English user manual

Downloads

Certifications: CE, ETL, RED, FCC | HS Code: 9030.33
