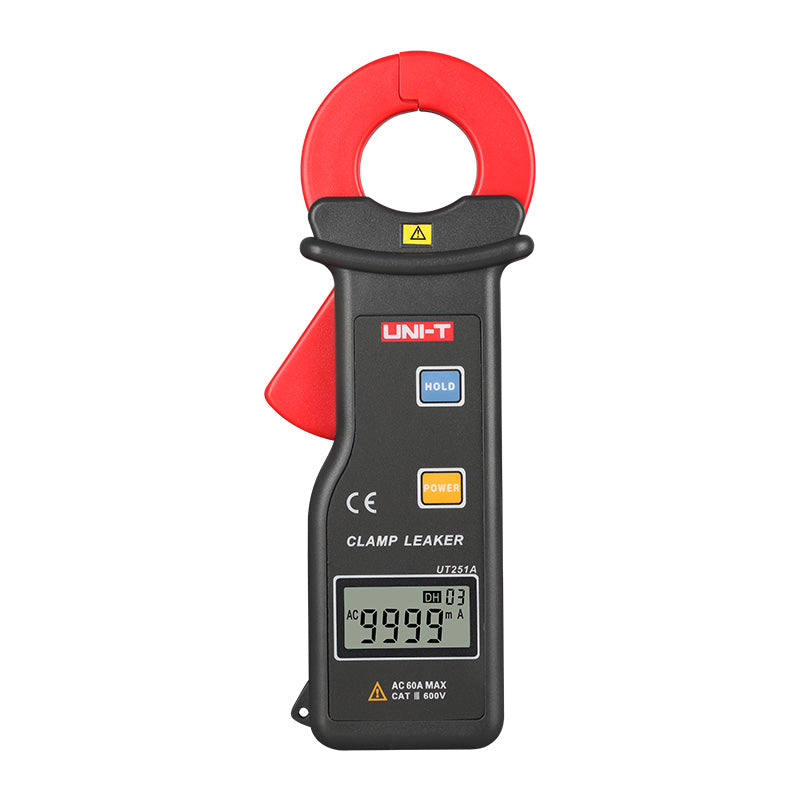

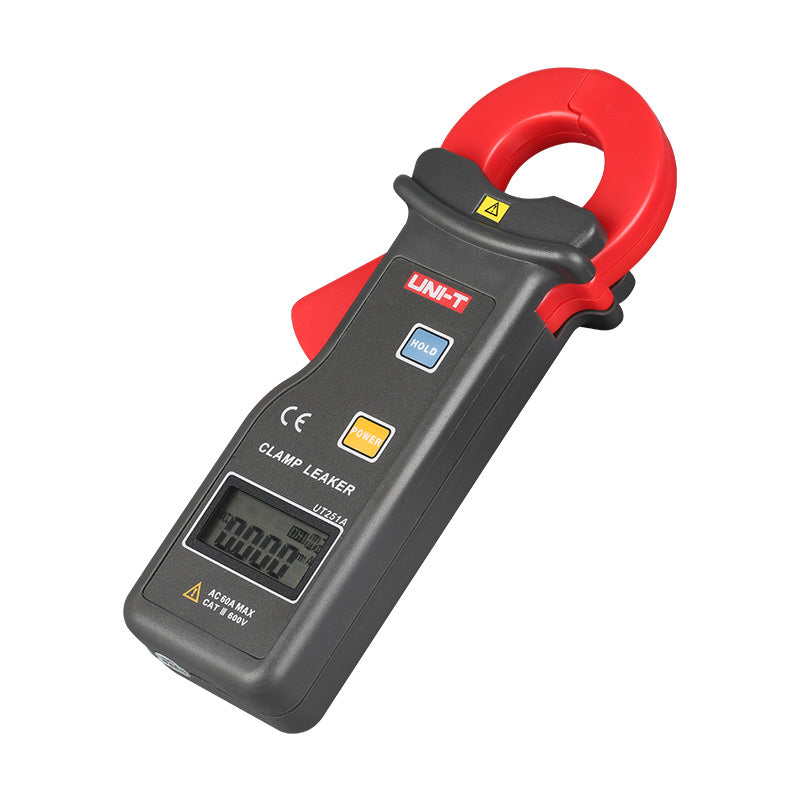

UNI-T UT251A High-Sensitivity AC Leakage Current Clamp Meter – 0.001mA to 600A, 1µA Resolution, 10000 Count, 0–600V, 25×30mm Jaw, 99-Set Memory, CAT III 600V
UNI-T UT251A — High-sensitivity AC leakage current clamp meter resolving down to 1µA — the tool for tracing insulation leakage and earth-fault currents. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- Leakage current 0.001mA ~ 600A with 1µA resolution
- 10000-count 4-digit LCD
- AC voltage 0 ~ 600V (50/60Hz)
- 25 × 30mm jaw; 99-set data memory
- Ideal for insulation-leakage & earth-fault diagnostics
- CAT III 600V safety
Technical Specifications
| Type | High-sensitivity AC leakage current clamp meter (10000 count) |
|---|---|
| Leakage Current | 0.001 mA ~ 600 A (1µA resolution) |
| Accuracy | ±(1.5%+5) at 0.001–60mA |
| AC Voltage | 0 ~ 600 V (50/60Hz) |

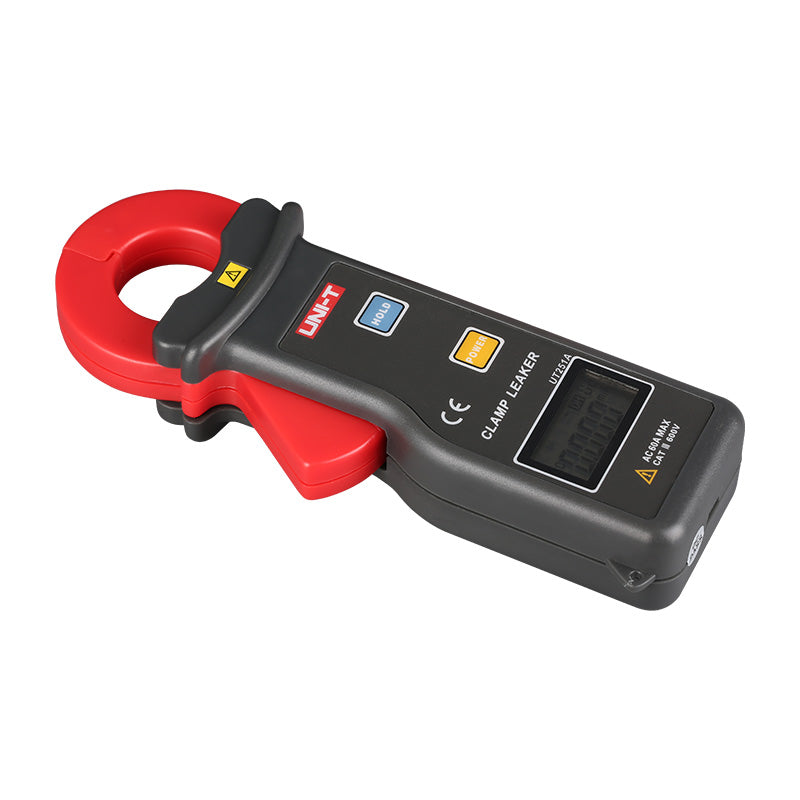

| Jaw Size | 25 × 30 mm |
| Memory | 99 sets |
| Dimensions | 175 × 70 × 38 mm |
| Safety | CAT III 600V |
What's in the Box
- UT251A leakage clamp meter
- 9V battery
- Carrying bag & English user manual
Downloads
Certifications: CAT III 600V, CE | HS Code: 9030.3300
