UNI-T UT219P AC Digital Power Clamp Meter – 1000A AC, 1000V, 3-Phase Power up to 3000kW, Harmonics/THD, Power Factor, Phase Sequence, True RMS, Bluetooth 5.0, 75mm Jaw, IP54, CAT IV 600V

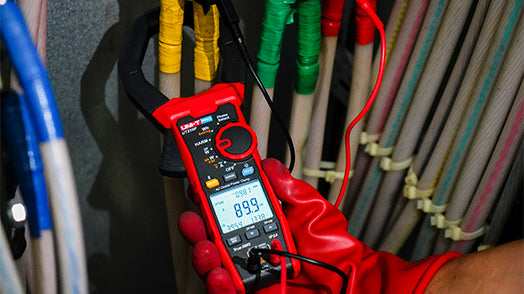

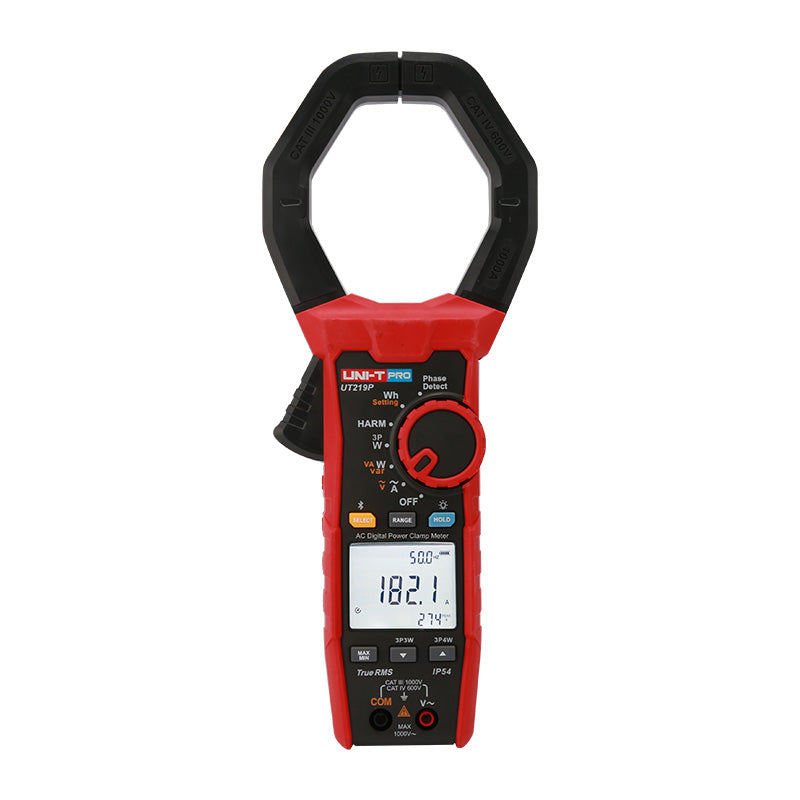

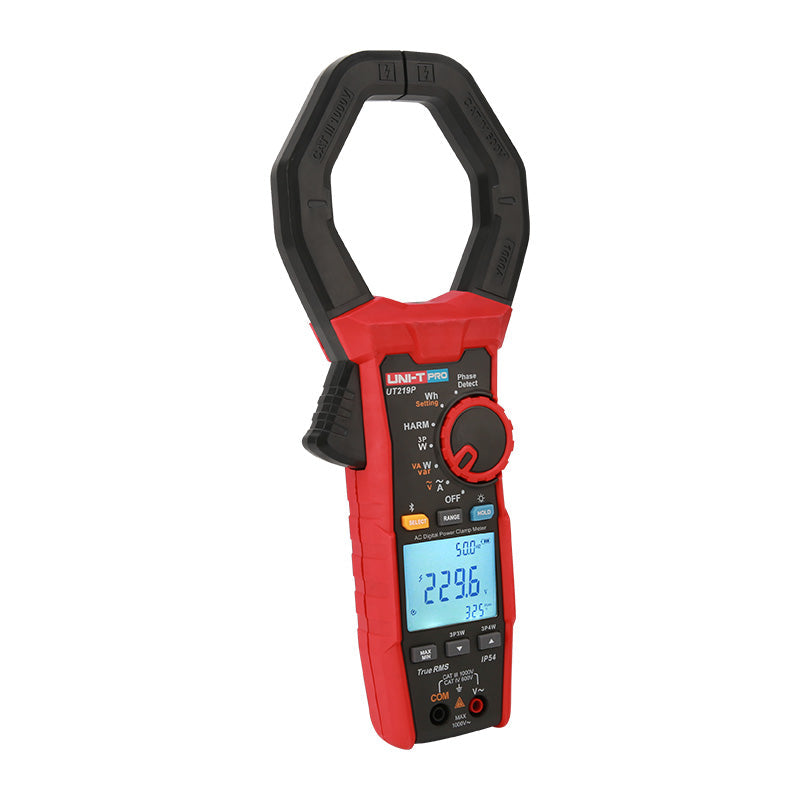

UNI-T UT219P — professional AC digital power clamp meter combining a digital ammeter and a power meter in one handheld tool. Measures single-phase and 3-phase power up to 3000 kW, harmonics to the 32nd order with THD, power factor, phase angle and phase sequence, plus 3-phase unbalanced voltage. True RMS, Bluetooth 5.0 app logging, a large 75 mm jaw, IP54 sealing and a CAT III 1000V / CAT IV 600V safety rating make it suited to switchgear, distribution boards and energy audits. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- 1000 A AC current and 1000 V AC voltage measurement

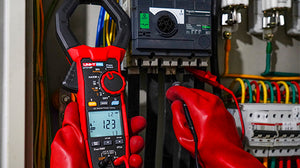

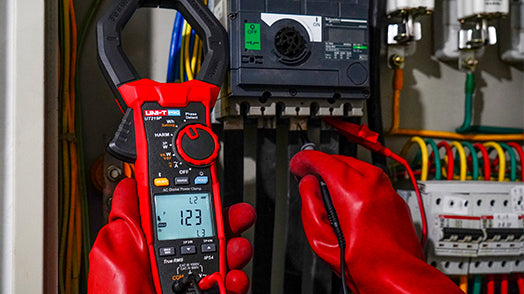

- Three-phase power measurement up to 3000 kW (3-phase 3-wire 1732 kW / 3-phase 4-wire 3000 kW); single-phase to 1000 kW
- Harmonics to the 32nd order, THD, power factor and phase-sequence measurement
- AC and DC PEAK measurement; phase detection 80 V–1000 V, positive and negative
- True RMS; 9999-count LCD showing 4 results simultaneously
- Bluetooth 5.0 app connectivity; data hold; MAX/MIN; auto power off (~15 min)

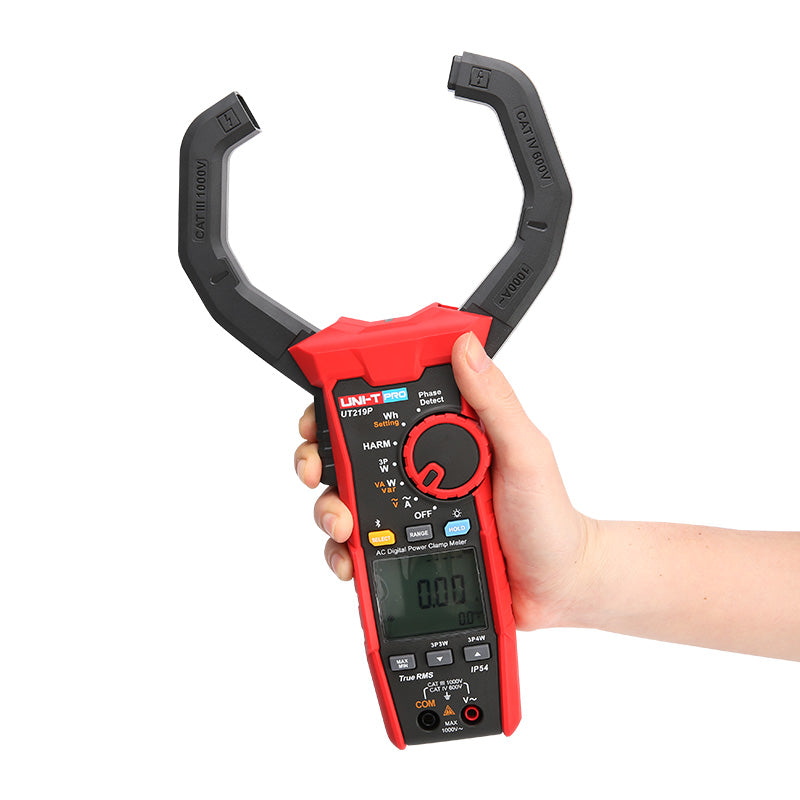

- Large 75 mm jaw opening; high-voltage indication and overload warning
- IP54 rated; CAT III 1000V / CAT IV 600V
Technical Specifications
| AC current | 1000 A, ±(1.5%+3) |
|---|---|
| AC voltage | 1000 V, ±(0.7%+3) |
| Power (single phase) | 1000 kW, ±(1.7%+5) |
| Power (3-phase, 3-wire) | 1732 kW, ±(1.7%+5) |
| Power (3-phase, 4-wire) | 3000 kW, ±(1.7%+5) |
| Power frequency | 15 Hz–1000 Hz, ±(0.3%+3) |
| Phase angle | -180°–179.9°; ±3° (40–70 Hz), ±5° (15–40 Hz and 70–1000 Hz) |
| Power factor | -1 to 1 |
| Harmonic measurement | 32 times (32nd order) |
| Phase detection | 80 V–1000 V, positive and negative |

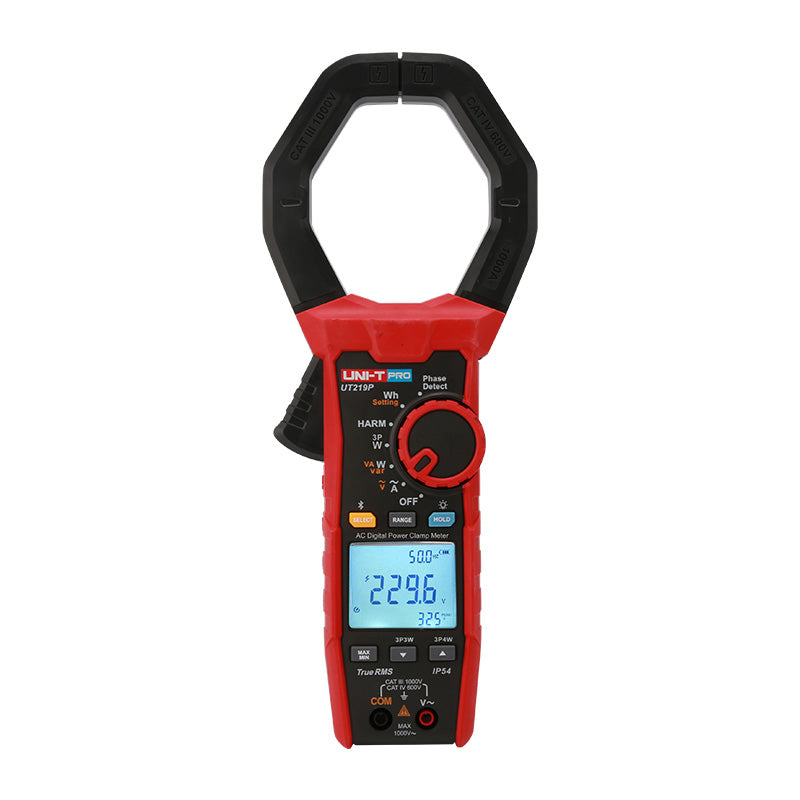

| Jaw opening | 75 mm |

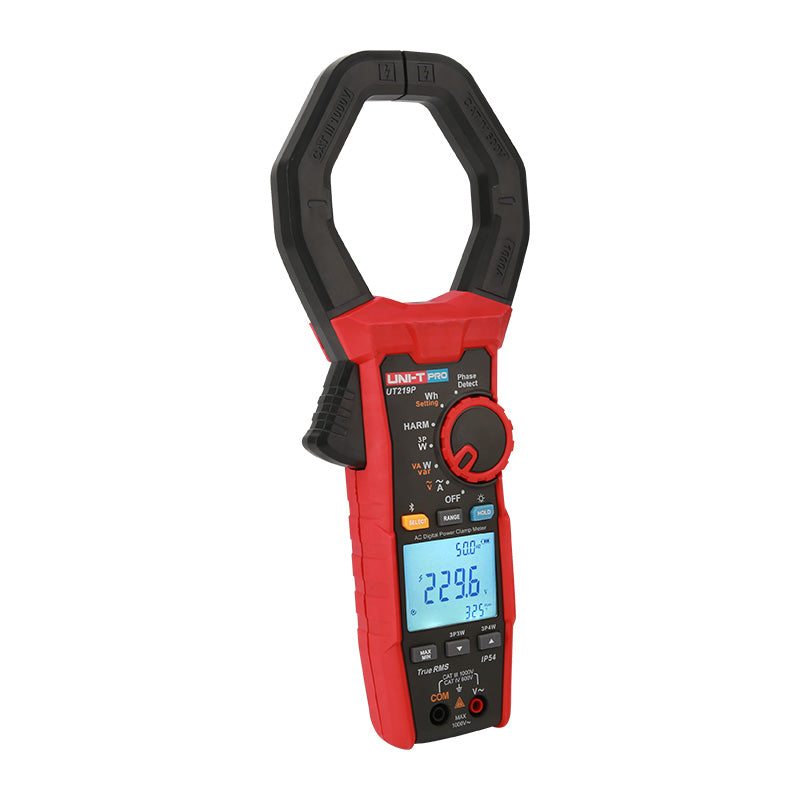

| Display | LCD, 9999 counts, 4 results simultaneously |
| Bluetooth app | Yes |
| True RMS | Yes |
| Ingress protection | IP54 |
| Overvoltage category | CAT III 1000V / CAT IV 600V |
What's in the Box
- UT219P AC digital power clamp meter

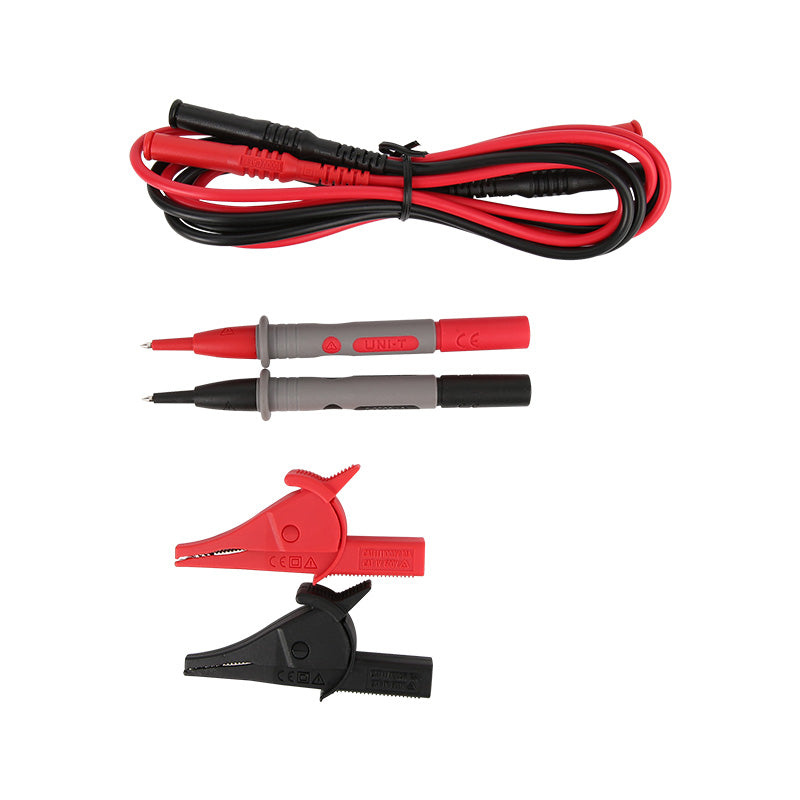

- Test leads
- Batteries
- English user manual
Downloads
Certifications: CE, ETL, REACH, FCC, UKCA, cETLus | HS Code: 9030.33
