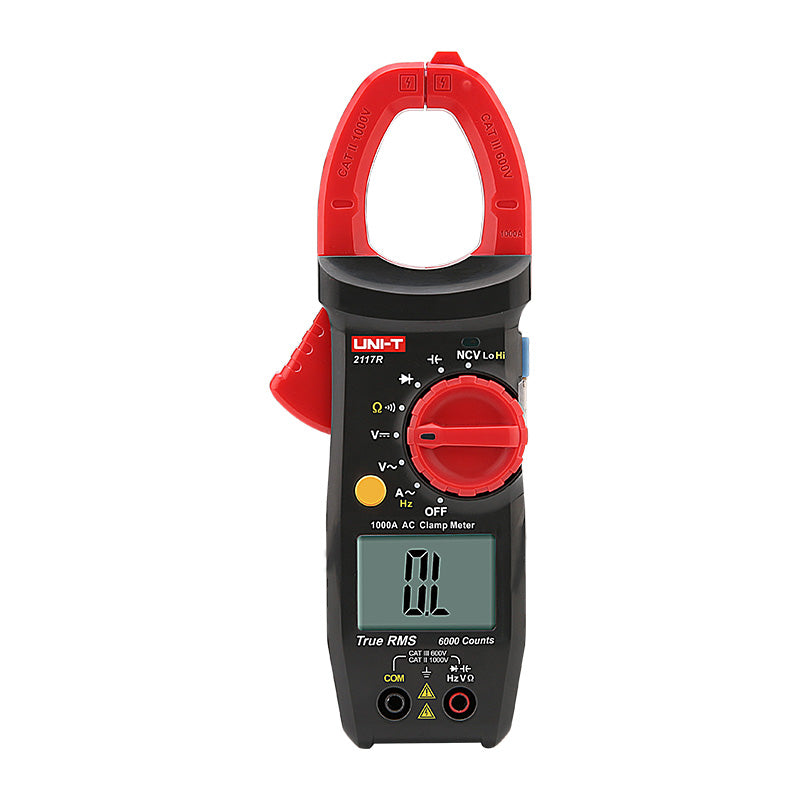

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - a black and red handheld device with a rotary dial, LCD screen displaying "OL", and two input ports at the bottom.

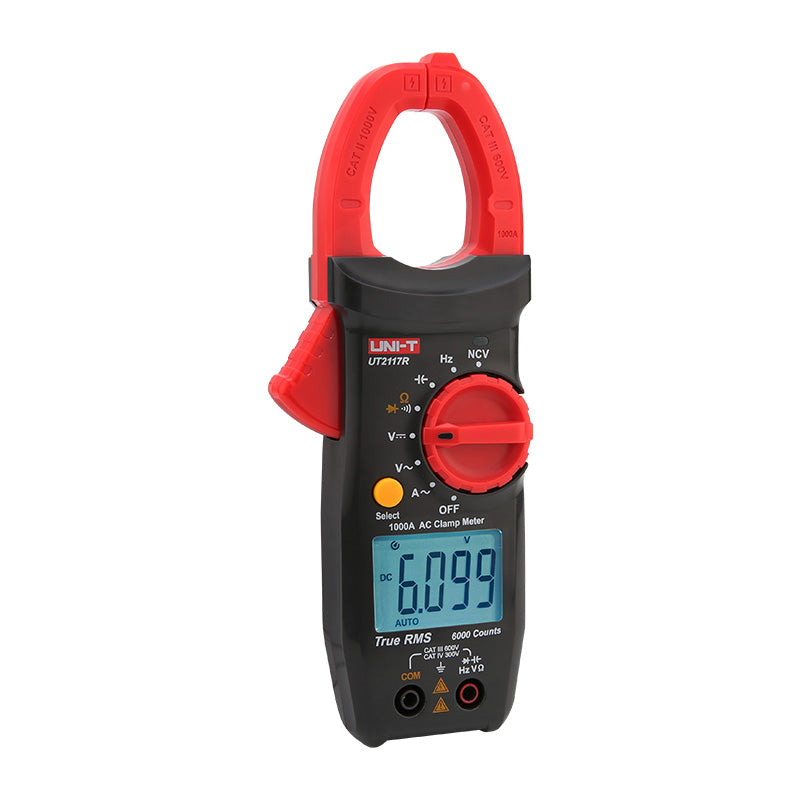

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - with a red jaw, black body, rotary dial, yellow select button, and a digital display reading 6.099 DC.

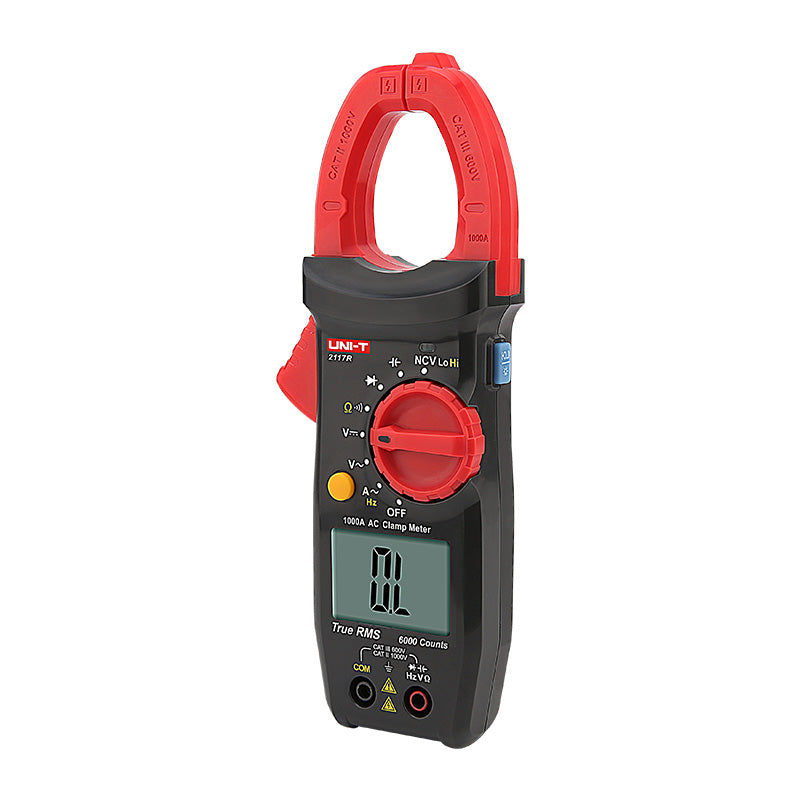

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - a rotary dial, yellow button, side trigger, input ports, and a display showing OL.

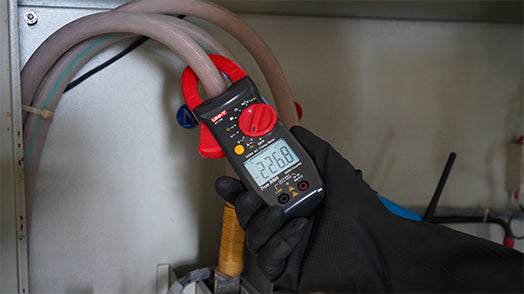

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - held in a gloved hand, showing a red and black body with a rotary dial and a digital display reading 226.8.

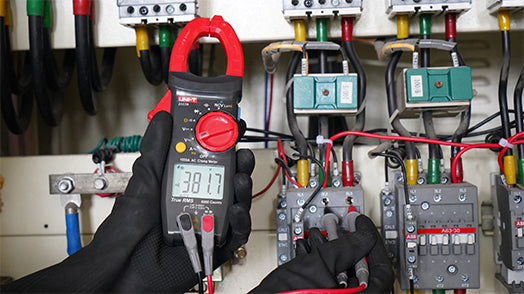

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - held in a gloved hand, showing a red rotary dial, a digital display reading 381.7, and two connected test leads.

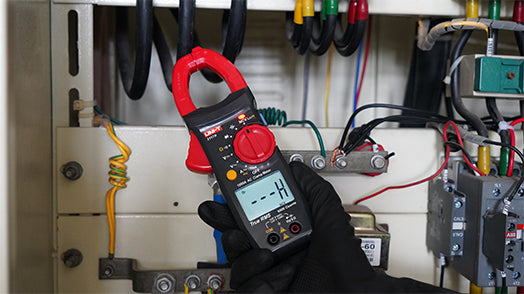

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - its red clamp, red rotary dial, and a digital display reading "--H".
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - a black and red handheld device with a rotary dial, LCD screen displaying "OL", and two input ports at the bottom.
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - with a red jaw, black body, rotary dial, yellow select button, and a digital display reading 6.099 DC.
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - a rotary dial, yellow button, side trigger, input ports, and a display showing OL.
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - held in a gloved hand, showing a red and black body with a rotary dial and a digital display reading 226.8.
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - held in a gloved hand, showing a red rotary dial, a digital display reading 381.7, and two connected test leads.
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - its red clamp, red rotary dial, and a digital display reading "--H".

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V

Sale price Rs 9,600
SKU: UT2117R
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - a black and red handheld device with a rotary dial, LCD screen displaying "OL", and two input ports at the bottom.

UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V - a black and red handheld device with a rotary dial, LCD screen displaying "OL", and two input ports at the bottom.
UNI-T UT2117R True RMS Digital Clamp Meter – 1000A AC, AC/DC 1000V, 60MΩ Resistance, Capacitance, Frequency, Dual-Mode NCV, 1000V Overload Protection, CAT III 600V / CAT II 1000V
Sale priceRs 9,600

UNI-T UT2117R — True RMS 1000A AC clamp meter with full 1000V AC/DC range, 60MΩ resistance and dual-mode NCV — a dependable meter for demanding electrical work. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • True RMS 1000A AC current measurement
  • AC/DC voltage to 1000V with 1000V overload protection
  • Resistance to 60MΩ, capacitance to 6mF
  • AC frequency (20Hz–10kHz)
  • Dual-mode NCV — detect live voltage without contact
  • Bright backlight, CAT II 1000V / CAT III 600V

Technical Specifications

Type True RMS AC digital clamp meter
AC Current 1000 A ±(1.5%+4)
AC Voltage 1000 V ±(1.0%+2)
DC Voltage 1000 V ±(0.7%+3)
Resistance 60 MΩ ±(0.8%+2)
Capacitance 6 mF ±(4%+5)
Frequency 20 Hz ~ 10 kHz
NCV Dual-mode non-contact voltage
Safety CAT II 1000V / CAT III 600V

What's in the Box

  • UT2117R clamp meter
  • Test leads
  • Batteries
  • English user manual

Downloads

Certifications: CAT II 1000V / CAT III 600V, CE  |  HS Code: 9030.3300
