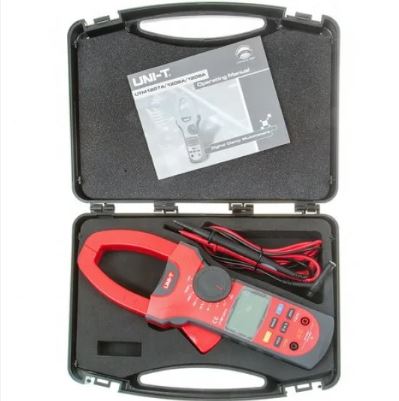

UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - shown in an open carrying case with a manual, test leads, and a red and grey digital meter displaying 0.000.

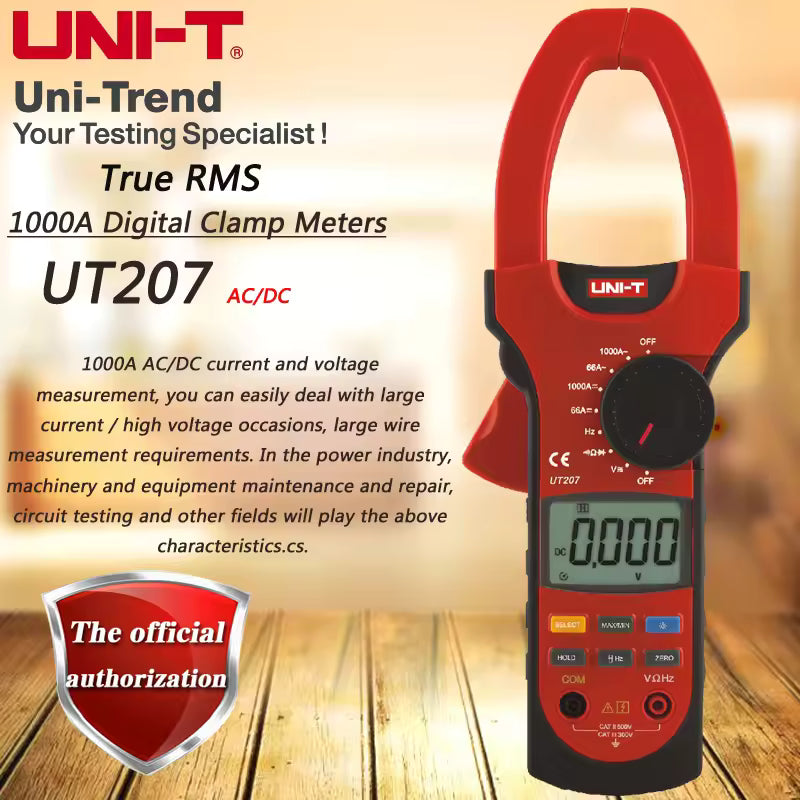

UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - a red and black handheld device with a large top jaw, a rotary dial, a digital screen showing 0.000, and front control buttons.

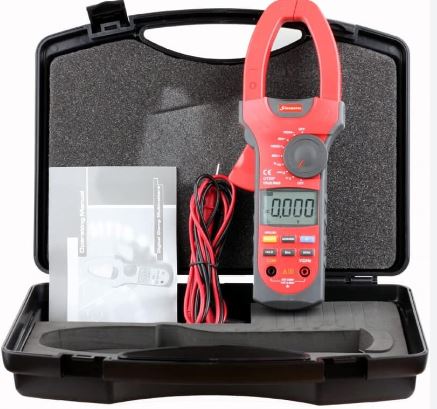

UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - black carrying case with a red and grey body, a rotary dial, a digital display, test leads, and an operating manual.
UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - shown in an open carrying case with a manual, test leads, and a red and grey digital meter displaying 0.000.
UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - a red and black handheld device with a large top jaw, a rotary dial, a digital screen showing 0.000, and front control buttons.
UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - black carrying case with a red and grey body, a rotary dial, a digital display, test leads, and an operating manual.

UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing

Sale price Rs 11,500
SKU: UT207A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - shown in an open carrying case with a manual, test leads, and a red and grey digital meter displaying 0.000.

UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing - shown in an open carrying case with a manual, test leads, and a red and grey digital meter displaying 0.000.
UNI-T UT207A 1000A AC/DC Clamp Meter – High Accuracy, Auto/Manual Range, 750V AC / 1000V DC, 40MΩ Resistance, 10MHz Frequency, LCD Backlight, Duty Cycle, Zeroing
Sale priceRs 11,500

UNI-T UT207A — 1000 A AC/DC clamp meter and the higher-accuracy member of the UT207 family, specified at ±(2%+2) on AC current and ±(1.5%+5) on DC current. Adds auto/manual range selection, an LCD backlight for dark panels, and extended 750 V AC / 1000 V DC voltage ranges. Full-range overload protection and a 3 times/s sampling rate suit it to maintenance and repair of electrical and power lines up to 1000 A. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 1000 A AC/DC current measurement, 3 times/s sampling rate
  • Higher accuracy — AC current ±(2%+2), DC current ±(1.5%+5)
  • Auto / manual range selectable
  • 750 V AC and 1000 V DC voltage measurement
  • 40 MΩ resistance and 10 MHz frequency measurement
  • LCD backlight; zeroing function; data hold; duty cycle
  • Auto power off and low-battery indication
  • Diode; continuity buzzer; input impedance for DCV

Technical Specifications

AC current 1000 A, ±(2%+2)
DC current 1000 A, ±(1.5%+5)
AC voltage 750 V, ±(1.2%+3)
DC voltage 1000 V, ±(0.8%+1)
Resistance 40 MΩ, ±(1%+2)
Frequency 10 MHz, ±(0.1%+3)
Range selection Auto / manual
LCD backlight Yes
Power 9 V battery (6F22)
Display 47 mm × 30 mm
Product size 286 mm × 105 mm × 45 mm
Product net weight 533 g
Product colour Red and grey

What's in the Box

  • UT207A 1000A AC/DC clamp meter
  • Test leads
  • Battery
  • Tool box
  • English user manual

Downloads

Certifications: CE, RoHS | HS Code: 9030.33
