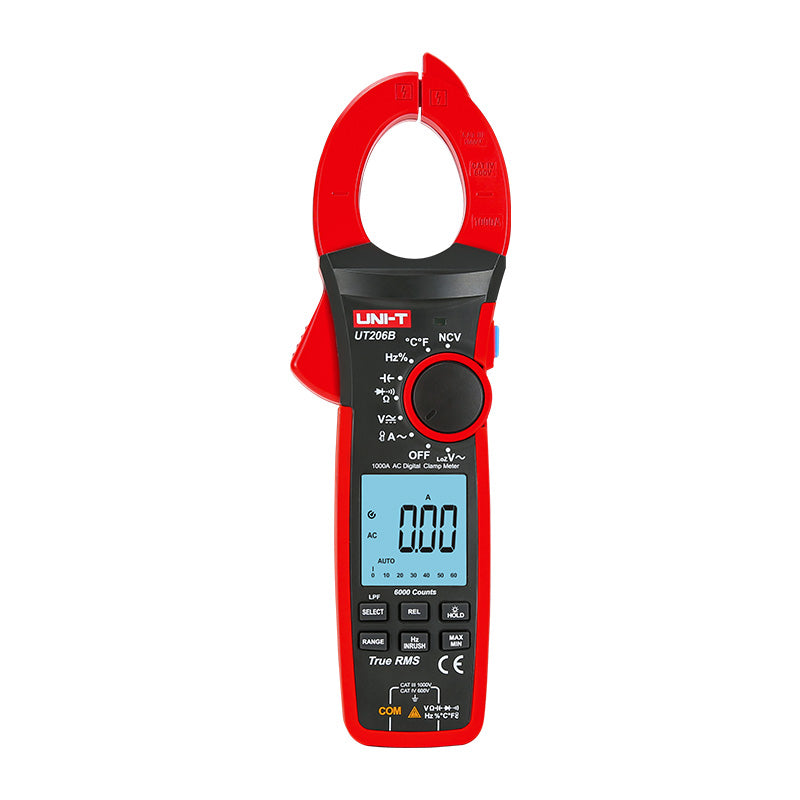

UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - the jaw, rotary dial, buttons, and a screen displaying 0.00 A on a white background.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - UNI-T UT205E digital clamp meter in red and black, showing the jaw, rotary dial, LCD screen displaying 00.00, function buttons, and input ports.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - UNI-T UT205E digital clamp meter in red and black, showing a rotary dial, function buttons, and a digital display reading 00.00.

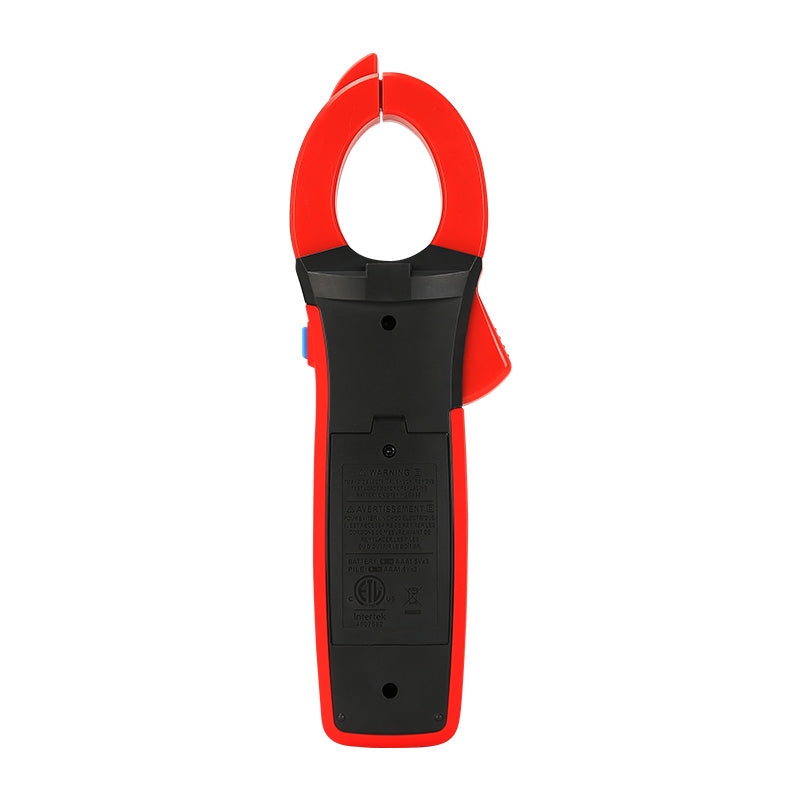

UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - rear view showing the red and black plastic casing, battery compartment cover, and the jaw release trigger.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - the jaw, rotary dial, buttons, and a screen displaying 0.00 A on a white background.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - UNI-T UT205E digital clamp meter in red and black, showing the jaw, rotary dial, LCD screen displaying 00.00, function buttons, and input ports.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - UNI-T UT205E digital clamp meter in red and black, showing a rotary dial, function buttons, and a digital display reading 00.00.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - rear view showing the red and black plastic casing, battery compartment cover, and the jaw release trigger.

UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V

Sale price Rs 16,000
SKU: UT206B
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - the jaw, rotary dial, buttons, and a screen displaying 0.00 A on a white background.

UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V - the jaw, rotary dial, buttons, and a screen displaying 0.00 A on a white background.
UNI-T UT206B True RMS Digital Clamp Meter – 1000A AC/DC, 6000 Count, AC/DC 1000V, Temperature, LoZ, LPF, Inrush Current, NCV, 42mm Jaw, CAT III 1000V / CAT IV 600V
Sale priceRs 16,000

UNI-T UT206B — Advanced 6000-count True RMS clamp meter with 1000A AC & DC, temperature, LoZ (ghost-voltage), low-pass filter and inrush current — a complete tool for HVAC and industrial maintenance. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • True RMS 1000A AC & DC current, 6000-count display
  • AC/DC voltage to 1000V
  • Temperature (−40°C ~ 1000°C, 0.1° resolution)
  • LoZ ghost-voltage elimination + LPF ACV + inrush current
  • Resistance (60MΩ), capacitance (60mF), NCV
  • Large 42mm jaw; optional flexible probe to 3000A; CAT III 1000V / CAT IV 600V

Technical Specifications

Type True RMS AC/DC digital clamp meter (6000 count)
AC Current 1000 A ±(2%+5)
DC Current 1000 A ±(2%+5)
AC Voltage 1000 V ±(1.2%+3)
DC Voltage 1000 V ±(0.5%+5)
Resistance 60 MΩ ±(1%+2)
Capacitance 60 mF ±(4%+5)
Temperature −40°C ~ 1000°C ±(1%+2)
Extras LoZ, LPF ACV, inrush current, NCV
Jaw Opening 42 mm
Safety CAT III 1000V / CAT IV 600V

What's in the Box

  • UT206B clamp meter
  • Test leads + point-contact temperature probe
  • Batteries
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE, UKCA, cETLus  |  HS Code: 9030.3300
