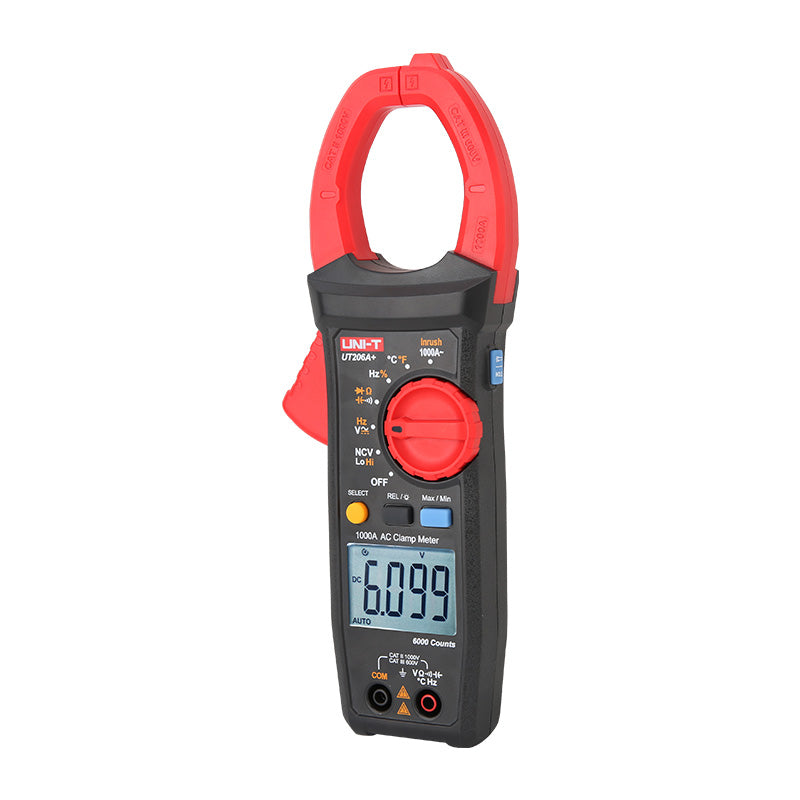

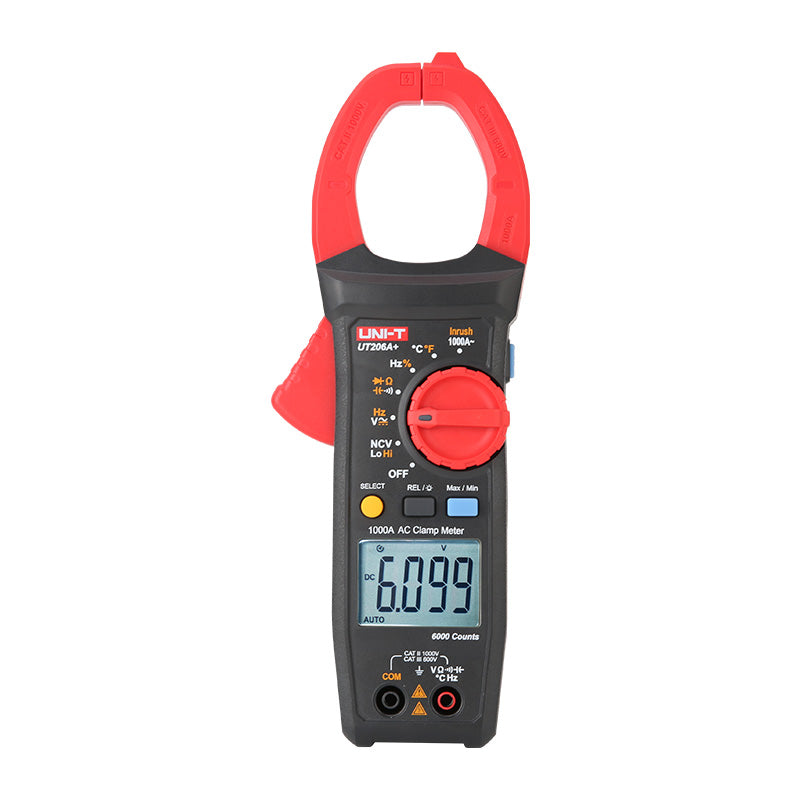

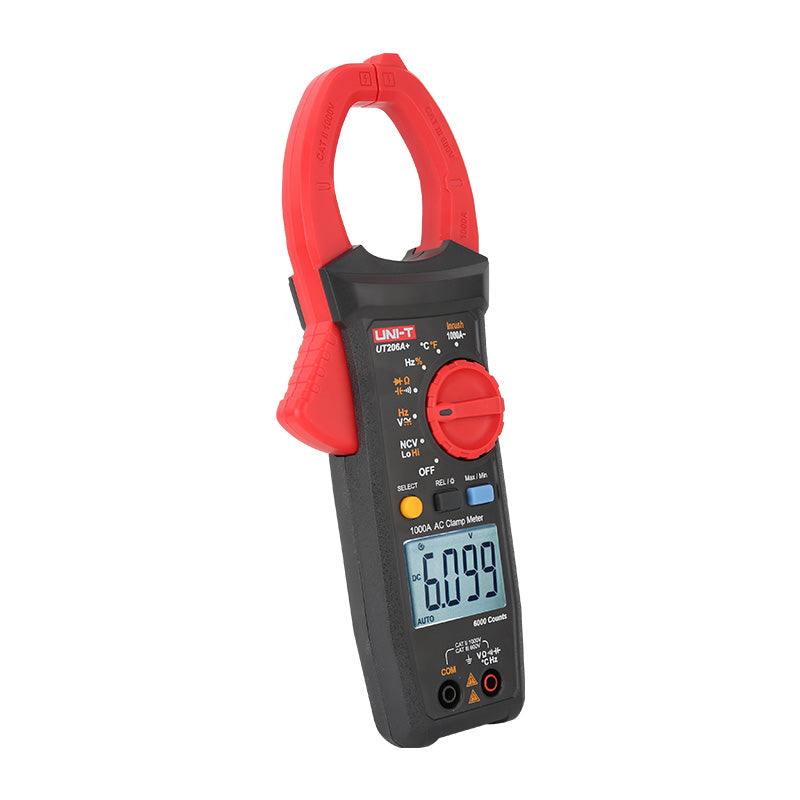

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a black handheld device with a red jaw, central rotary dial, buttons, and a screen displaying 6.099.

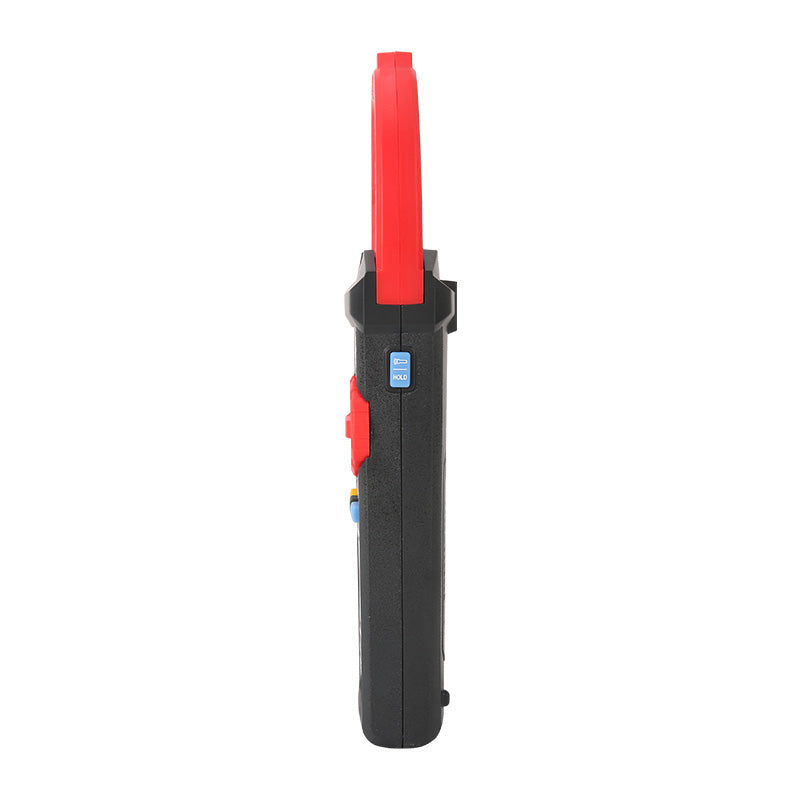

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - shown from the side, featuring a red jaw, a black handle, a red trigger, and a blue button labeled HOLD.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a rotary dial, function buttons, and a screen displaying 6.099 with DC and auto indicators.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a rotary dial, function buttons, and a digital display reading 6.099 V.

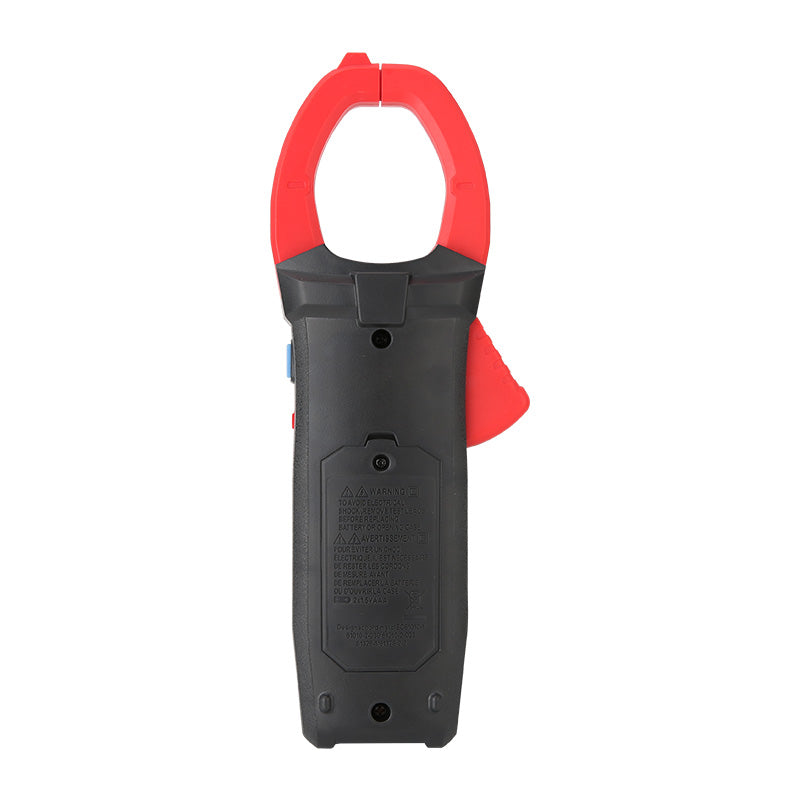

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - rear view showing the black plastic casing, red jaw assembly, trigger, and battery compartment cover.

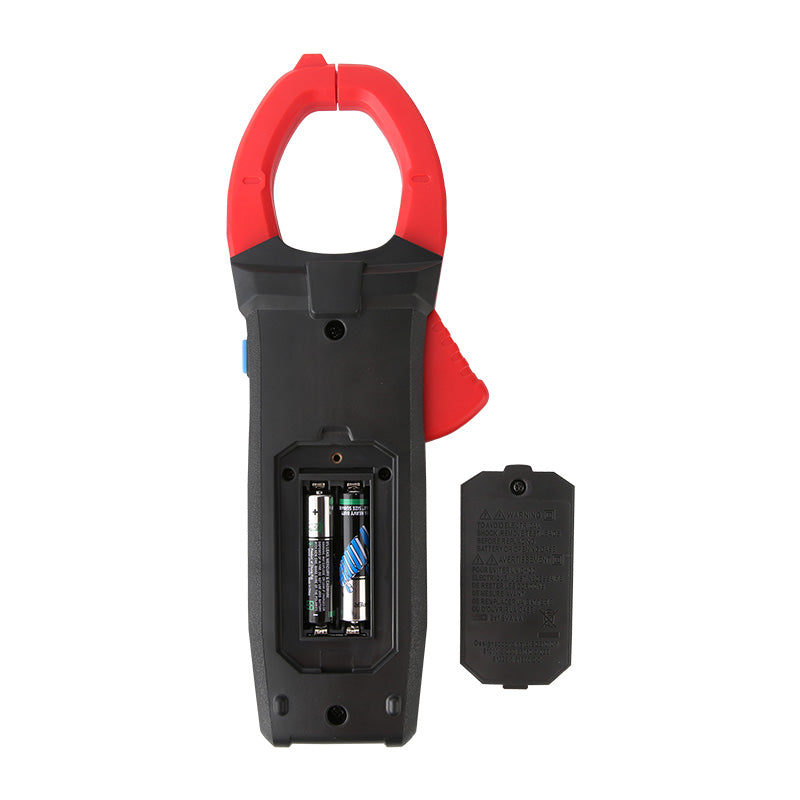

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - shown from the back with its battery compartment open, revealing two installed batteries and the removed cover.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a black handheld device with a red jaw, central rotary dial, buttons, and a screen displaying 6.099.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - shown from the side, featuring a red jaw, a black handle, a red trigger, and a blue button labeled HOLD.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a rotary dial, function buttons, and a screen displaying 6.099 with DC and auto indicators.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a rotary dial, function buttons, and a digital display reading 6.099 V.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - rear view showing the black plastic casing, red jaw assembly, trigger, and battery compartment cover.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - shown from the back with its battery compartment open, revealing two installed batteries and the removed cover.

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V

Sale price Rs 10,700
SKU: UT206A+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a black handheld device with a red jaw, central rotary dial, buttons, and a screen displaying 6.099.

UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V - a black handheld device with a red jaw, central rotary dial, buttons, and a screen displaying 6.099.
UNI-T UT206A+ True RMS Digital Clamp Meter – 1000A AC, 6099 Count, AC/DC 1000V, Inrush Current, Temperature, Duty Cycle, NCV, 45mm Jaw, CAT III 600V / CAT II 1000V
Sale priceRs 10,700

UNI-T UT206A+ — Feature-rich 1000A AC clamp meter with 6099-count display, 600A inrush current, temperature and NCV — a professional tool for electricians and maintenance engineers. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 1000A AC current, 6099-count display
  • AC/DC voltage to 1000V
  • 600A inrush current measurement
  • Temperature (−40°C ~ 1000°C), duty cycle, frequency
  • NCV, MAX/MIN, data hold, backlight
  • Large 45mm jaw, CAT II 1000V / CAT III 600V

Technical Specifications

Type True RMS AC digital clamp meter (6099 count)
AC Current 1000 A ±(1.5%+5)
Inrush Current 600 A
AC Voltage 1000 V ±(1.0%+2)
DC Voltage 1000 V ±(0.7%+3)
Temperature −40°C ~ 1000°C (probe included)
Extras Duty cycle, frequency, NCV
Jaw Opening 45 mm
Safety CAT II 1000V / CAT III 600V

What's in the Box

  • UT206A+ clamp meter
  • Test leads + temperature probe
  • AAA batteries
  • English user manual

Downloads

Certifications: CAT II 1000V / CAT III 600V, CE  |  HS Code: 9030.3300
