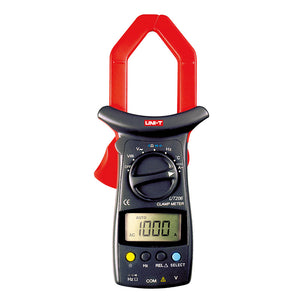

UNI-T UT206 1000A Digital Clamp Meter – AC Current, AC/DC Voltage, Resistance, Frequency, Temperature, 3999-Count Auto Range
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT206 1000A Digital Clamp Meter – AC Current, AC/DC Voltage, Resistance, Frequency, Temperature, 3999-Count Auto Range
The UNI-T UT206 is a full-size 1000A digital clamp meter for electricians and maintenance technicians who need to measure heavy AC load current without breaking the circuit. Its wide jaw clamps around cables up to 40 mm and reads current, voltage, resistance, frequency and temperature on a 3999-count auto-ranging display.
Beyond current, it doubles as a capable meter — AC/DC voltage, resistance, diode and continuity, plus a temperature probe input — making it a one-tool solution for panel work, motor and HVAC servicing. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Clamp AC current up to 1000 A (400 A / 1000 A ranges) with 40 mm jaw
- AC voltage to 600 V and DC voltage to 600 V (±0.8% basic accuracy)
- Resistance to 40 MΩ, frequency to 10 MHz and temperature to 1000 °C
- 3999-count auto-ranging display with data hold and relative mode
- Diode & continuity buzzer, duty cycle, LCD backlight and work flashlight
- Rugged handheld body powered by a single 9 V battery
Technical Specifications
| AC Current | 400 A / 1000 A, ±(1.5%+5) |
|---|---|
| AC Voltage | 4 / 40 / 400 / 600 V, ±(1.2%+5) |
| DC Voltage | 400 mV / 4 / 40 / 400 / 600 V, ±(0.8%+1) |
| Resistance | 400 Ω – 40 MΩ, ±(1%+2) |
| Frequency | 10 Hz – 10 MHz |
| Temperature | -40 °C – 1000 °C |
| Display | 3999 count, auto range |
| Jaw opening | 40 mm |
| Safety rating | CAT III 300V / CAT II 600V |
| Power | 9 V battery (6F22) |
| Weight | 522 g |
| Dimensions | 106.4 × 52 × 257 mm |
| Colour | Red and grey |
What's in the Box
- UT206 clamp meter

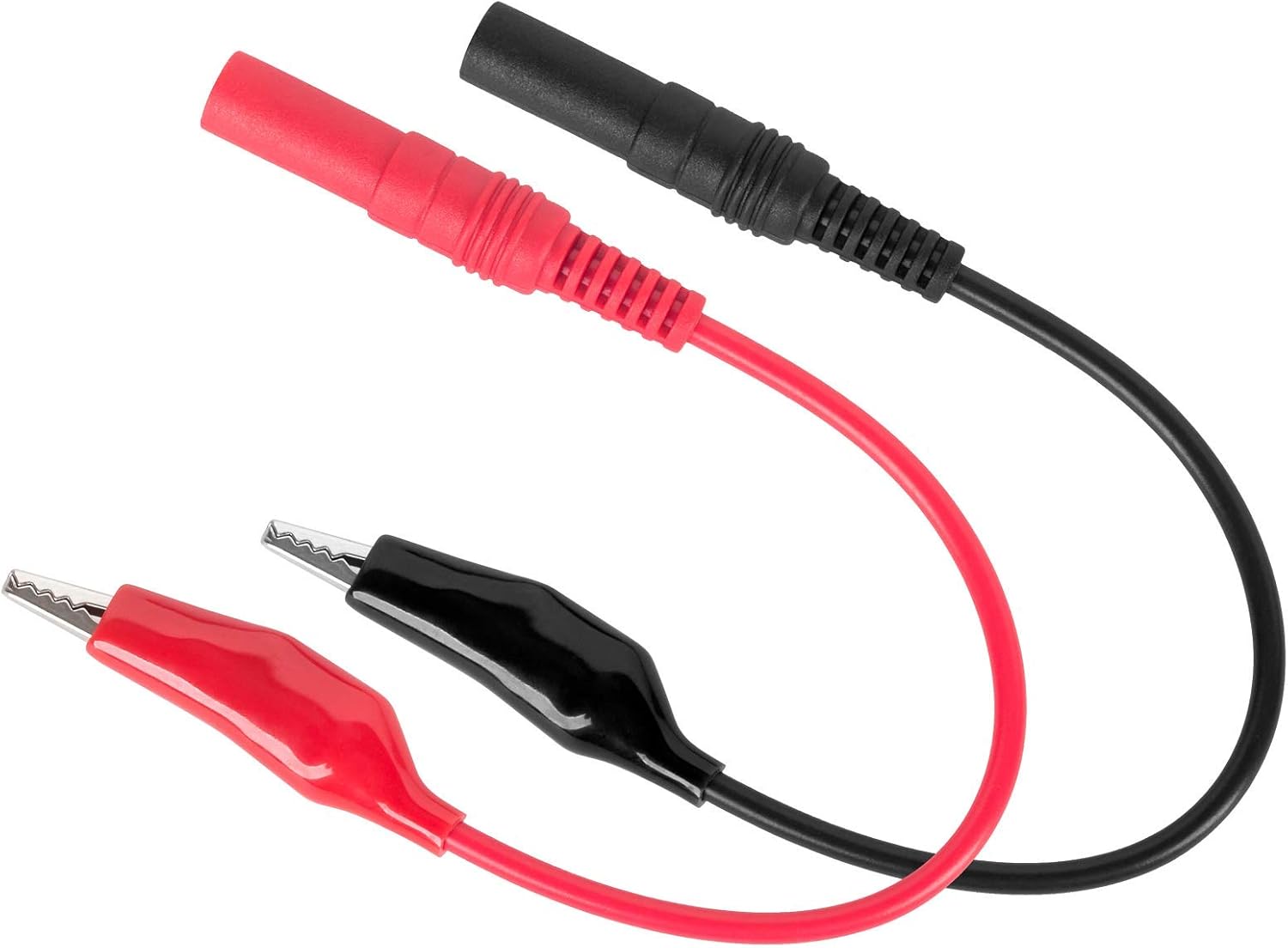

- Test leads
- Alligator clips
- Point-contact temperature probe
- 9 V battery
- English user manual
Downloads
Certifications: CE | HS Code: 9030.33
