UNI-T UT205B 1000A AC Clamp Meter – 60mm Jaw Opening, 1000V AC/DC, 40MΩ Resistance, 40mF Capacitance, 10MHz Frequency, Duty Cycle, NCV, Flashlight, CAT III 600V

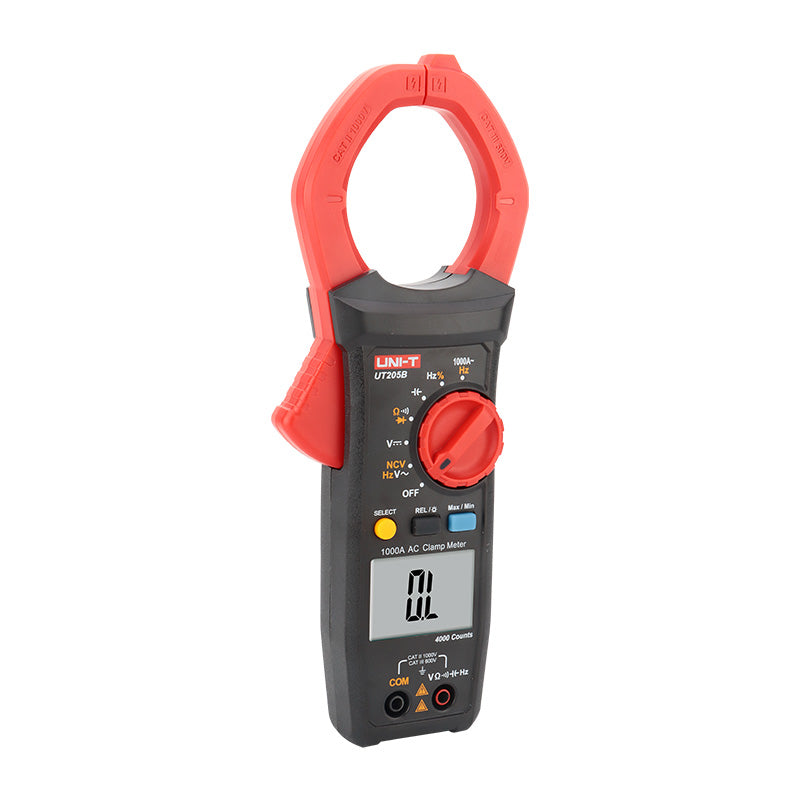

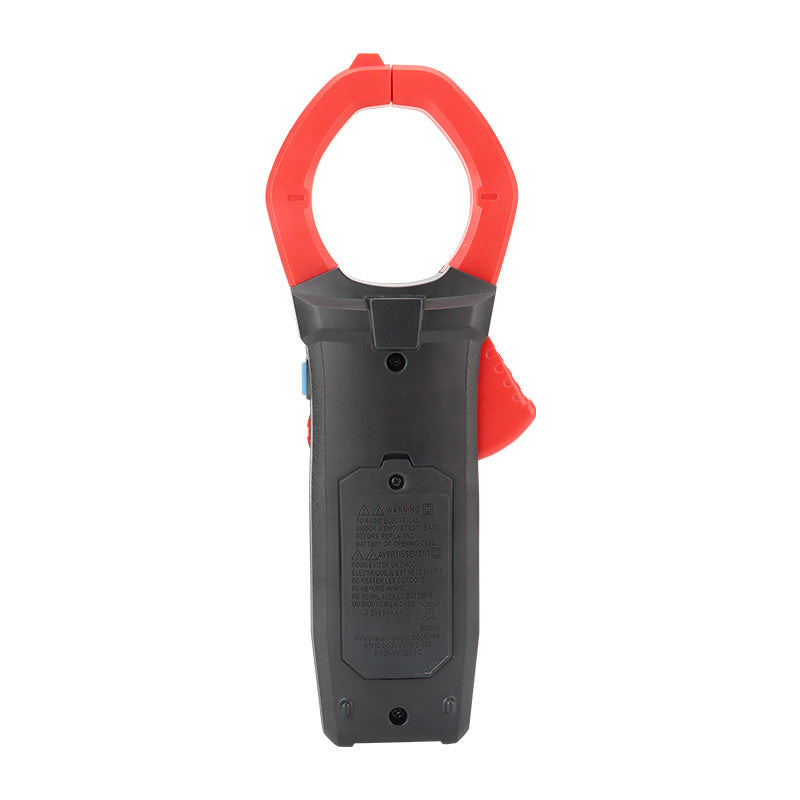

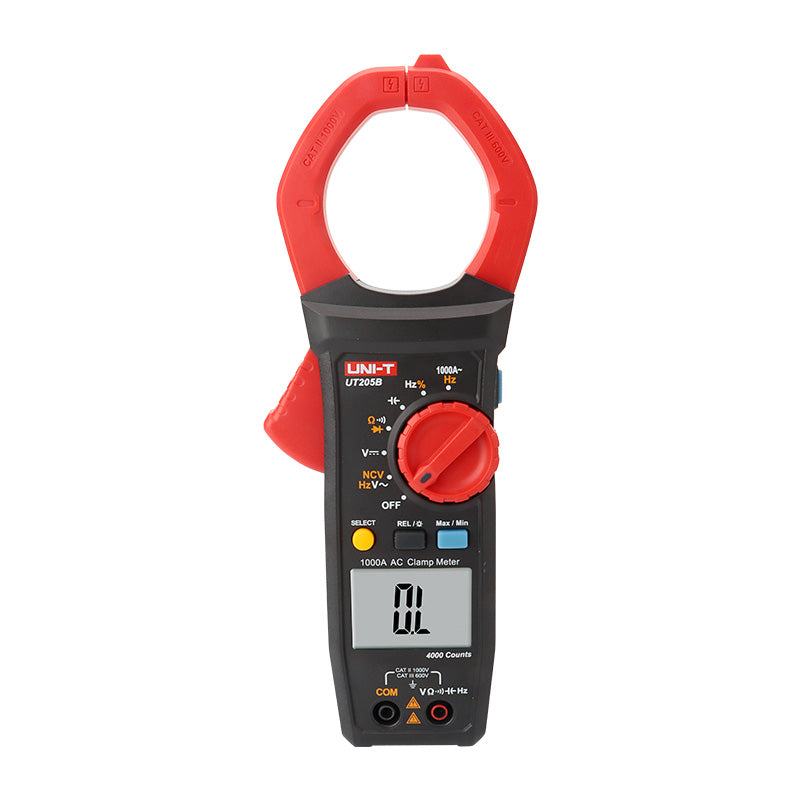

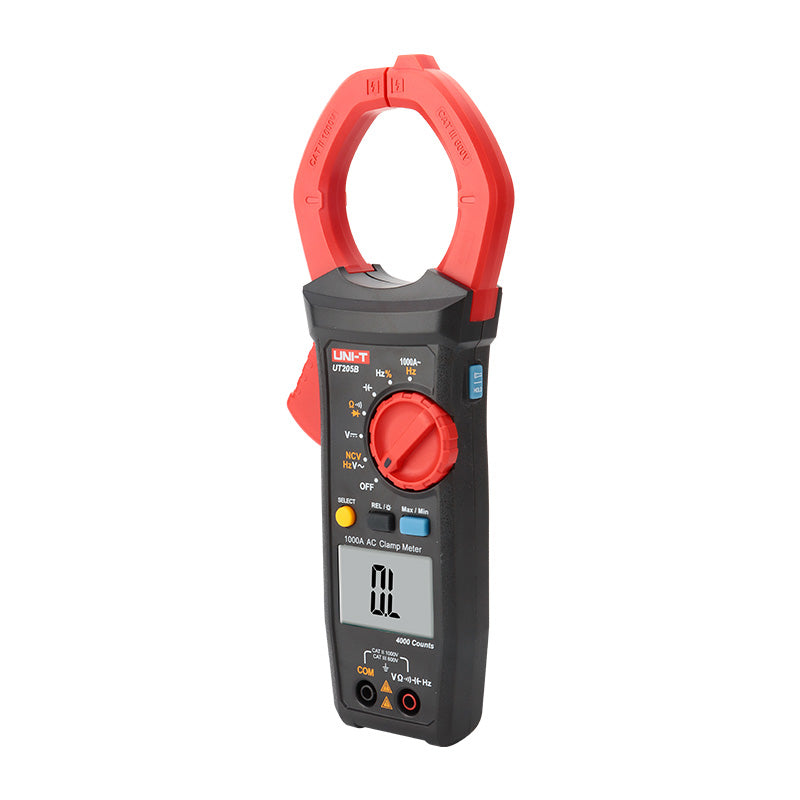

UNI-T UT205B — 1000 A AC clamp meter with a large 60 mm jaw opening that fits bus bars and thick cable runs other clamps cannot reach. The lightweight, slim body uses an air-core coil pliers head, and the backlight plus built-in flashlight make it practical in dark panels and ceiling voids. Adds 1000 V AC/DC, 40 MΩ, 40 mF capacitance, 10 MHz frequency, duty cycle and NCV. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- 1000 A AC current measurement, ±(1.5%+5)
- 1000 V AC/DC voltage measurement
- 40 MΩ resistance & 40 mF capacitance measurement
- 10 Hz–10 MHz frequency and duty cycle (0.1%–99.9%)
- NCV test, diode & continuity, flashlight and backlight
- Relative mode, MAX/MIN, data hold, auto power off (~15 min)
- 60 mm jaw opening (55 mm jaw size); air-core coil pliers head — light and easy to carry
- Overvoltage category CAT II 1000V / CAT III 600V
Technical Specifications
| AC current | 1000 A, ±(1.5%+5) |
|---|---|
| AC current frequency | 40 Hz–1 kHz, ±(1.0%+5) |
| AC voltage | 1000 V, ±(1.0%+2) |
| AC voltage frequency | 10 Hz–10 kHz, ±(1.0%+5) |
| DC voltage | 1000 V, ±(0.8%+2) |
| Resistance | 40.00 MΩ, ±(2.5%+5) |
| Capacitance | 40 mF, ±(10%) |
| Frequency | 10 Hz–10 MHz, ±(0.1%+4) |
| Duty cycle | 0.1%–99.9%, ±(3.0%+5) |
| Jaw opening / jaw size | 60 mm / 55 mm |
| Display | 42 × 30 mm LCD, 4099 counts |
| NCV / continuity / diode | Yes |
| Auto power off | Around 15 minutes |
| Overvoltage category | CAT II 1000V / CAT III 600V |
What's in the Box
- UT205B 1000A AC clamp meter
- Test leads
- Battery
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.33
