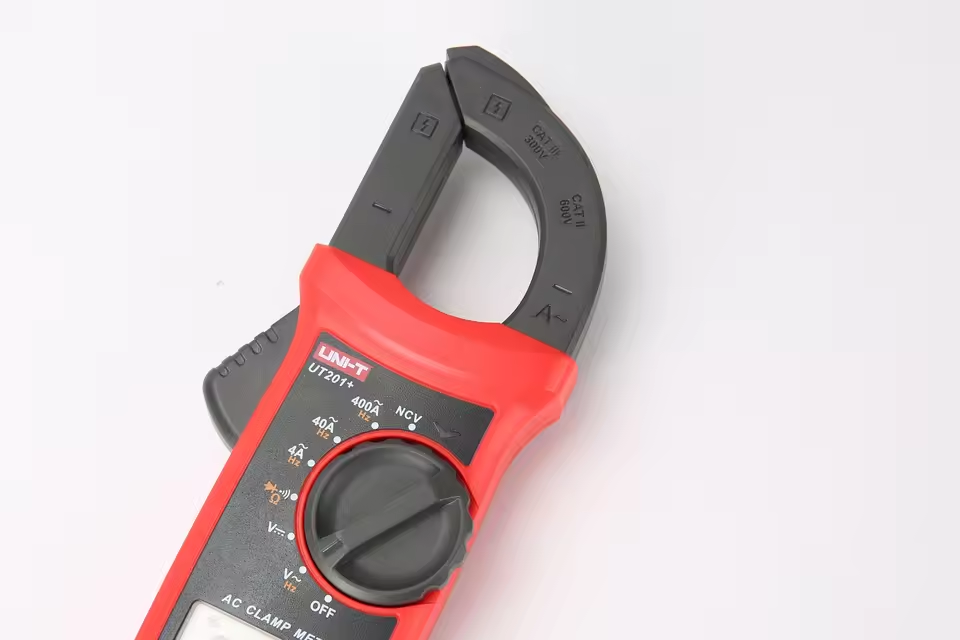

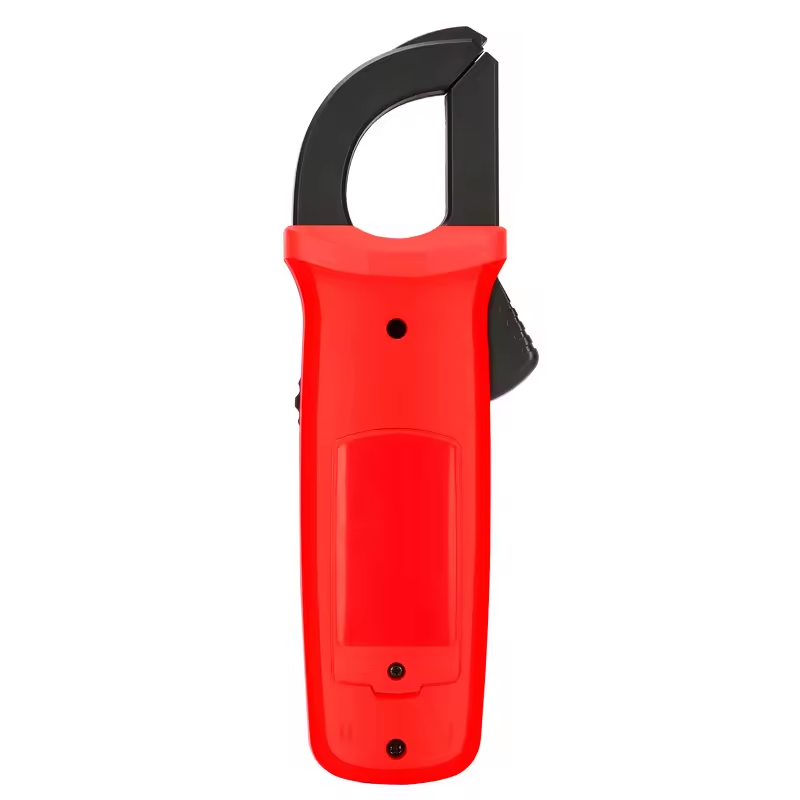

UNI-T UT201+ AC Clamp Meter True RMS 400A in Pakistan
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT201+ — Professional True RMS AC Clamp Meter for Pakistani electricians, engineers, and students. Ghar, workshop, ya lab — har jagah kaam aata hai!
Specifications
| Field | Detail |
|---|---|
| Model | UNI-T UT201+ |
| AC Current Range | 4A / 40A / 400A |
| AC Voltage Range | 2V / 20V / 200V / 600V |
| DC Voltage Range | 200mV / 2V / 20V / 200V / 600V |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ [VERIFY] |
| Frequency | 10Hz – 10kHz [VERIFY] |
| NCV Detection | Yes (Non-Contact Voltage) |
| True RMS | Yes |
| Display | 4000 Count LCD with Backlight |
| Jaw Opening | 33mm [VERIFY] |
| Safety Rating | CAT III 300V / CAT II 600V |
| Power Supply | 2 × AAA Batteries [VERIFY] |

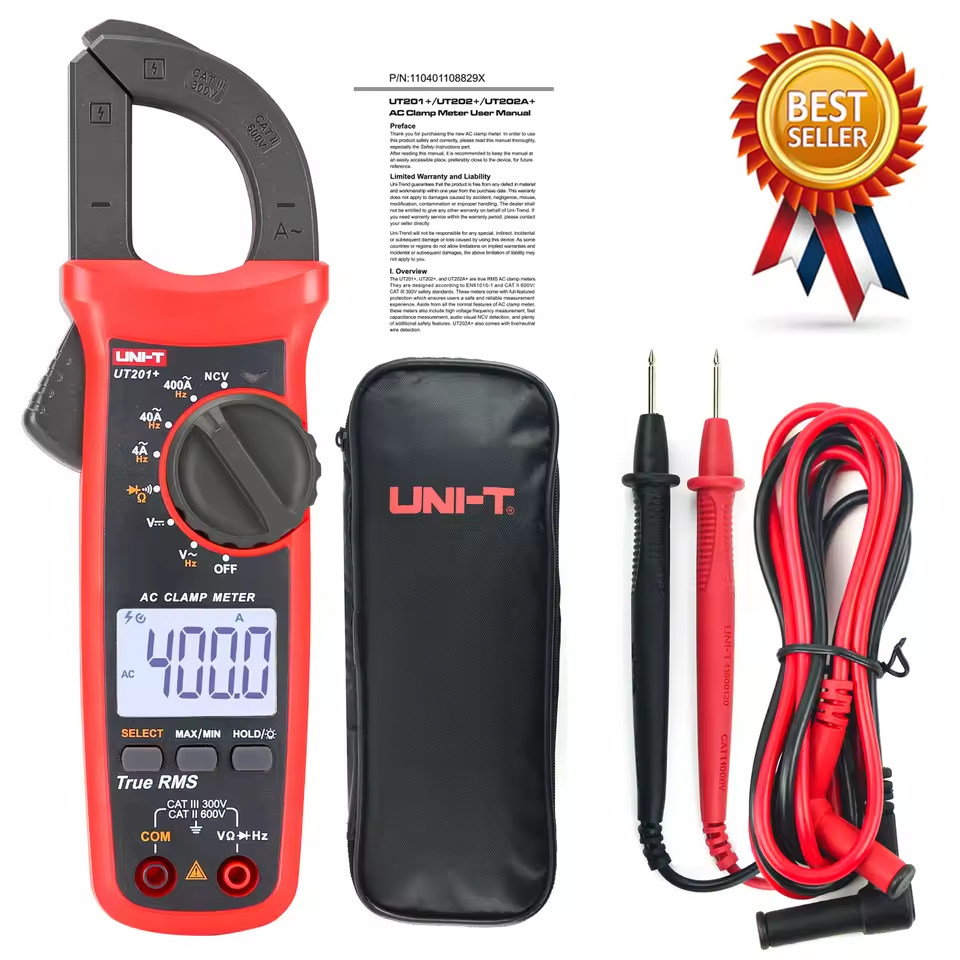

| Accessories | Test Leads, Carry Case, Manual |
| Compatible With | AC/DC electrical circuits, home wiring, industrial panels |
Kahan Use Hota Hai (Use Cases)
- 🏠 Ghar ki wiring check karna — AC current aur voltage safely measure karein bina wire kaat ke
- 🏭 Industrial panel testing — 3-phase motors aur distribution boards ki current monitoring
- 🎓 College lab projects — BSEE/BSCS students ke liye load analysis aur circuit verification
- ⚡ UPS & inverter troubleshooting — Output current aur voltage check karna
- 🔧 HVAC & motor testing — Compressor aur fan motor current draw measure karna
Kaise Use Karein (How to Use)
AC Current Measurement:
1. Rotary dial → 400A (ya suitable range)
2. Clamp jaw open karein → single wire ke around close karein
3. LCD pe reading dekhen
NCV (Non-Contact Voltage):
1. Dial → NCV position
2. Meter ka tip live wire ke paas le jayen
3. Beep + LED = voltage present hai
AC Voltage (Test Leads):
1. Red lead → V terminal, Black → COM
2. Dial → V~ range select karein
3. Probes circuit ke across lagayen
FAQ
Q: Kya yeh meter DC current bhi measure kar sakta hai?
A: No — UT201+ measures AC current via clamp only. DC voltage can be measured using the test leads.
Q: Kya yeh True RMS hai? Kya fark parta hai?
A: Yes, it is True RMS. This gives accurate readings for non-sinusoidal loads like inverters, VFDs, and switching power supplies — unlike average-responding meters.
Q: Kya yeh 3-phase industrial wiring ke liye safe hai?
A: Yes — CAT III 300V / CAT II 600V rated, suitable for most industrial and residential applications in Pakistan.
Q: Batteries included hain?
A: Batteries included status confirm karein seller se. [VERIFY]
