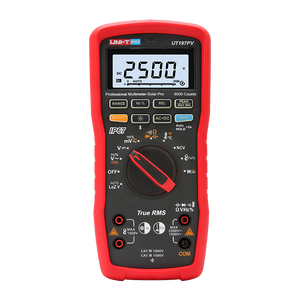

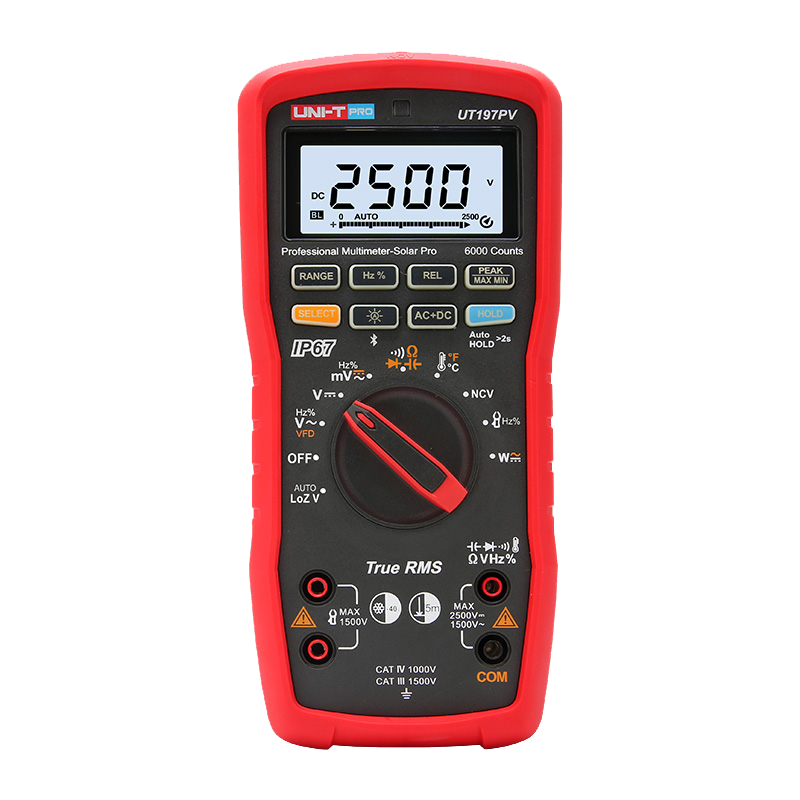

UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 2500V DC.

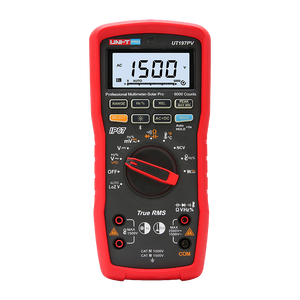

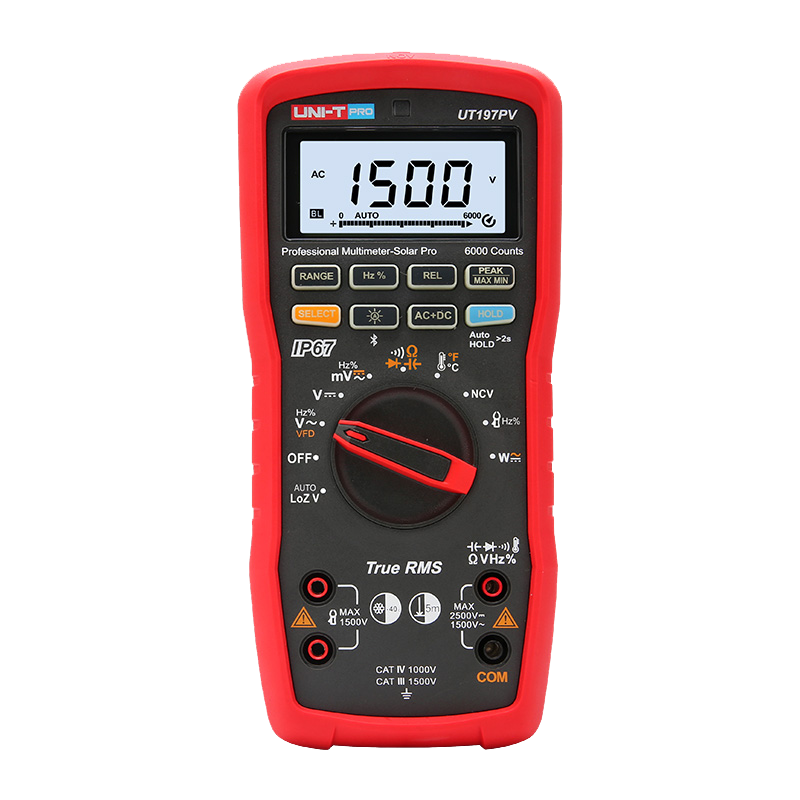

UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red handheld device with a central rotary dial, buttons, input ports, and a screen displaying 1500V AC.
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red handheld device with a central rotary dial, input ports at the bottom, and a display showing 1500V AC.

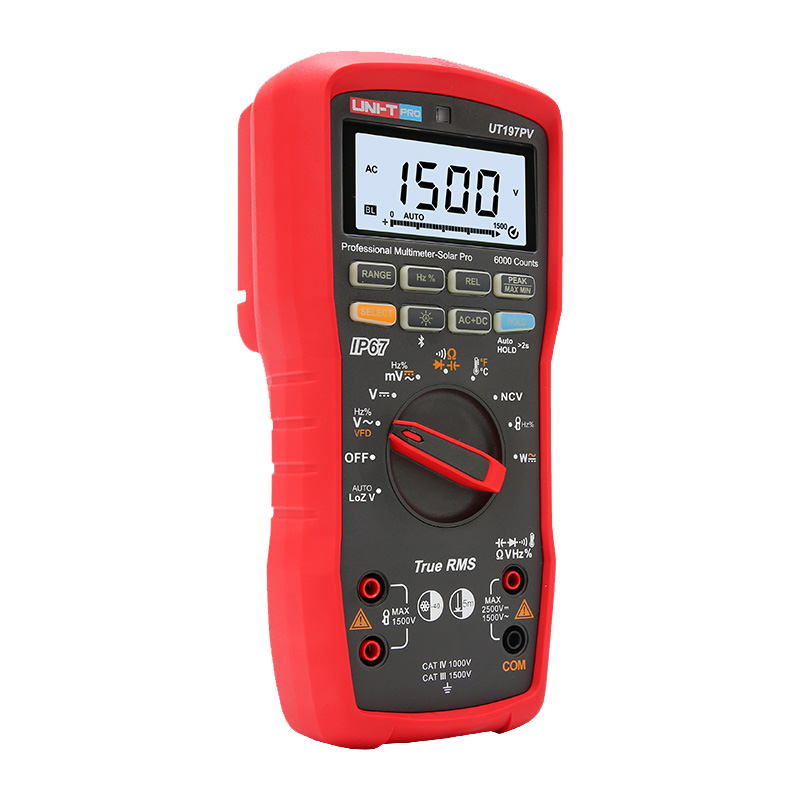

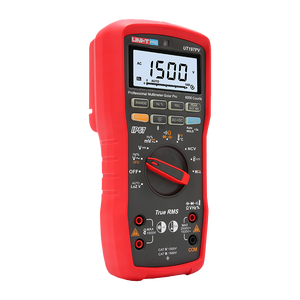

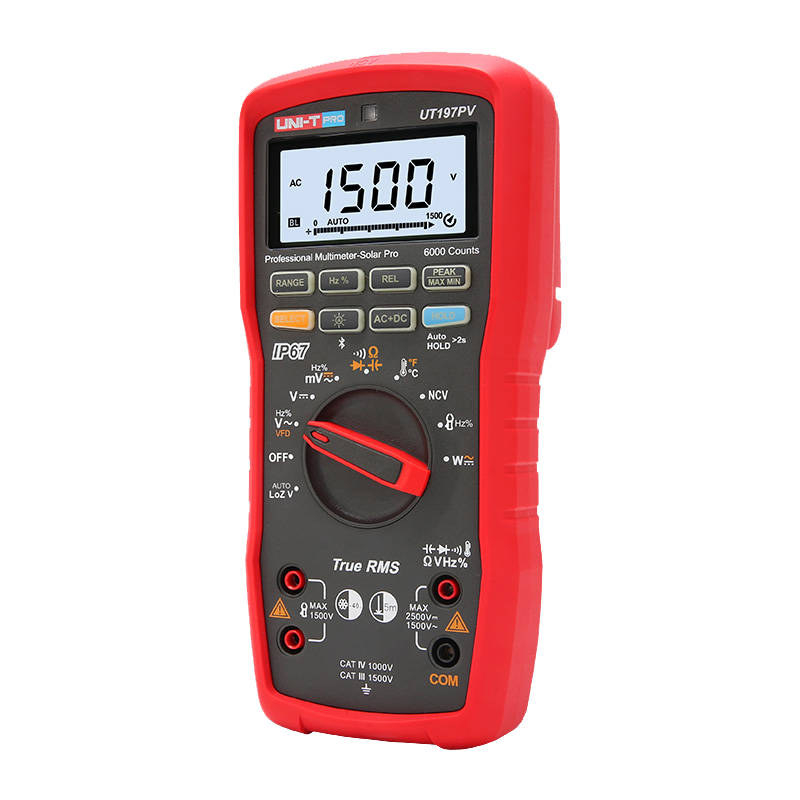

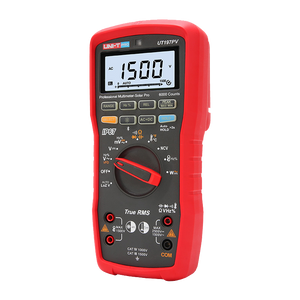

UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red and black handheld device with a rotary dial, function buttons, and a screen displaying 1500 V.
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 2500V DC.
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red handheld device with a central rotary dial, buttons, input ports, and a screen displaying 1500V AC.
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red handheld device with a central rotary dial, input ports at the bottom, and a display showing 1500V AC.
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red and black handheld device with a rotary dial, function buttons, and a screen displaying 1500 V.

UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V

Sale price Rs 56,250
SKU: UT197PV
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 2500V DC.

UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 2500V DC.
UNI-T UT197PV Solar PV True RMS Digital Multimeter – 2500V DC, 1500V AC, IP67 Waterproof, 5m Drop-Proof, Bluetooth App, VFD, CAT IV 1000V / CAT III 1500V
Sale priceRs 56,250

UNI-T UT197PV — Photovoltaic-grade True RMS multimeter for solar power stations: measures up to 2500V DC / 1500V AC, IP67-sealed, 5-metre drop-proof, with Bluetooth app and PV power measurement. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 6000-count True RMS measurement
  • 2500V DC / 1500V AC — designed for PV strings & combiner boxes
  • PV power measurement: up to 2500 kVA (DC) / 1500 kVA (AC)
  • External clamp (UT-CS07, optional): 100A / 1000A AC & DC
  • IP67 waterproof & dustproof, survives 5-metre drops
  • Bluetooth app, auto range, data hold, MAX/MIN, NCV, high-voltage alarm
  • CAT IV 1000V / CAT III 1500V safety

Technical Specifications

Type Solar PV True RMS digital multimeter (6000 count)
DC Voltage 2500 V ±(1.0%+5)
AC Voltage 1500 V ±(0.8%+3), 45 Hz~1 kHz
Current 100 A / 1000 A AC & DC (UT-CS07 clamp, optional)
PV Power 2500 kVA (DC) / 1500 kVA (AC)
Operating Temp −40°C ~ 55°C
IP Rating IP67
Drop Test 5 m
Connectivity Bluetooth (app)
Safety CAT IV 1000V / CAT III 1500V

What's in the Box

  • UT197PV multimeter
  • Test leads & clips
  • Batteries
  • English user manual

Downloads

Certifications: CAT IV 1000V / CAT III 1500V, IP67, CE, cETLus, RoHS  |  HS Code: 9030.3100
