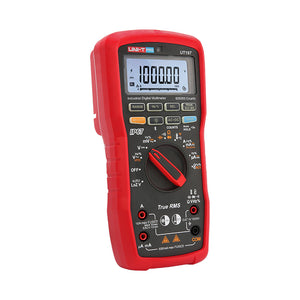

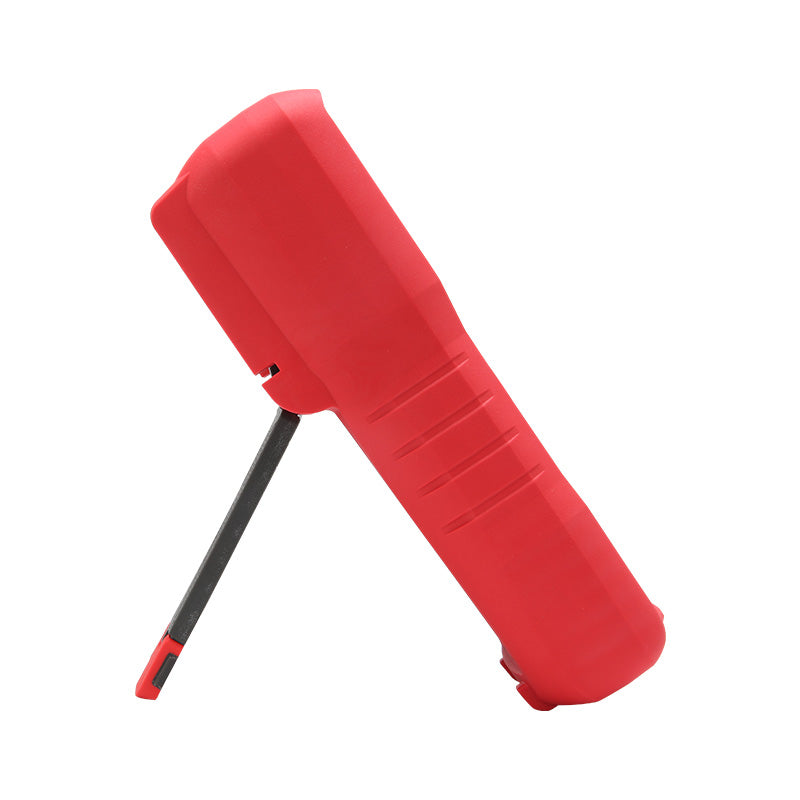

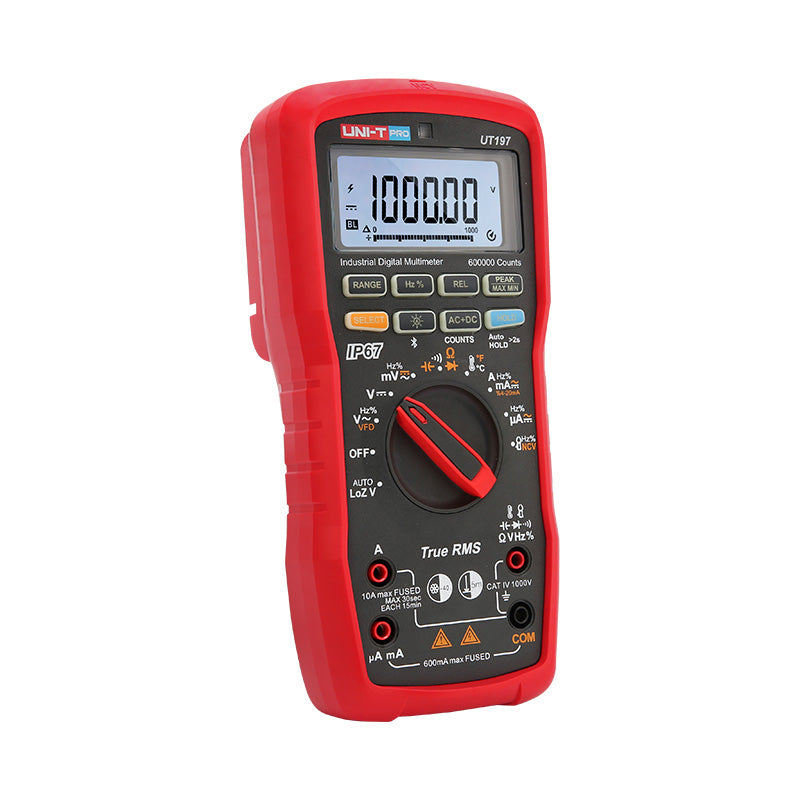

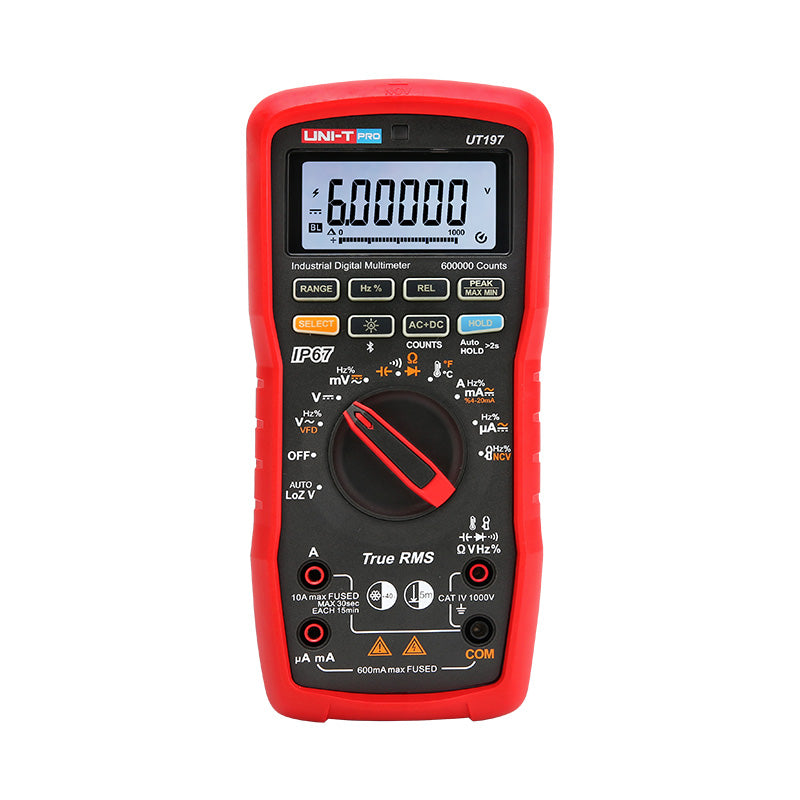

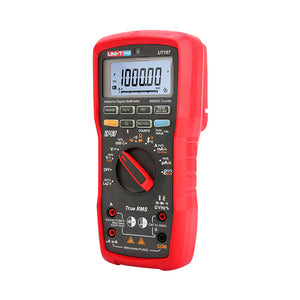

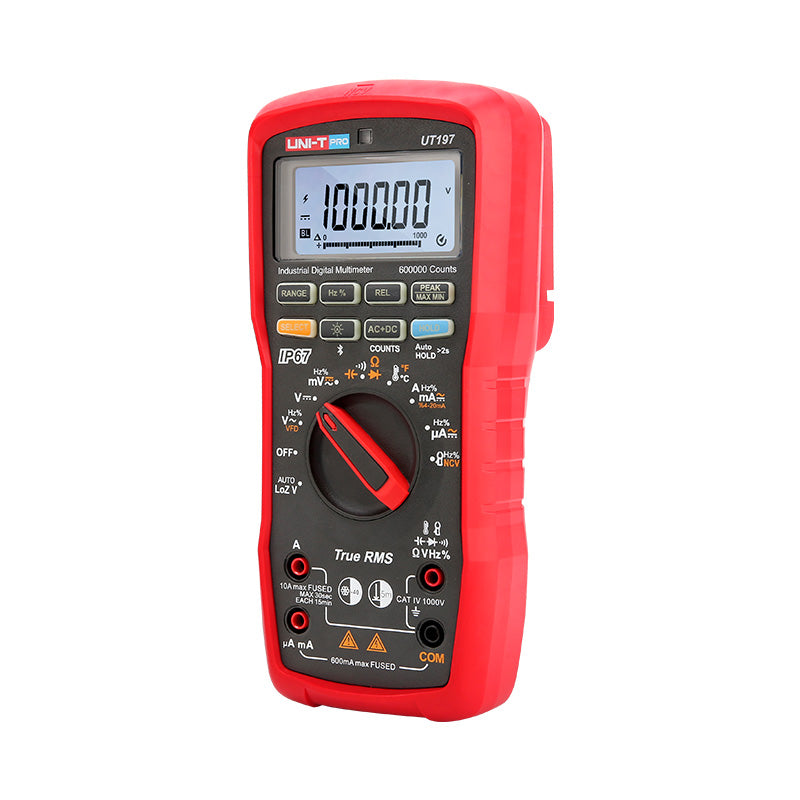

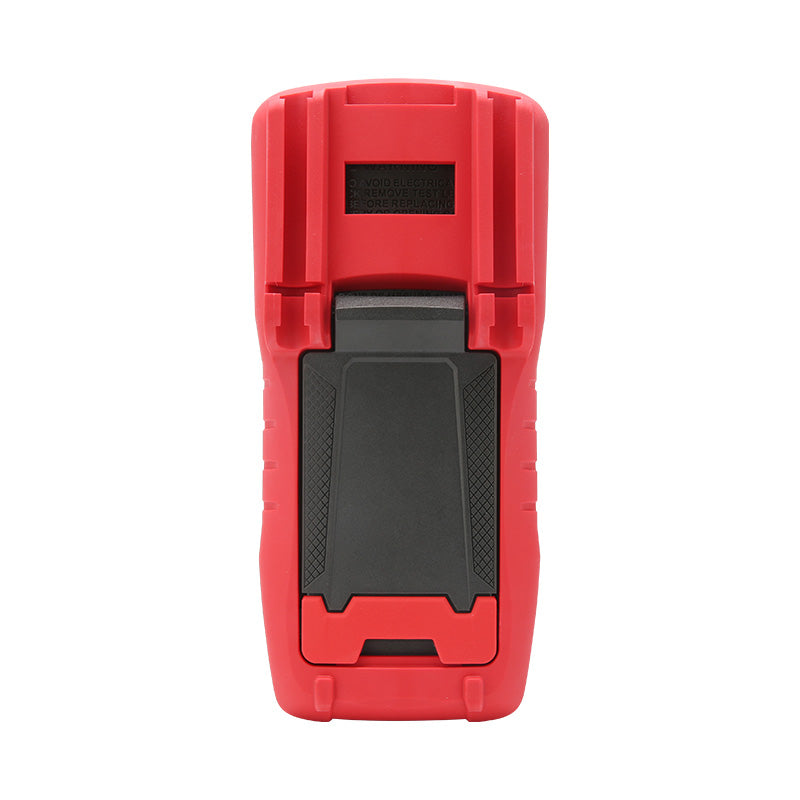

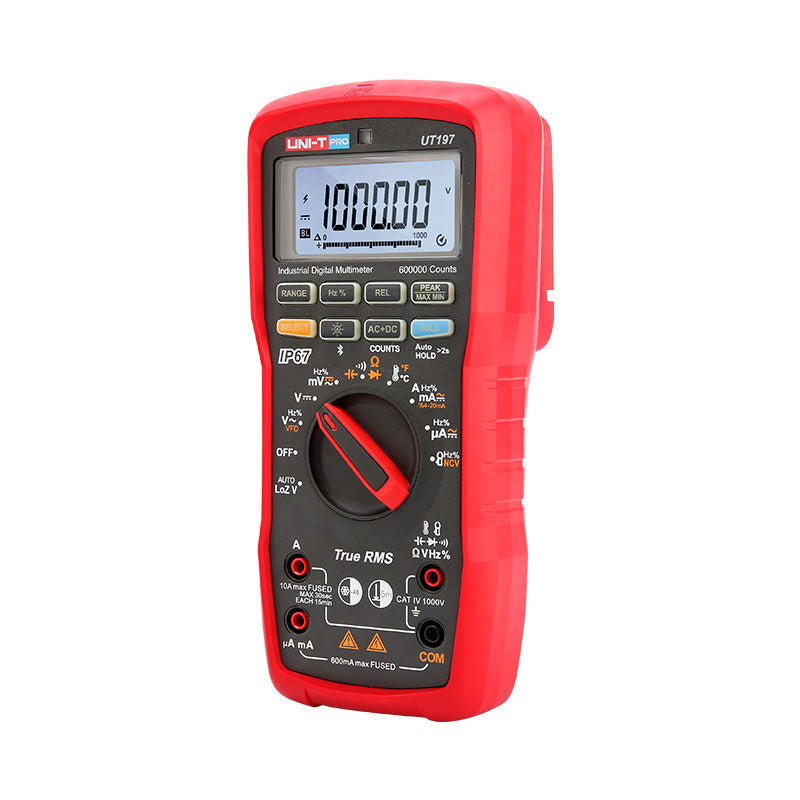

UNI-T UT197 Industrial Digital Multimeter — True RMS, 600,000 Counts, IP67

The UT197 is a rugged, high-precision handheld multimeter built for demanding industrial environments. With a 600,000-count display and True RMS measurement, it delivers accurate readings even on distorted or noisy waveforms — making it a reliable choice for professionals working in power construction, equipment maintenance, petrochemical, HVAC, new-energy, and factory or lab settings.

Built to IP67 standards and rated for drops of up to 5 meters, this meter shrugs off dust, water, and rough handling. It operates reliably across a wide -40°C to 55°C temperature range, so it's just as much at home outdoors on a job site as it is on a bench. A built-in VFD anti-interference startup mode filters out carrier-frequency and distorted-voltage noise, giving you stable readings even when measuring near variable frequency drives.

For safety, the UT197 is certified to CAT IV 1000V — the highest overvoltage category — along with CE and cETLus certification, and features 12kV pulse protection with anti-EMC interference shielding. Bluetooth connectivity lets you pair with the UNI-T SmartTest APP to log, graph, and tabulate your measurements, while optional external current clamps (UT-CS07) extend current measurement up to 1000A AC/DC.

Key Features

• True RMS measurement for accurate readings on non-linear loads
• 600,000-count display (9,999 count for frequency) with switchable resolution
• AC/DC Voltage: up to 1000V | AC/DC Current: up to 10A (up to 1000A with optional UT-CS07 clamp)
• IP67-rated and 5m drop-tested for harsh job site conditions
• CAT IV 1000V safety rating, CE & cETLus certified
• Wide operating range: -40°C to 55°C
• VFD anti-interference mode for stable readings near inverters/drives
• Bluetooth connectivity with UNI-T SmartTest APP for data logging and graphing
• 12kV pulse protection with anti-EMC interference filtering
• Auto/manual data hold, peak capture, min/max recording, non-contact voltage detection, continuity buzzer, diode test, high-voltage alarm, miswired probe alarm, and auto backlight
• Auto power-off (~15 minutes) to conserve battery

Additional Measurements

Resistance, capacitance, frequency (10Hz–1MHz), duty cycle, and temperature (-40°C to 1000°C)

General Specs

• Dimensions: 220mm x 104mm x 67mm
• Weight: ~835g (with batteries)

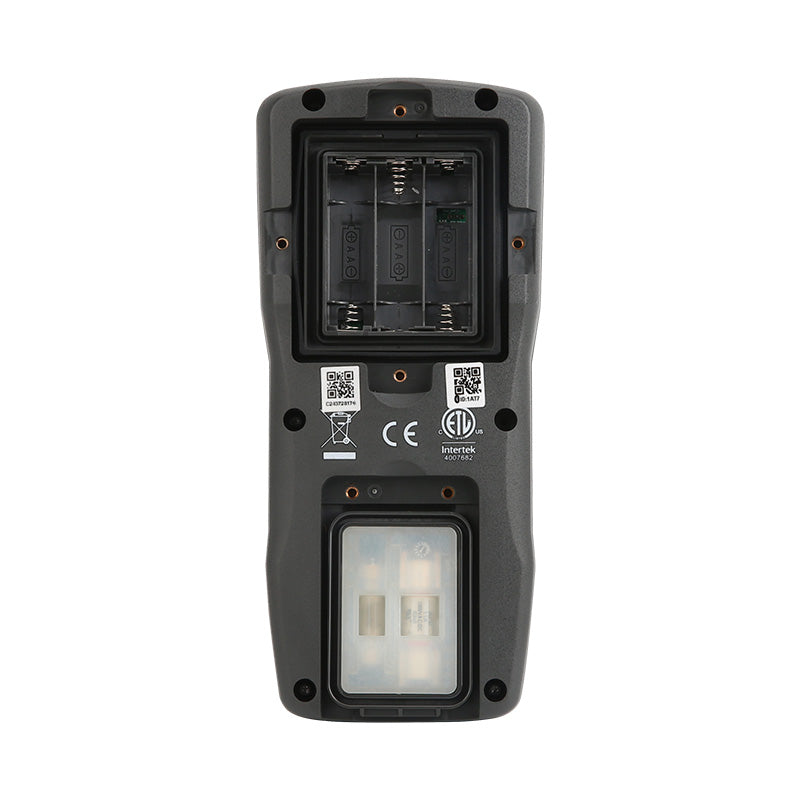

• Power supply: 2 x 1.5V AA batteries
• Color: Black + Red

Package Includes

• 1 x UT197 Digital Multimeter
• Test leads
• Temperature probe
• Test clips
• 2 x AA batteries (1.5V)
