Home ALL Products UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads
2ft Braid Solder Remover Wick 0.75M 2.0 mm Desoldering Copper Spool Wire Back to ALL Products MB102 Breadboard 830 Points Solderless Prototyping Breadboard High Quality

Sidebar

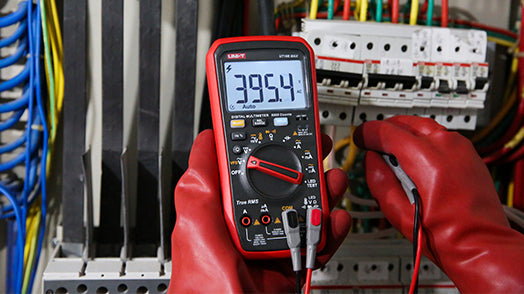

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - a red casing, a rotary dial, two test leads, and a display reading 395.4.

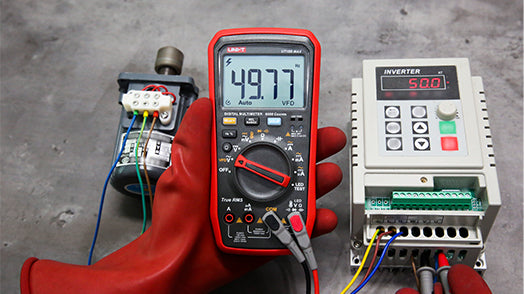

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - held in a gloved hand, showing a 49.77 Hz reading on its display, next to a motor and an inverter.

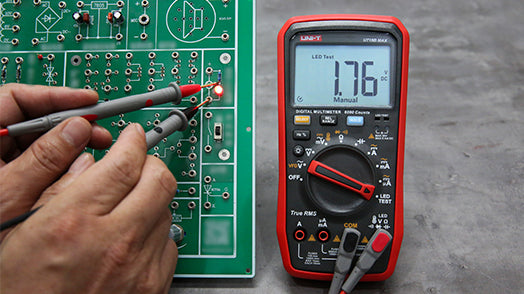

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - with red casing, a digital display reading 1.76V, and gold-plated leads testing a lit red LED on a circuit board.

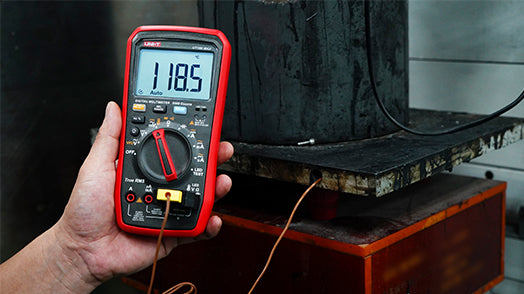

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - a red and black casing, a central rotary dial, and a screen displaying 118.5 degrees Celsius.
UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - a red casing, a rotary dial, two test leads, and a display reading 395.4.
UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - held in a gloved hand, showing a 49.77 Hz reading on its display, next to a motor and an inverter.
UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - with red casing, a digital display reading 1.76V, and gold-plated leads testing a lit red LED on a circuit board.
UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - a red and black casing, a central rotary dial, and a screen displaying 118.5 degrees Celsius.

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads

Sale price Rs 23,100
SKU: UT18B MAX
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - a red casing, a rotary dial, two test leads, and a display reading 395.4.

UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads - a red casing, a rotary dial, two test leads, and a display reading 395.4.
UNI-T UT18B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, LED Test, Capacitance, Frequency, EMI Protection with Gold-Plated Leads
Sale priceRs 23,100

UNI-T UT18B MAX — True RMS 6000-count digital multimeter with 1000V AC/DC, VFD mode, temperature and LED test function. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 6000-count True RMS measurement for accurate AC readings
  • 1000 V AC/DC voltage, 10 A AC/DC current
  • VFD mode — measure variable-frequency-drive output
  • LED test function + temperature measurement
  • Capacitance, frequency, duty cycle, diode, continuity
  • Strong EMC anti-interference, full-range input protection
  • Misoperation alarm + any-button wake-up; gold-plated leads

Technical Specifications

Type True RMS digital multimeter (6000 count)
DC Voltage 600 mV / 6 / 60 / 600 / 1000 V
AC Voltage 600 mV / 6 / 60 / 600 / 1000 V
DC/AC Current 600 µA ~ 10 A
Resistance 600 Ω ~ 60 MΩ
Capacitance 6 nF ~ 6000 µF
Frequency 10 Hz ~ 10 MHz
Extra Functions Temperature, LED test, VFD, True RMS
Power 2 × 1.5 V AA (LR6)

Video Review

What's in the Box

  • UT18B MAX multimeter
  • Gold-plated test leads (standard + fine-tipped)
  • Temperature probe
  • 2 × 1.5 V AA batteries
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V  |  HS Code: 9030.3100
