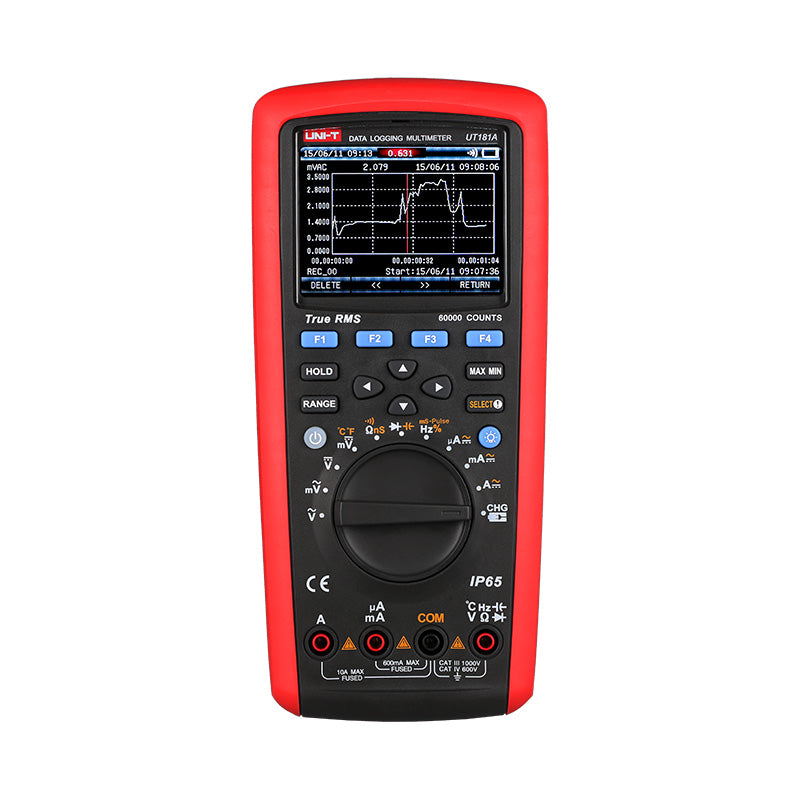

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - red protective case, showing a color screen with a data graph, function buttons, a central dial, and input ports.

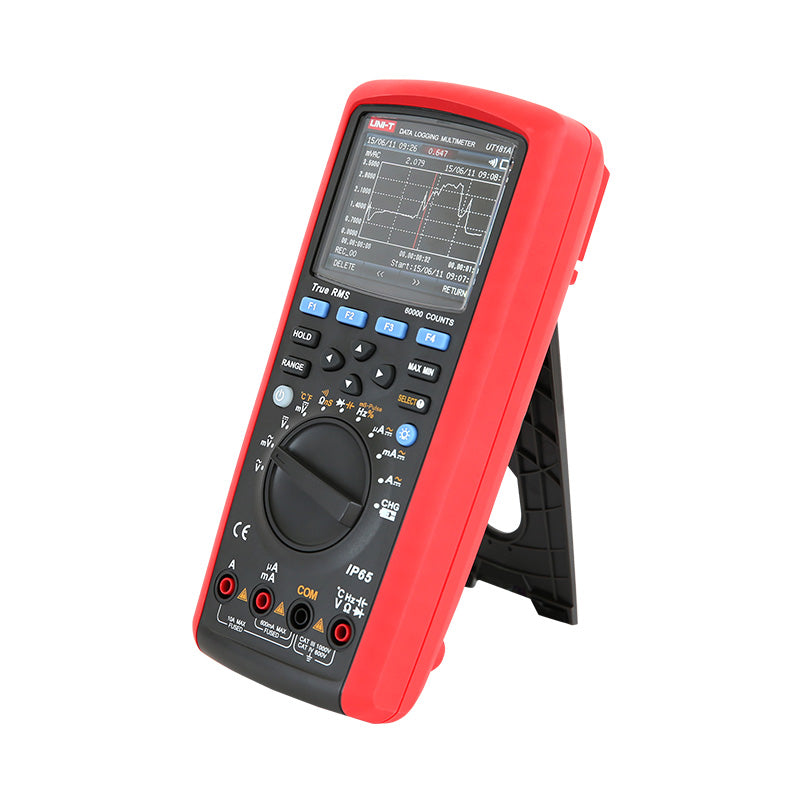

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - red protective case with a kickstand, showing a color screen with a data graph, function buttons, and input ports.

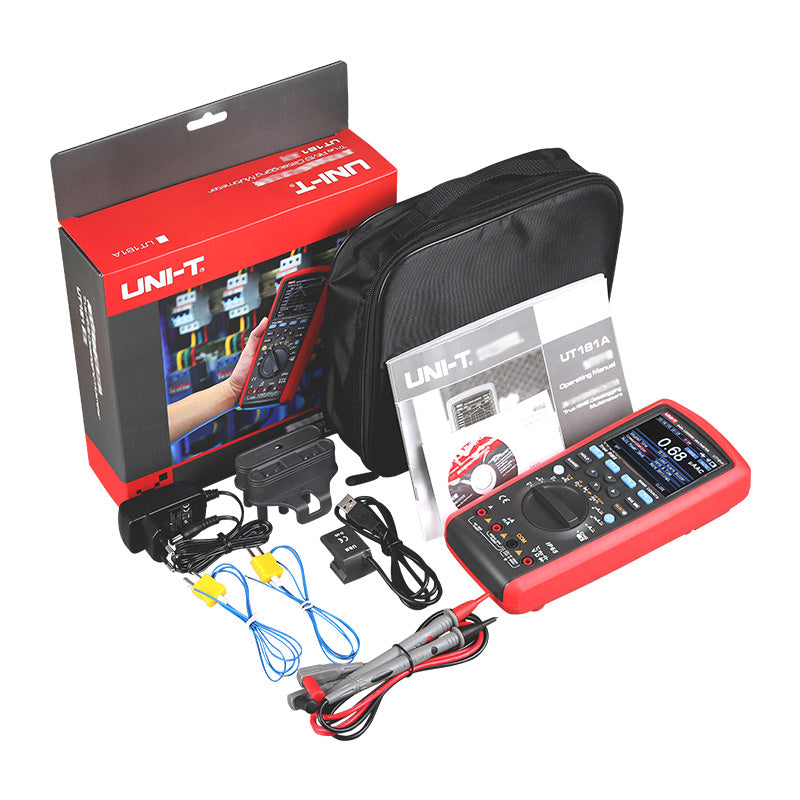

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - a red and black multimeter with a color screen showing 0.68 AAC, probes, cables, charger, and carry bag.

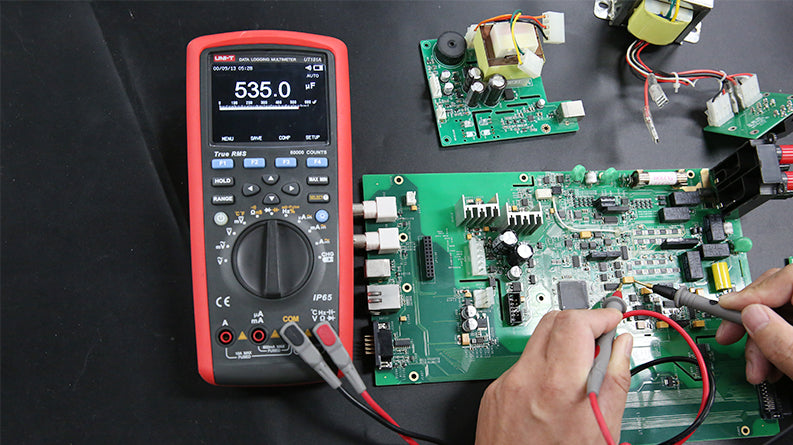

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - with a red casing, showing a 535.0 µF reading on its display while testing a green circuit board.
UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - red protective case, showing a color screen with a data graph, function buttons, a central dial, and input ports.
UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - red protective case with a kickstand, showing a color screen with a data graph, function buttons, and input ports.
UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - a red and black multimeter with a color screen showing 0.68 AAC, probes, cables, charger, and carry bag.
UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - with a red casing, showing a 535.0 µF reading on its display while testing a green circuit board.

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V

Sale price Rs 90,000
SKU: UT181A
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - red protective case, showing a color screen with a data graph, function buttons, a central dial, and input ports.

UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V - red protective case, showing a color screen with a data graph, function buttons, a central dial, and input ports.
UNI-T UT181A Datalogging True RMS Digital Multimeter – 60000 Count, 4.5" Color TFT, AC/DC 1000V, 10A, Data Logging, Temperature, USB, CAT III 1000V / CAT IV 600V
Sale priceRs 90,000

UNI-T UT181A — Professional datalogging 60000-count True RMS digital multimeter with a 4.5-inch colour TFT display and on-board data recording — a bench-grade tool in a handheld. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 60000-count True RMS with 4.5-inch colour TFT display
  • Data logging — record readings to internal memory / SD card with trend graphs
  • AC/DC voltage to 1000V, AC/DC current to 10A
  • Resistance, capacitance, frequency, temperature (dual-channel), diode/continuity
  • USB interface + PC software, rechargeable Li-ion battery + adapter
  • CAT III 1000V / CAT IV 600V safety

Technical Specifications

Type Datalogging True RMS digital multimeter (60000 count)
Display 4.5-inch colour TFT
DC Voltage 1000 V ±(0.025%+5)
AC Voltage 1000 V ±(0.4%+40)
DC Current 10 A ±(0.15%+10)
AC Current 10 A ±(0.7%+15)
Resistance 1000 MΩ
Capacitance 60 mF
Temperature Dual-channel −40°C ~ 1000°C
Logging Internal memory + SD card, trend graph
Safety CAT III 1000V / CAT IV 600V

What's in the Box

  • UT181A multimeter
  • Test leads, alligator clips & temperature probes
  • USB cable + PC software
  • Rechargeable battery + power adapter
  • Carrying case & English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE, UKCA  |  HS Code: 9030.3100
