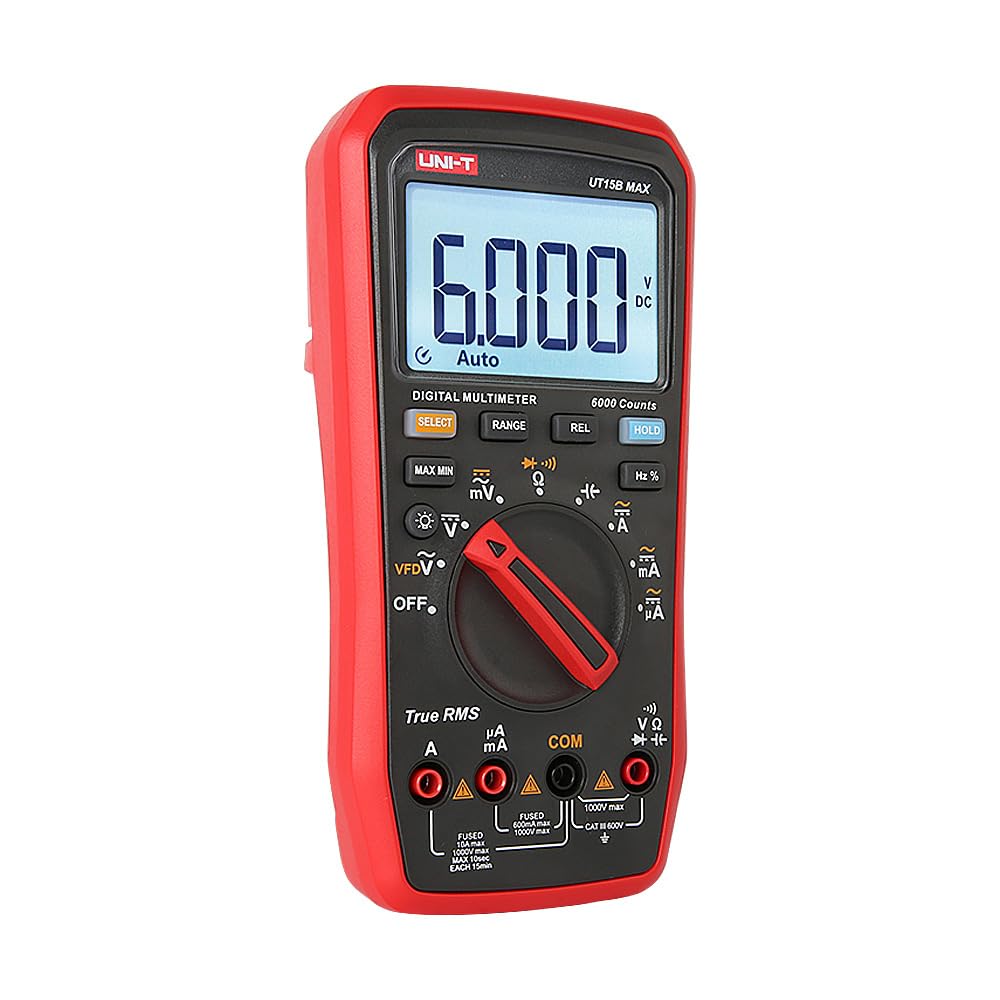

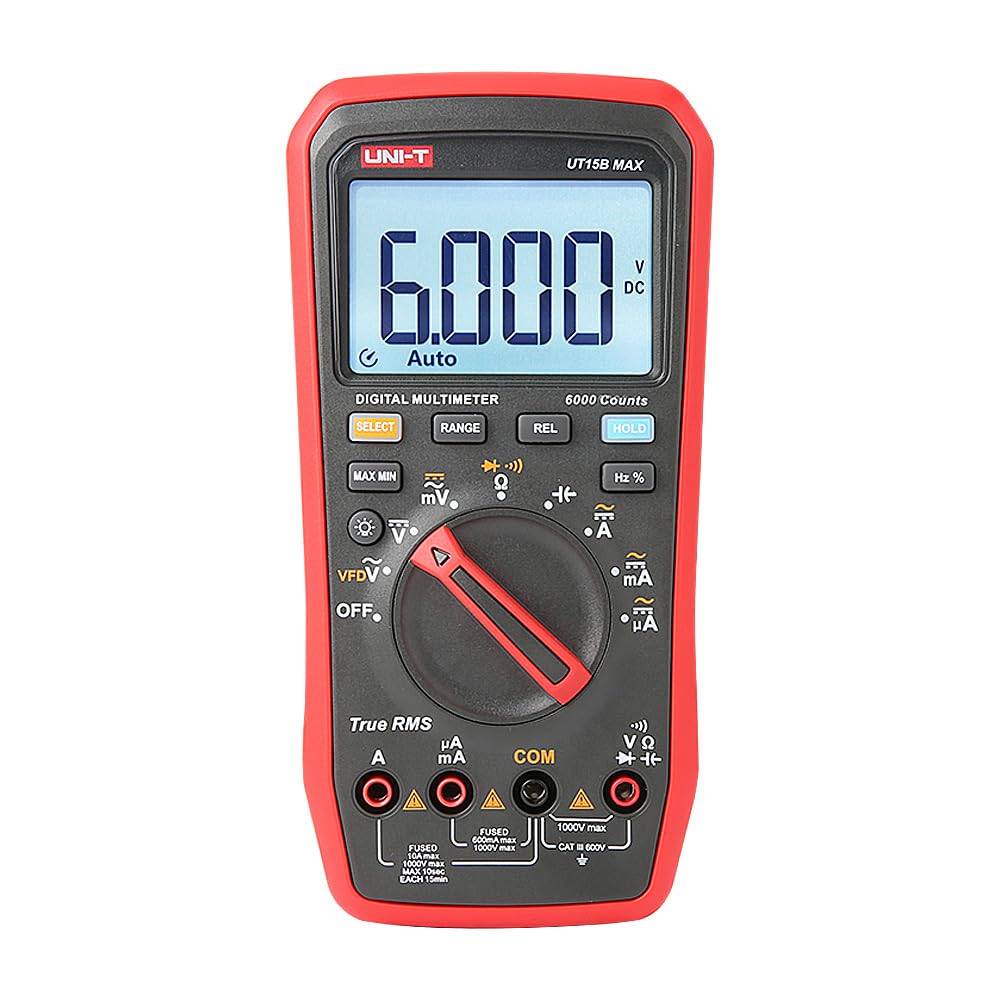

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - UNI-T UT15B MAX digital multimeter in red and black, showing a screen reading 6.000, a central rotary dial, function buttons, and four input ports.

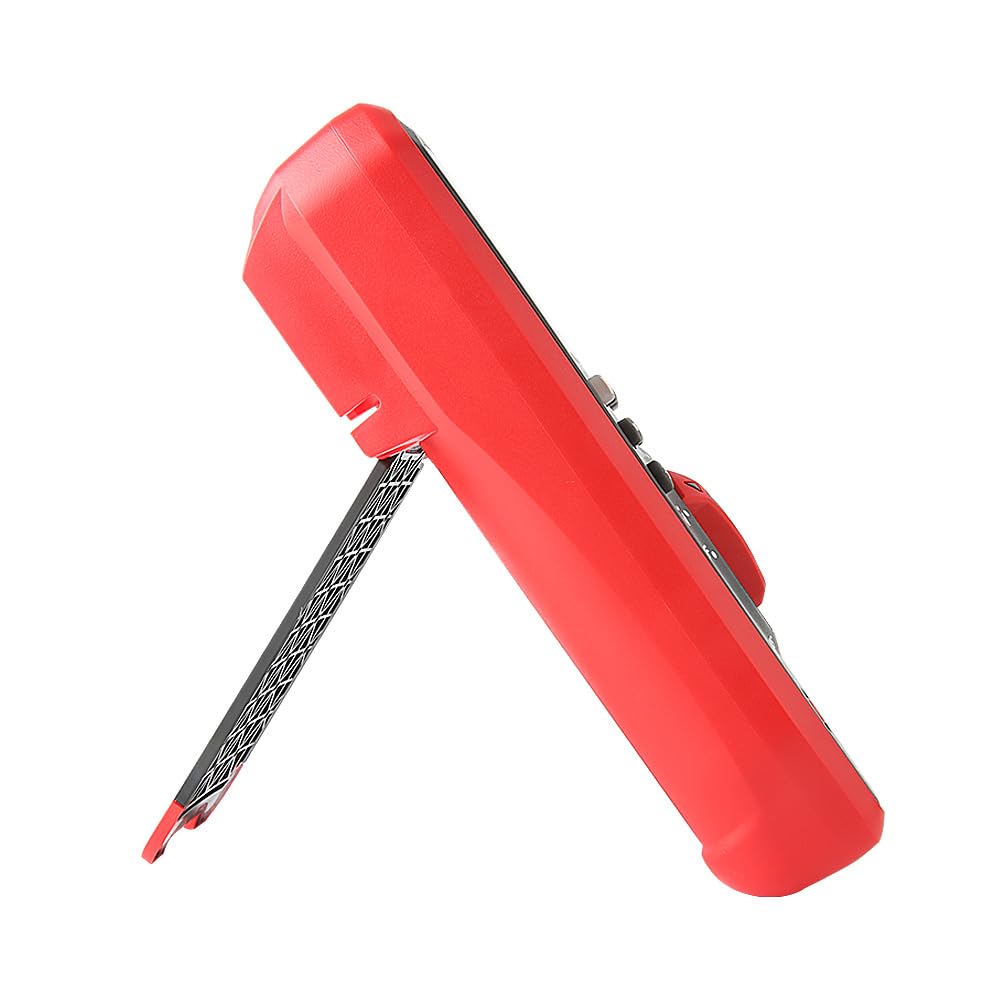

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - shown from the side with its integrated kickstand extended.

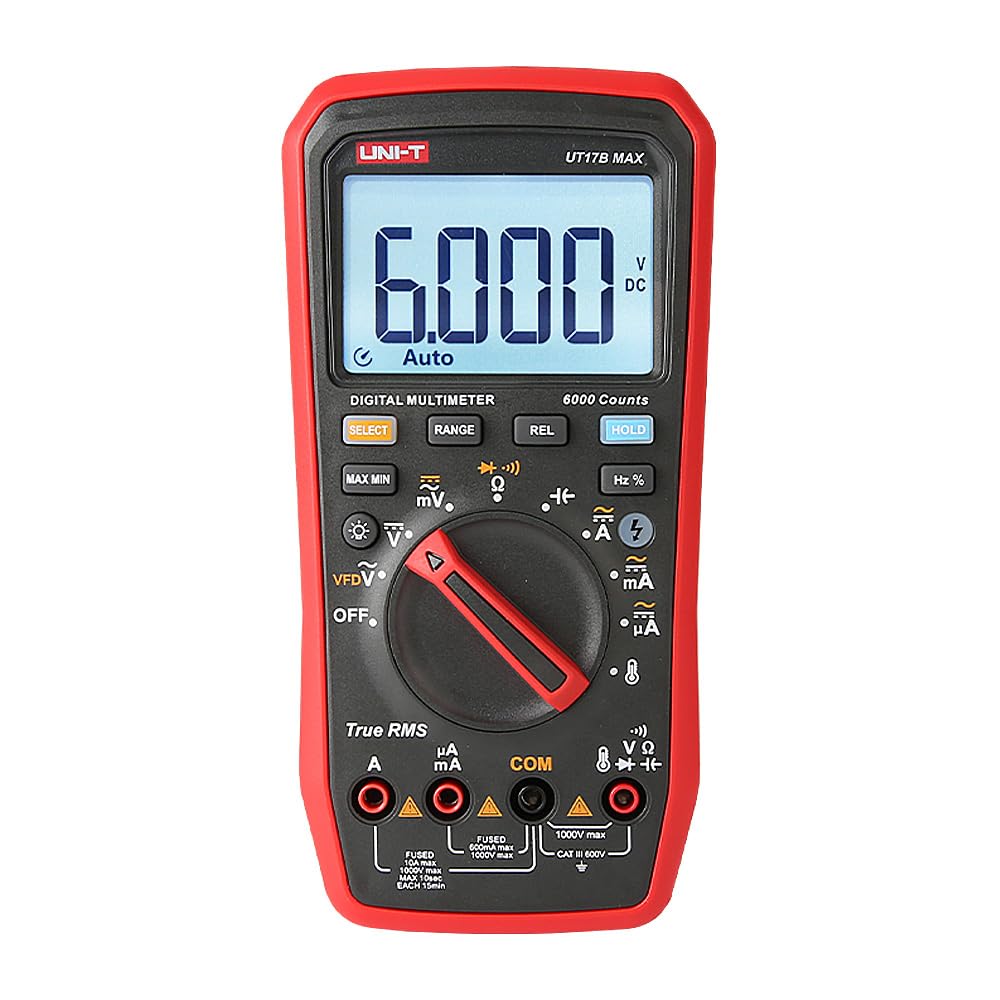

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - a central rotary dial, function buttons, input ports, and a screen displaying 6.000 V DC.

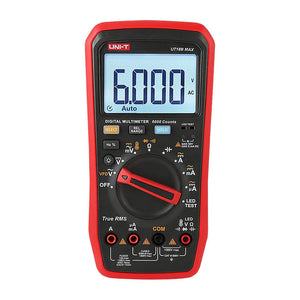

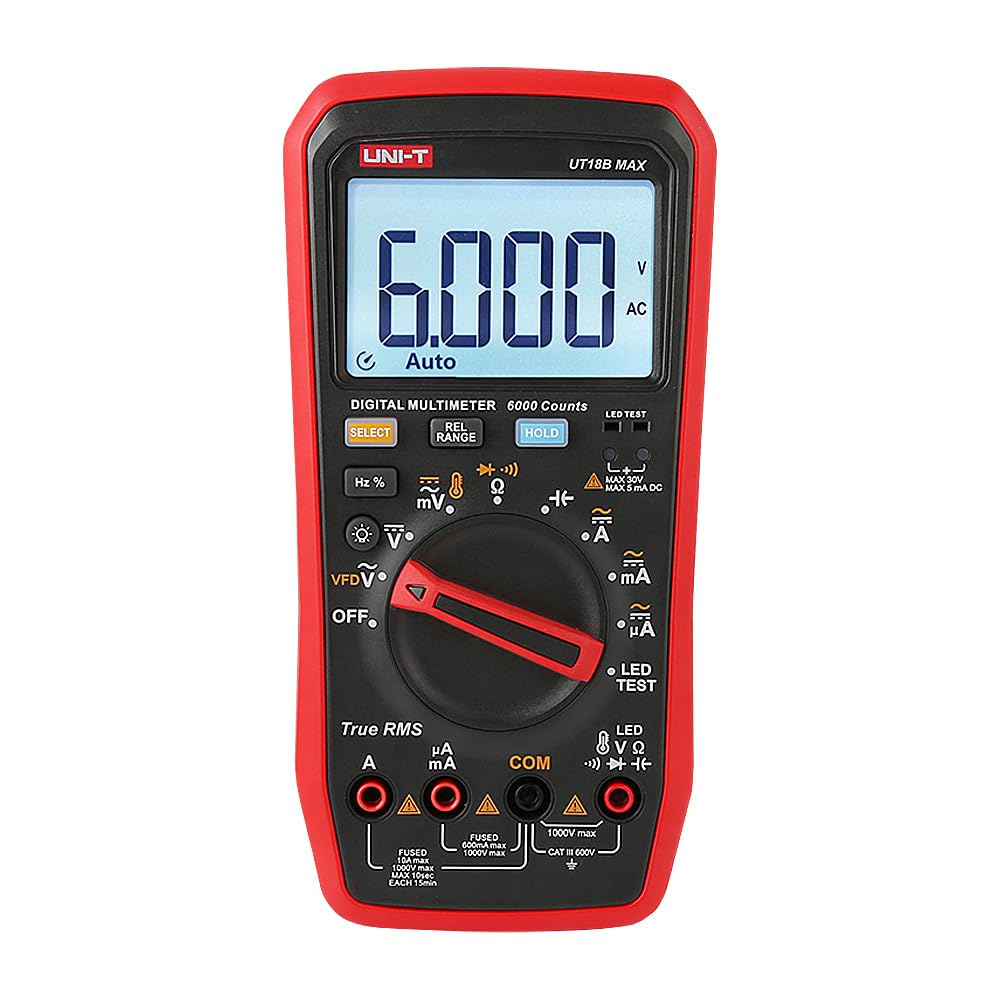

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - UNI-T UT18B MAX digital multimeter in red and black, showing a screen reading 6.000, a central rotary dial, function buttons, and four input ports.
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 6.000.
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - UNI-T UT15B MAX digital multimeter in red and black, showing a screen reading 6.000, a central rotary dial, function buttons, and four input ports.
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - shown from the side with its integrated kickstand extended.
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - a central rotary dial, function buttons, input ports, and a screen displaying 6.000 V DC.
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - UNI-T UT18B MAX digital multimeter in red and black, showing a screen reading 6.000, a central rotary dial, function buttons, and four input ports.

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads

Sale price Rs 21,900
SKU: UT17B MAX
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 6.000.

UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads - a red and black handheld device with a central rotary dial, control buttons, and a screen displaying 6.000.
UNI-T UT17B MAX True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFD, Temperature, Capacitance, Frequency, EMI Protection, Anti-Burn with Gold-Plated Leads
Sale priceRs 21,900

UNI-T UT17B MAX — True RMS 6000-count digital multimeter with 1000V AC/DC, VFD mode, temperature measurement and strong EMI protection. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 6000-count True RMS measurement for accurate AC readings
  • 1000 V AC/DC voltage, 10 A AC/DC current
  • VFD mode — measure variable-frequency-drive output, filters carrier interference
  • Temperature measurement with probe
  • Capacitance, frequency, duty cycle, diode, continuity
  • Strong EMC anti-interference, full-range input protection
  • Misoperation alarm + any-button wake-up; gold-plated standard & fine-tipped leads

Technical Specifications

Type True RMS digital multimeter (6000 count)
DC Voltage 600 mV / 6 / 60 / 600 / 1000 V
AC Voltage 600 mV / 6 / 60 / 600 / 1000 V
DC/AC Current 600 µA ~ 10 A
Resistance 600 Ω ~ 60 MΩ
Capacitance 6 nF ~ 6000 µF
Frequency 10 Hz ~ 10 MHz
Temperature Yes (probe included)
Special VFD, True RMS, misoperation alarm, any-button wake-up
Power 2 × 1.5 V AA (LR6)

Video Review

What's in the Box

  • UT17B MAX multimeter
  • Gold-plated test leads (standard + fine-tipped)
  • Temperature probe
  • 2 × 1.5 V AA batteries
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V  |  HS Code: 9030.3100
