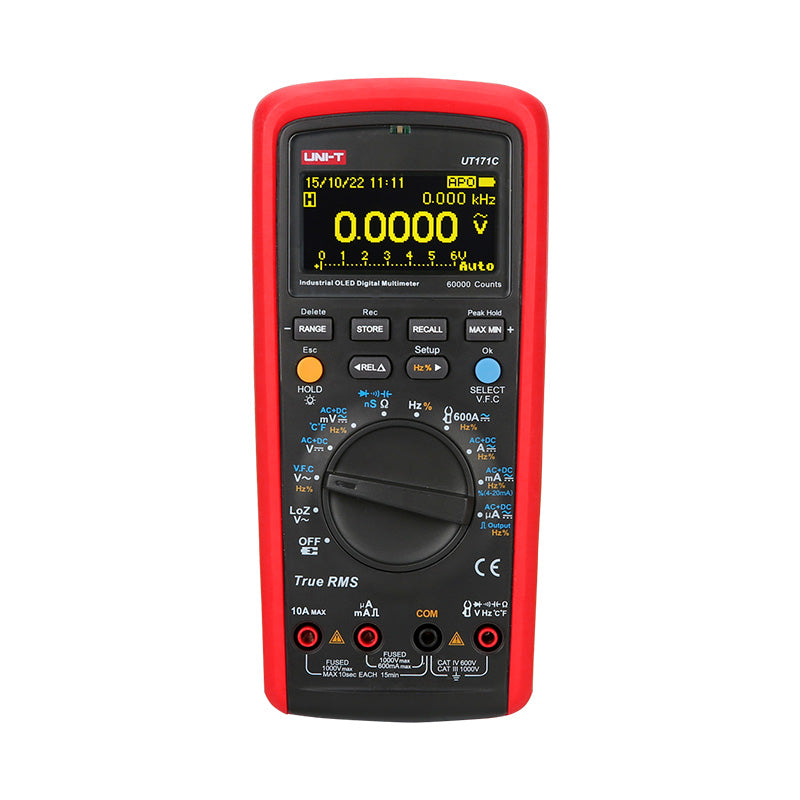

UNI-T UT171C Industrial True RMS Digital Multimeter – 60000 Count OLED, AC/DC 1000V, 10A, LoZ, Square-Wave Output, -30°C Rated, USB & Bluetooth, CAT III 1000V
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT171C Industrial True RMS Digital Multimeter – 60000 Count OLED, AC/DC 1000V, 10A, LoZ, Square-Wave Output, -30°C Rated, USB & Bluetooth, CAT III 1000V
UNI-T UT171C — Top-of-range industrial 60000-count True RMS digital multimeter with a bright OLED display, extended ranges and −30°C low-temperature operation. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- 60000-count True RMS with OLED display
- AC/DC voltage to 1000V, AC/DC current to 10A, 0.025% DC accuracy
- LoZ (ACV) & built-in square-wave output
- Resistance 60MΩ, capacitance 60mF, frequency, temperature
- Rated for −30°C operation for harsh environments
- USB + Bluetooth logging, rechargeable, CAT III 1000V / CAT IV 600V
Technical Specifications
| Type | Industrial True RMS multimeter (60000 count, OLED) |
|---|---|
| DC Voltage | 1000 V ±(0.025%+5) |
| AC Voltage | 1000 V ±(0.4%+40) |
| DC Current | 10 A ±(0.15%+2) |
| AC Current | 10 A ±(0.75%+5) |
| Resistance | 60 MΩ ±(0.05%+2) |
| Capacitance | 60 mF ±(2.5%+40) |
| Frequency | 10 Hz ~ 10 MHz |
| Temperature | −40°C ~ 1000°C |
| Display | OLED, −30°C rated |
| Safety | CAT III 1000V / CAT IV 600V |
What's in the Box
- UT171C multimeter
- Test leads & temperature probe
- USB cable + PC software
- Power adapter & rechargeable battery
- English user manual
Downloads
Certifications: CAT III 1000V / CAT IV 600V, CE, UKCA, cETLus | HS Code: 9030.3100
