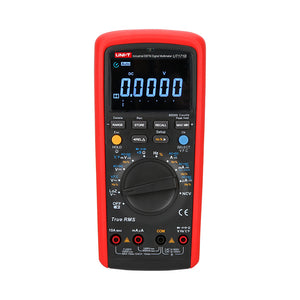

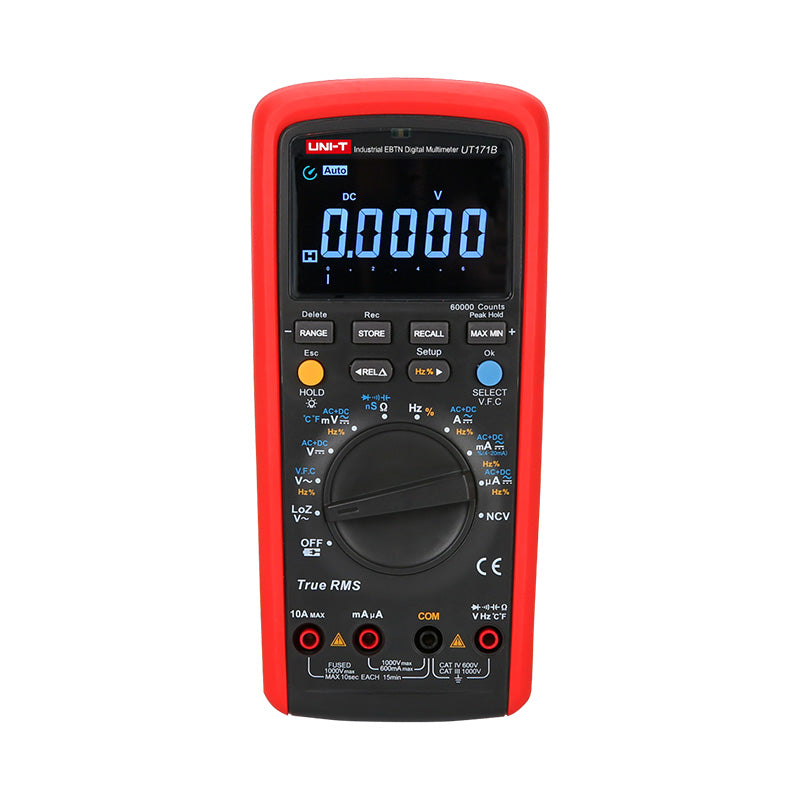

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - a red and black handheld device with a large EBTN display showing 0.0000, a rotary dial, and input ports.

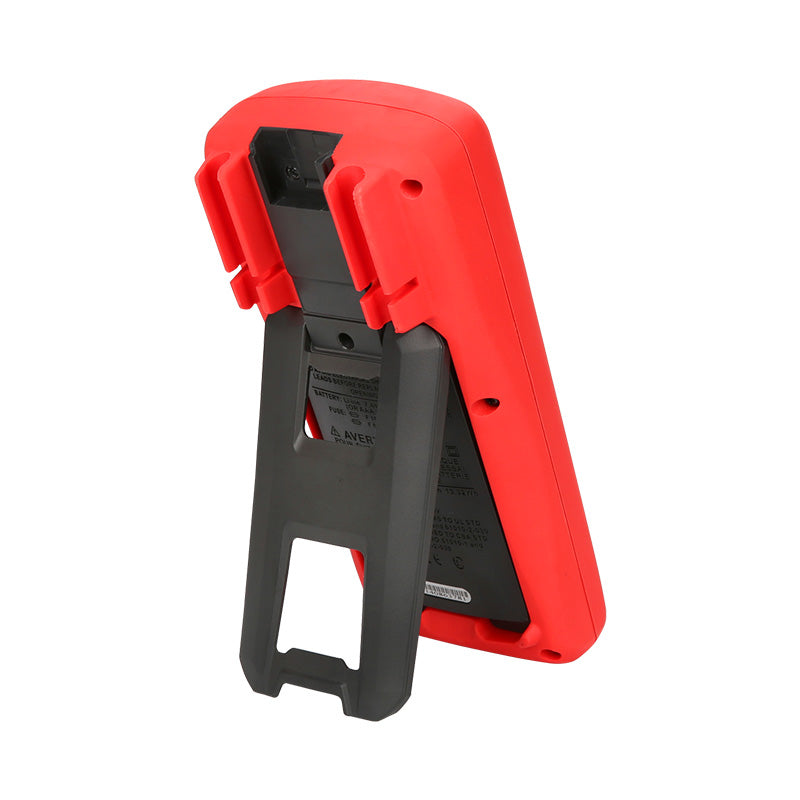

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - shown from the back, featuring a red protective casing and an extended black fold-out kickstand.

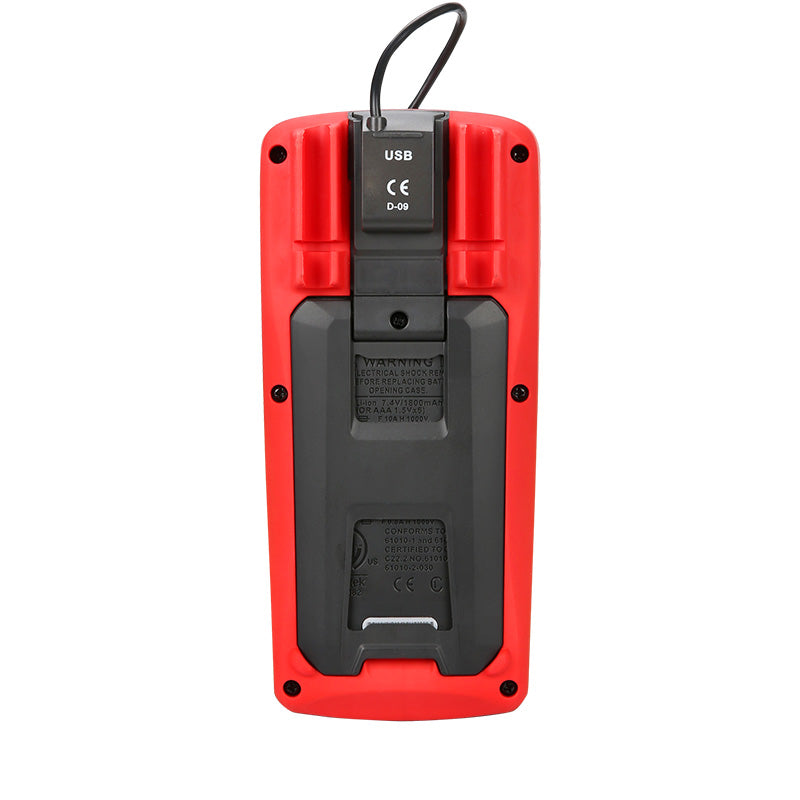

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - rear view showing the red and black casing, a kickstand, and a USB port cover.

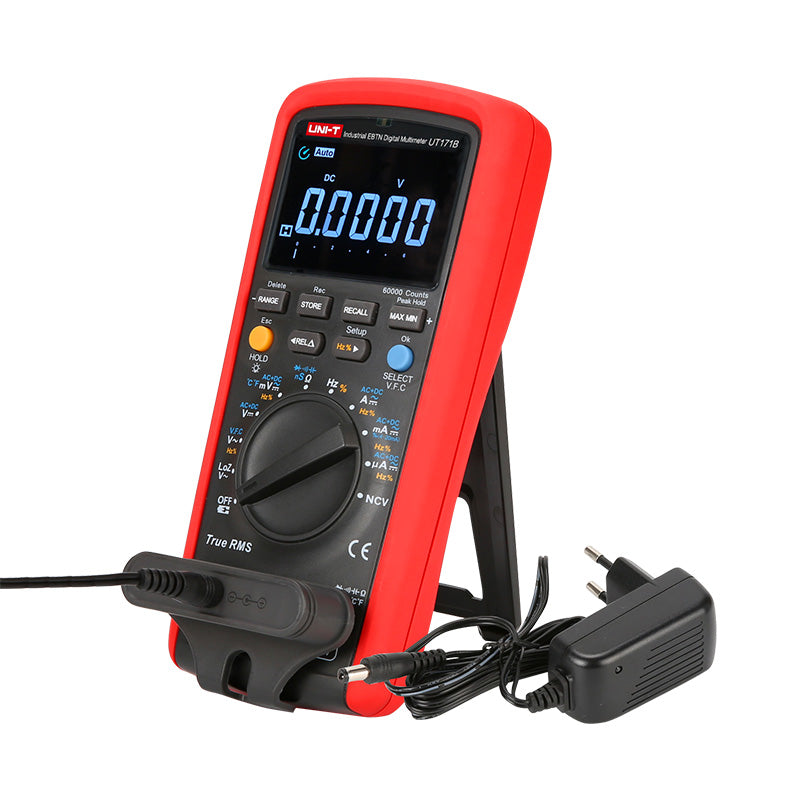

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - with a black screen showing 0.0000, a rotary dial, buttons, a probe, and a power adapter.
UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - a red and black handheld device with a large EBTN display showing 0.0000, a rotary dial, and input ports.
UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - shown from the back, featuring a red protective casing and an extended black fold-out kickstand.
UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - rear view showing the red and black casing, a kickstand, and a USB port cover.
UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - with a black screen showing 0.0000, a rotary dial, buttons, a probe, and a power adapter.

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V

Sale price Rs 65,000
SKU: UT171B
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - a red and black handheld device with a large EBTN display showing 0.0000, a rotary dial, and input ports.

UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V - a red and black handheld device with a large EBTN display showing 0.0000, a rotary dial, and input ports.
UNI-T UT171B Industrial True RMS Digital Multimeter – 60000 Count EBTN, AC/DC 1000V, 10A, LoZ, Square-Wave Output, Temperature, USB & Bluetooth, CAT III 1000V
Sale priceRs 65,000

UNI-T UT171B — Industrial 60000-count True RMS digital multimeter with high-contrast EBTN display, LoZ and square-wave output. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 60000-count True RMS with high-contrast EBTN LCD
  • AC/DC voltage to 1000V, AC/DC current to 10A, 0.025% DC accuracy
  • LoZ (ACV) to eliminate ghost voltage
  • Built-in square-wave output for control-signal troubleshooting
  • Resistance 40MΩ, capacitance 40mF, frequency, temperature
  • USB + Bluetooth logging, rechargeable, CAT III 1000V / CAT IV 600V

Technical Specifications

Type Industrial True RMS multimeter (60000 count, EBTN)
DC Voltage 1000 V ±(0.025%+5)
AC Voltage 1000 V ±(0.4%+40)
DC Current 10 A ±(0.15%+2)
AC Current 10 A ±(0.75%+5)
Resistance 40 MΩ ±(0.05%+2)
Capacitance 40 mF ±(2.5%+40)
Frequency 10 Hz ~ 10 MHz
Temperature −40°C ~ 1000°C
Display EBTN LCD
Safety CAT III 1000V / CAT IV 600V

What's in the Box

  • UT171B multimeter
  • Test leads & temperature probe
  • USB cable + PC software
  • Power adapter & rechargeable battery
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE, UKCA, cETLus  |  HS Code: 9030.3100
