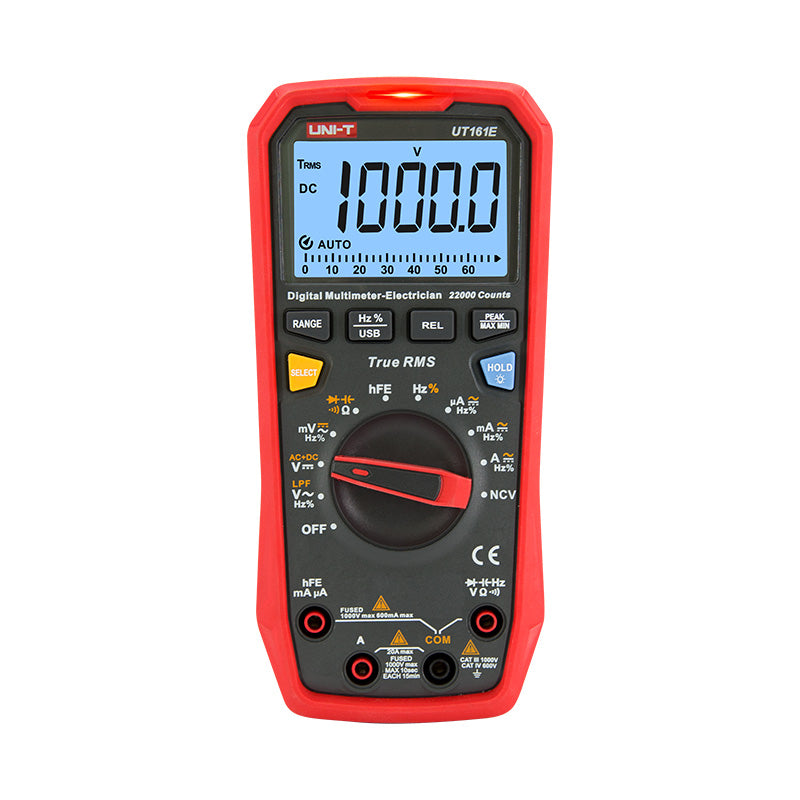

UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - a red handheld device with a central rotary dial, function buttons, input ports, and a screen displaying 1000.0 V.

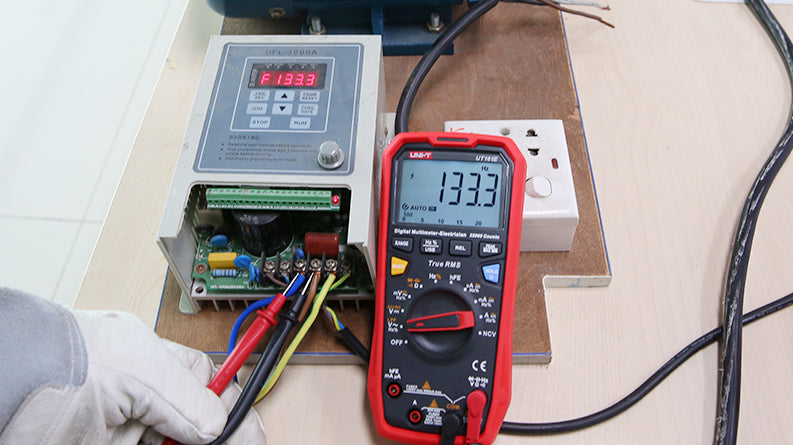

UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - a frequency reading of 133.3 Hz on its display while connected to a DFL-3000A controller.

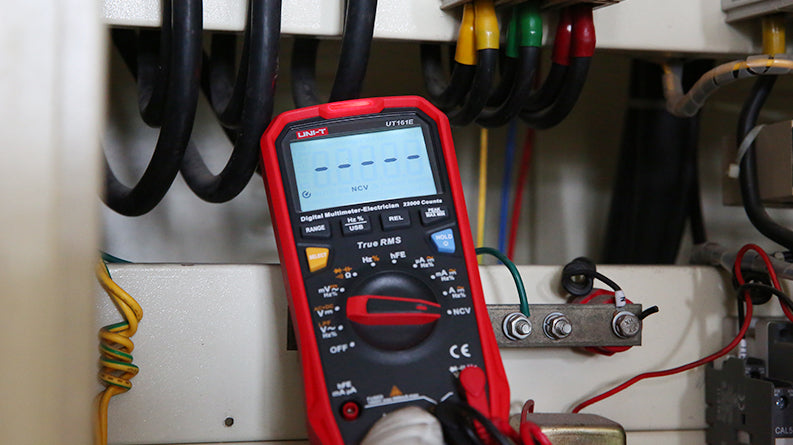

UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case, showing a blank screen with NCV indicator, a central rotary dial, and buttons in an electrical panel.
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - UNI-T UT161B digital multimeter in a red protective case, showing a digital display reading 1000, a central control knob, buttons, and input ports.
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - a red handheld device with a central rotary dial, function buttons, input ports, and a screen displaying 1000.0 V.
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - a frequency reading of 133.3 Hz on its display while connected to a DFL-3000A controller.
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - in a red protective case, showing a blank screen with NCV indicator, a central rotary dial, and buttons in an electrical panel.
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - UNI-T UT161B digital multimeter in a red protective case, showing a digital display reading 1000, a central control knob, buttons, and input ports.

UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V

Sale price Rs 30,600
SKU: UT161E
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - a red handheld device with a central rotary dial, function buttons, input ports, and a screen displaying 1000.0 V.

UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V - a red handheld device with a central rotary dial, function buttons, input ports, and a screen displaying 1000.0 V.
UNI-T UT161E True RMS Digital Multimeter – 22000 Count, AC/DC 1000V, 20A, High Accuracy 0.05%, 220MHz Frequency, Temperature, NCV, USB, CAT III 1000V
Sale priceRs 30,600

UNI-T UT161E — Flagship 22000-count True RMS digital multimeter with 0.05% DC accuracy, USB logging and multi-purpose socket. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 22000-count high-resolution True RMS with analog bar graph
  • High accuracy — 0.05% DC voltage
  • AC/DC voltage to 1000V, AC/DC current to 20A
  • Resistance 220MΩ, capacitance 220mF, frequency to 220MHz
  • Temperature, NCV alarm, Max/Min/Relative, USB PC logging
  • Multi-purpose socket, gold-plated leads, CAT III 1000V / CAT IV 600V

Technical Specifications

Type True RMS digital multimeter (22000 count)
DC Voltage 1000 V ±(0.05%+5)
AC Voltage 1000 V ±(0.8%+10)
DC Current 20 A ±(0.5%+10)
AC Current 20 A ±(0.8%+10)
Resistance 220 MΩ ±(0.5%+10)
Capacitance 220 mF ±(3%+5)
Frequency 220 MHz ±(0.01%+5)
Temperature −40°C ~ 1000°C ±(1%+3)
Safety CAT III 1000V / CAT IV 600V

Video Review

What's in the Box

  • UT161E multimeter
  • Gold-plated test leads
  • Multi-purpose socket
  • USB cable
  • Battery
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE, UKCA, cETLus  |  HS Code: 9030.3100
