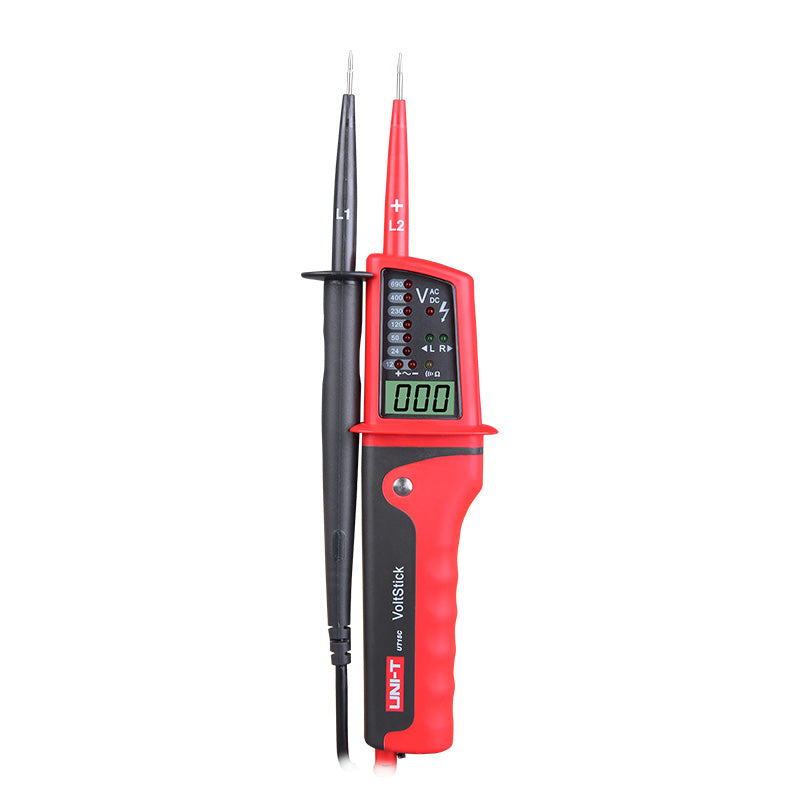

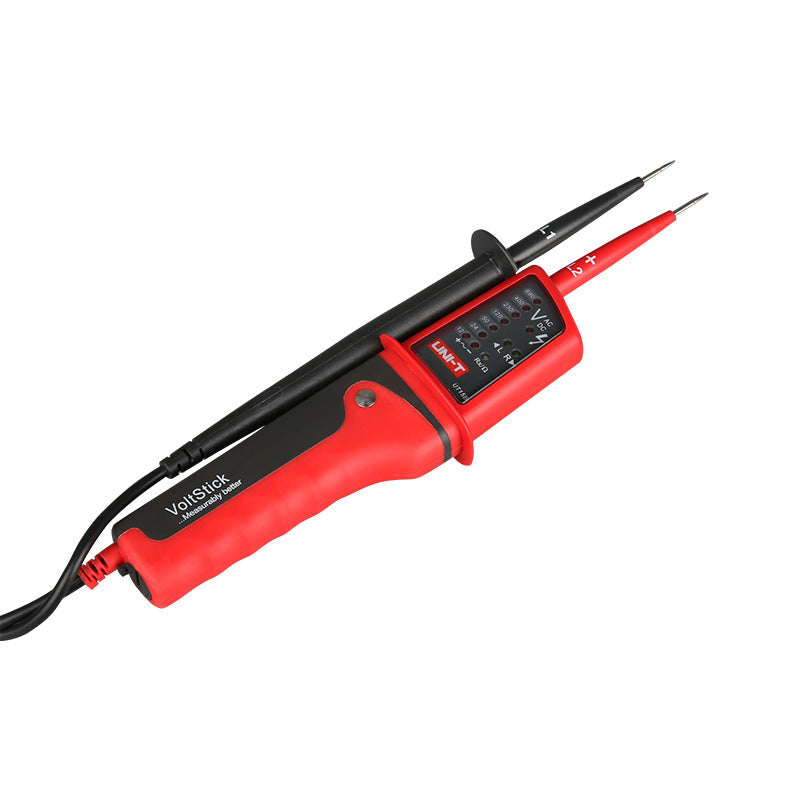

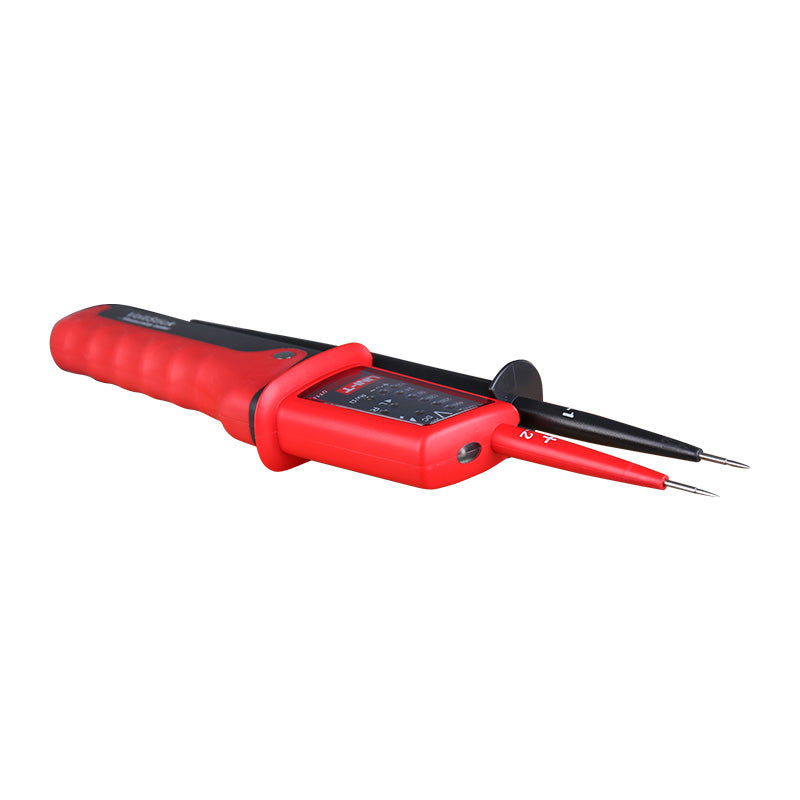

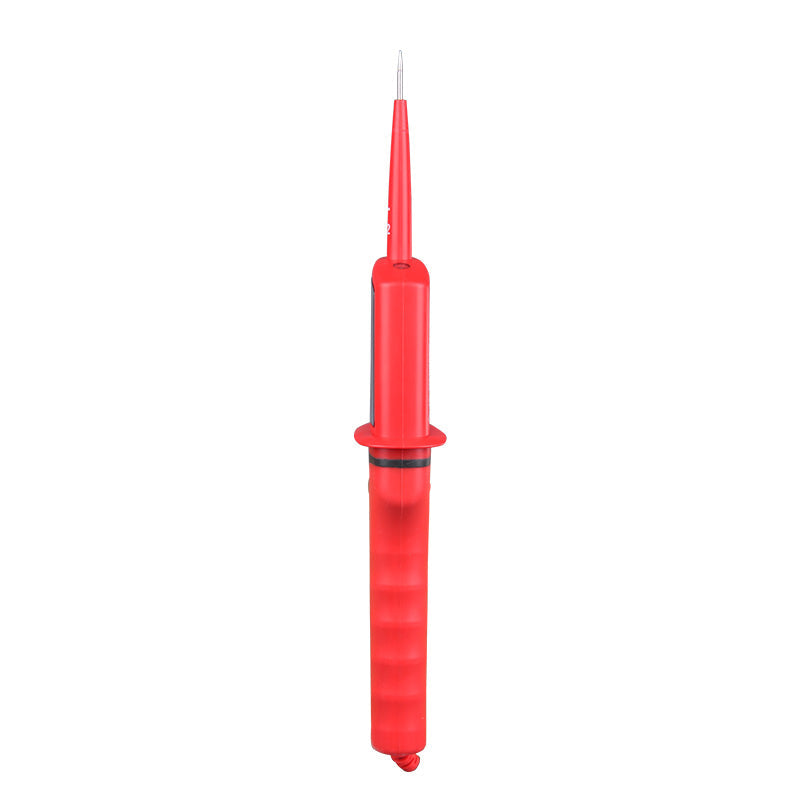

UNI-T UT15C Waterproof Voltage & Continuity Tester Pen with LCD Display – AC/DC up to 690V, Three-Phase Rotation, IP65, Digital Readout & Single-Probe Live Wire Detection
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT15C Waterproof Voltage & Continuity Tester Pen with LCD Display – AC/DC up to 690V, Three-Phase Rotation, IP65, Digital Readout & Single-Probe Live Wire Detection
UNI-T UT15C — Waterproof (IP65) AC/DC voltage & continuity test pen with LCD digital display, up to 690V, three-phase rotation detection. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.
Key Features
- AC/DC voltage up to 690 V shown on both LED indicators and LCD screen
- LCD digital voltage readout: 24–690 V ±(3%+5)
- Three-phase AC phase-rotation indication
- Continuity test (0–100 kΩ) with buzzer
- Single-probe live/neutral wire detection
- Polarity detection, work light, IP65 waterproof rugged design
Technical Specifications
| Type | Waterproof voltage & continuity test pen (LED + LCD) |
|---|---|
| LCD Voltage Display | 24–690 V AC/DC ±(3%+5) |
| Voltage Ranges (LED) | 12 / 24 / 50 / 120 / 230 / 400 / 690 V |
| Phase Rotation | 0–690 V, 50–60 Hz (3-phase) |
| Single-Lead Detection | 0–690 V, 50–400 Hz |
| Continuity | 0–100 kΩ |
| Display | 23 × 12 mm LCD |
| IP Rating | IP65 (waterproof) |
| Power | 2 × 1.5 V AAA (R03) |
| Dimensions | 275 × 51 × 30 mm |
| Weight | 210 g |
| Certifications | CE, UKCA, IEC 61243-3 |
Video Review
What's in the Box
- UT15C voltage tester
- 2 × 1.5 V AAA batteries
- English user manual
Downloads
Certifications: CE, UKCA, IEC 61243-3 | HS Code: 9030.3900
