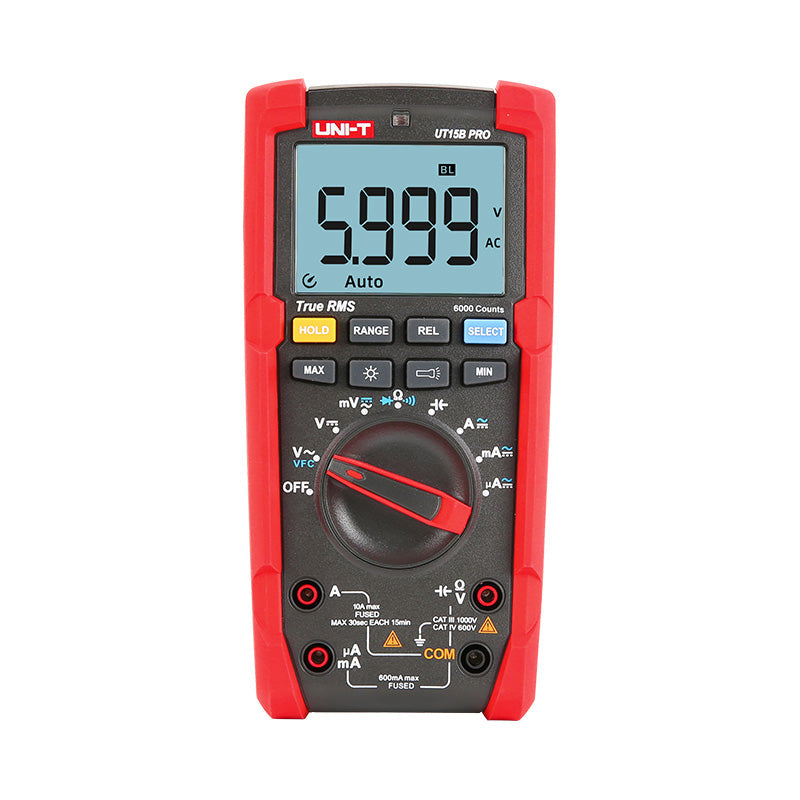

UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - a screen reading 5.999V AC, a central rotary dial, function buttons, and input ports.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - in a red and black casing with a digital display showing 5.999, a central rotary dial, and various input ports.

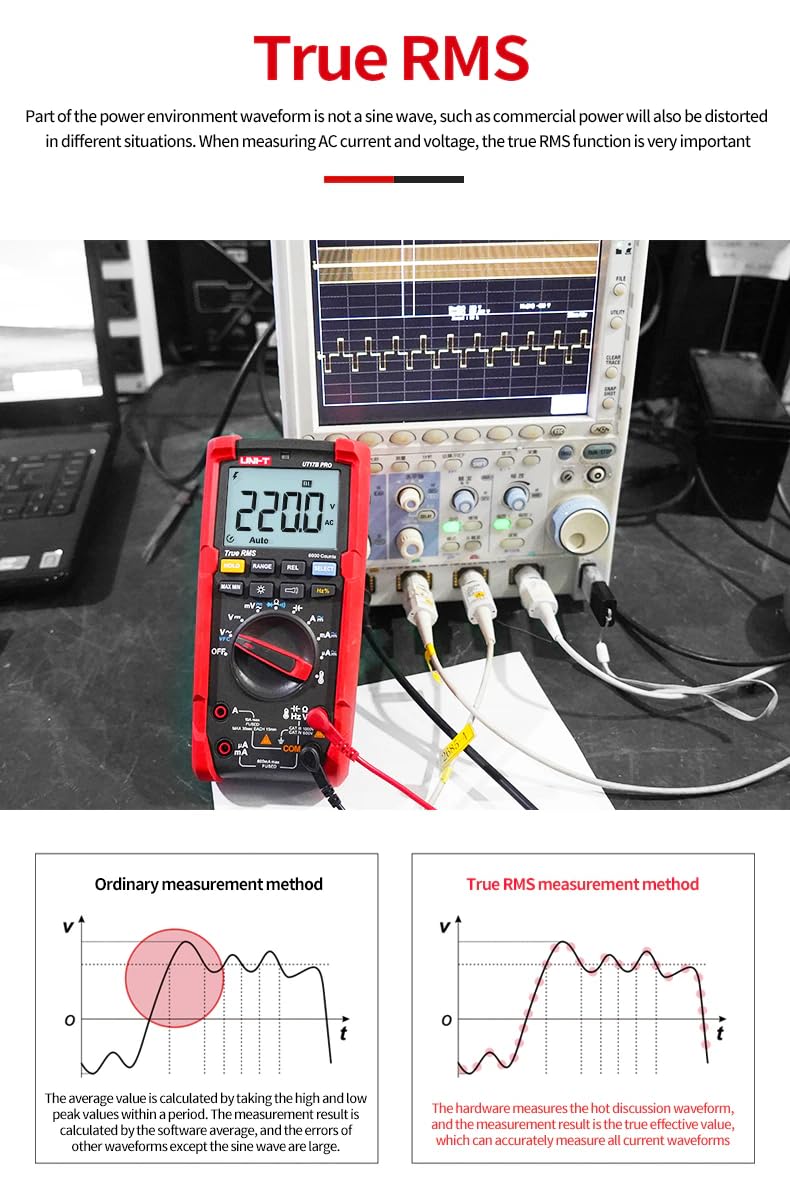

UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - connected to an oscilloscope displaying a square wave, with the multimeter screen showing 220.0V AC.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - the red handheld device, a usage scene, a probe close-up, and a specifications table.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - a screen reading 5.999V AC, a central rotary dial, function buttons, and input ports.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - in a red and black casing with a digital display showing 5.999, a central rotary dial, and various input ports.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - connected to an oscilloscope displaying a square wave, with the multimeter screen showing 220.0V AC.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - the red handheld device, a usage scene, a probe close-up, and a specifications table.

UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection

Sale price Rs 19,500
SKU: UT15B PRO
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - a screen reading 5.999V AC, a central rotary dial, function buttons, and input ports.

UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection - a screen reading 5.999V AC, a central rotary dial, function buttons, and input ports.
UNI-T UT15B PRO True RMS Digital Multimeter – 6000 Count, 1000V AC/DC, VFC, Capacitance, Frequency, CAT III 1000V / CAT IV 600V, 8kV Anti-Burn Protection
Sale priceRs 19,500

UNI-T UT15B PRO — True RMS 6000-count digital multimeter, 1000V AC/DC with VFC filtering and CAT III 1000V / CAT IV 600V safety plus 8kV transient protection. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 6000-count True RMS measurement
  • 1000 V AC/DC voltage, 10 A AC/DC current
  • VFC (600V) low-pass filter for accurate motor-drive voltage readings
  • Capacitance (6000 µF), frequency, duty cycle, diode, continuity
  • Auto backlight / flashlight, full-range 1000V protection
  • CAT III 1000V / CAT IV 600V safety, 8kV transient voltage protection

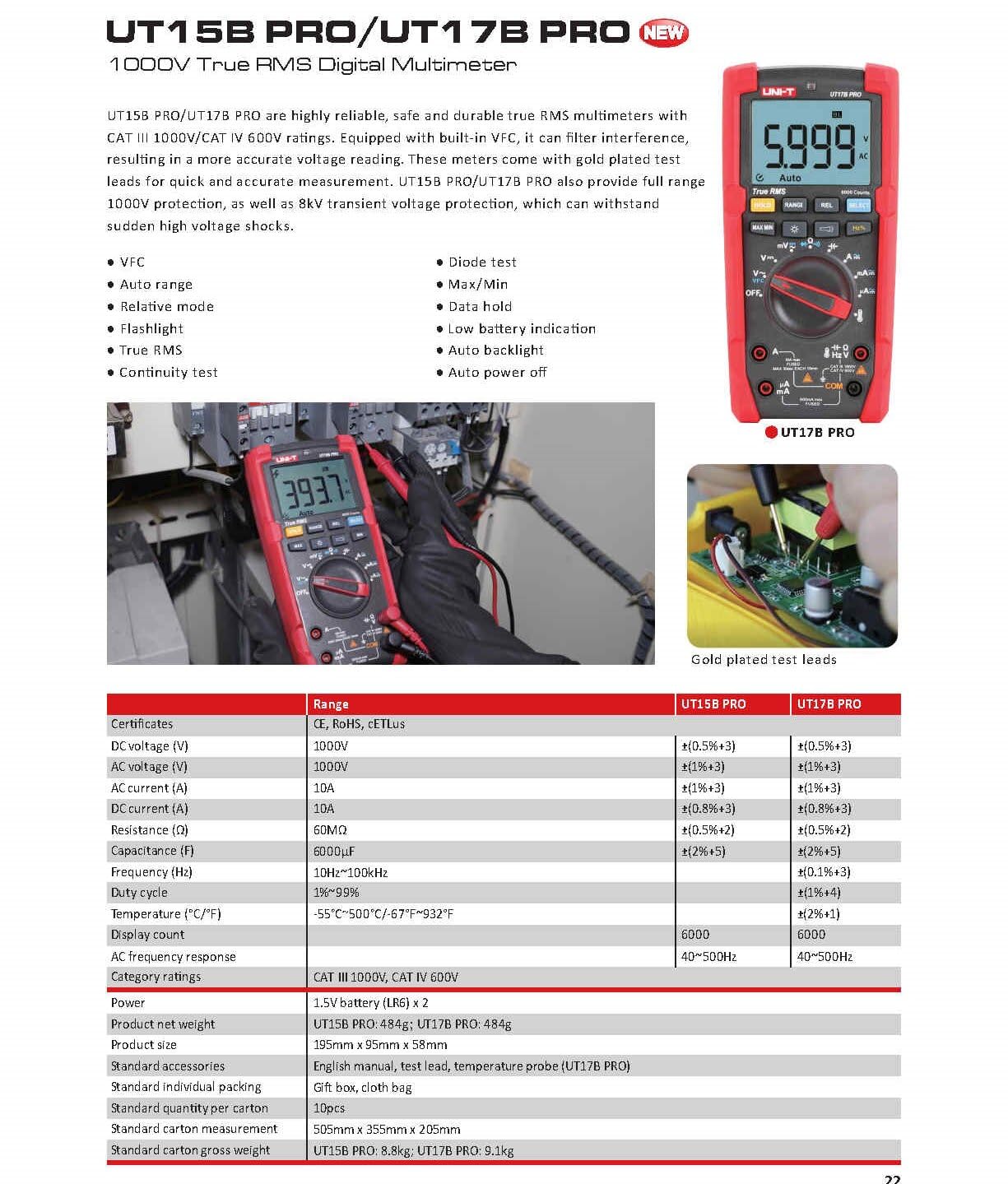

Technical Specifications

Type True RMS digital multimeter (6000 count)
DC Voltage 1000 V ±(0.5%+3)
AC Voltage 1000 V ±(1%+3)
DC Current 10 A ±(0.8%+3)
AC Current 10 A ±(1%+3)
Resistance 60 MΩ ±(0.5%+2)
Capacitance 6000 µF ±(2%+5)
Frequency 10 Hz ~ 1 MHz ±(0.1%+3)
Duty Cycle 1% ~ 99%
Safety CAT III 1000V / CAT IV 600V, 8kV transient
Power 2 × 1.5 V AA (LR6)

Video Review

What's in the Box

  • UT15B PRO multimeter
  • Test leads
  • 2 × 1.5 V AA batteries
  • English user manual

Downloads

Certifications: CAT III 1000V / CAT IV 600V, CE  |  HS Code: 9030.3100
