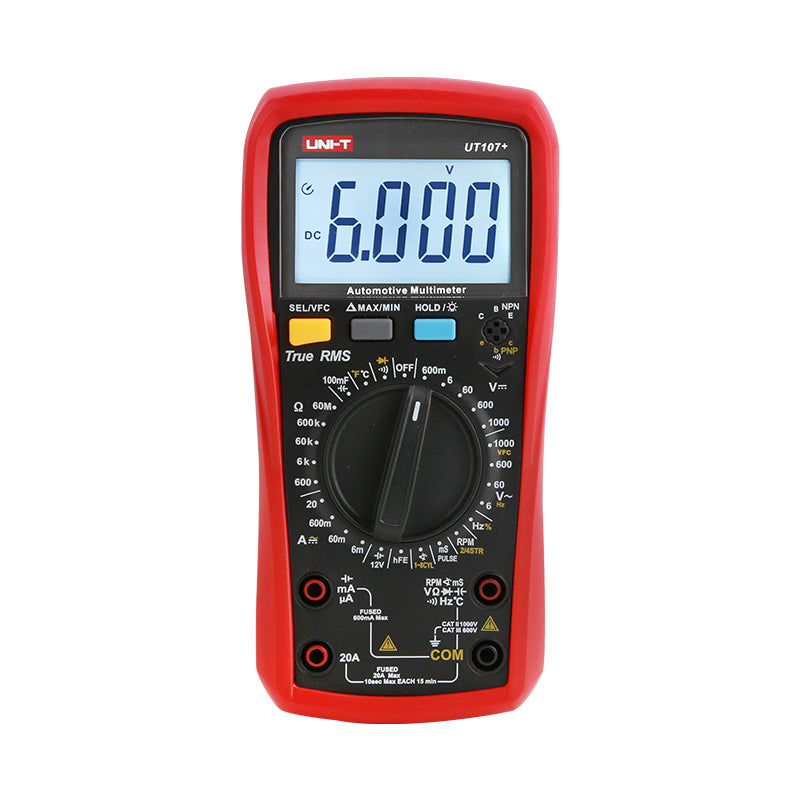

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a central dial, buttons, input ports, and a digital display showing 6.000 DC volts.

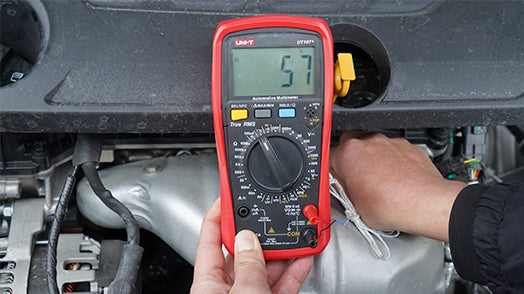

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a central dial and digital screen displaying 57, held against a car engine.

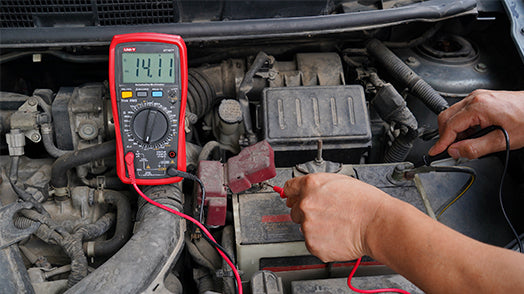

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a digital display showing 14.11, being used to test a car battery with probes.

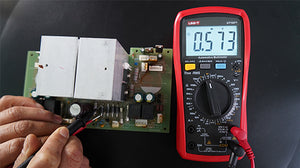

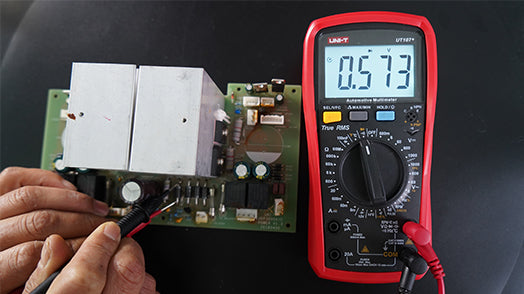

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - with a red casing and black rotary dial, showing a 0.573V reading while testing a circuit board with probes.

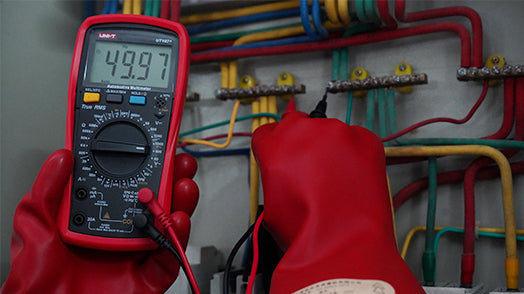

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - held by gloved hands, showing a red casing, rotary dial, ports, and a digital display reading 49.97.
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a central dial, buttons, input ports, and a digital display showing 6.000 DC volts.
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a central dial and digital screen displaying 57, held against a car engine.
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a digital display showing 14.11, being used to test a car battery with probes.
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - with a red casing and black rotary dial, showing a 0.573V reading while testing a circuit board with probes.
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - held by gloved hands, showing a red casing, rotary dial, ports, and a digital display reading 49.97.

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V

Sale price Rs 8,100
SKU: UT107+
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a central dial, buttons, input ports, and a digital display showing 6.000 DC volts.

UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V - a red handheld device with a central dial, buttons, input ports, and a digital display showing 6.000 DC volts.
UNI-T UT107+ True RMS Automotive Multimeter – 6000 Count, RPM, Dwell Angle, Pulse Width, Battery Test, Temperature, 1000V AC/DC, VFC, CAT III 600V
Sale priceRs 8,100

UNI-T UT107+ — Professional True RMS automotive multimeter with RPM, dwell angle, pulse width and battery test for vehicle diagnostics, plus full electrical measurement. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 6000-count True RMS, built for automotive & HVAC technicians
  • Automotive functions: RPM (2/4-stroke), dwell angle (1–8 cylinders), pulse width, battery test
  • AC/DC voltage to 1000V, AC/DC current to 20A (10s), capacitance, resistance
  • Temperature −40°C~1000°C, frequency, duty cycle, diode, continuity
  • VFC (up to 1000V) for variable-frequency motor/pump/HVAC drives
  • CAT II 1000V / CAT III 600V safety, backlit display

Technical Specifications

Type True RMS automotive multimeter (6000 count)
DC Voltage 1000 V ±(0.5%+3)
AC Voltage 1000 V ±(0.8%+3)
DC/AC Current 20 A (10s max) ±(1%+8)
Resistance 60 MΩ ±(0.8%+3)
Capacitance up to 100 mF ±(3%+10)
Temperature −40°C ~ 1000°C ±(1%+3)
RPM 300 ~ 19999 RPM (2/4 stroke) ±3%
Dwell Angle 1 ~ 8 cylinders ±3%
Pulse Width up to 999.9 ms ±(1.5%+10)
Safety CAT II 1000V / CAT III 600V

Video Review

What's in the Box

  • UT107+ automotive multimeter
  • Test leads (pair)
  • Temperature probe
  • Batteries
  • English user manual

Downloads

Certifications: CAT II 1000V / CAT III 600V, CE  |  HS Code: 9030.3100
