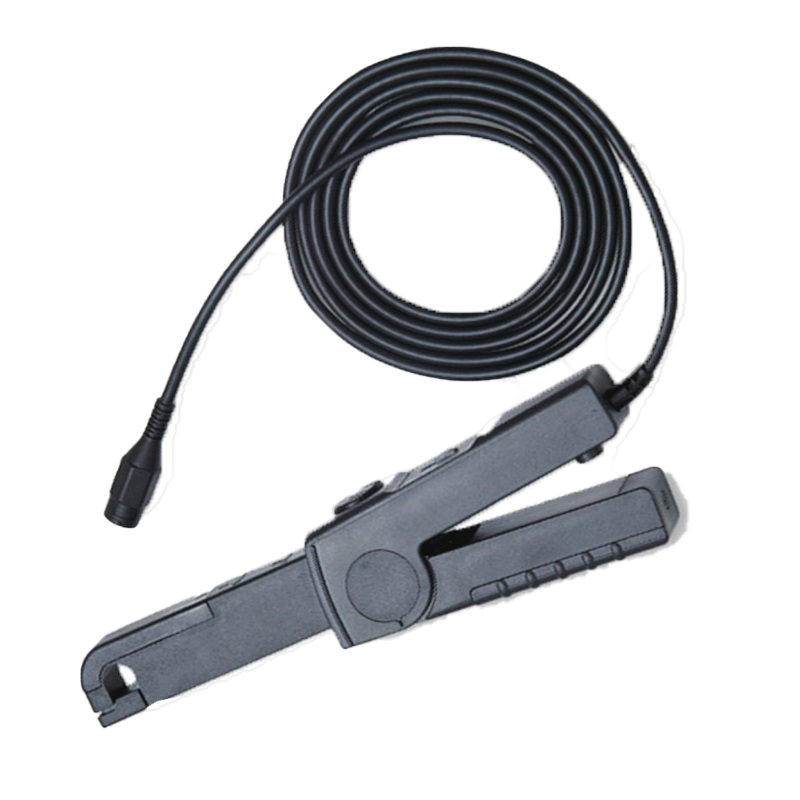

UNI-T UT-P41 AC/DC Current Probe for Oscilloscopes – DC~100 kHz, 100 A, 10/100 mV/A, CAT III 600 V, BNC - a black clamp-style sensor with a coiled cable, a control button on the handle, and a circular BNC connector.

UNI-T UT-P41 AC/DC Current Probe for Oscilloscopes – DC~100 kHz, 100 A, 10/100 mV/A, CAT III 600 V, BNC

Rs 181,250

SKU: UT-P41

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT-P41 AC/DC Current Probe for Oscilloscopes – DC~100 kHz, 100 A, 10/100 mV/A, CAT III 600 V, BNC - a black clamp-style sensor with a coiled cable, a control button on the handle, and a circular BNC connector.

UNI-T UT-P41 AC/DC Current Probe for Oscilloscopes – DC~100 kHz, 100 A, 10/100 mV/A, CAT III 600 V, BNC

Rs 181,250

The UNI-T UT-P41 is a clamp-style AC/DC current probe for oscilloscopes measuring DC to 100 kHz, up to 100 A, at 10/100 mV/A, rated CAT III 600 V — for higher-current power and motor measurements on any scope.

Clamp the split-core jaw around a conductor and read current as a voltage over BNC. Genuine UNI-T accessory supplied by Digilog.pk with warranty.

Key Features

🔀 AC/DC current to 100 A, DC~100 kHz
📟 Output 10 / 100 mV/A to a scope BNC
🗜️ Clamp jaw — measure without breaking the circuit
🛡️ CAT III 600 V

Technical Specifications

Current range	100 A (AC/DC)
Bandwidth	DC ~ 100 kHz
Output	10 / 100 mV/A
Safety rating	CAT III 600 V
Connector	BNC

What's in the Box

UT-P41 current probe
Power adapter
Accessory kit

Downloads

UNI-T UT-P41 Product Page

Certifications: CE | HS Code: 9030.90
