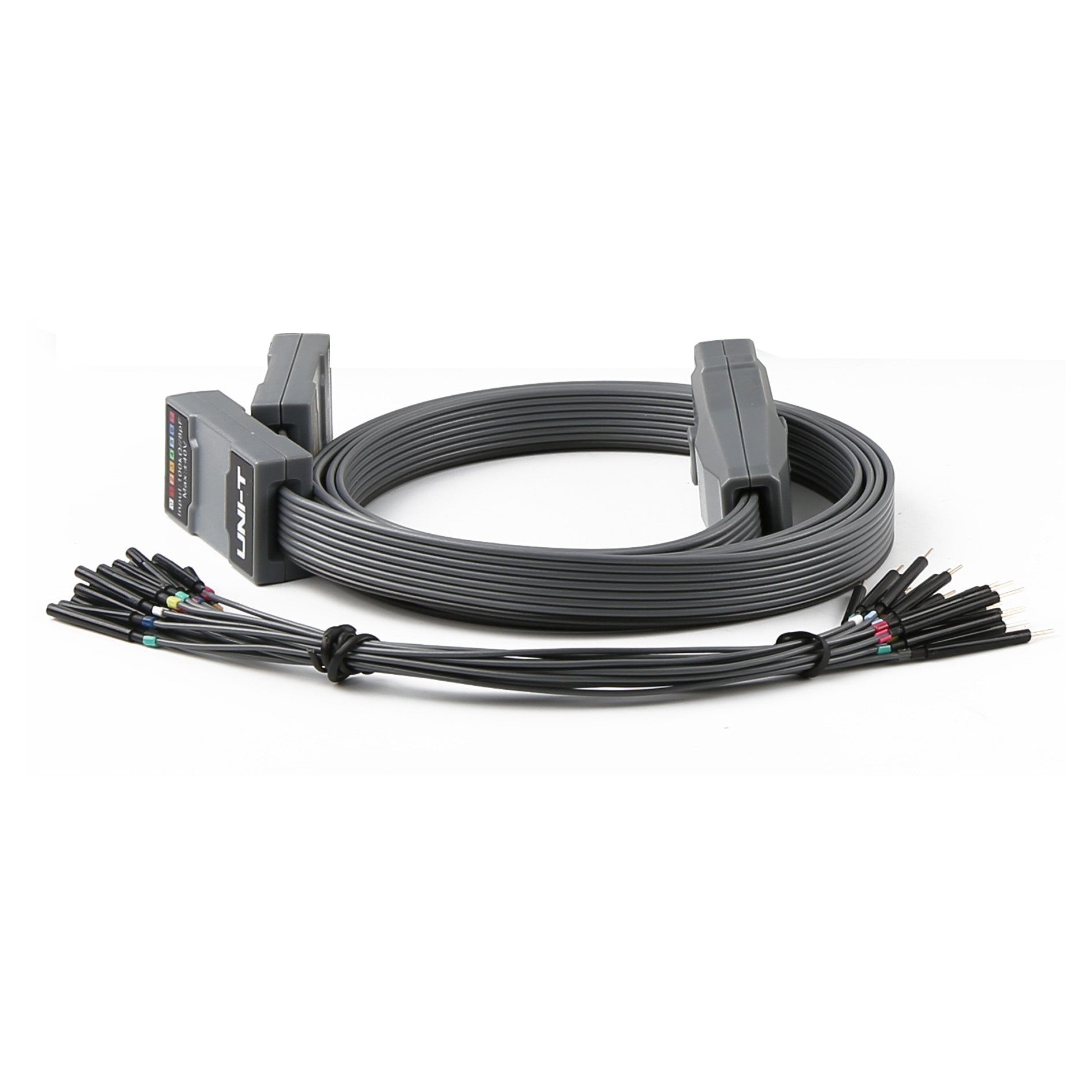

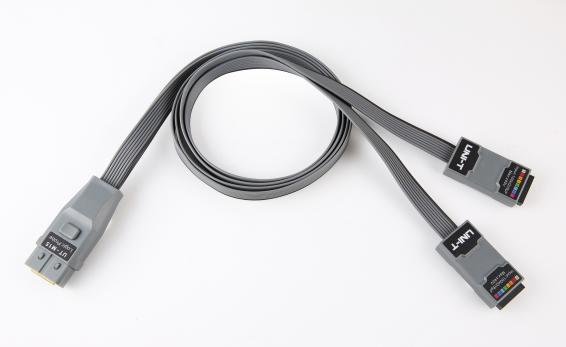

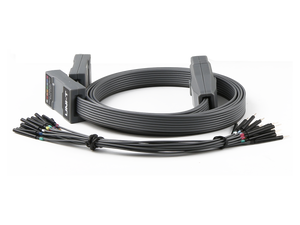

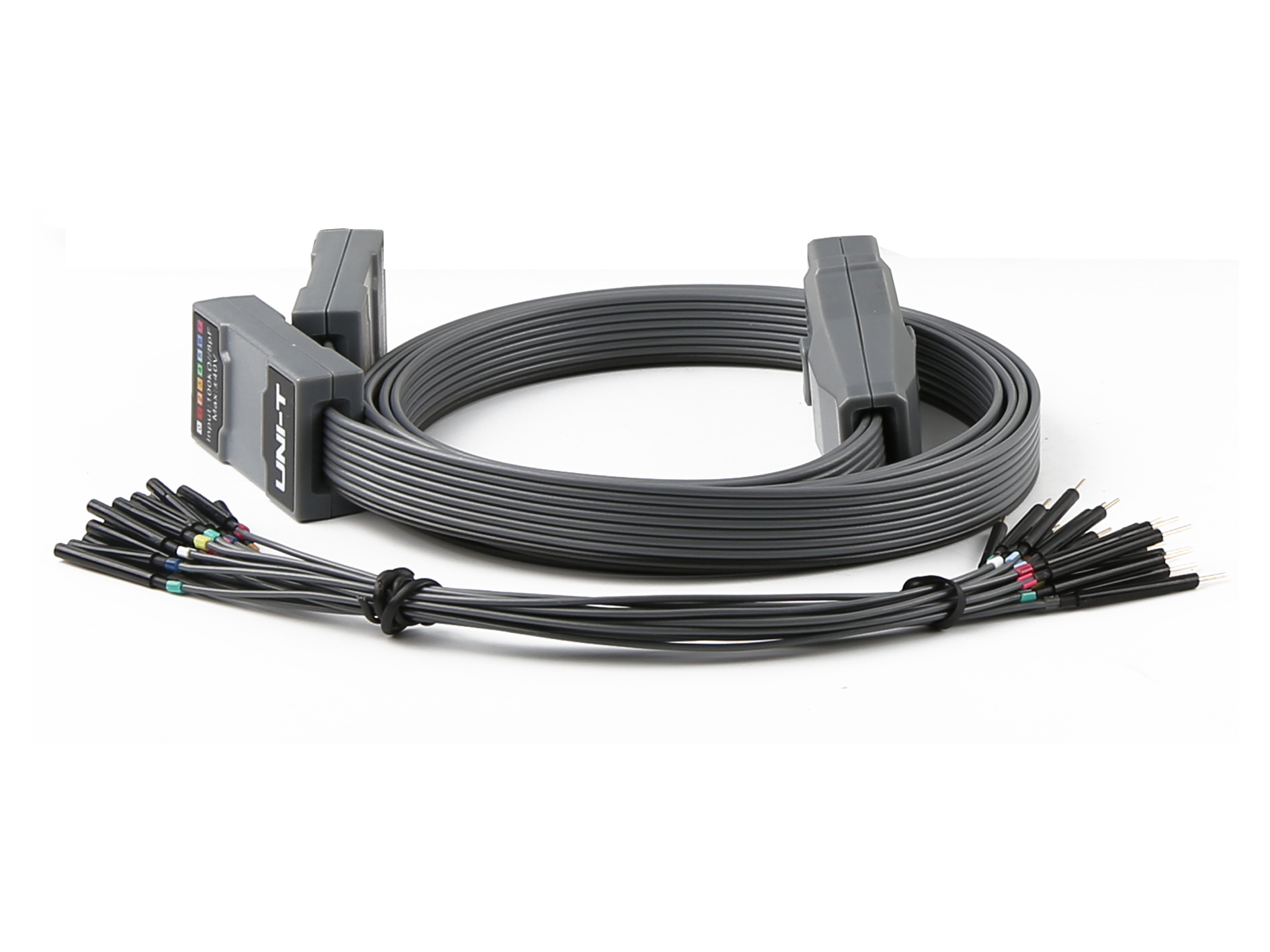

UNI-T UT-M15 16-Channel Logic Analyzer Probe Pod – for UPO/MSO Series Oscilloscopes (Mixed-Signal Debugging)
The UNI-T UT-M15 is a 16-channel logic analyzer probe pod that turns a compatible UPO/MSO-series oscilloscope into a mixed-signal instrument. It adds digital bus visibility for debugging embedded, automotive and industrial communication protocols alongside your analog channels.
It connects through the scope's dedicated logic-analyzer port and ships with the full set of channel leads and grabbers. Genuine UNI-T accessory supplied by Digilog.pk.
Key Features
- 🔧 16 digital channels for mixed-signal debugging
- ⚡ Decode embedded, automotive and industrial buses alongside analog
- ✅ Connects via the scope's dedicated logic-analyzer port
- 📏 Fast 800 ps minimum pulse width; low 9 pF input capacitance
- 🔩 Compatible with UNI-T MSO/UPO2000, MSO2000X, MSO/UPO3000, MSO3000X, MSO3000HD, MSO5000D, MSO8000HD
Technical Specifications
| Channels | 16 digital |
|---|---|
| Connector | 8 × 2 square pin, 2.54 mm |
| Input Capacitance | 9.0 pF |
| Input Impedance | 101 Ω ±1% |
| Min. Pulse Width | 800 ps |
| Compatibility | MSO/UPO2000, MSO2000X, MSO/UPO3000, MSO3000X, MSO3000HD, MSO5000D, MSO8000HD |
What's in the Box
- UT-M15 logic analyzer pod
- 16 × channel leads with grabber clips
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 9030.90
