UNI-T UT-CS06A 400A AC Current Clamp Sensor – Clamp Adapter for Multimeters, 1mV/A Output, 28mm Jaw, CAT III 300V
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT-CS06A 400A AC Current Clamp Sensor – Clamp Adapter for Multimeters, 1mV/A Output, 28mm Jaw, CAT III 300V

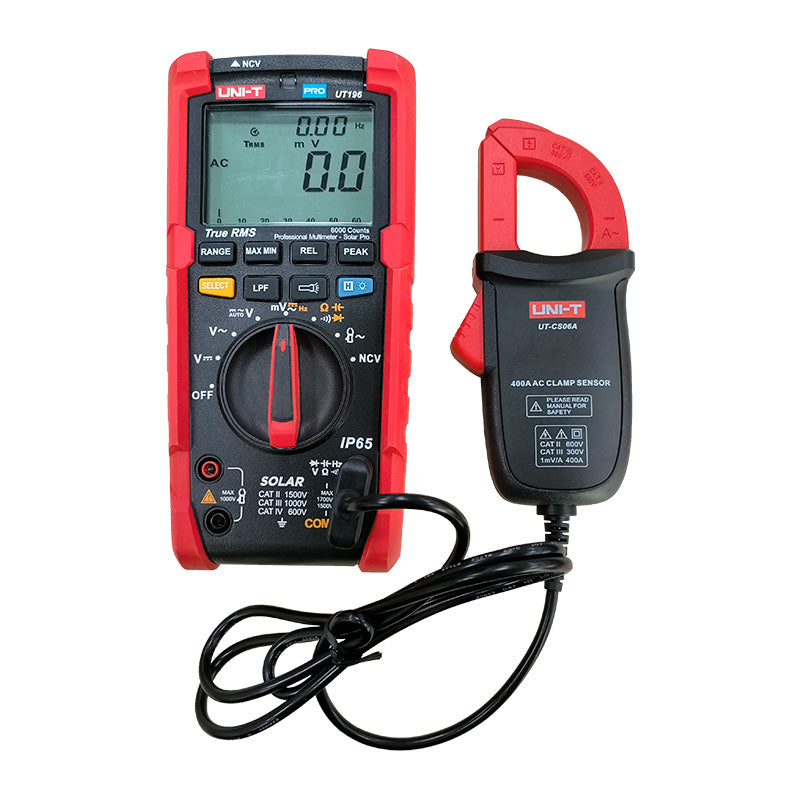

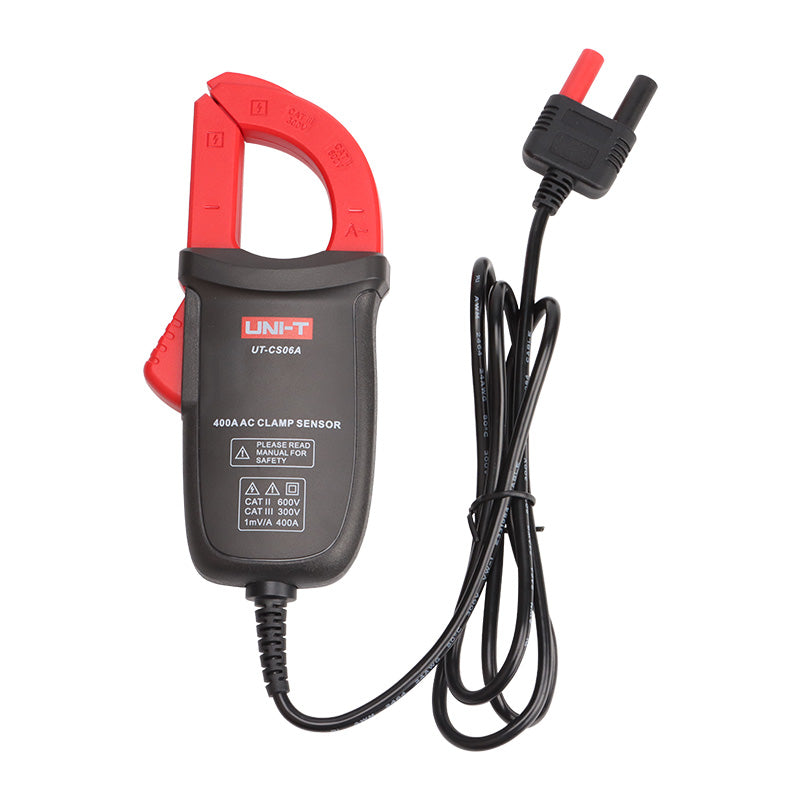

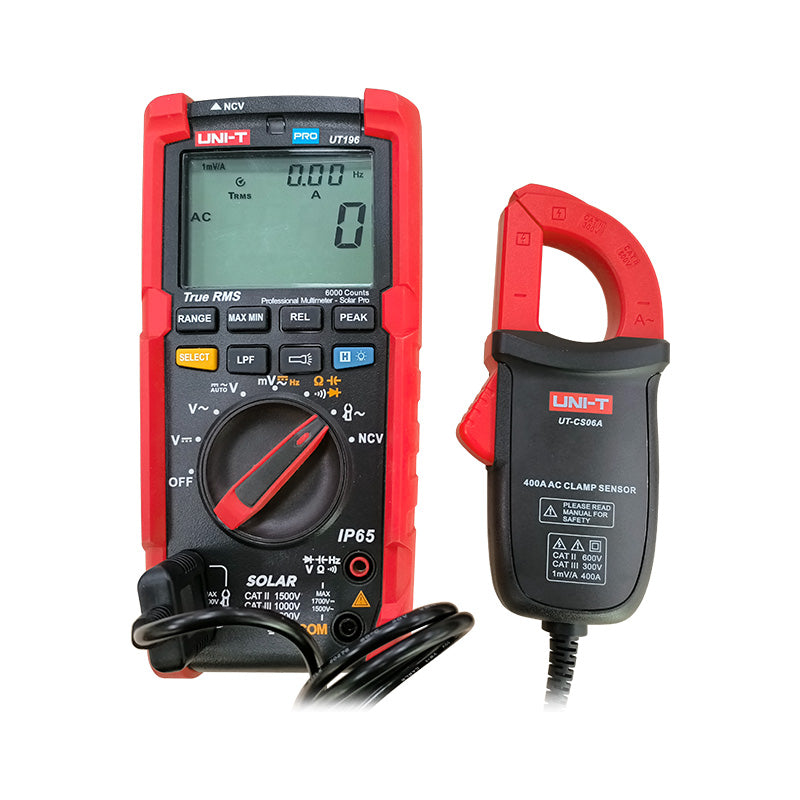

The UNI-T UT-CS06A is a 400A AC current clamp sensor / adapter that lets any multimeter or oscilloscope measure AC current without breaking the circuit. It outputs 1 mV per amp, needs no battery, and has a 28 mm jaw with a wide 50 Hz–400 Hz frequency response. Genuine UNI-T product supplied by Digilog.pk.
Key Features
- Measures 1–400 A AC without breaking the circuit
- 1 mV/A output ratio — pairs with any multimeter or oscilloscope

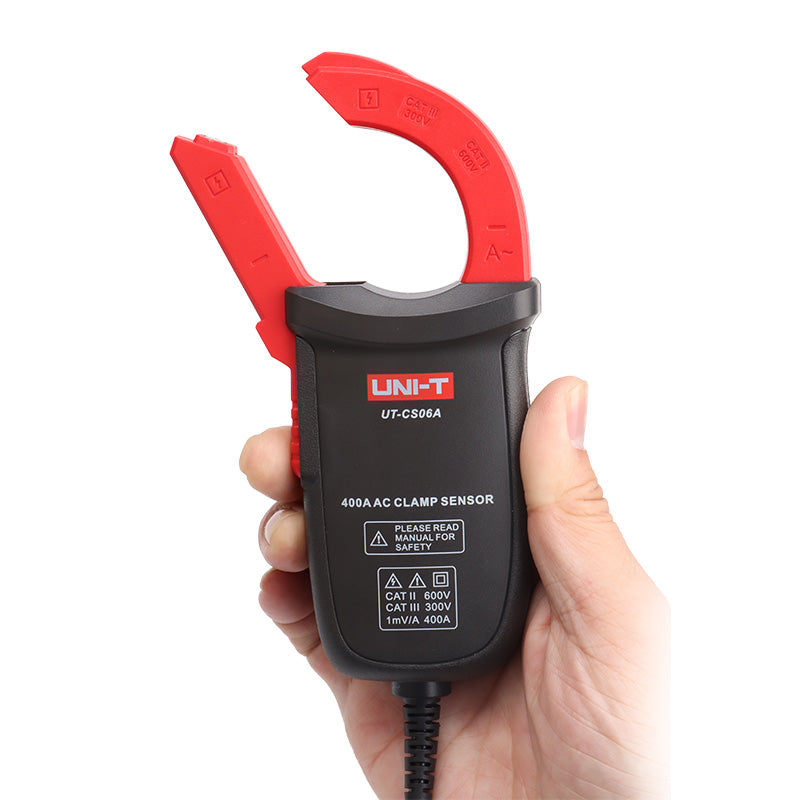

- 28 mm jaw opening; wide 50 Hz–400 Hz frequency response
- No battery required; adaptable to true-RMS meters
- Safety rated CAT III 300V / CAT II 600V; 1 m drop-proof
Technical Specifications
| AC Current Range | 1–400 A |
|---|---|
| Accuracy | ±2.5%±0.5A @50–60Hz; ±2.8%±0.5A @60–400Hz |
| Output Ratio | 1 mV/A |
| Jaw Opening | 28 mm |
| Frequency | 50 Hz–400 Hz |
| Wire Length | 1.1 m |
| Power Supply | No battery required |
| Overvoltage Category | CAT III 300V, CAT II 600V |
| Dimensions | 158 × 65 × 33 mm |
| Drop Test | 1 m |
What's in the Box
- UT-CS06A AC current clamp sensor
- English user manual
Downloads
Certifications: CE, UKCA | HS Code: 9030.90
