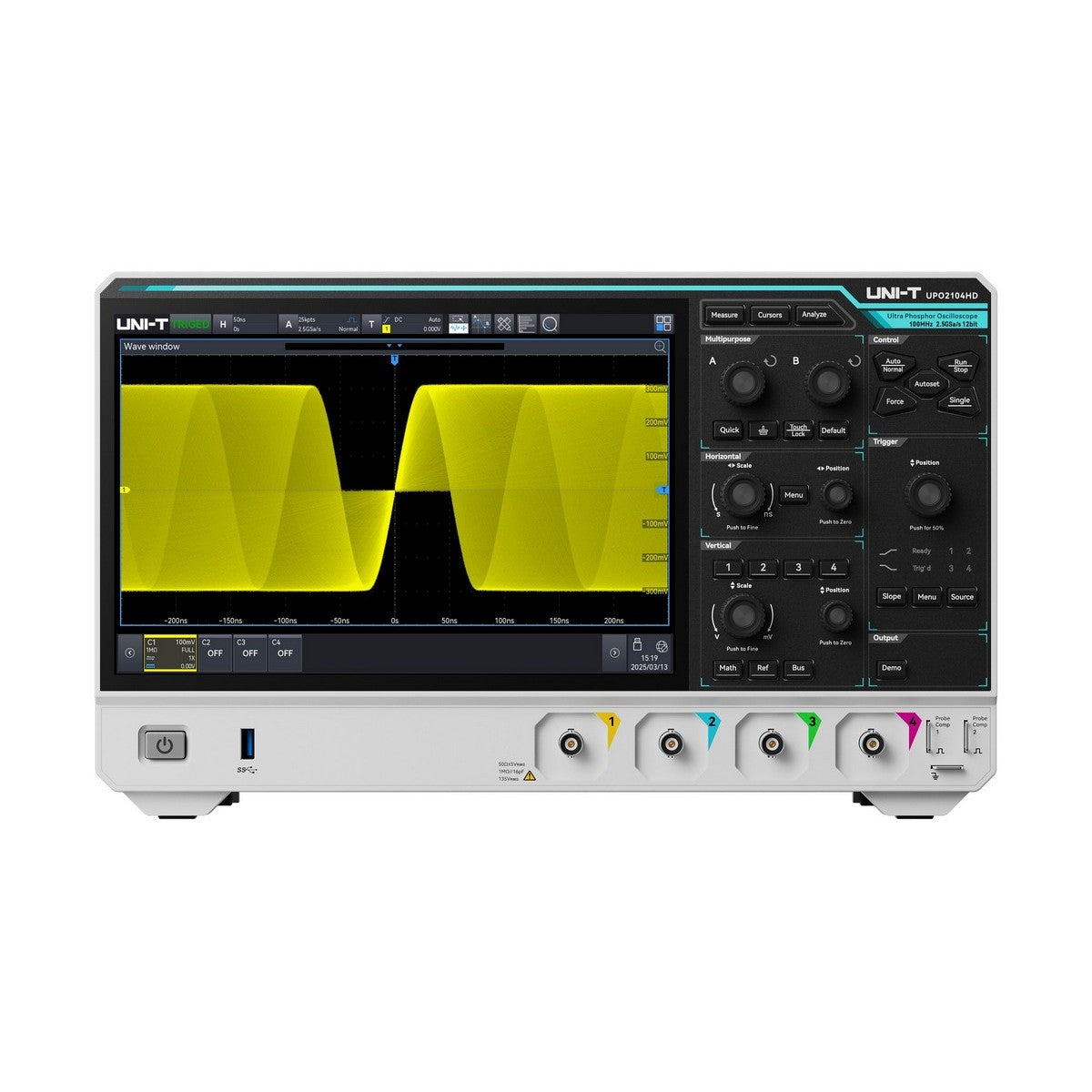

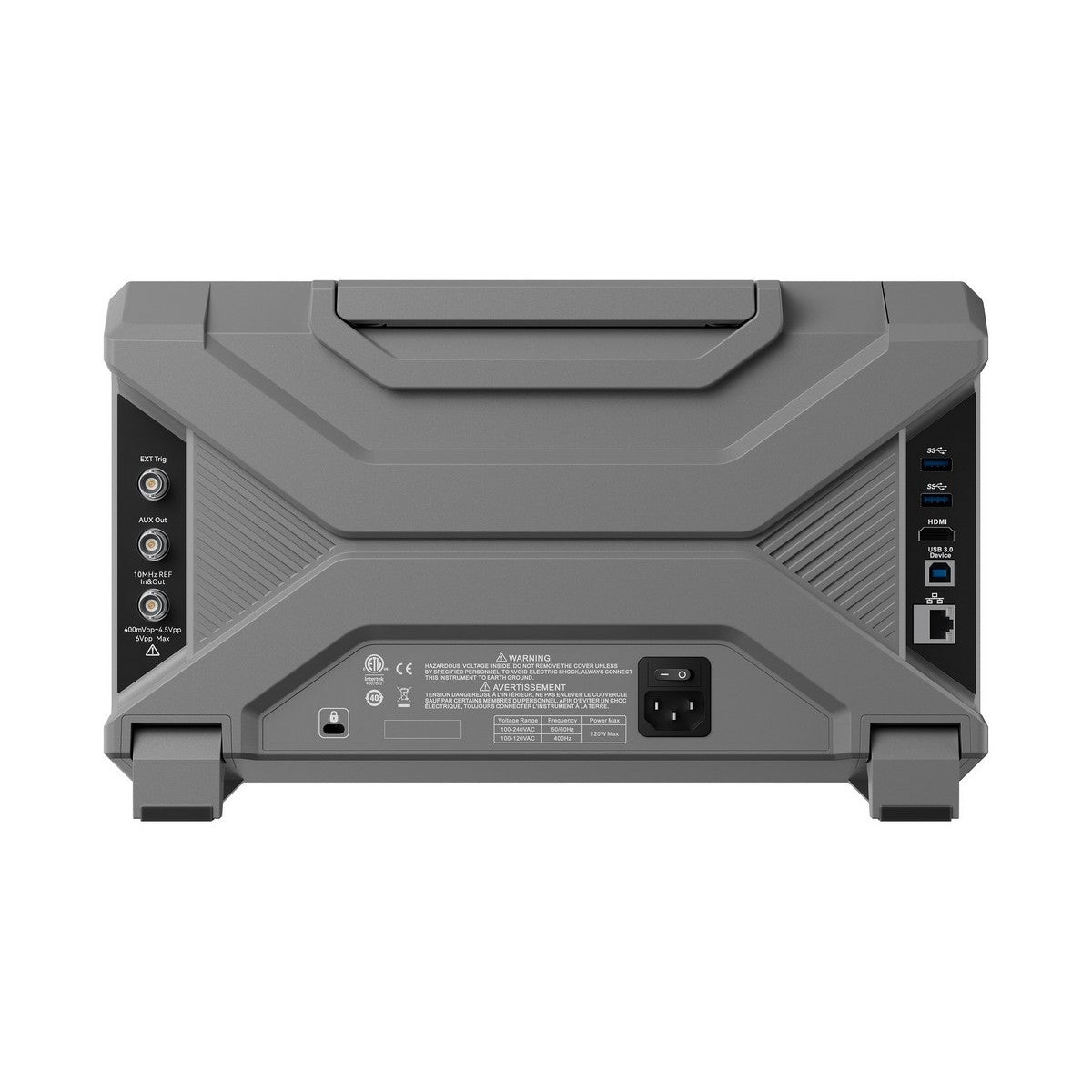

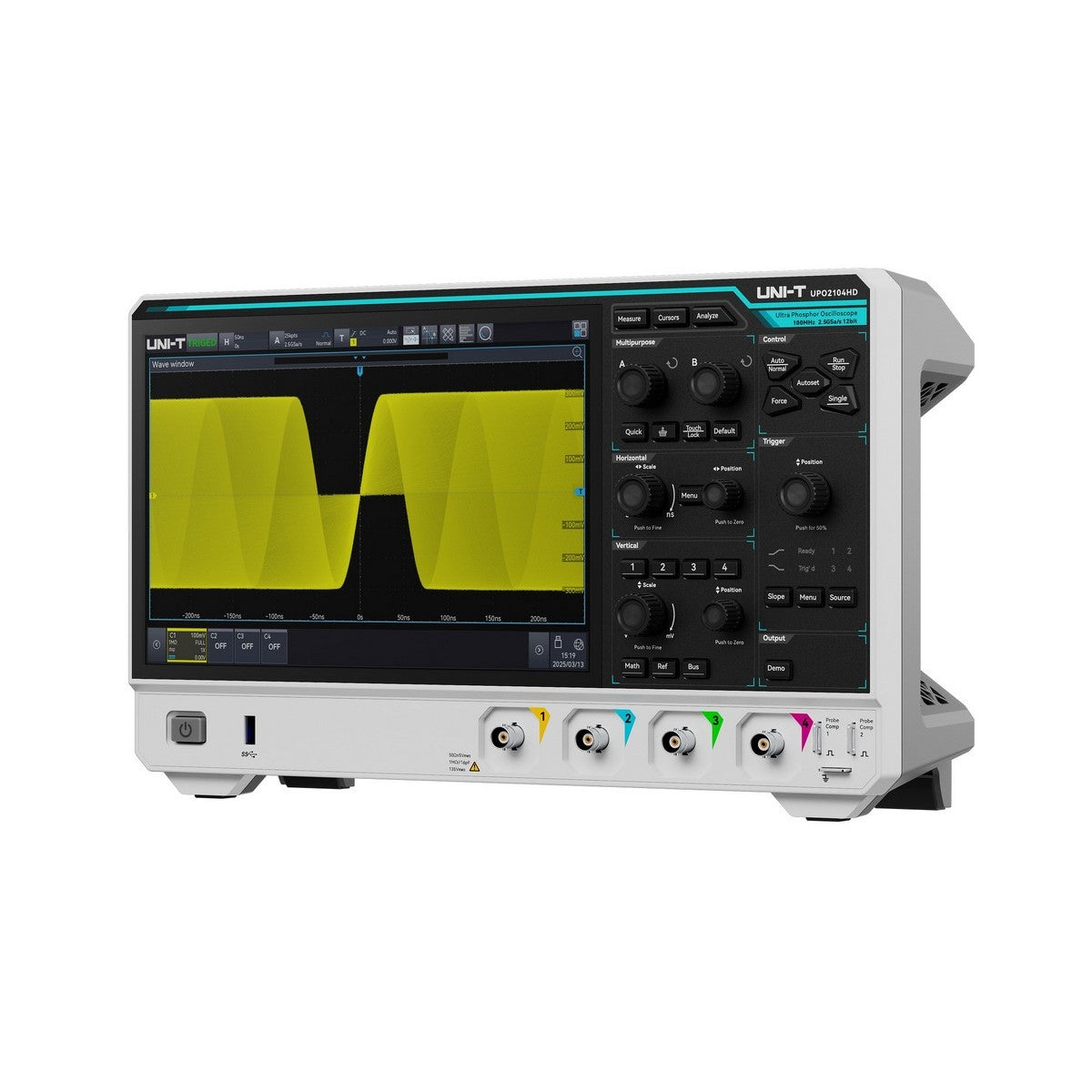

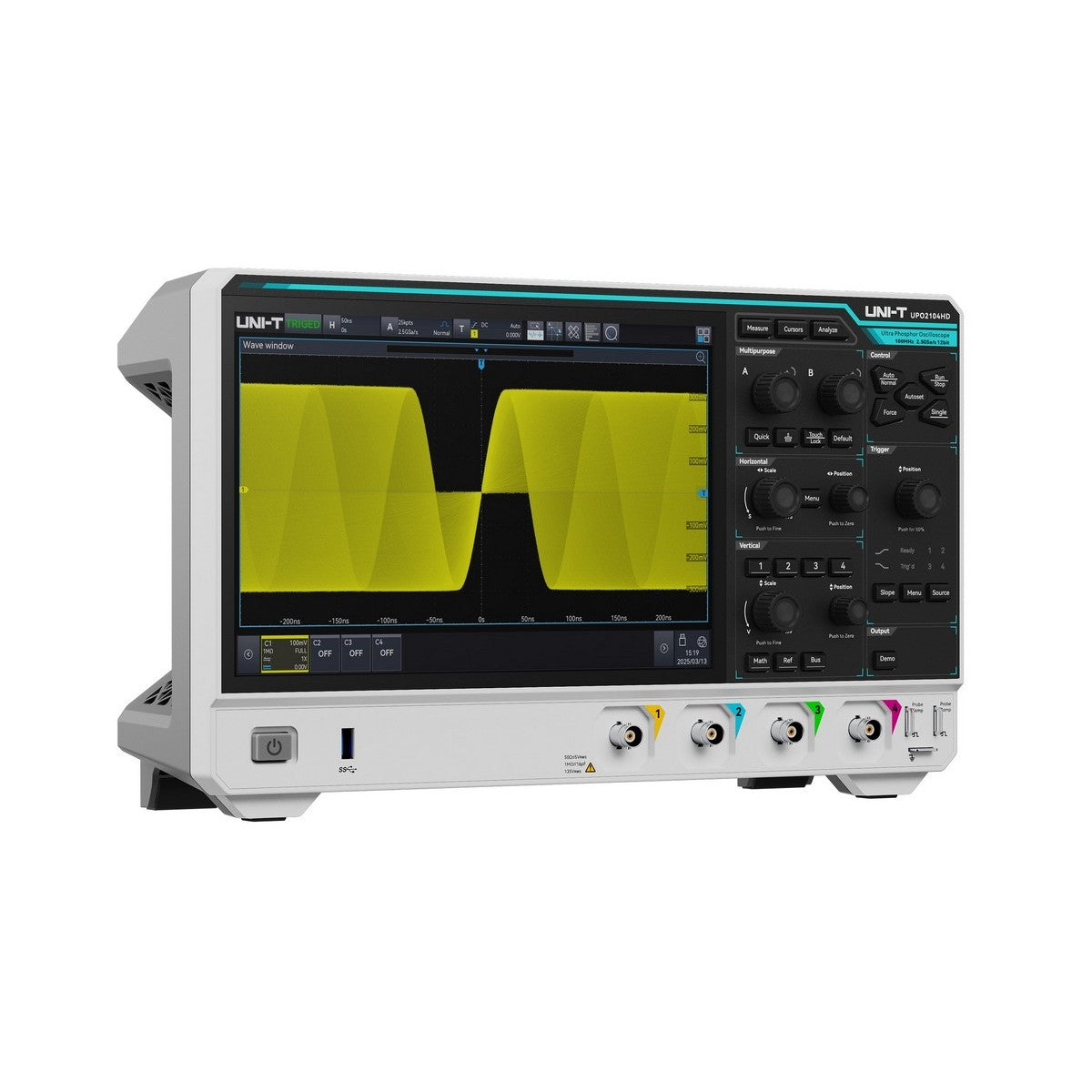

UNI-T UPO2104HD — The UNI-T UPO2104HD is a 100 MHz 4-channel 12-bit high-resolution oscilloscope built around the R12™ native 12-bit ADC. It samples at 2.5 GSa/s with 100 Mpts memory depth standard, and Ultra Phosphor 3.0 acquisition pushes the waveform capture rate to 1,000,000 wfms/s in sequence mode — sixteen times the vertical detail of an 8-bit scope, held at full bandwidth without ERES averaging or sample-rate trade-offs. The 10.1-inch capacitive multi-touch display, on-instrument 4 Mpts FFT, 9 standard protocol decoders, and built-in WebServer round out a six-instrument bench in a single chassis. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

• R12™ 12-bit native ADC — 4,096 vertical levels held at the full 100 MHz bandwidth. No ERES averaging, no sample-rate trade-off.
• 100 MHz bandwidth, 4 analog channels — 2.5 GSa/s real-time sample rate, 100 Mpts standard memory depth. Mainstream R&D bandwidth with 12-bit detail across the full input range.
• Ultra Phosphor 3.0 — 1,000,000 wfms/s — Sequence-mode capture rate with 256-level grayscale persistence; surfaces intermittent and rare events.
• 6 instruments in one — Oscilloscope, spectrum analyzer, digital voltmeter, hardware frequency meter, protocol analyzer, and optional power analysis on a single chassis.
• 9 protocol decoders standard — RS-232/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, and Audio. No license fees, no time-boxed unlocks.
• 10.1-inch capacitive touchscreen — 1280×800 multi-touch with pinch, drag, zoom, and rectangle-draw gestures. Mouse and keyboard supported in parallel.
• 4 Mpts enhanced FFT, 56 automated measurements, hardware mask test, zone trigger, ERES up to 4-bit — standard.

Technical Specifications

What's in the Box

• Power cord
• USB3.0 cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Downloads

• UNI-T UPO2104HD Product Page, Datasheet & Manual

Certifications: CE, RoHS | HS Code: 9030.20
