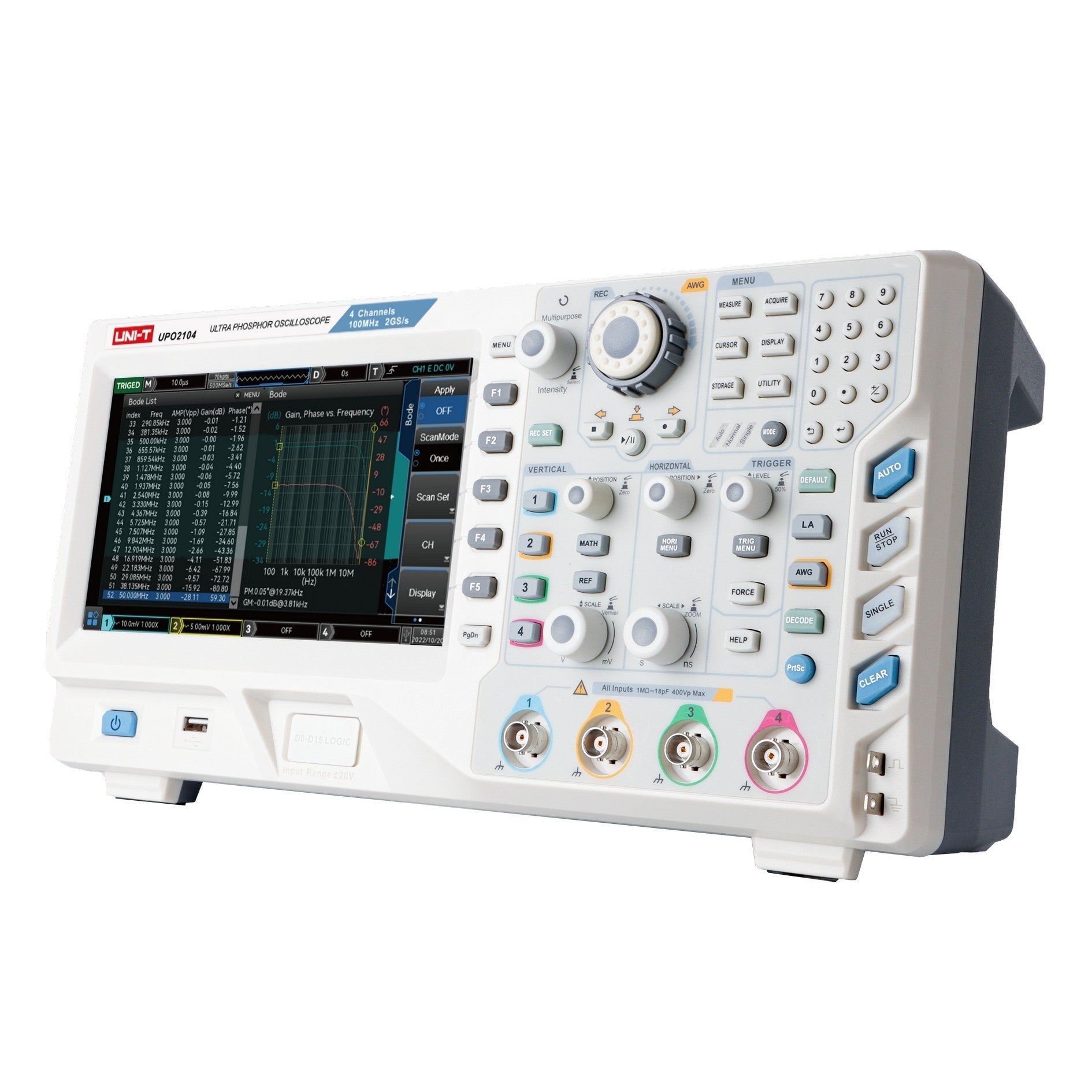

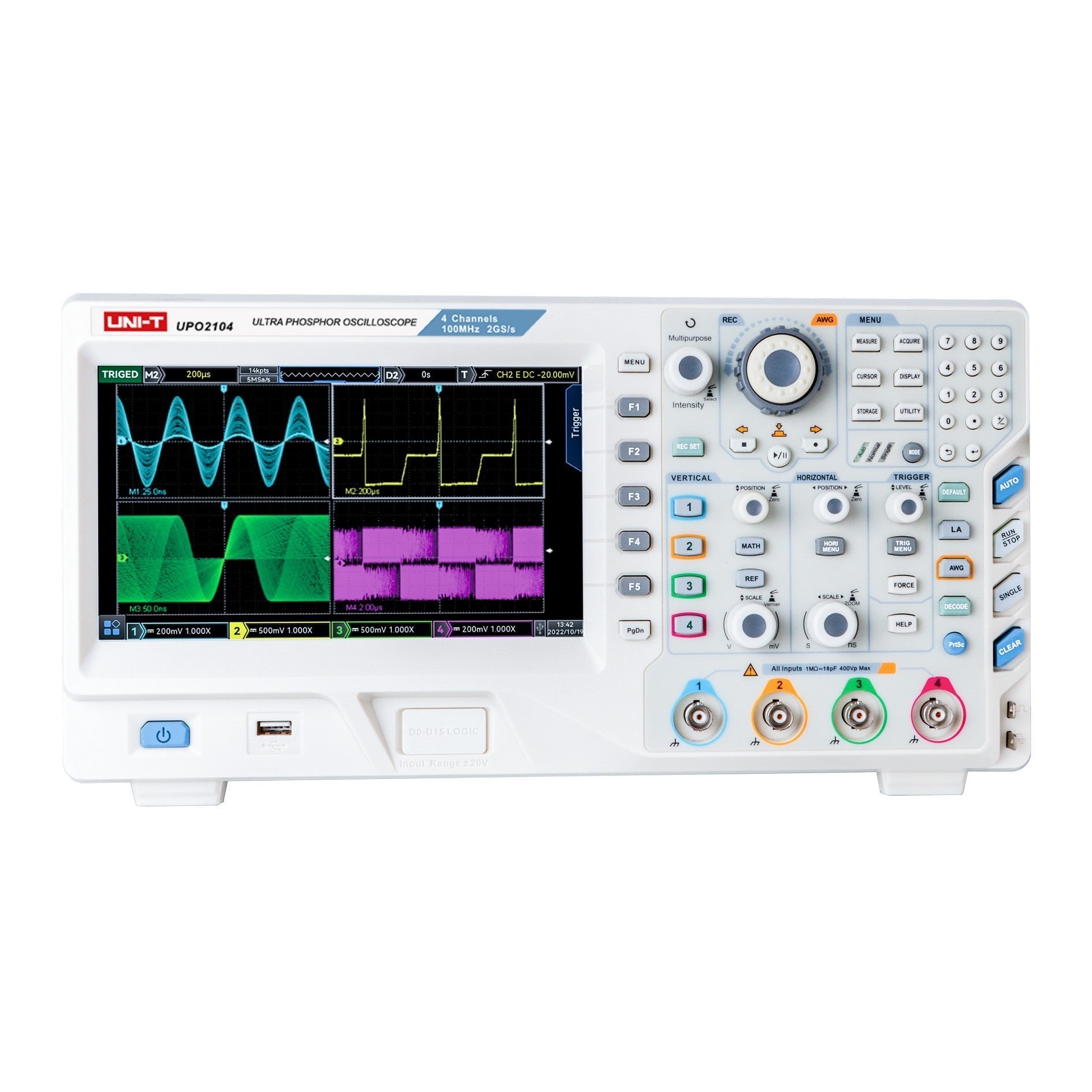

UNI-T UPO2104E — The UPO2104 is a 100 MHz mixed signal oscilloscope with 4 analog channels. Digital channels available via optional UT-M15 logic probe pod. It samples at 2.0 GSa/s with 56 Mpts memory depth and captures waveforms at up to 1,000,000 wfms/s — one of the fastest capture rates in its class — on an 8-inch capacitive touchscreen. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

• 100 MHz Bandwidth, 4 Analog Channels — Four-channel capture at up to 100 MHz.
• 2.0 GSa/s Sample Rate — Captures fast edges and high-frequency content with accurate timing.
• 56 Mpts Memory Depth — Extended capture without reducing sample rate.
• 1,000,000 wfms/s Capture Rate — High acquisition speed reveals rare glitches, runts, and timing violations.
• 16 Digital Channels (Optional) — Add mixed-signal capability with the UT-M15 logic probe pod.
• 36 Automated Measurements — Time, voltage, frequency, and statistical measurements with real-time tracking.
• Area Trigger — Draw a region on screen to trigger on waveform anomalies.

Technical Specifications

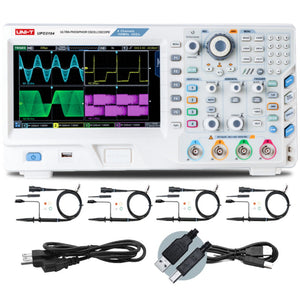

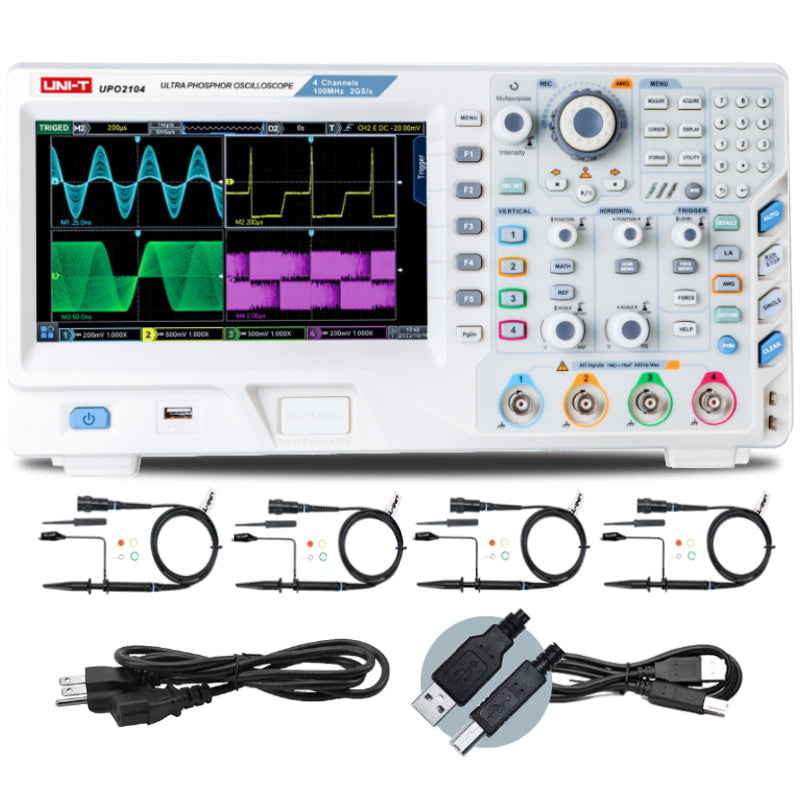

What's in the Box

• Power cord
• USB2.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Downloads

• UNI-T UPO2104E Product Page, Datasheet & Manual

Certifications: CE, RoHS | HS Code: 9030.20
