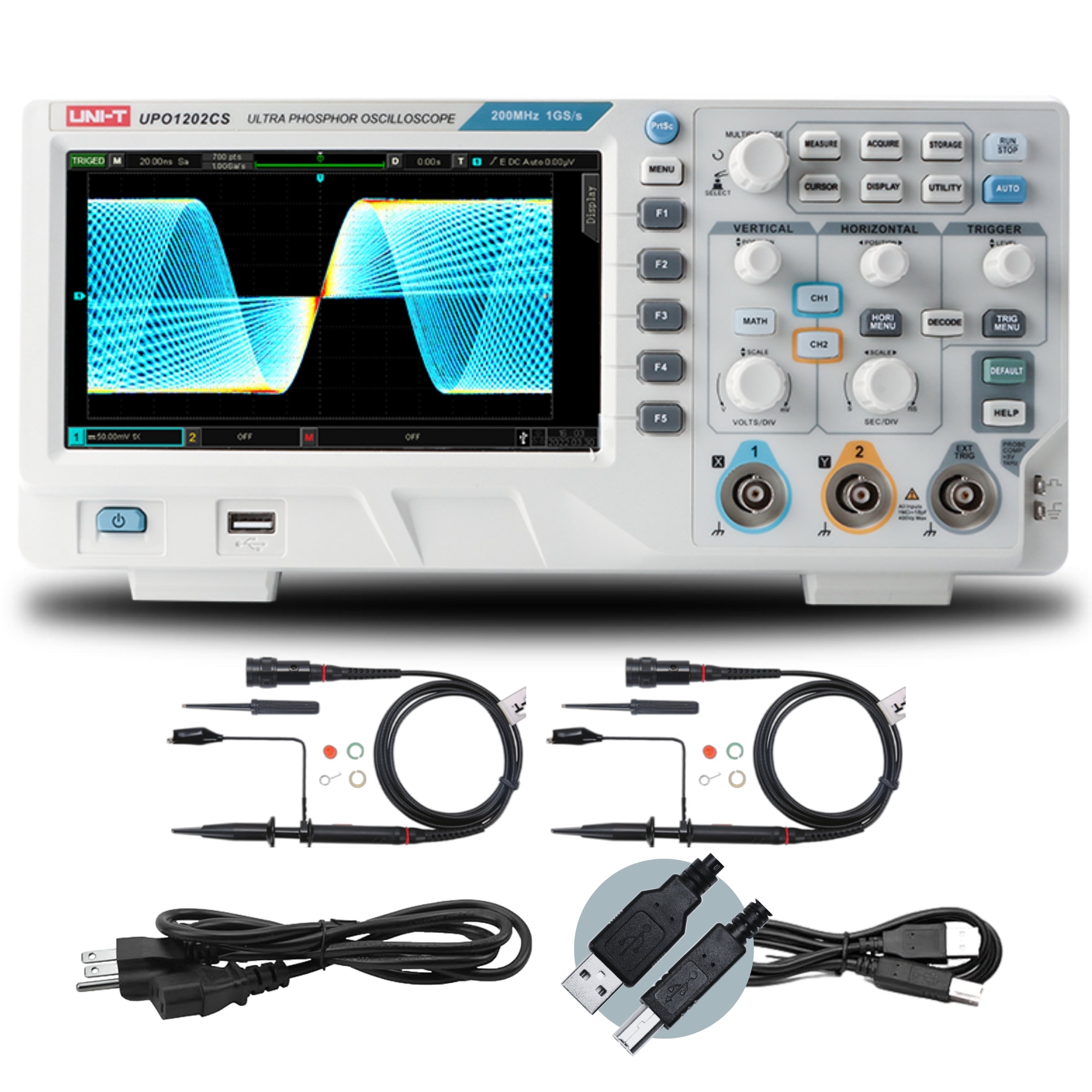

UNI-T UPO1202CS 200 MHz 2-Channel Digital Storage Oscilloscope – 1GSa/s, 56MPTS - with a white body, screen showing a waveform, control knobs, buttons, two probes, a power cable, and a USB cable.

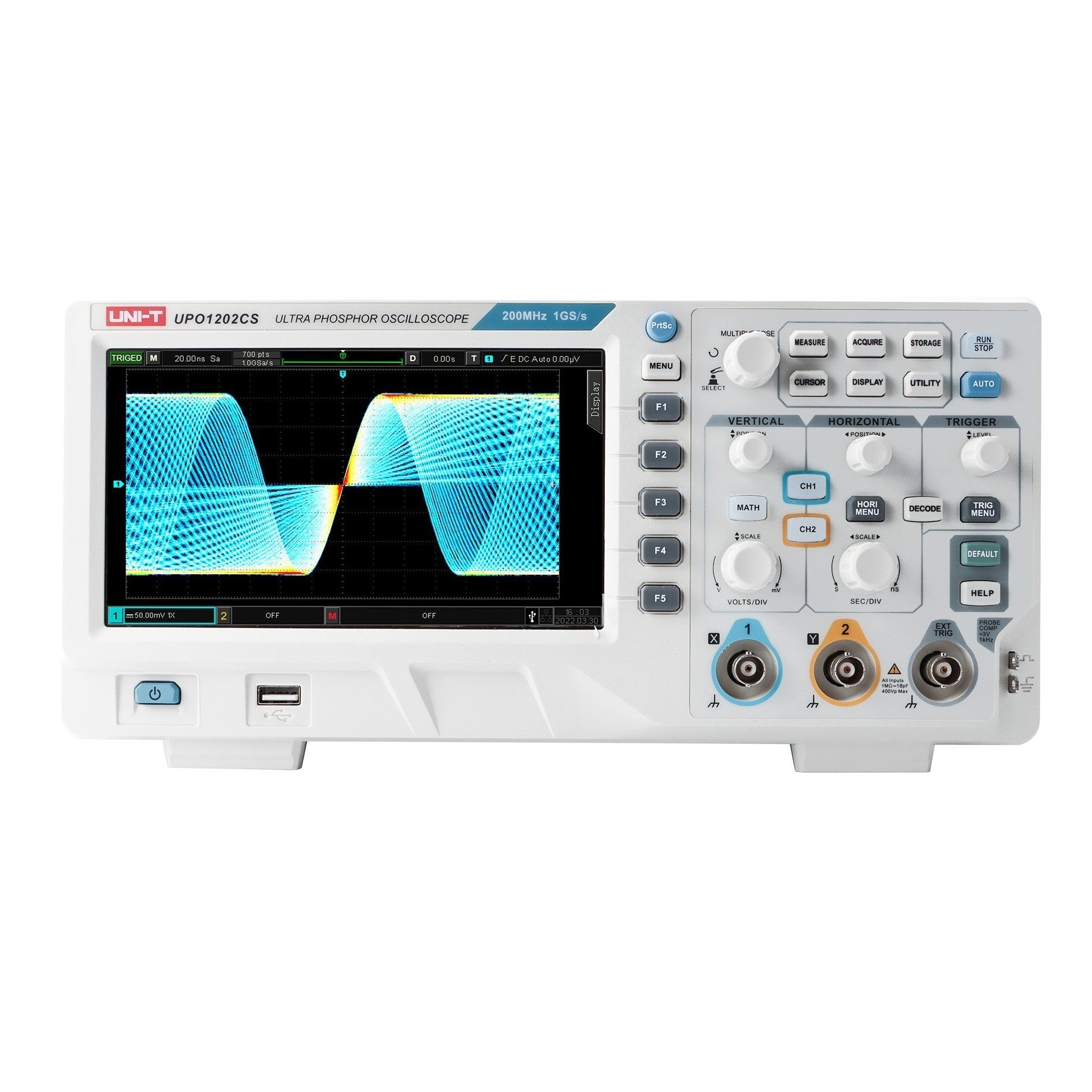

UNI-T UPO1202CS 200 MHz 2-Channel Digital Storage Oscilloscope – 1GSa/s, 56MPTS - a front-facing display with a blue waveform, control knobs, buttons, and input ports.

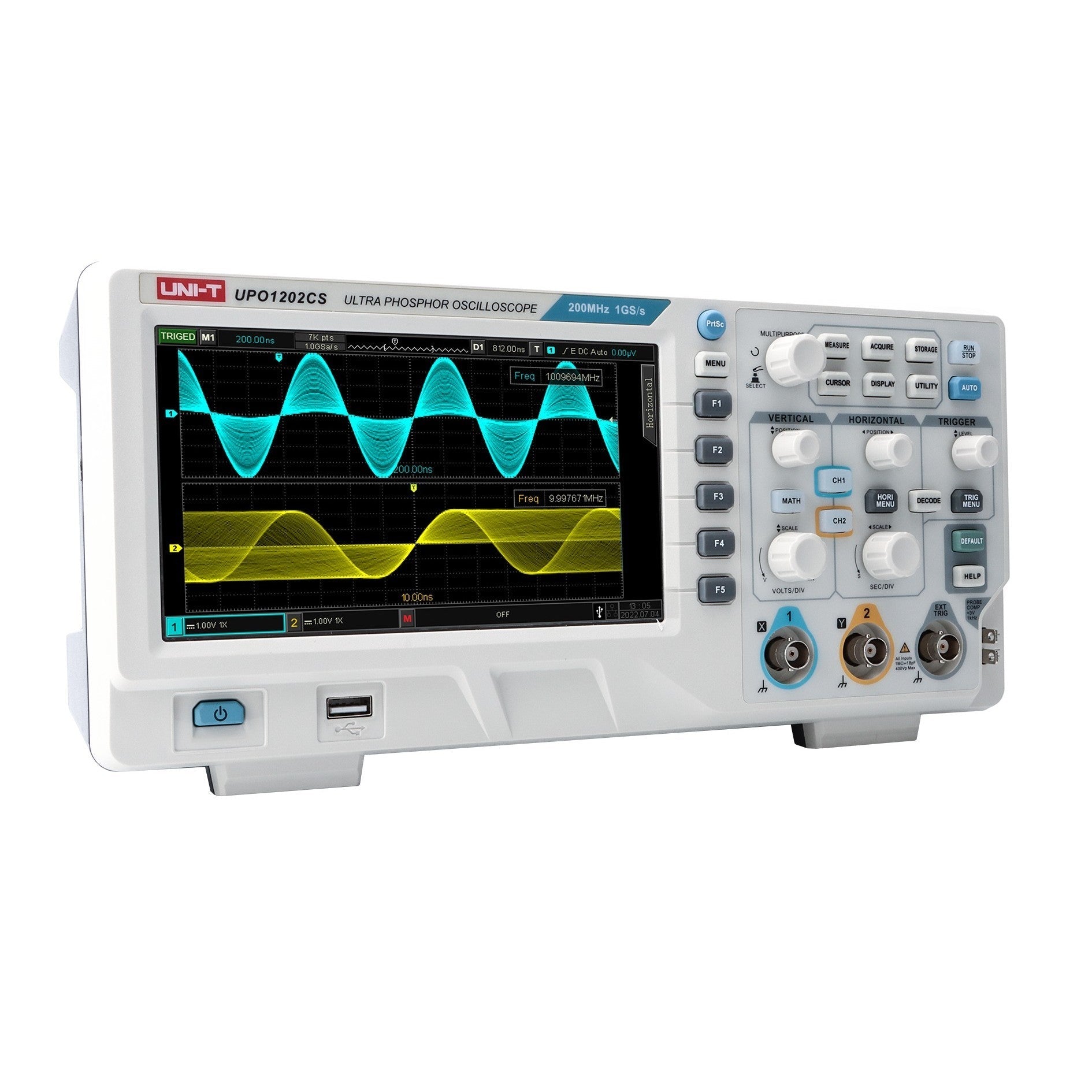

UNI-T UPO1202CS 200 MHz 2-Channel Digital Storage Oscilloscope – 1GSa/s, 56MPTS - in a white housing with a screen displaying two sine waves, front control knobs, buttons, and input ports.

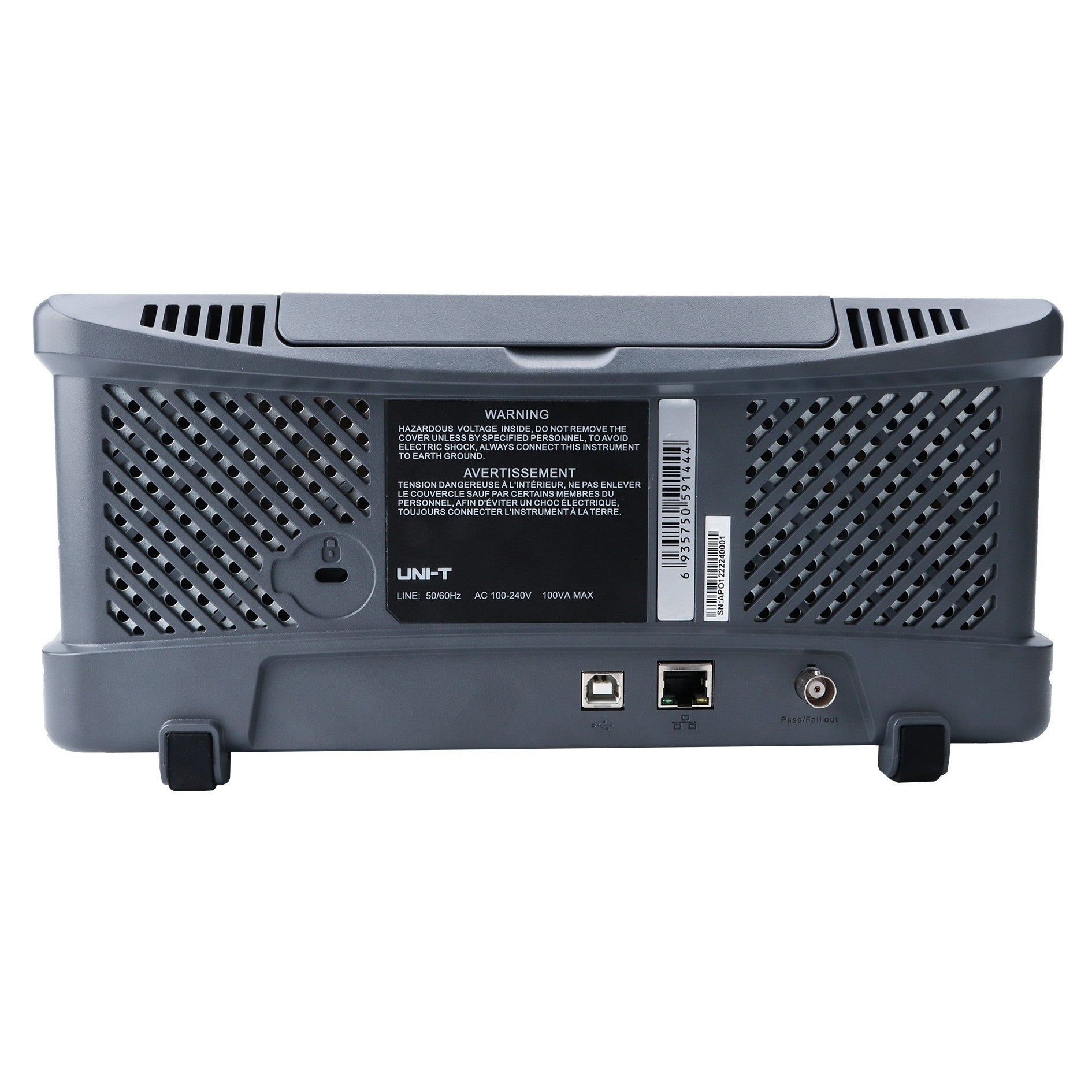

UNI-T UPO1202CS 200 MHz 2-Channel Digital Storage Oscilloscope – 1GSa/s, 56MPTS - the grey plastic casing, ventilation grilles, a USB port, an Ethernet port, and a Pass/Fail BNC connector.

UNI-T UPO1202CS 200 MHz 2-Channel Digital Storage Oscilloscope – 1GSa/s, 56MPTS

Rs 137,500

SKU: UPO1202CS

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UPO1202CS 200 MHz 2-Channel Digital Storage Oscilloscope – 1GSa/s, 56MPTS

Rs 137,500

UNI-T UPO1202CS — The UPO1202CS is a 200 MHz 2-channel digital storage oscilloscope with 1.0 GSa/s sample rate, 56 Mpts memory depth, and a 500,000 wfms/s waveform capture rate. It features UNI-T's Ultra Phosphor 2.0 display technology for intensity-graded waveform visualization on a 7in TFT LCD display. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

200 MHz Bandwidth, 2 Channels — Two-channel capture at up to 200 MHz.
1.0 GSa/s Sample Rate — Captures fast edges and high-frequency content with accurate timing.
56 Mpts Memory Depth — Deep memory for capturing long signal records without reducing sample rate.
500,000 wfms/s Capture Rate — Ultra Phosphor 2.0 display technology reveals rare signal anomalies.
36 Automated Measurements — Time, voltage, frequency, and statistical measurements.
FFT Spectrum Analysis — Frequency domain analysis for harmonics, EMI, and spectral characterization.
Independent DVM Module — Dedicated digital voltmeter readout alongside oscilloscope display.

Technical Specifications

Bandwidth	200 MHz
Channels	2Ch
Sample Rate	1GSa/s
Memory Depth	56Mpts
Vertical Resolution	8 bits
Vertical Scale 1M	1 mV/div to 20 V/div
Capture Rate	500,000 wfms/s
Refresh Rate	500,000 wfms/s
Frequency Counter	7-bit
Auto Measurements	36
Included Bus Protocols	RS232, UART, I2C, SPI
Optional Bus Protocols	CAN, LIN
