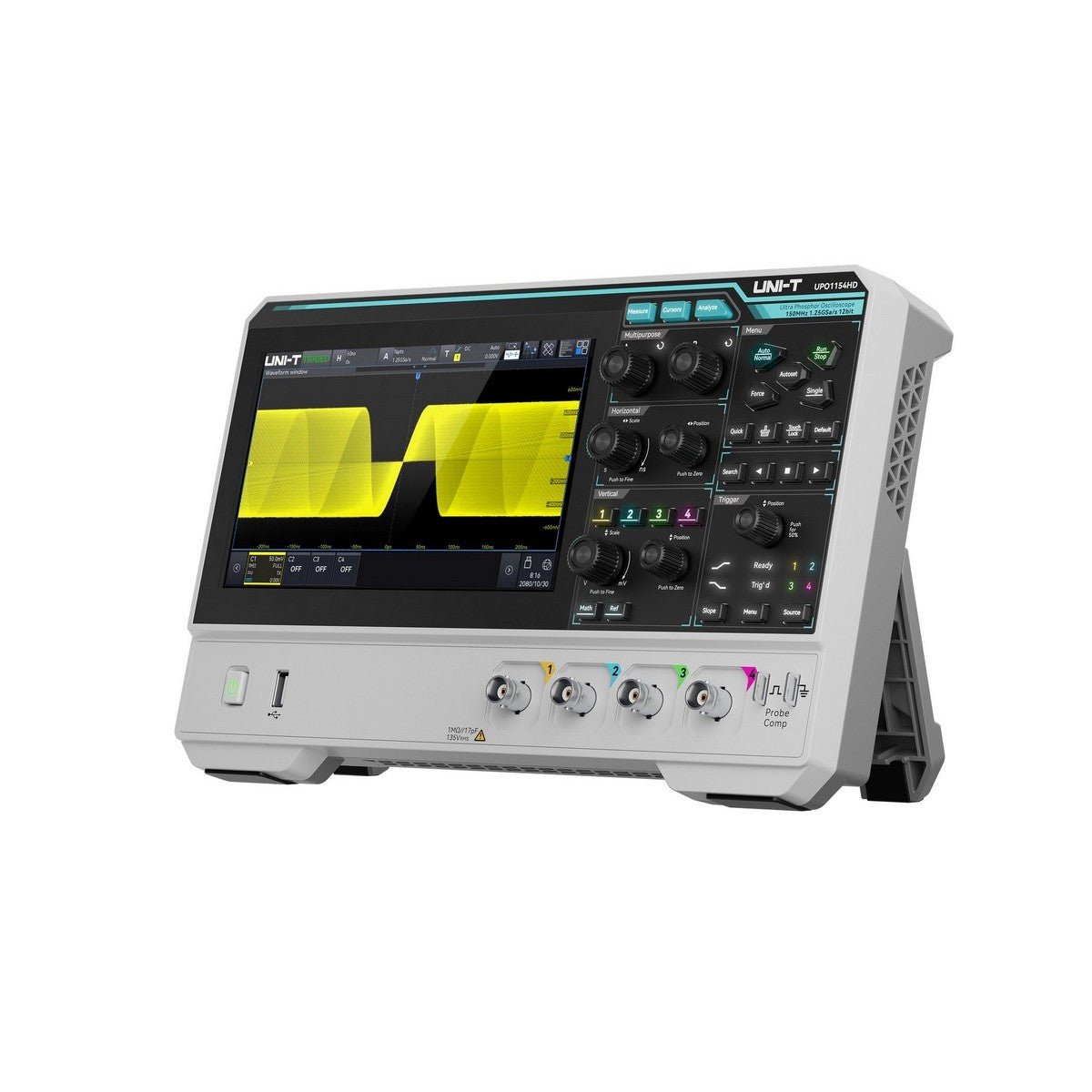

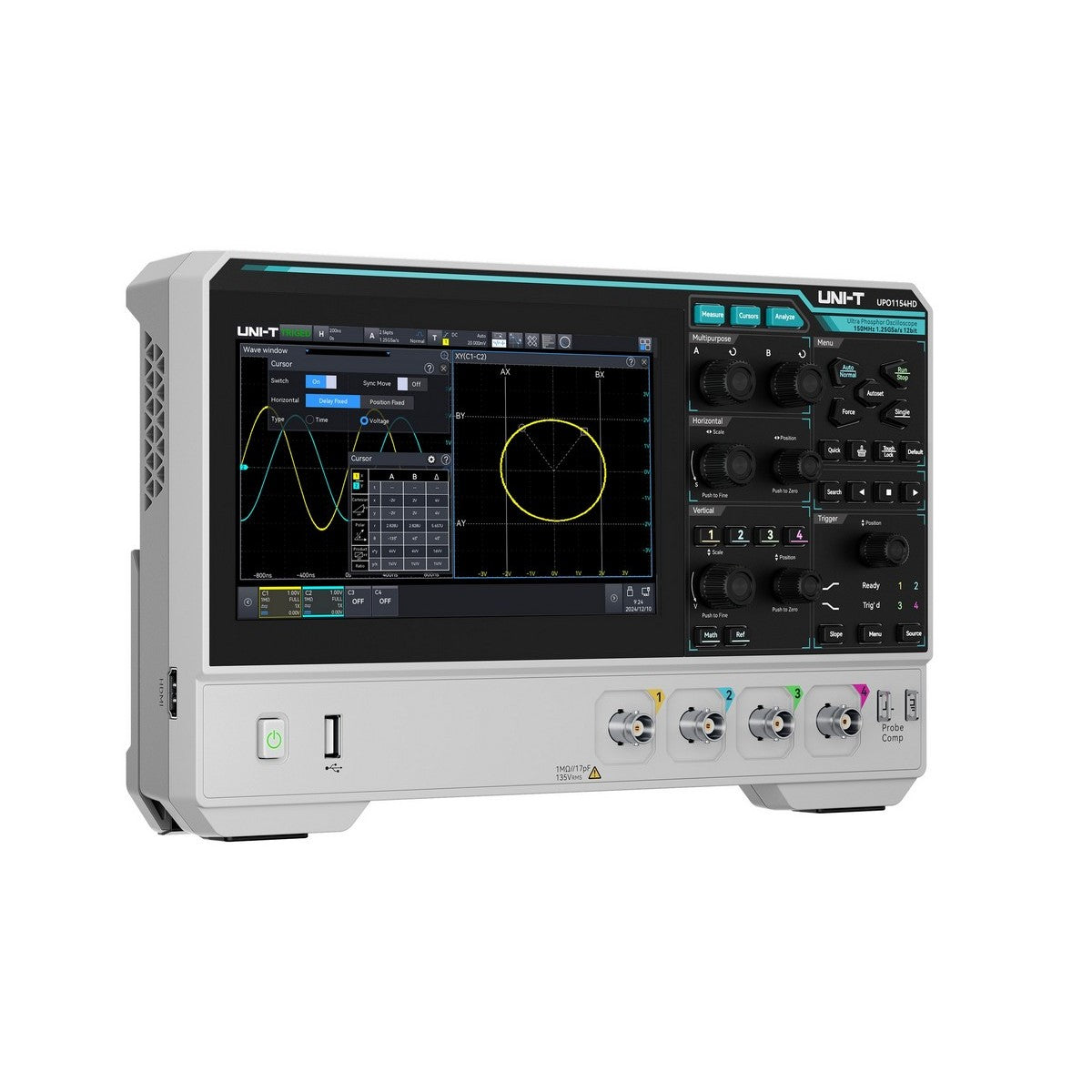

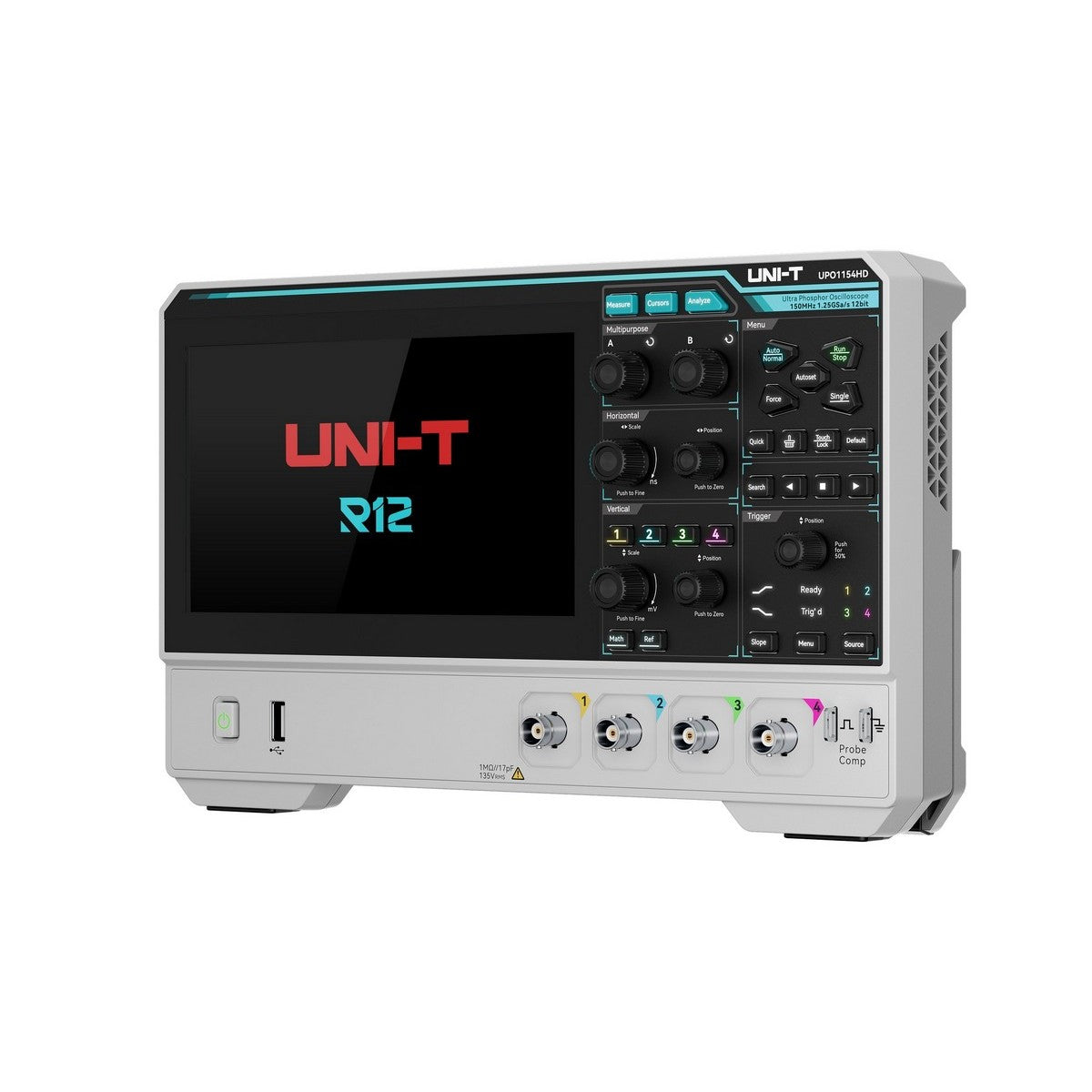

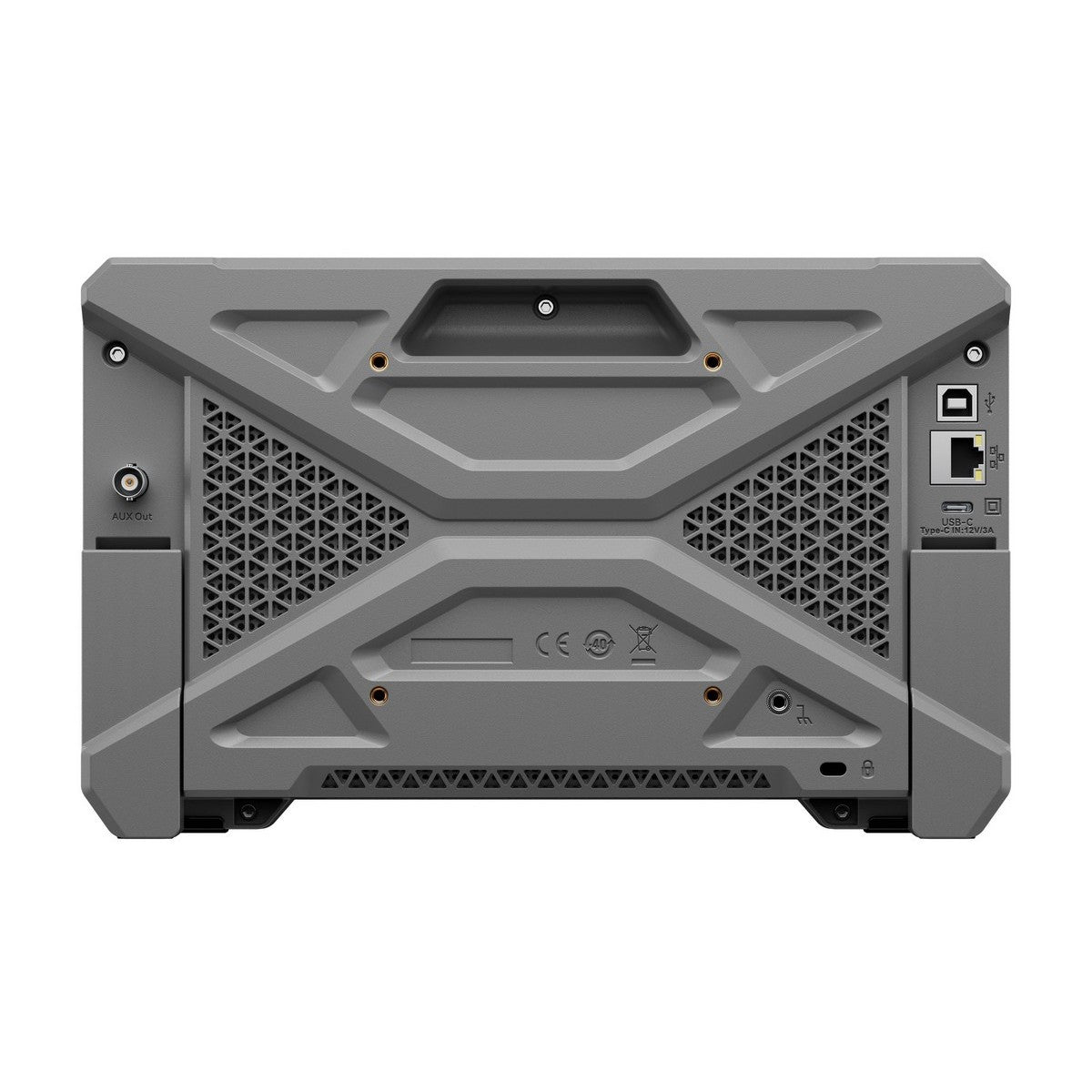

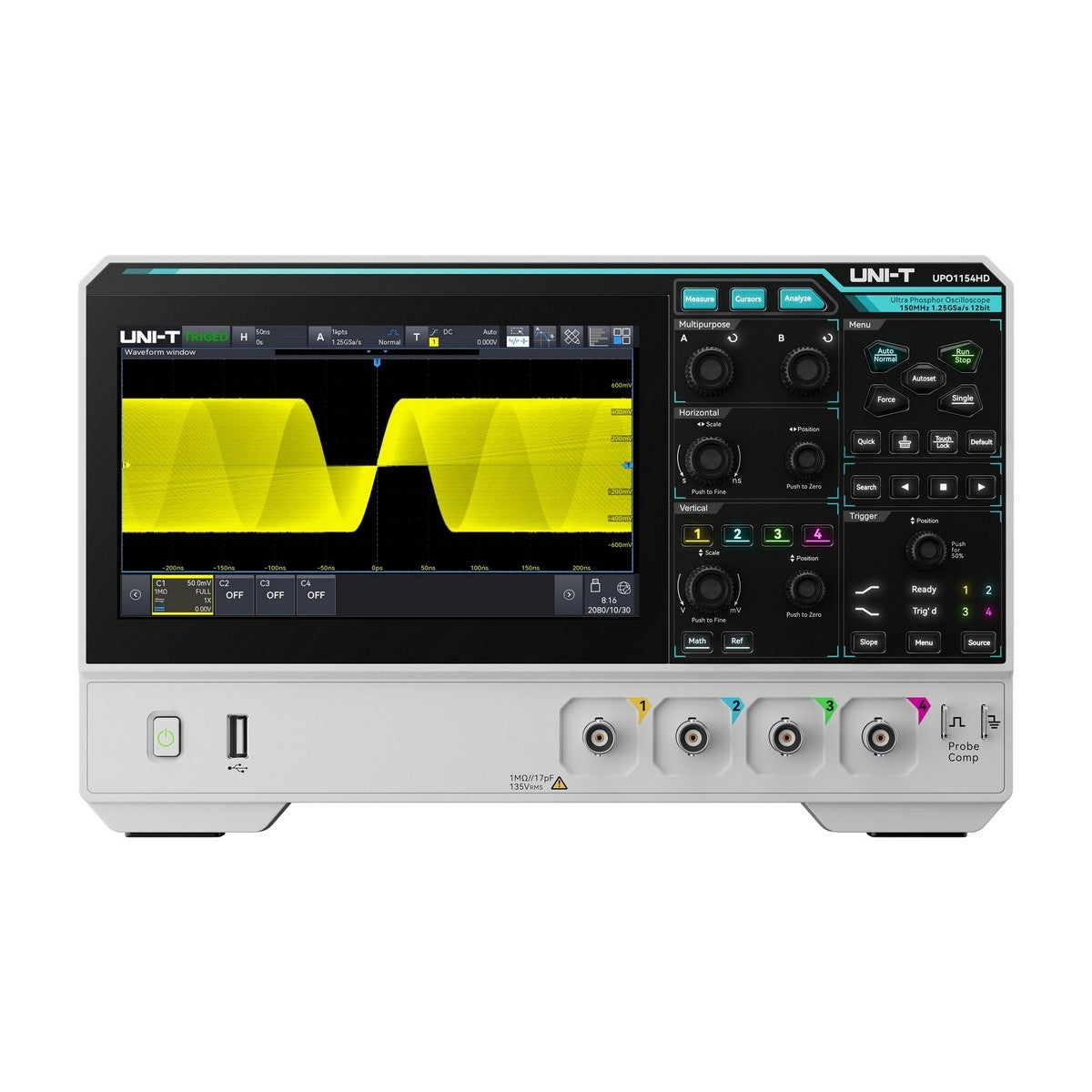

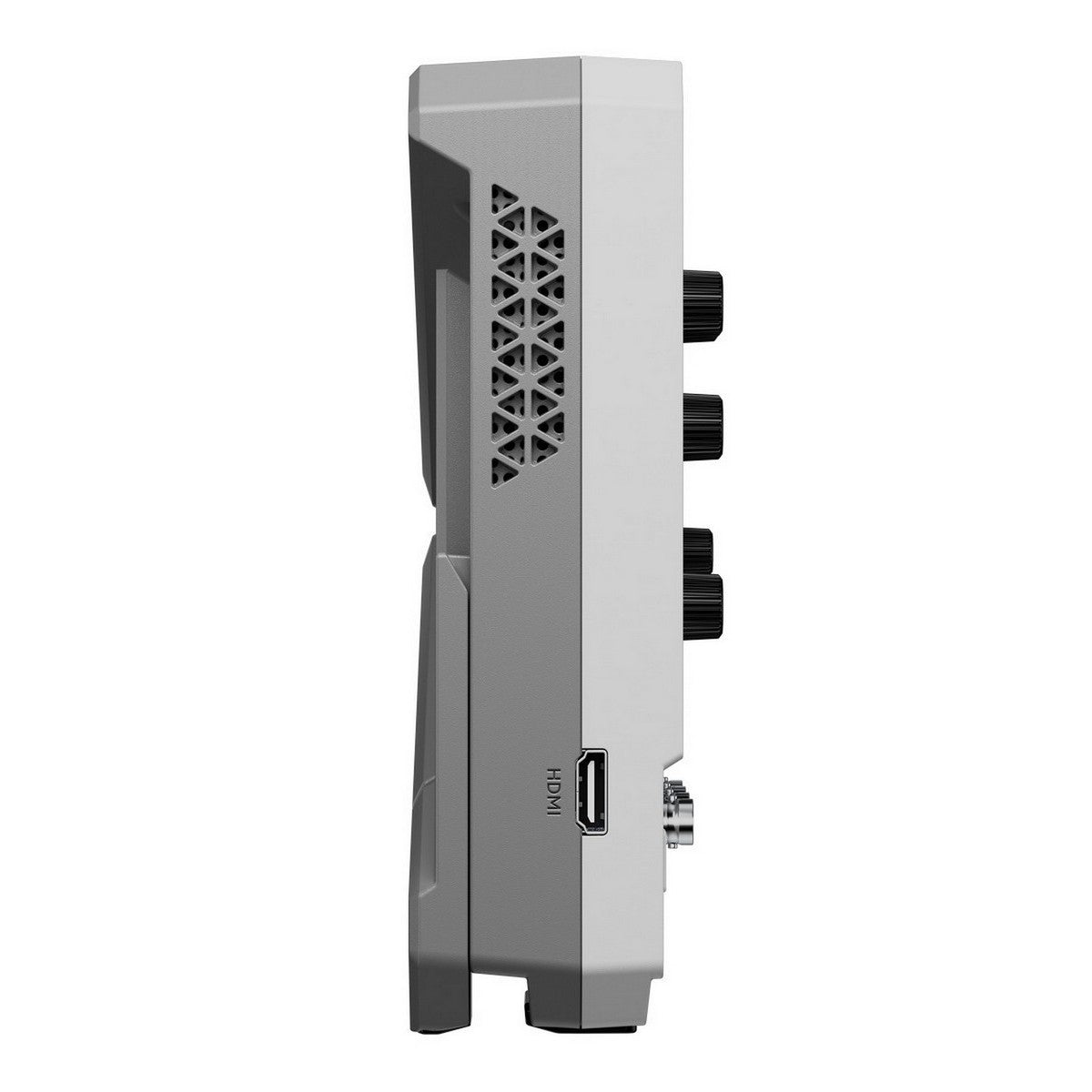

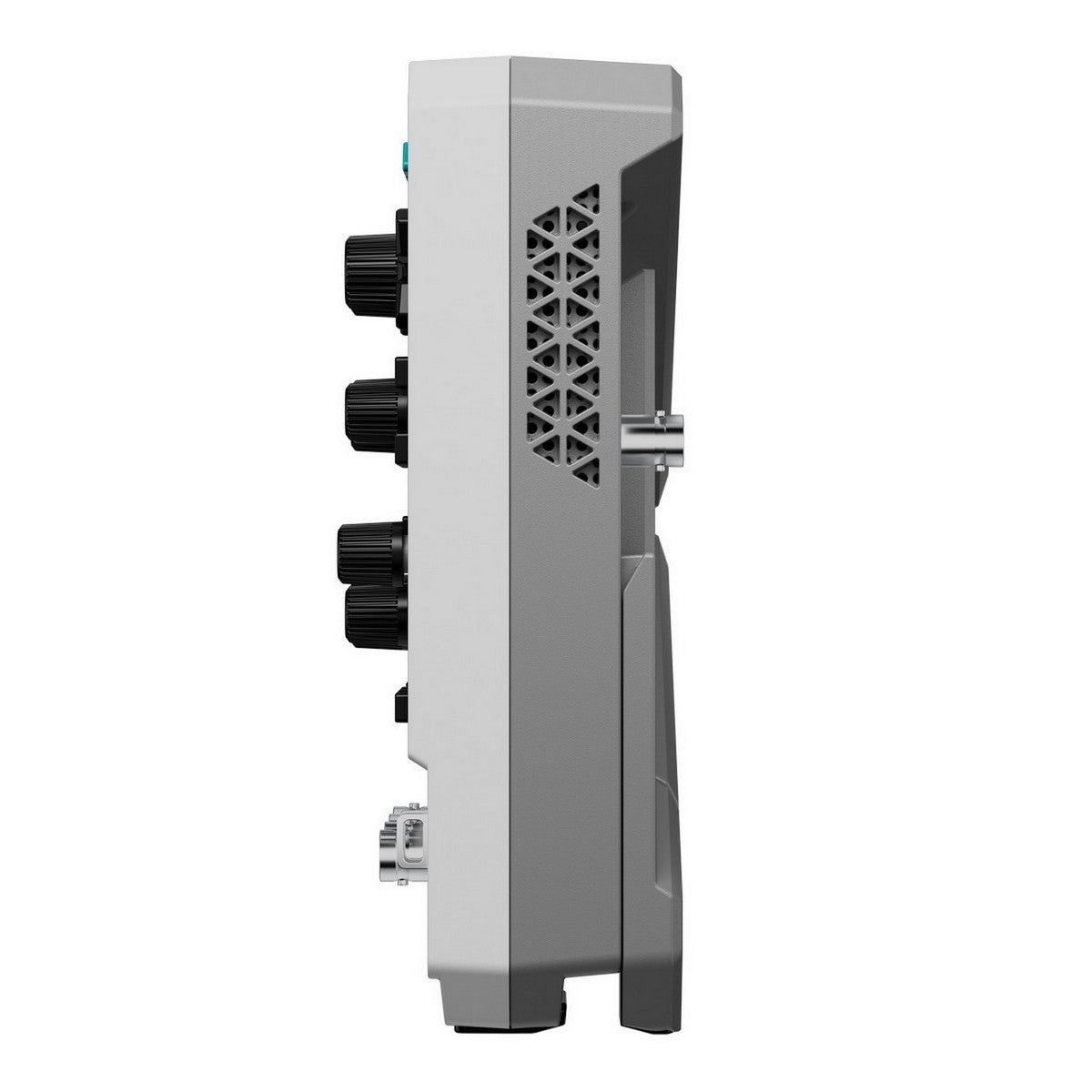

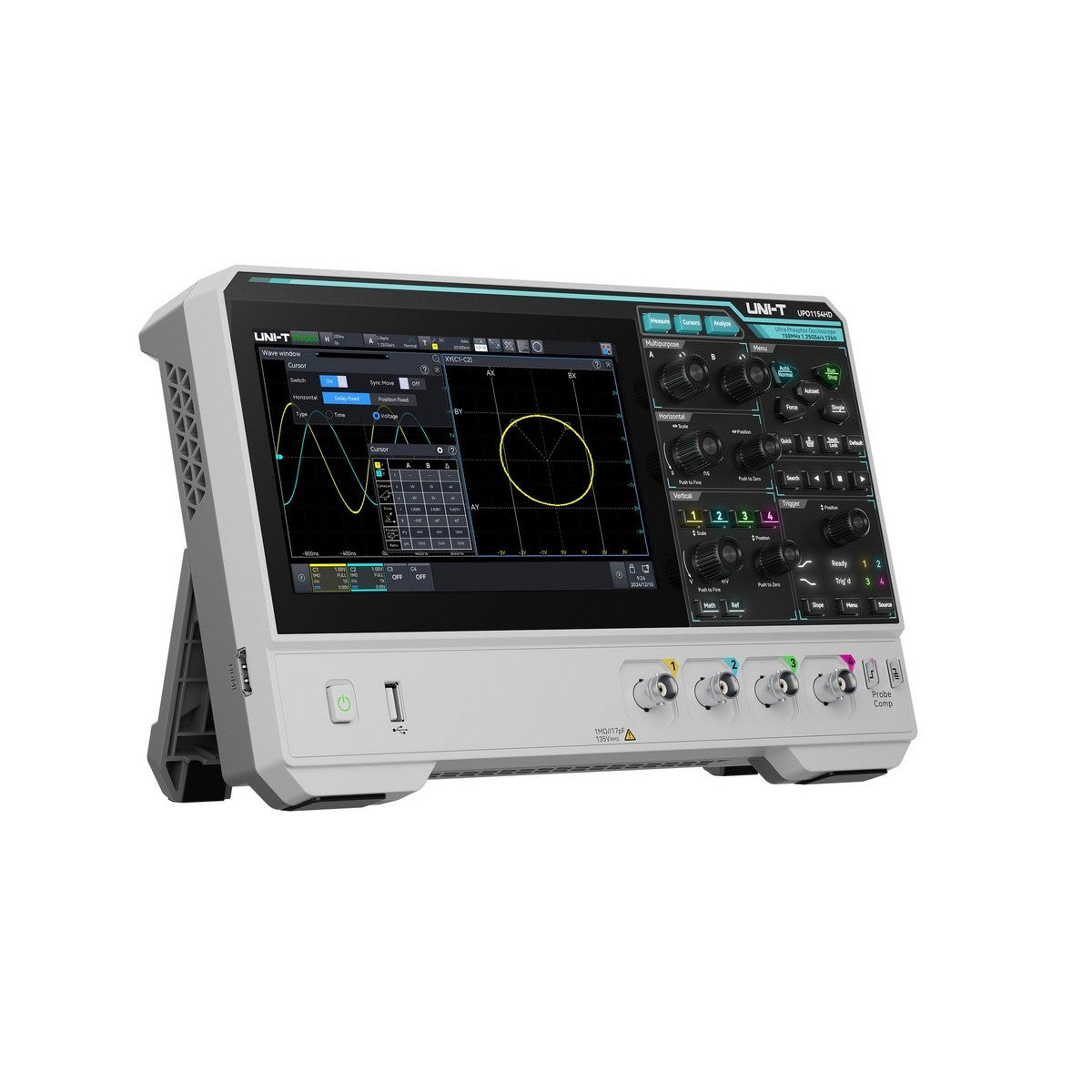

UNI-T UPO1154HD 150 MHz 4-Channel Digital Storage Oscilloscope – 1.25 GSa/s (single channel), 625 MSa/s (dual channels), 312.5 MSa/s (four channels),
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UPO1154HD 150 MHz 4-Channel Digital Storage Oscilloscope – 1.25 GSa/s (single channel), 625 MSa/s (dual channels), 312.5 MSa/s (four channels),
UNI-T UPO1154HD — The UPO1154HD is a 150 MHz, 4-channel high-resolution oscilloscope built around UNI-T's R12™ 12-bit ADC architecture, with 1.25 GSa/s real-time sample rate, 100 Mpts memory depth, and a 7-inch capacitive touchscreen. Native 12-bit resolution gives 4,096 vertical levels — 16× the detail of an 8-bit instrument — enough to resolve power-supply ripple, sensor outputs, and small AC signals riding on DC offsets where 8-bit scopes lose them in the quantization floor. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- R12™ — Real 12-Bit Resolution — Native 12-bit ADC with 4,096 vertical levels at full bandwidth and full sample rate, no ERES averaging required.
- 150 MHz Bandwidth, 4 Channels — 1.25 GSa/s real-time sample rate (single channel), ≤ 2.2 ns calculated rise time.
- 100 Mpts Memory Depth — Capture full switching cycles and long protocol sequences without trading sample rate for memory.
- Ultra Phosphor 3.0 Display — Up to 500,000 wfms/s waveform capture rate with 256-level intensity grading, fast enough to catch the intermittent events that slower oscilloscopes spend hours missing.
- 5 Protocol Decoders Standard — RS-232/UART, I²C, SPI, CAN, LIN included; no optional licenses.
- Built-In Power Analysis — 12 measurement functions including switching loss, SOA, harmonics, ripple, and startup time.
- 4-Digit DVM and 6-Digit Frequency Counter — Hardware-accelerated, parallel to scope acquisition.
Technical Specifications
| Bandwidth | 150 MHz |
|---|---|
| Channels | 4 analog |
| Sample Rate | 1.25 GSa/s (single channel), 625 MSa/s (dual channels), 312.5 MSa/s (four channels) |
| Vertical Resolution | 12 bits (R12™ native architecture) |
| Memory Depth | 100 Mpts |
| Capture Rate | Up to 500,000 wfms/s (sequence mode) |
| Calculated Rise Time | ≤ 2.2 ns |
| Background Noise | 60 µVrms (typ., full bandwidth) |
| Vertical Scale | 500 µV/div to 10 V/div |
| Time Base Range | 5 ns/div to 1 ks/div |
| Display | 7-inch 1024×600 capacitive multi-touch |
| Trigger Modes | Edge, pulse width, video, runt, slope, delay, timeout, duration, setup-and-hold, Nth edge, code pattern, zone |
What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 9030.20
