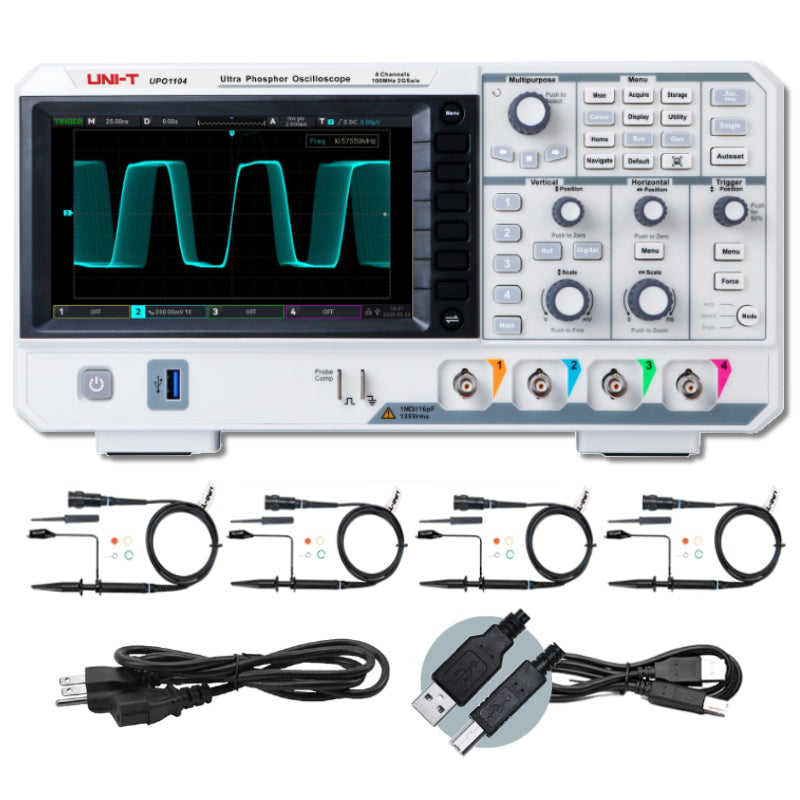

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - a white device with a screen showing a waveform, control knobs, ports, four probes, a power cable, and a USB cable.

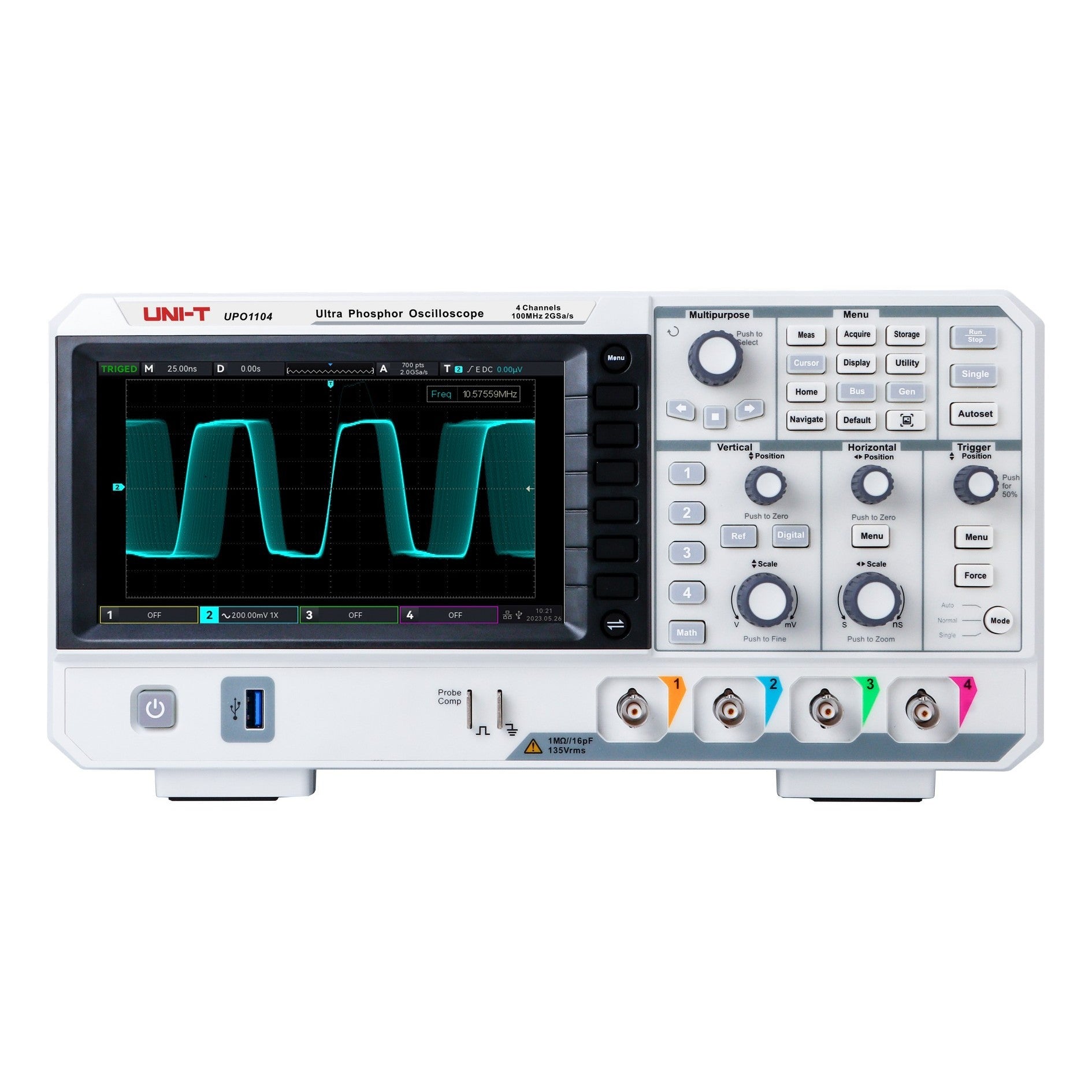

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - a white front panel with a display of a square wave, four input channels, control knobs, and function buttons.

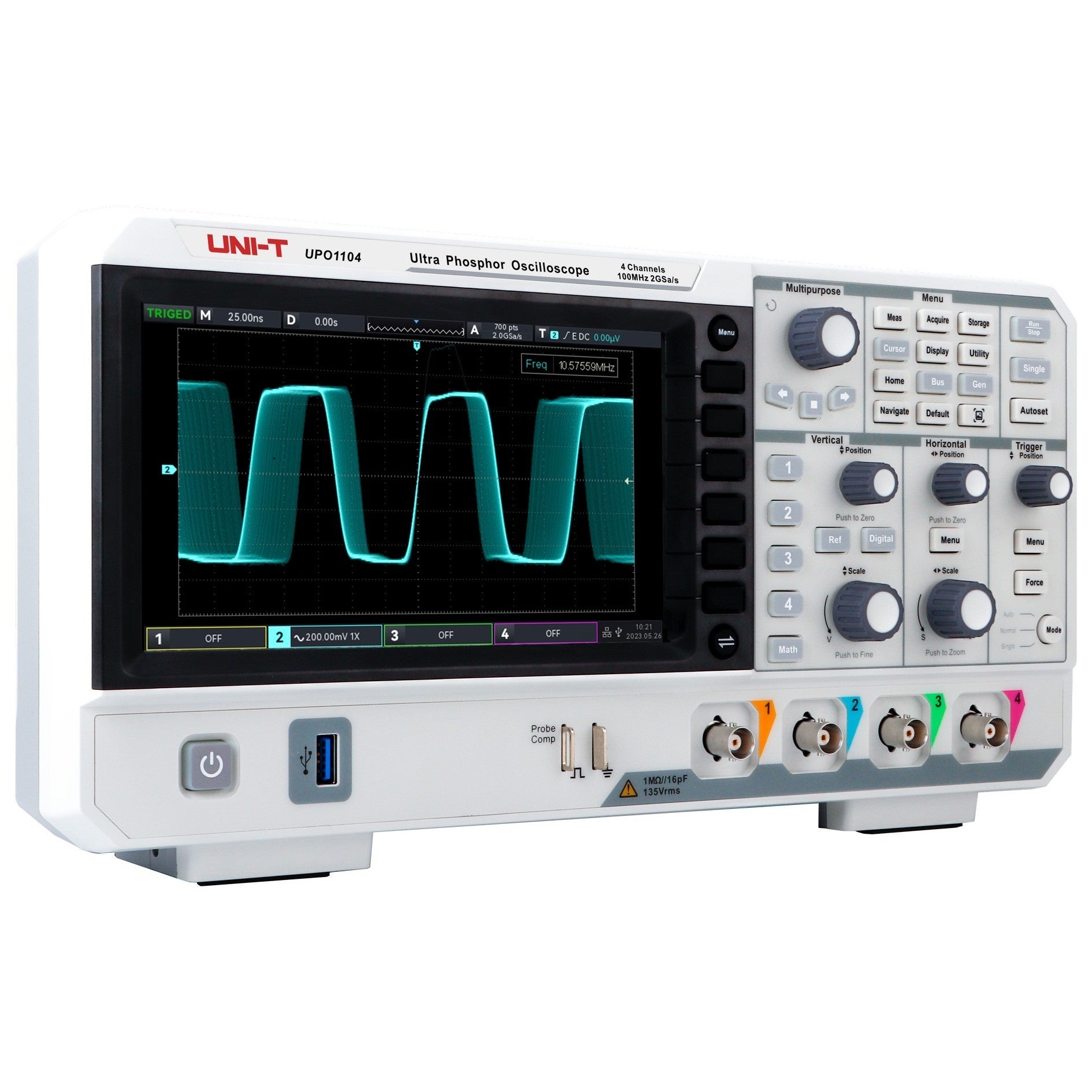

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - a white benchtop device with a screen showing a waveform, control knobs, buttons, and four input ports on the front panel.

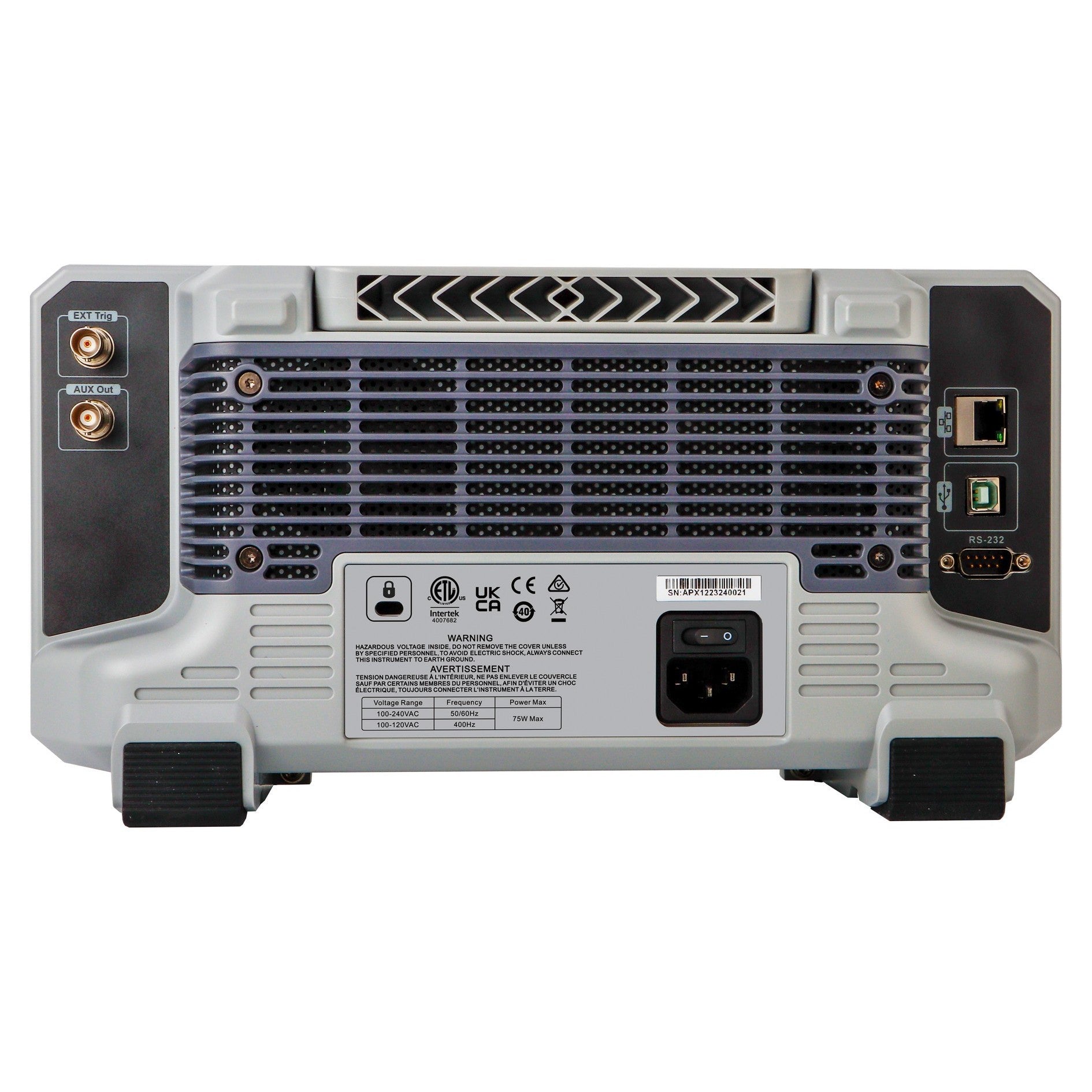

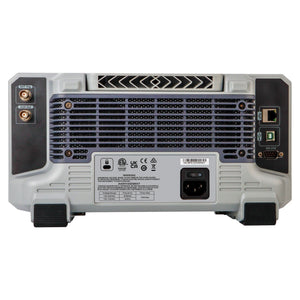

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - rear view showing a grey chassis with a cooling vent, power input, RS-232 port, USB ports, Ethernet port, and two BNC connectors.

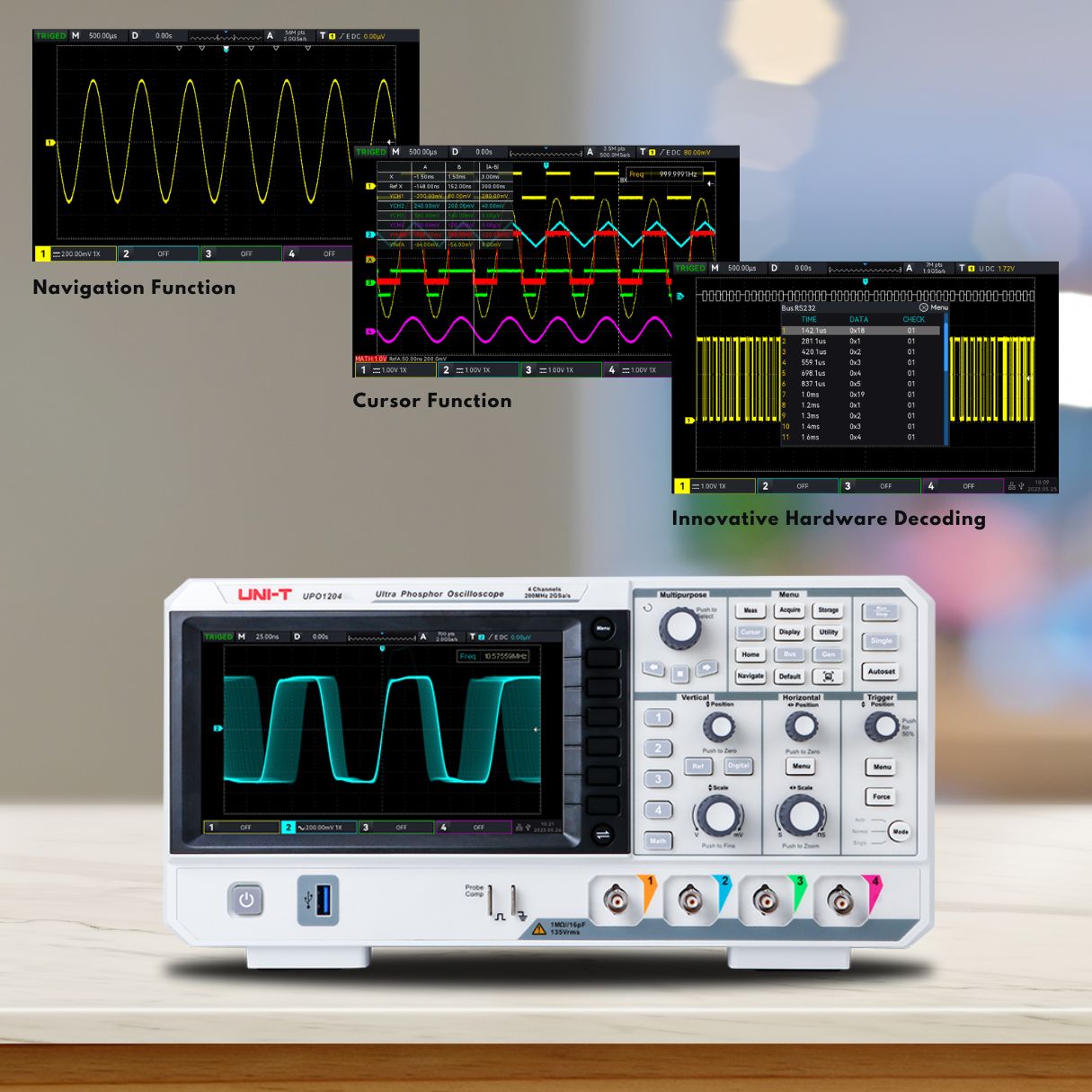

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - a white 4-channel device with a screen, control knobs, buttons, and three inset displays of waveform data.

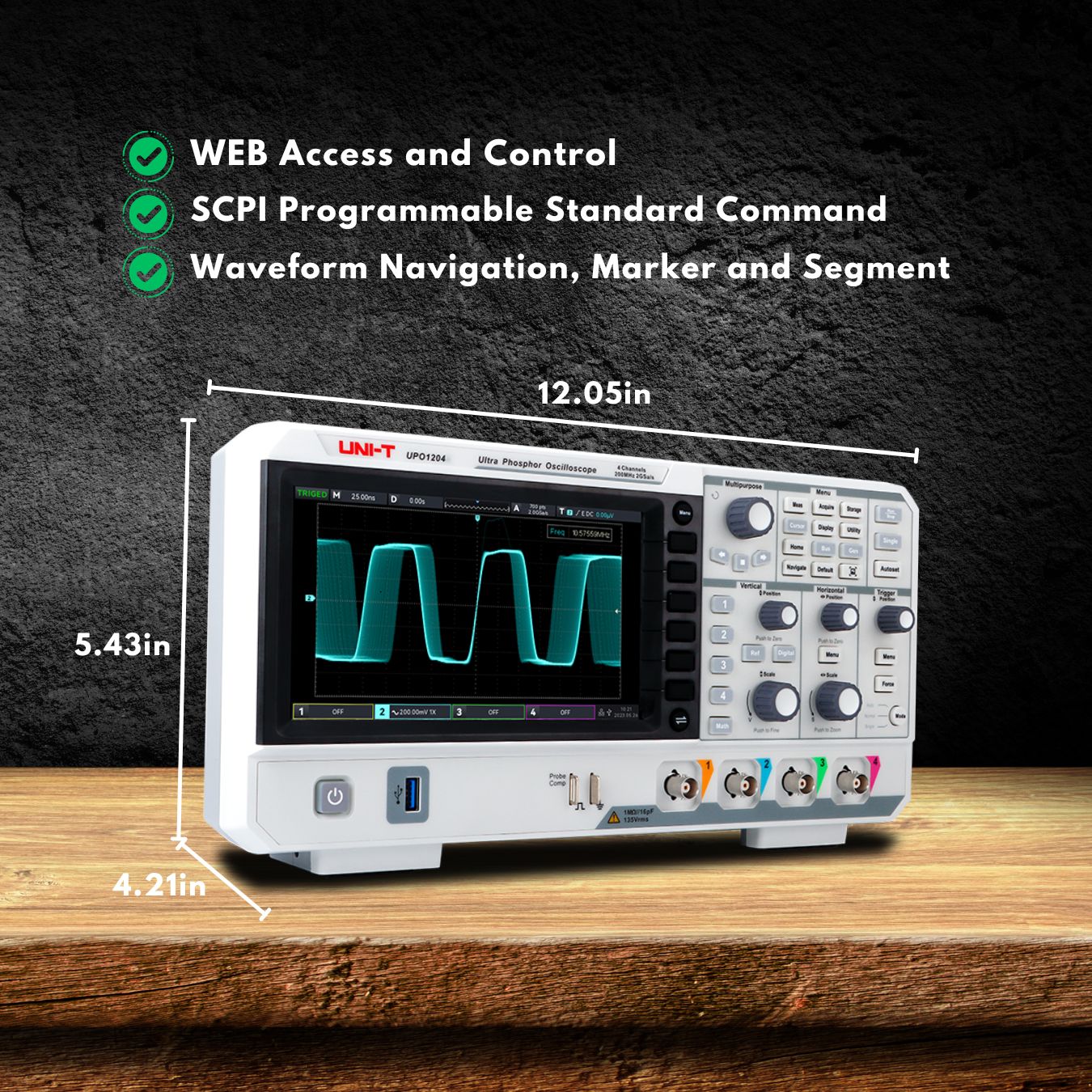

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - dimensions, a screen displaying a waveform, front-panel knobs, buttons, ports, and three green checkmark features.

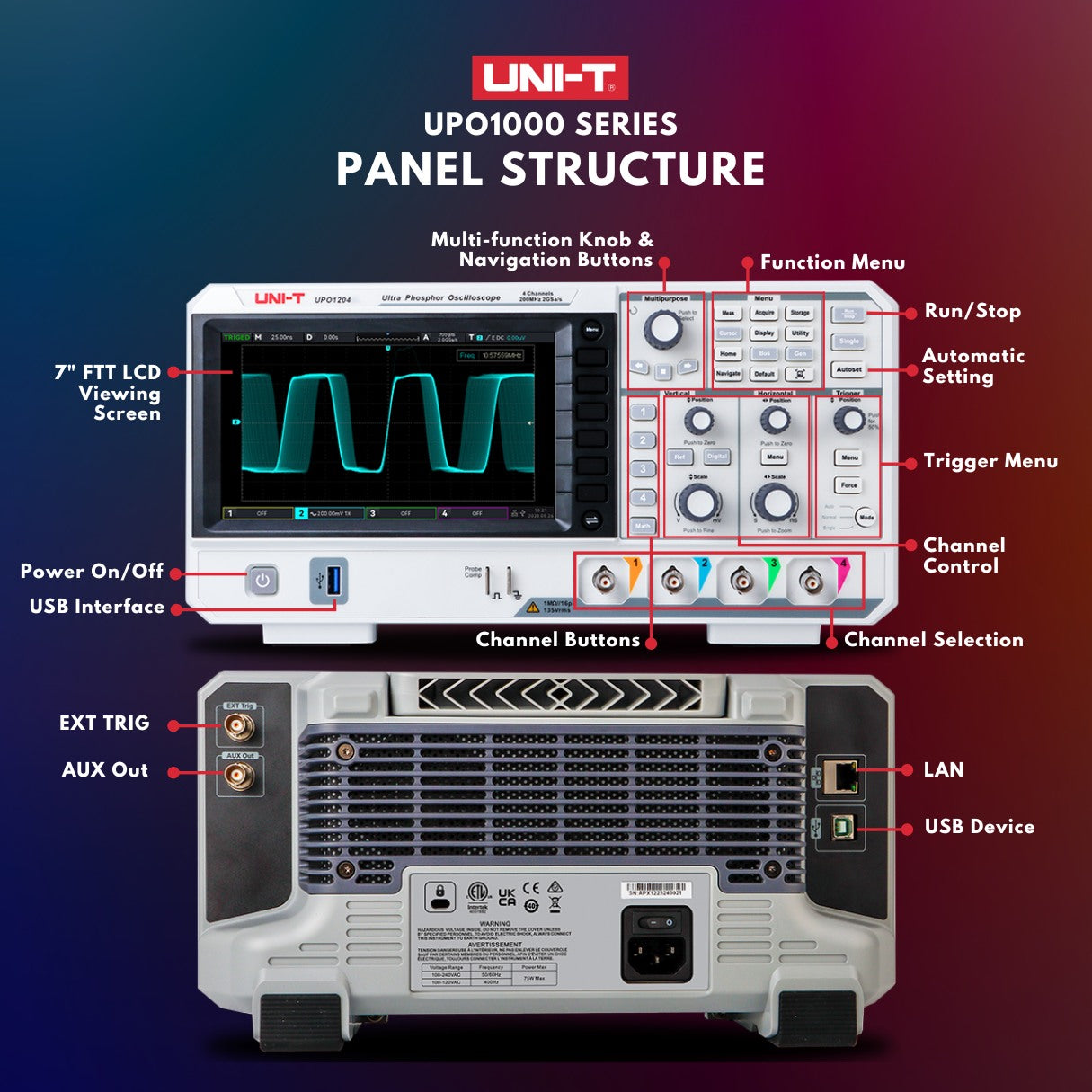

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts - UNI-T UPO1000 Series oscilloscope front and rear panel diagram showing the screen, control knobs, buttons, input ports, LAN, and USB interface ports.

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts

Rs 168,750

SKU: UPO1104

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UPO1104 100 MHz 4-Channel Digital Storage Oscilloscope – 2 GSa/s, 56 Mpts

Rs 168,750

UNI-T UPO1104 — The UNI-T UPO1104 is a 100 MHz, four-channel digital storage oscilloscope with 2 GSa/s real-time sample rate, 56 Mpts memory depth, and a 500,000 wfms/s waveform capture rate (Fast Acquire mode). Ultra Phosphor 2.0 display technology drives 256-level intensity grading on a 7-inch WVGA TFT LCD, making it straightforward to distinguish frequent signal behavior from rare anomalies at a glance. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

100 MHz bandwidth, 4 channels — 2 GSa/s real-time sample rate (2 GSa/s on a single channel; 1 GSa/s on two; 500 MSa/s on all four), ≤ 3.5 ns calculated rise time.
56 Mpts memory depth — capture full switching cycles and long protocol sequences without trading sample rate for record length.
500,000 wfms/s waveform capture rate — Ultra Phosphor 2.0 with 256-level intensity grading, in Fast Acquire mode. Fast enough to surface intermittent events that slower scopes spend hours missing.
1 Mpts enhanced FFT — frequency-domain analysis with frequency setting, demodulation mode, waterfall display, and marker measurement.
Independent DVM module — dedicated AC/DC True RMS digital voltmeter, operating in parallel with scope acquisition.
7-digit hardware frequency counter — hardware-accelerated counter alongside the scope channels.
3 serial bus decoders standard — RS-232/UART, I²C, and SPI trigger and decode included; full-memory hardware decoding turns multi-second decode times into milliseconds.

Technical Specifications

Bandwidth	100 MHz
Channels	4
Real-Time Sample Rate	2 GSa/s
Sample Rate per Channel Configuration	2 GSa/s on a single channel; 1 GSa/s on two; 500 MSa/s on all four
Calculated Rise Time	≤ 3.5 ns
Memory Depth	56 Mpts
Vertical Resolution	8 bits
Vertical Scale (1 MΩ)	500 µV/div to 20 V/div
Maximum Input Voltage	400 V (DC + AC Vpk)
Waveform Capture Rate	500,000 wfms/s (Fast Acquire mode); 150,000 wfms/s normal
Continuous Frame Recording	120,000 frames
FFT	1 Mpts enhanced FFT (5 window functions)
