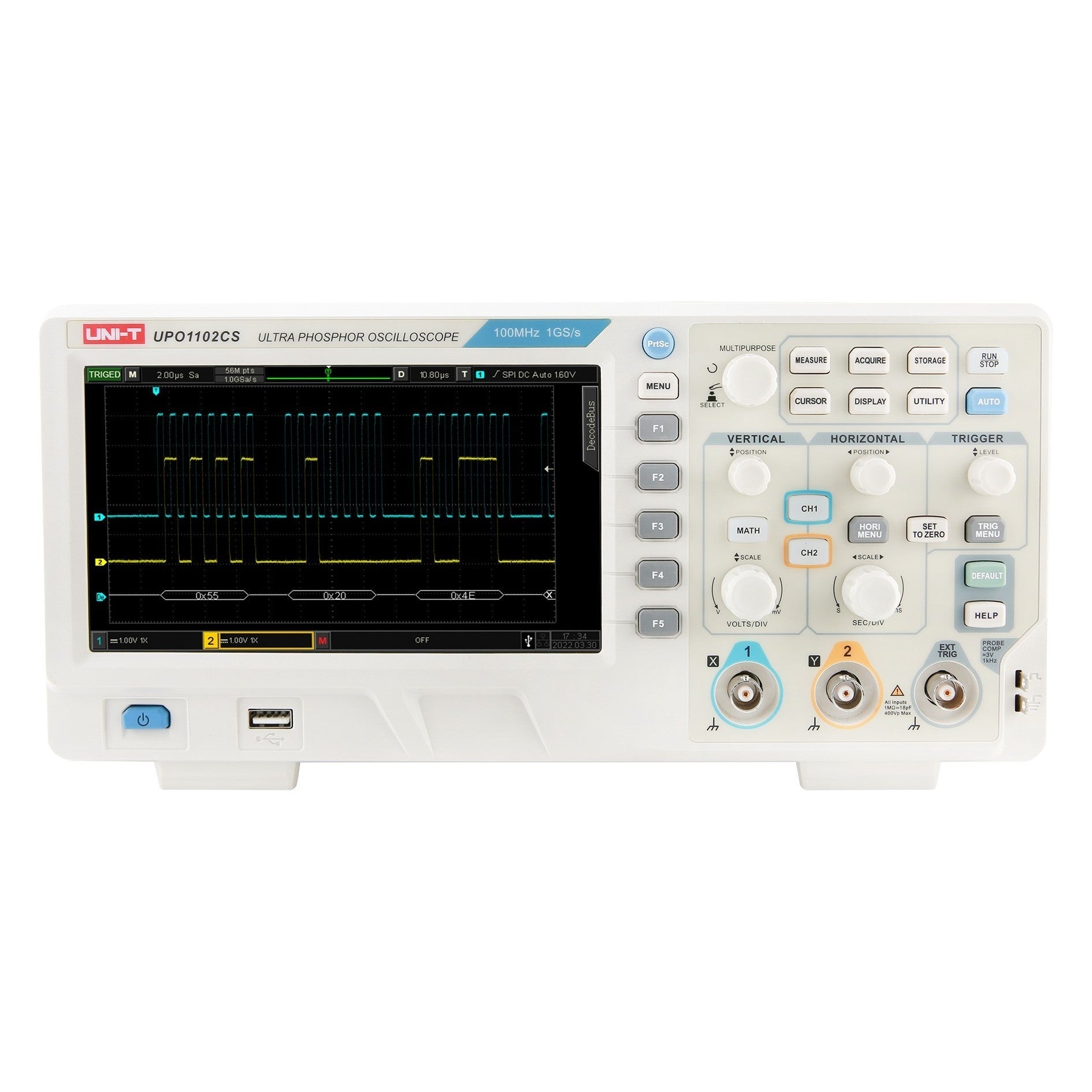

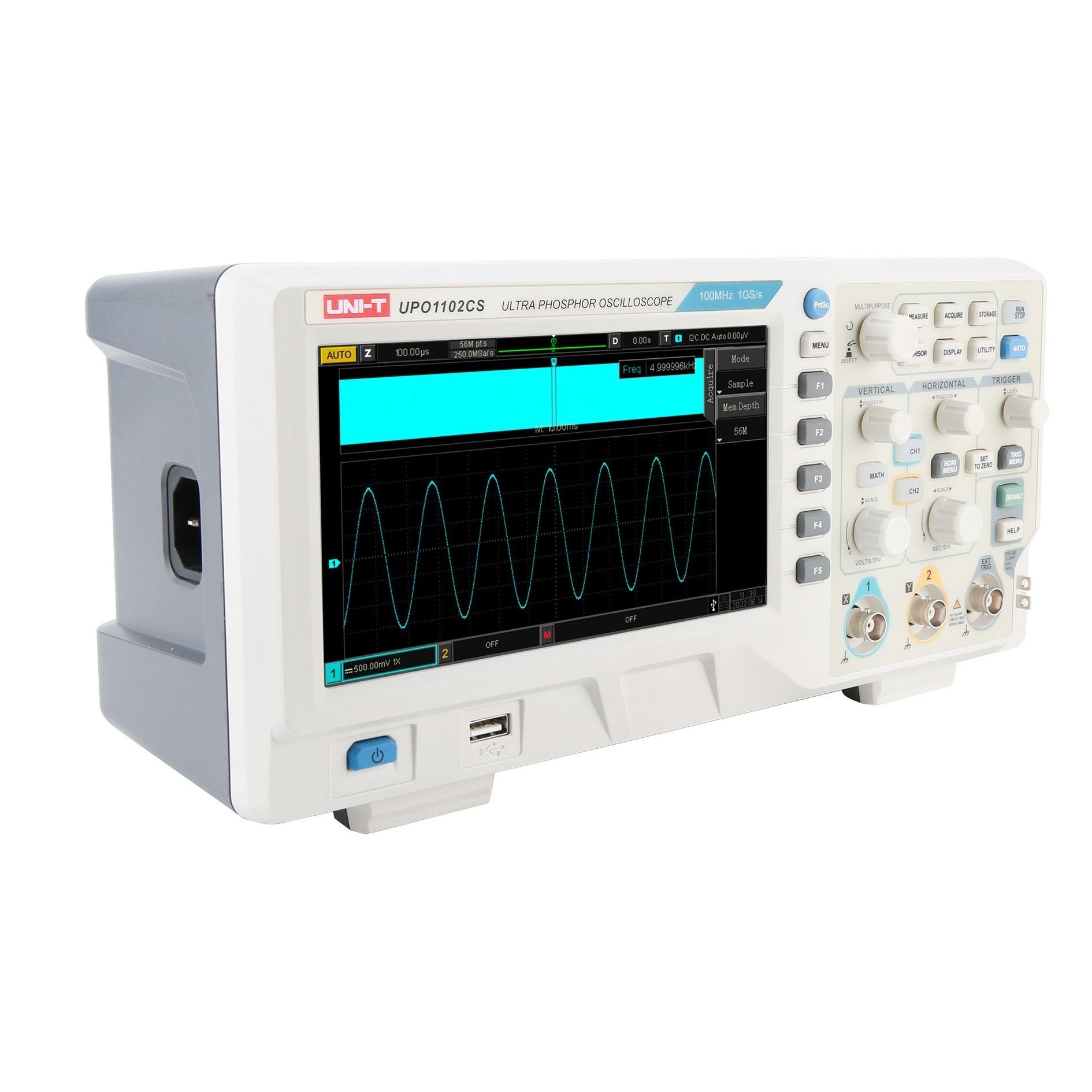

UNI-T UPO1102CS 100 MHz 2-Channel Digital Storage Oscilloscope – 1 GSa/s, 56 Mpts per channel
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UPO1102CS 100 MHz 2-Channel Digital Storage Oscilloscope – 1 GSa/s, 56 Mpts per channel
UNI-T UPO1102CS — The UPO1102CS is a 100 MHz 2-channel digital storage oscilloscope with 1.0 GSa/s sample rate, 56 Mpts memory depth, and a 500,000 wfms/s waveform capture rate. It features UNI-T's Ultra Phosphor 2.0 display technology for intensity-graded waveform visualization on a 7in TFT LCD display. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 100 MHz Bandwidth, 2 Channels — Two-channel capture at up to 100 MHz.
- 1.0 GSa/s Sample Rate — Captures fast edges and high-frequency content with accurate timing.
- 56 Mpts Memory Depth — Deep memory for capturing long signal records without reducing sample rate.
- 500,000 wfms/s Capture Rate — Ultra Phosphor 2.0 display technology reveals rare signal anomalies.
- 36 Automated Measurements — Time, voltage, frequency, and statistical measurements.
- FFT Spectrum Analysis — Frequency domain analysis for harmonics, EMI, and spectral characterization.
- Independent DVM Module — Dedicated digital voltmeter readout alongside oscilloscope display.
Technical Specifications
| Bandwidth | 100 MHz |
|---|---|
| Channels | 2 analog |
| Real-time Sample Rate | 1 GSa/s |
| Memory Depth | 56 Mpts per channel |
| Waveform Capture Rate | 500,000 wfms/s (Fast Acquire mode) |
| Waveform Record | 100,000 frames |
| Rise Time | ≤ 3.5 ns |
| Vertical Resolution | 8 bits |
| Vertical Scale | 1 mV/div to 20 V/div |
| Max Input Voltage (1 MΩ) | 400 V (DC + AC peak) |
| Time-base Scale | 2 ns/div to 1000 s/div |
| Display | 7-inch TFT, 800 × 480 |

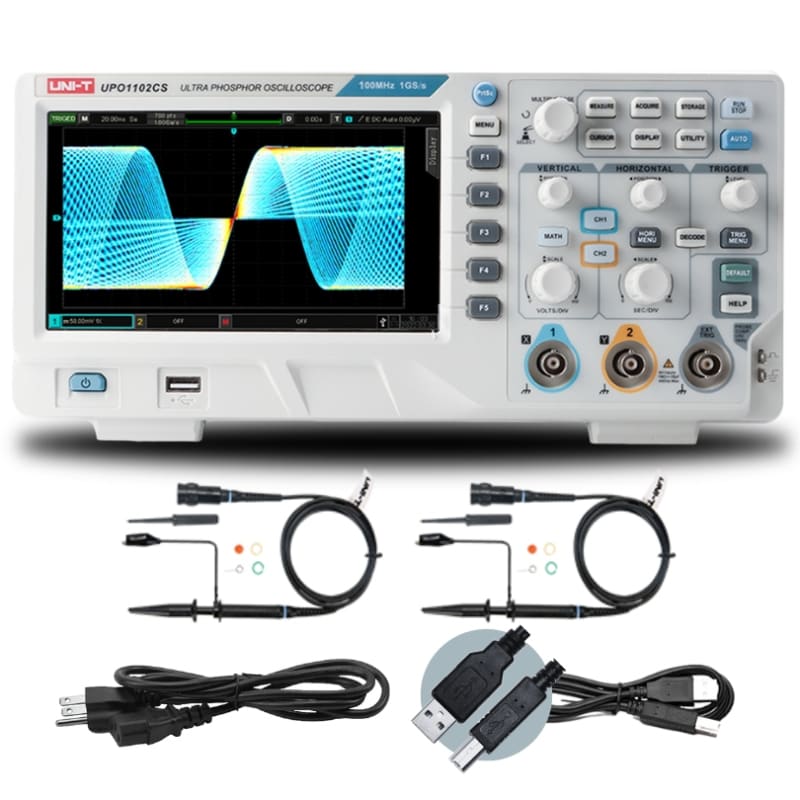

What's in the Box
- Power cord
- USB2.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 9030.20
