UNI-T UDP6953B 600W Programmable DC Power Supply – Single Channel, 0–150V / 0–10A, 1 mV / 0.1 mA, RS232 / RS485 / USB / LAN
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UDP6953B 600W Programmable DC Power Supply – Single Channel, 0–150V / 0–10A, 1 mV / 0.1 mA, RS232 / RS485 / USB / LAN
UNI-T UDP6953B is a high-performance single-channel programmable DC power supply — 600 W over a high 0–150 V / 0–10 A range with 1 mV / 0.1 mA resolution. Full connectivity (RS232 / RS485 / USB / LAN) suits automated test and research needing higher voltage. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- Single channel, 600 W: 0–150 V / 0–10 A (high-voltage)
- High resolution 1 mV / 0.1 mA for fine setting and readback

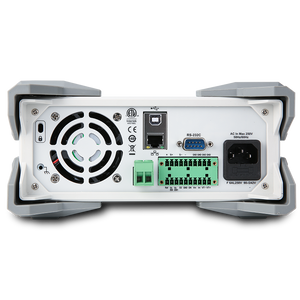

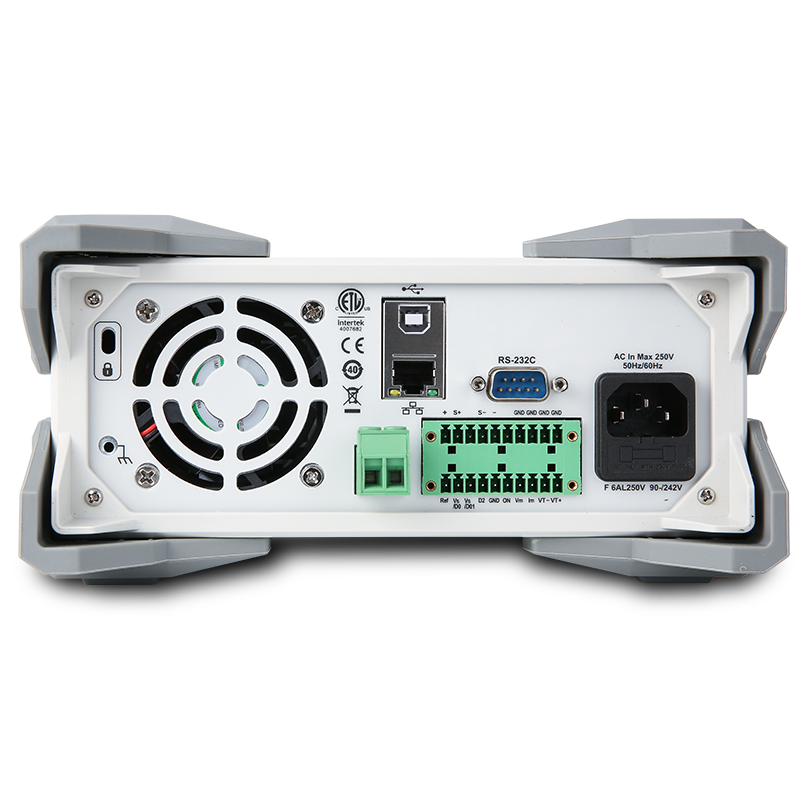

- RS232, RS485, USB and LAN interfaces for full remote control
- Stable, precise high-voltage output for lab and industry
- Wide-range AC input 100–240 V, 47–63 Hz
- Same UDP6900 platform as UDP6952B, extended voltage range
Technical Specifications
| Channels | 1 (single output) |
|---|---|
| Output Voltage | 0 – 150 V |
| Output Current | 0 – 10 A |
| Output Power | 600 W |
| Resolution | 1 mV / 0.1 mA |
| Interfaces | RS232, RS485, USB, LAN |
| AC Input | 100–240 V, 47–63 Hz |
| Platform | UDP6900 series |
What's in the Box
- UDP6953B DC power supply
- AC power cord
- Output test leads
- English user manual
Certifications: CE, UKCA | HS Code: 8504.4090
