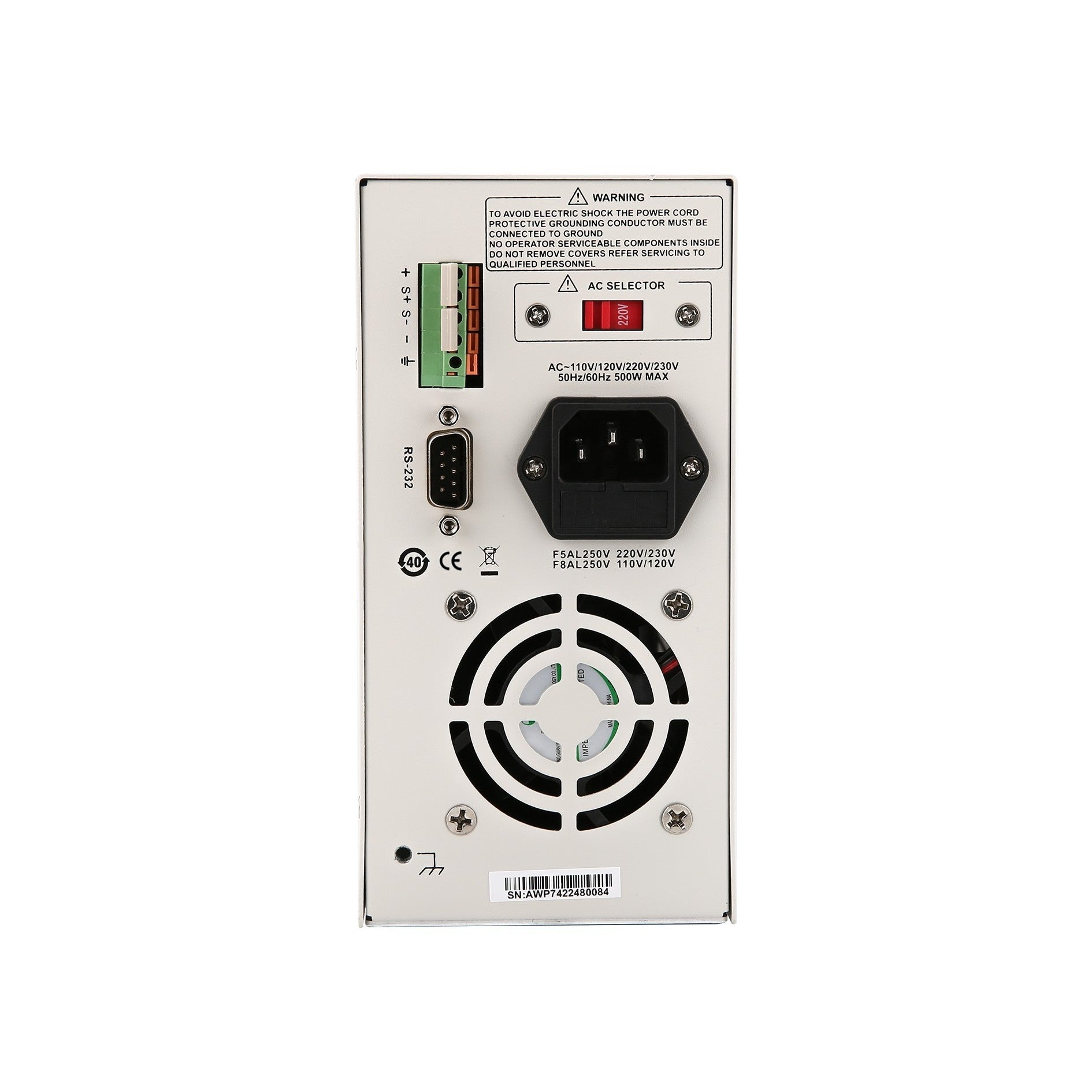

UNI-T UDP6720 Programmable DC Power Supply – 100 W Single-Channel, 0–60V / 0–5A, SCPI/RS-232, List Mode, 4.3" LCD
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UDP6720 Programmable DC Power Supply – 100 W Single-Channel, 0–60V / 0–5A, SCPI/RS-232, List Mode, 4.3" LCD
UNI-T UDP6720 — The UDP6720 is a 100 W programmable DC switching power supply with a 60 V × 5 A wide-range output, RS-232 with full SCPI control, 600-group memory, list mode, and OVP/OCP/OTP protection. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 100 W rated power, 60 V × 5 A wide envelope — Up to 60 V at 1.67 A or 20 V at 5 A — same 100 W envelope, no second instrument
- Wide-range output with power ratio 3.0 — one supply covers V/I combinations that would otherwise require two
- Programmable list mode: 9 steps per list, 1 ms to 9999 s per step, repeat 1–9999 cycles
- Trigger delayer: 9 trigger groups, 1 ms to 9999 s per trigger
- 600 memory groups (M1: 100 / M2: 100 / M3: 400) for stored output configurations
- Over-voltage, over-current, and over-temperature protection with set ranges 0–110% of rated
- Remote sense compensation for accurate output at the load terminals over long leads
Technical Specifications
| Rated Voltage | 60 V |
|---|---|
| Rated Current | 5 A |
| Rated Power | 100 W |
| Max V at Rated Current | 20.0 V |
| Max I at Rated Voltage | 1.67 A |
| Setting Resolution | V: 10 mV / I: 1 mA |
| Readback Resolution | V: 10 mV / I: 1 mA |
| Programming Accuracy | V: ≤0.05% + 10 mV / I: ≤0.2% + 2 mA |
| Readback Accuracy | V: ≤0.05% + 10 mV / I: ≤0.2% + 2 mA |
| Load Regulation | V: ≤0.01% + 3 mV / I: ≤0.01% + 3 mA |
| Line Regulation | V: ≤0.01% + 3 mV / I: ≤0.01% + 3 mA |
| Ripple & Noise | V: <2 mVrms / <20 mVpp / I: <5 mArms |
| Temperature Coefficient | V: ≤100 ppm/°C / I: ≤300 ppm/°C |
What's in the Box
- Power cord
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 8504.4090
