UNI-T UDP4303S 4-Channel Programmable DC Power Supply – 297W, 0–32V/3A ×2 + 15V/3A + 6V/10A, 1mV/1µA Resolution, USB Data Logging, RS-232/USB/LAN
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UDP4303S 4-Channel Programmable DC Power Supply – 297W, 0–32V/3A ×2 + 15V/3A + 6V/10A, 1mV/1µA Resolution, USB Data Logging, RS-232/USB/LAN

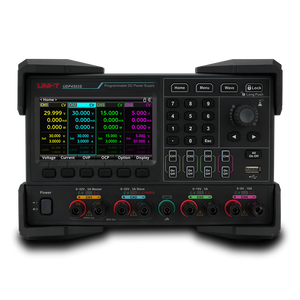

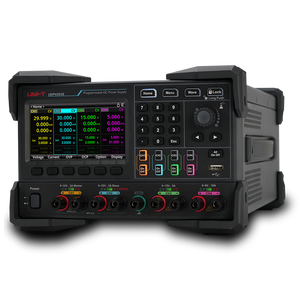

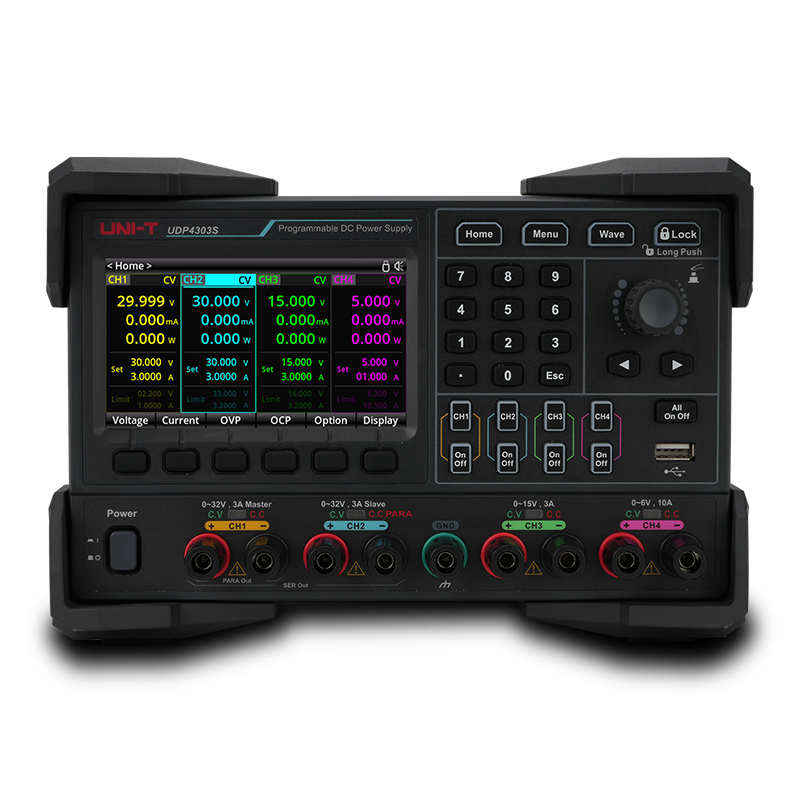

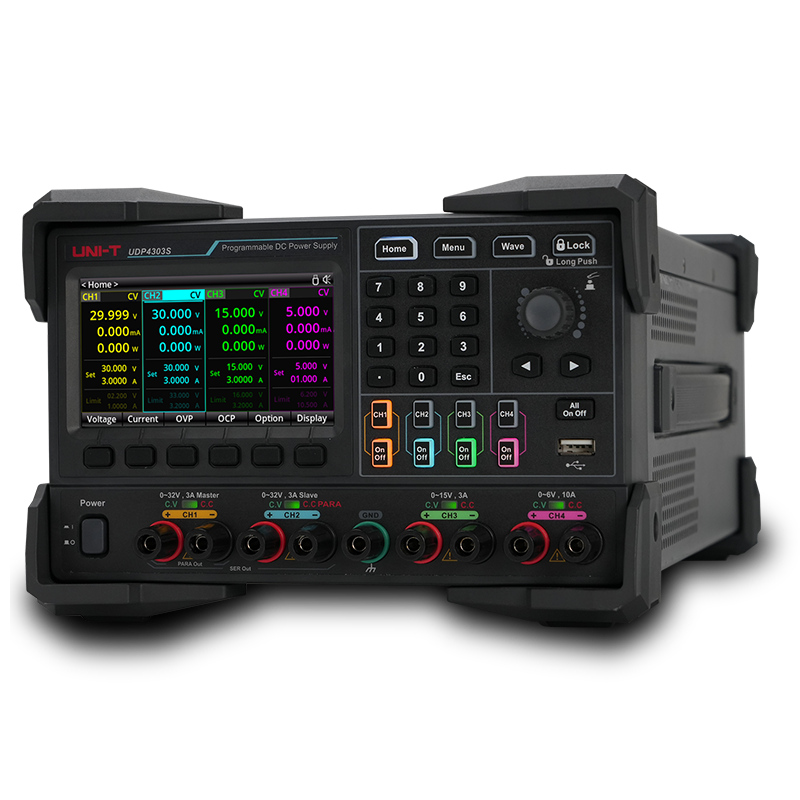

The UNI-T UDP4303S is a high-precision 4-channel programmable linear DC power supply with built-in USB data logging for precise voltage and current control. With 297 W total power, fine 1 mV / 1 µA resolution and a full complement of interfaces (RS-232, USB, LAN, Digital IO), it is ideal for laboratories, industrial testing, R&D and electronics development. Genuine UNI-T product supplied by Digilog.pk.
Key Features
- 4 independent output channels, 297 W total power
- Outputs: CH1/CH2 0–32 V / 0–3 A, CH3 0–15 V / 0–3 A, CH4 0–6 V / 0–10 A
- Fine setting resolution 1 mV / 1 µA; small-current mode on all four channels
- Built-in USB data logging for real-time monitoring and analysis

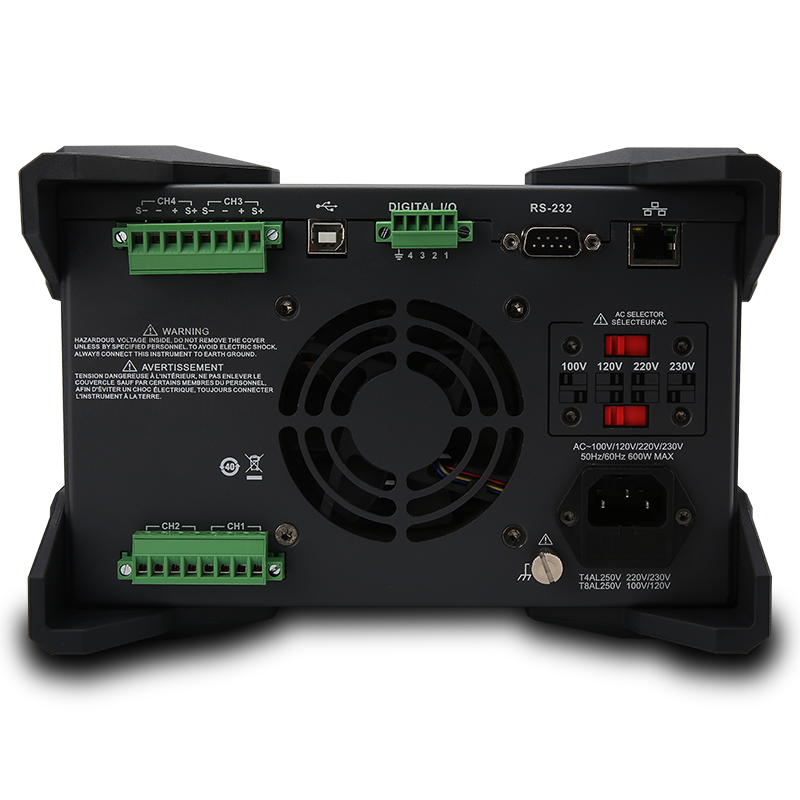

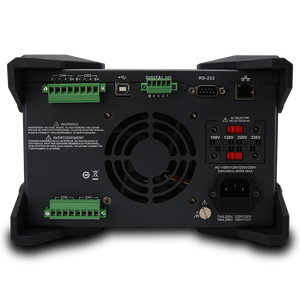

- Interfaces: RS-232, USB Host, USB Device, LAN, Digital IO
- Programmable output with clear digital display
Technical Specifications
| Channels | 4 |
|---|---|
| Total Power | 297 W |
| Output Voltage | CH1/CH2: 0–32 V, CH3: 0–15 V, CH4: 0–6 V |
| Output Current | CH1/CH2: 0–3 A, CH3: 0–3 A, CH4: 0–10 A |
| Resolution | 1 mV, 1 µA |
| Connectivity | RS-232, USB Host, USB Device, LAN, Digital IO |
| Type | Programmable linear DC power supply |
What's in the Box
- UDP4303S programmable DC power supply
- Power cord
- English user manual
Downloads
Certifications: CE, RoHS | HS Code: 8504.40
