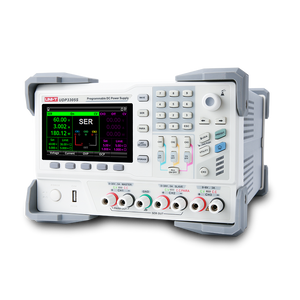

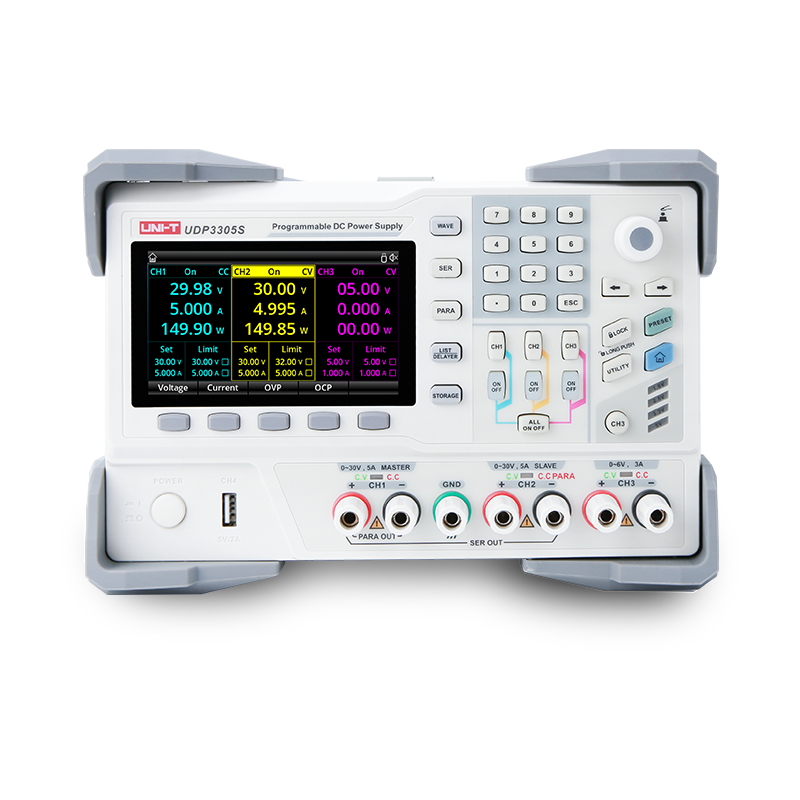

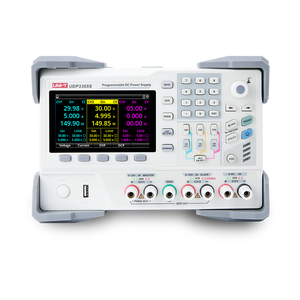

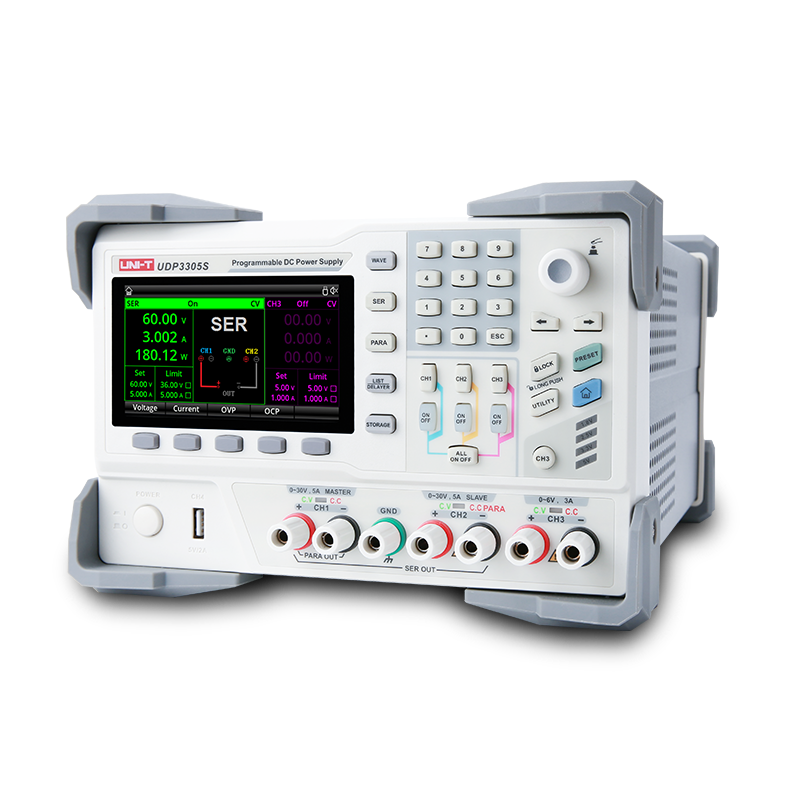

UNI-T UDP3305S 328W Programmable Linear DC Power Supply – 4 Channel, 2× 30V/5A + 6V/3A + 5V/2A, 1 mV / 1 mA, LAN / USB / RS232
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UDP3305S 328W Programmable Linear DC Power Supply – 4 Channel, 2× 30V/5A + 6V/3A + 5V/2A, 1 mV / 1 mA, LAN / USB / RS232
UNI-T UDP3305S is a high-performance 4-channel programmable linear DC power supply — 328 W with two 0–30 V / 0–5 A outputs, a 0–6 V / 3 A channel and a fixed 5 V / 2 A USB rail. A 4.3″ display, 1 mV / 1 mA resolution, ultra-low ripple and full SCPI remote control (LAN/USB/RS232/Digital I/O) make it an automated-test-ready lab supply. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 4 channels, 328 W: CH1/CH2 0–30 V/5 A, CH3 0–6 V/3 A, CH4 5 V/2 A USB
- High resolution 1 mV / 1 mA; accuracy < 0.03% + 10 mV / < 0.2% + 5 mA
- 4.3″ TFT display of set / actual / protection V & I in real time
- SCPI remote control via USB, LAN, RS232 and Digital I/O
- Linear topology, ultra-low ripple < 350 µVrms, fast transient response
- Series / parallel operation for higher voltage or current

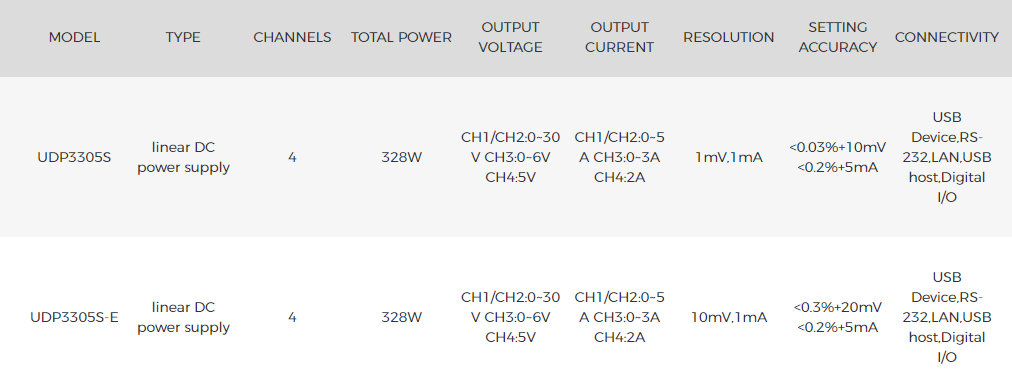

Technical Specifications
| Channels | 4 |
|---|---|
| CH1 / CH2 | 0 – 30 V / 0 – 5 A each |
| CH3 | 0 – 6 V / 0 – 3 A |
| CH4 | 5 V / 2 A (USB) |
| Output Power | 328 W |
| Resolution | 1 mV / 1 mA |
| Accuracy | < 0.03% + 10 mV / < 0.2% + 5 mA |
| Ripple | < 350 µVrms |

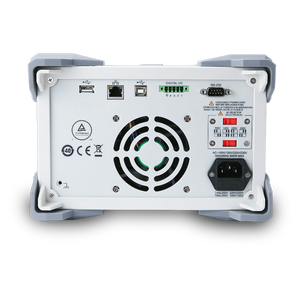

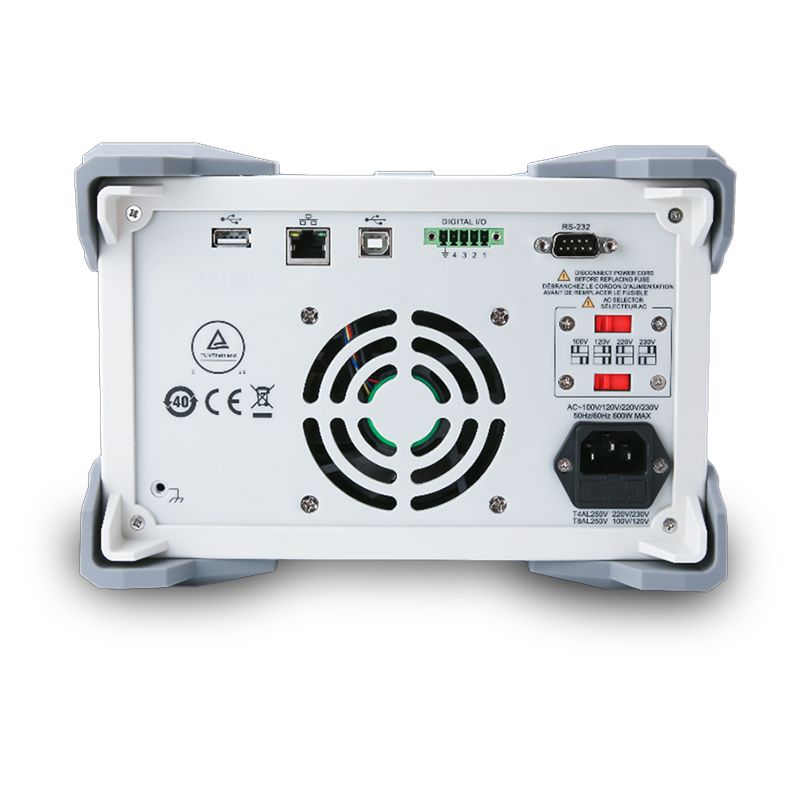

| Interfaces | USB, LAN, RS232, Digital I/O (SCPI) |
| Display | 4.3″ TFT |
What's in the Box
- UDP3305S DC power supply
- AC power cord
- Output test leads
- USB cable
- English user manual
Certifications: CE, UKCA | HS Code: 8504.4090
