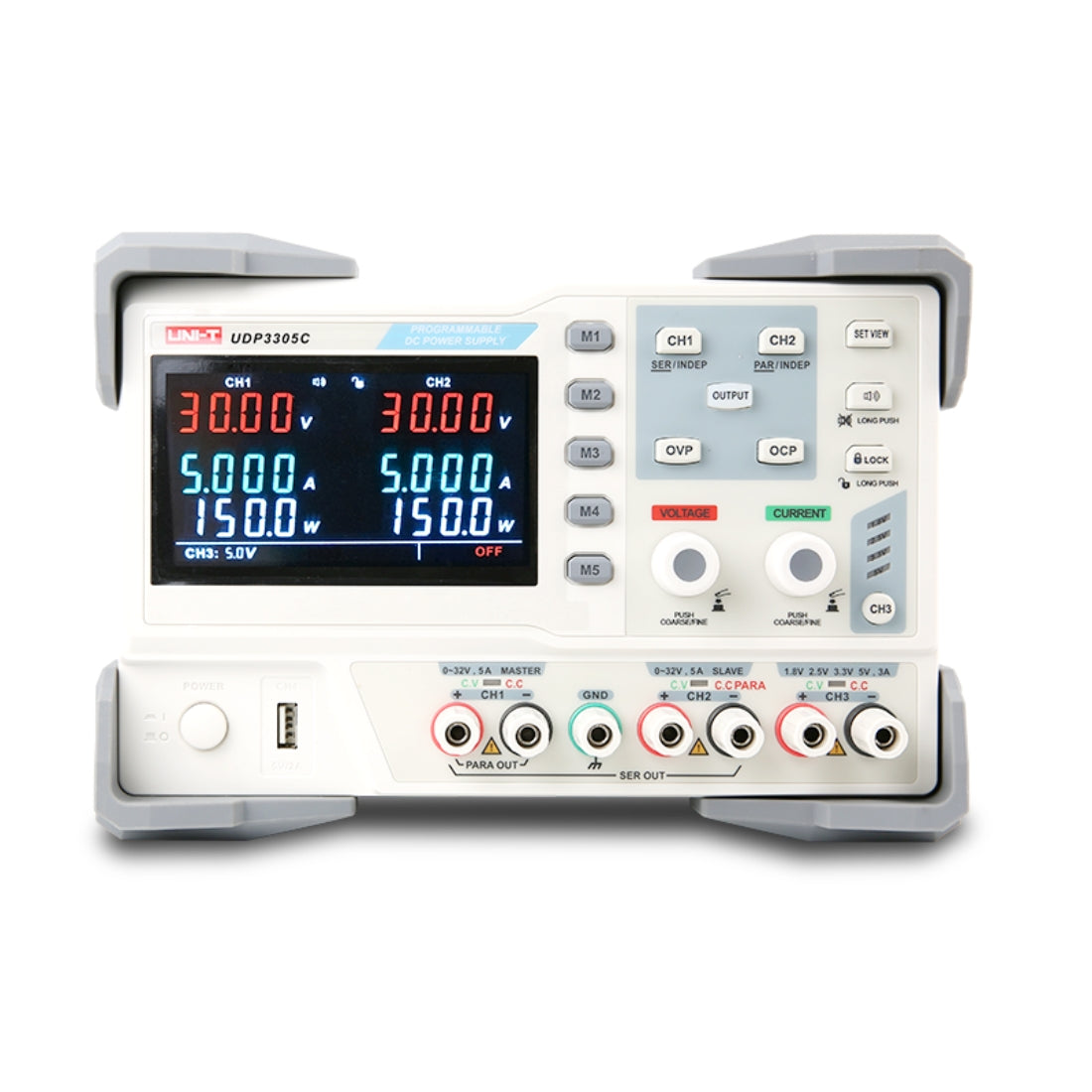

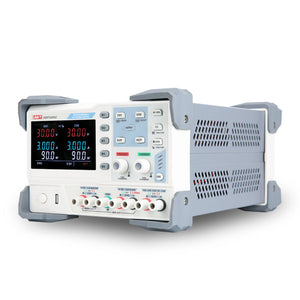

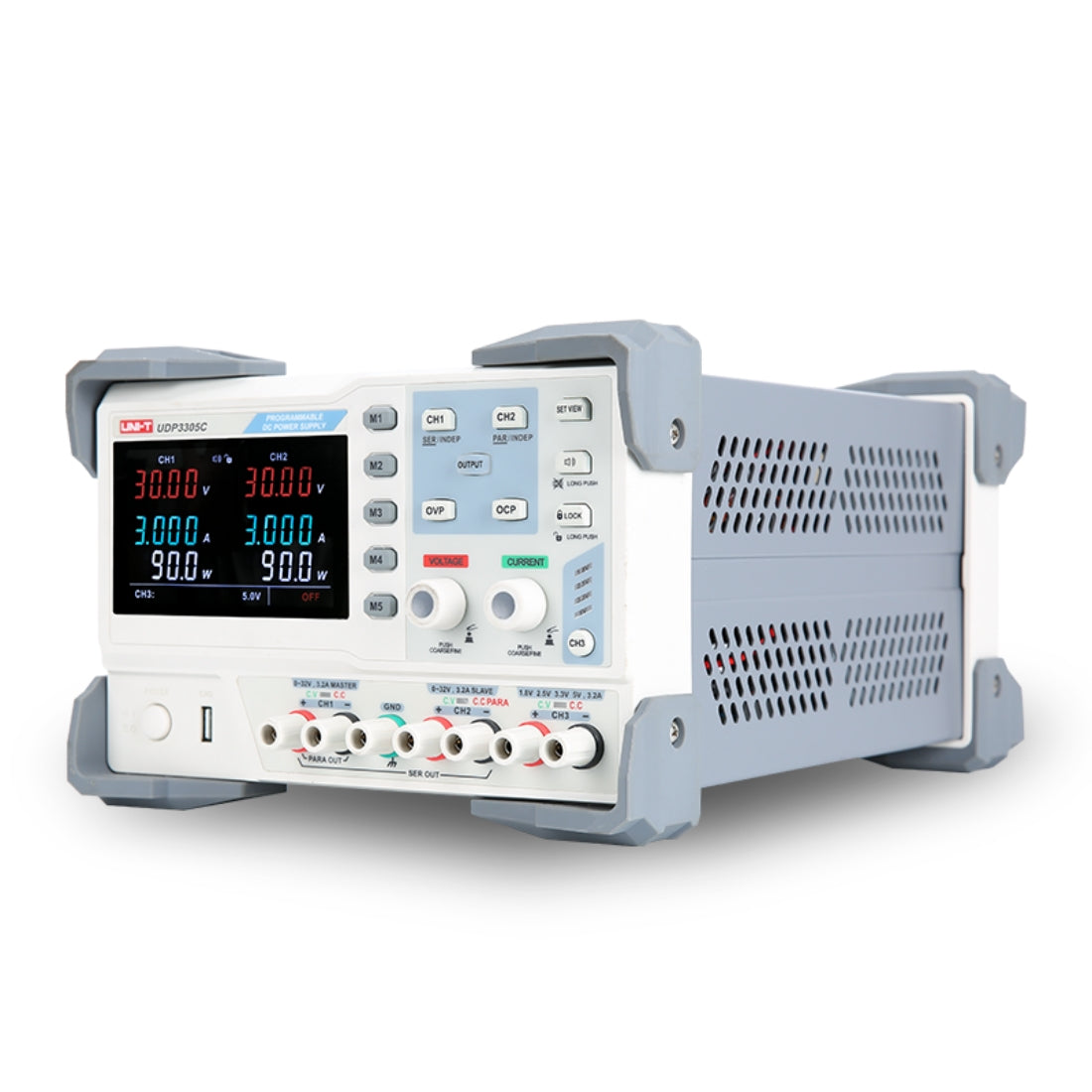

UNI-T UDP3305C 315W Programmable Linear DC Power Supply – 3 Channel, 2× 30V/5A + 5V/3.2A, 10 mV / 1 mA, USB / RS232
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UDP3305C 315W Programmable Linear DC Power Supply – 3 Channel, 2× 30V/5A + 5V/3.2A, 10 mV / 1 mA, USB / RS232
UNI-T UDP3305C is a 3-channel programmable linear DC power supply — 315 W with two 0–30 V / 0–5 A outputs plus a 5 V / 3.2 A rail, 10 mV / 1 mA resolution and USB / RS232 / Digital I/O control. A versatile, cost-effective lab and teaching supply. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 3 channels, 315 W: CH1/CH2 0–30 V/5 A, CH3 5 V/3.2 A
- Resolution 10 mV / 1 mA; accuracy < 0.1% + 30 mV / < 0.5% + 2 mA

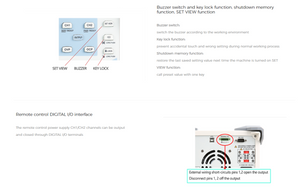

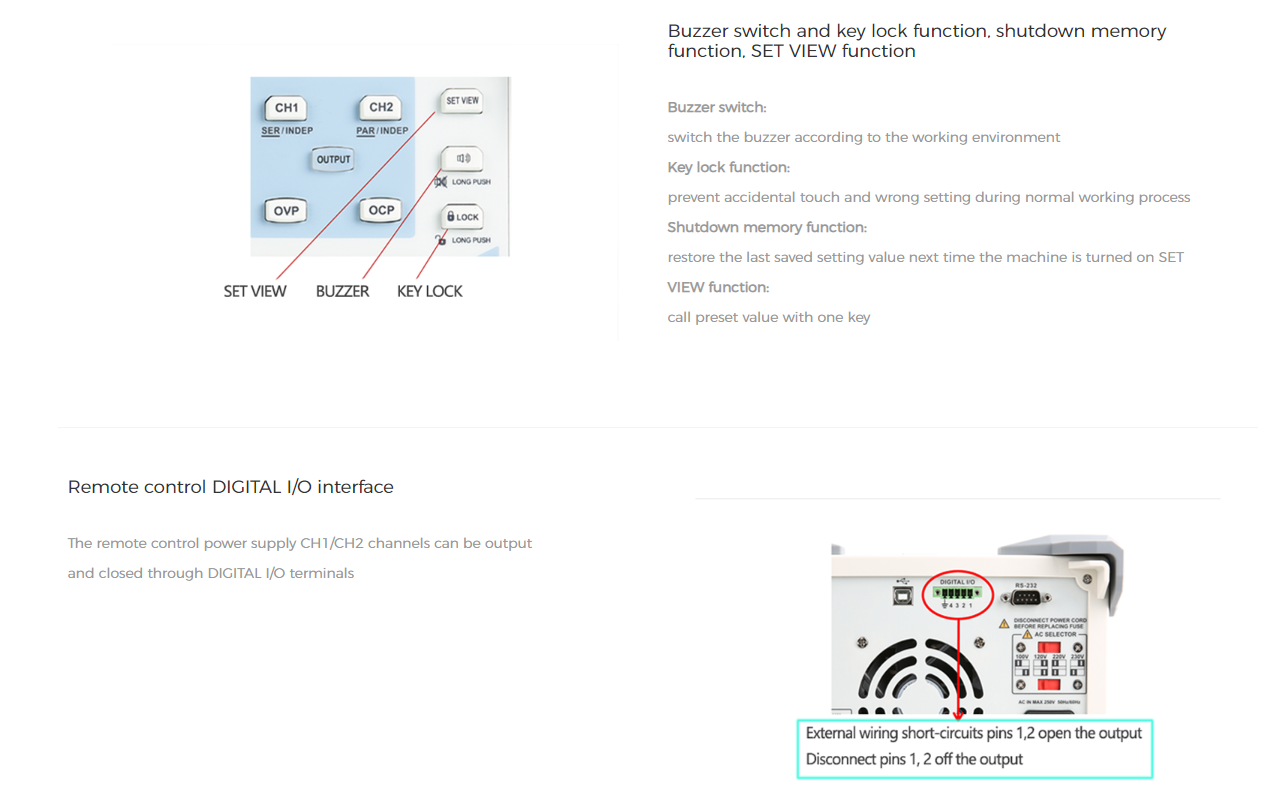

- USB, RS232 and Digital I/O for remote control and automation
- Linear regulation with low ripple and stable output

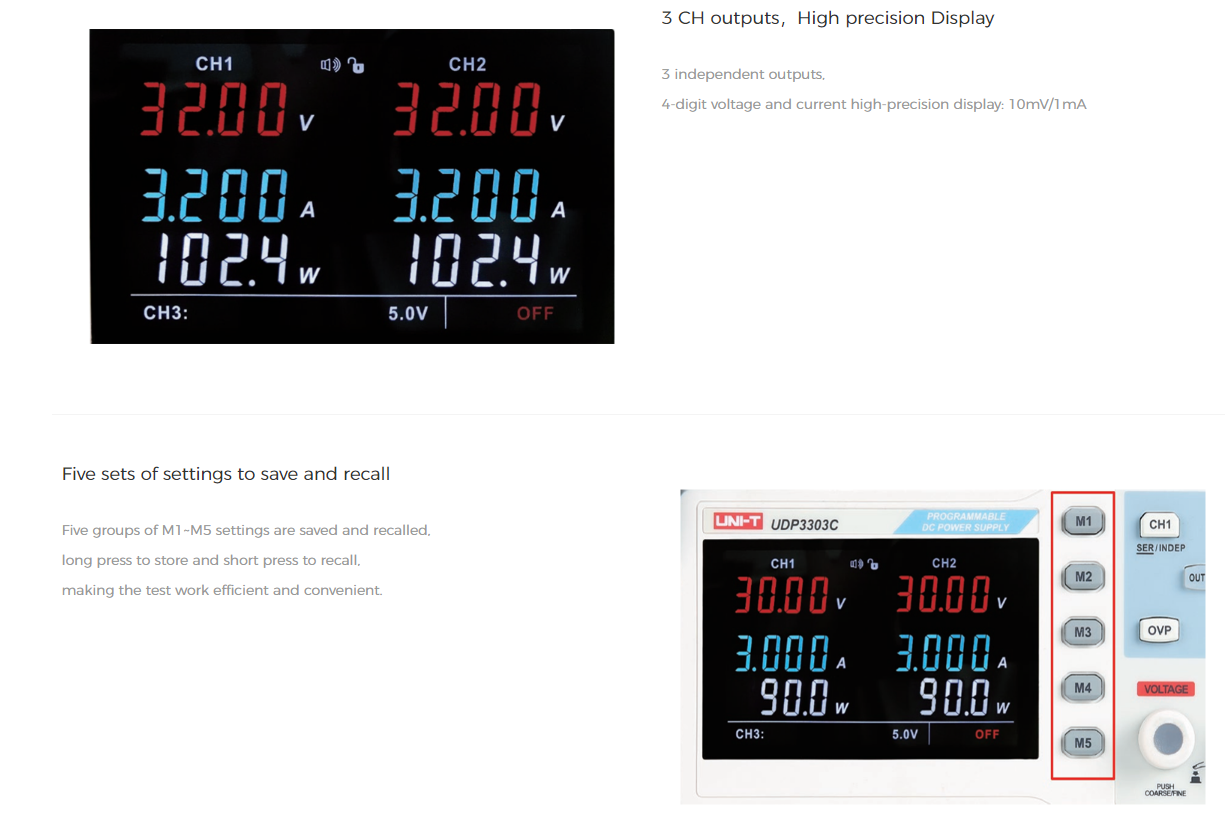

- Real-time voltage & current readouts per channel
- Series / parallel capability for higher V or I
Technical Specifications
| Channels | 3 |
|---|---|
| CH1 / CH2 | 0 – 30 V / 0 – 5 A each |
| CH3 | 5 V / 3.2 A |
| Output Power | 315 W |
| Resolution | 10 mV / 1 mA |
| Accuracy | < 0.1% + 30 mV / < 0.5% + 2 mA |

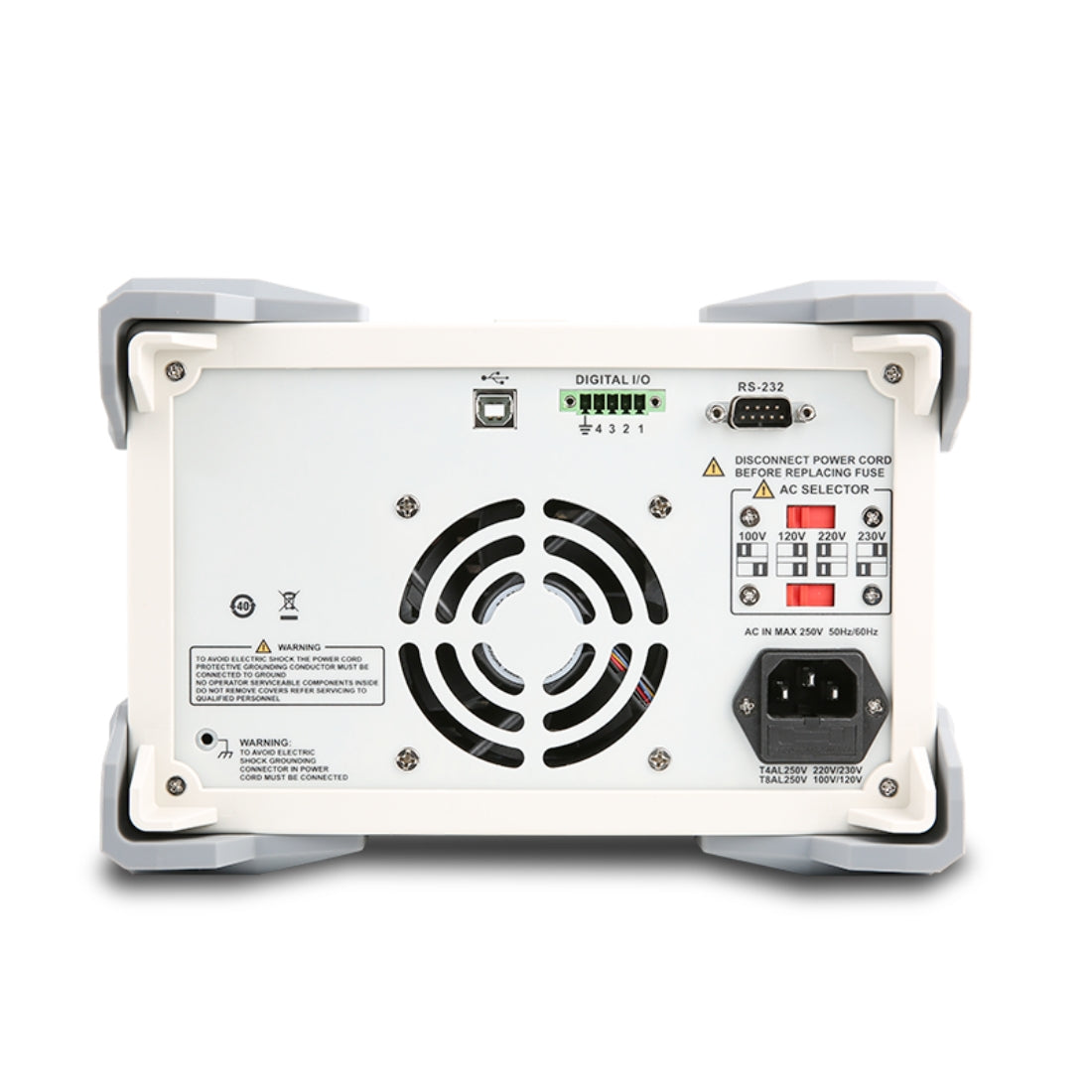

| Interfaces | USB, RS232, Digital I/O |
| Topology | Linear |
| Supply | AC 100–240 V |
What's in the Box
- UDP3305C DC power supply
- AC power cord
- Output test leads
- USB cable
- English user manual
Certifications: CE, UKCA | HS Code: 8504.4090
