UNI-T UDP1306C 192W Linear DC Power Supply – Single Channel, 0–32V / 0–6A, 10 mV / 1 mA, USB / RS232
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UDP1306C 192W Linear DC Power Supply – Single Channel, 0–32V / 0–6A, 10 mV / 1 mA, USB / RS232
UNI-T UDP1306C is an affordable single-channel linear DC bench power supply — 192 W at 0–32 V / 0–6 A with 10 mV / 1 mA resolution and USB / RS232 remote control. A dependable lab and production supply. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features

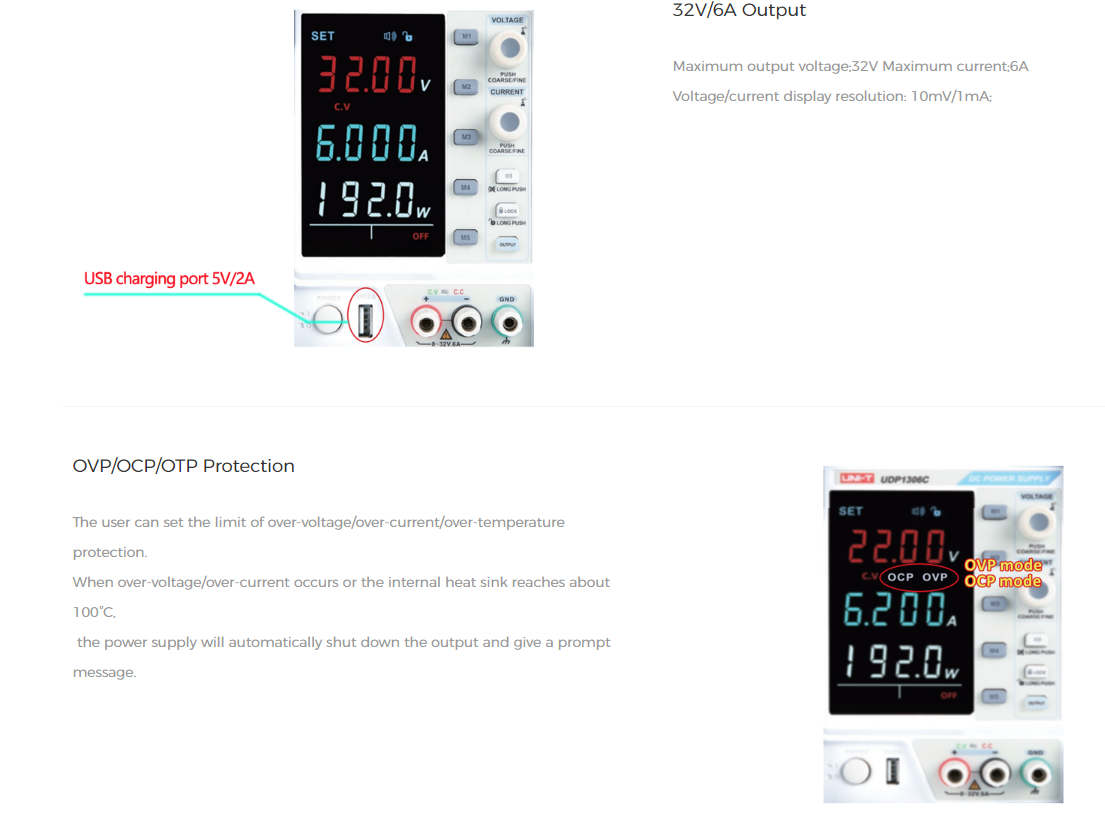

- Single channel, 192 W linear: 0–32 V / 0–6 A
- Resolution 10 mV / 1 mA; accuracy < 0.5% + 20 mV / < 0.5% + 10 mA
- USB and RS232 interfaces for remote control and automation
- Linear regulation — low ripple, clean DC output
- Bright digital voltage & current readouts
- Compact, lightweight benchtop form factor
Technical Specifications
| Channels | 1 (single output) |
|---|---|
| Output Voltage | 0 – 32 V |
| Output Current | 0 – 6 A |
| Output Power | 192 W |
| Resolution | 10 mV / 1 mA |
| Accuracy | < 0.5% + 20 mV / < 0.5% + 10 mA |
| Interfaces | USB, RS232 |
| Topology | Linear |
| Supply | AC 100–240 V |
What's in the Box
- UDP1306C DC power supply
- AC power cord
- Output test leads
- USB cable
- English user manual
Certifications: CE, UKCA | HS Code: 8504.4090
