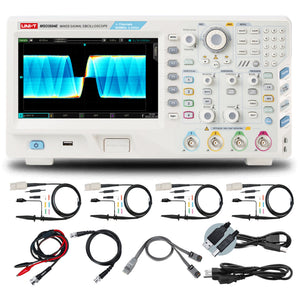

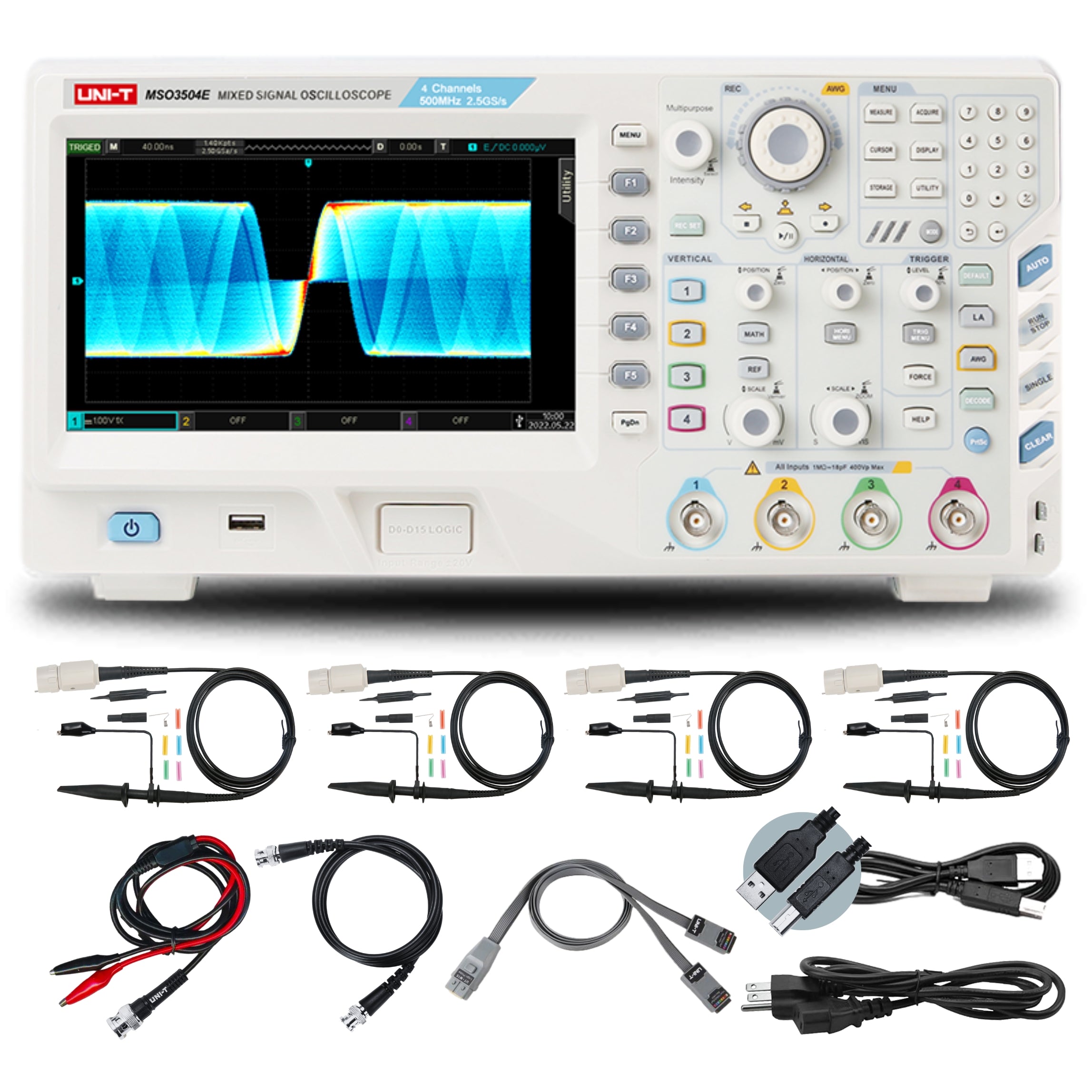

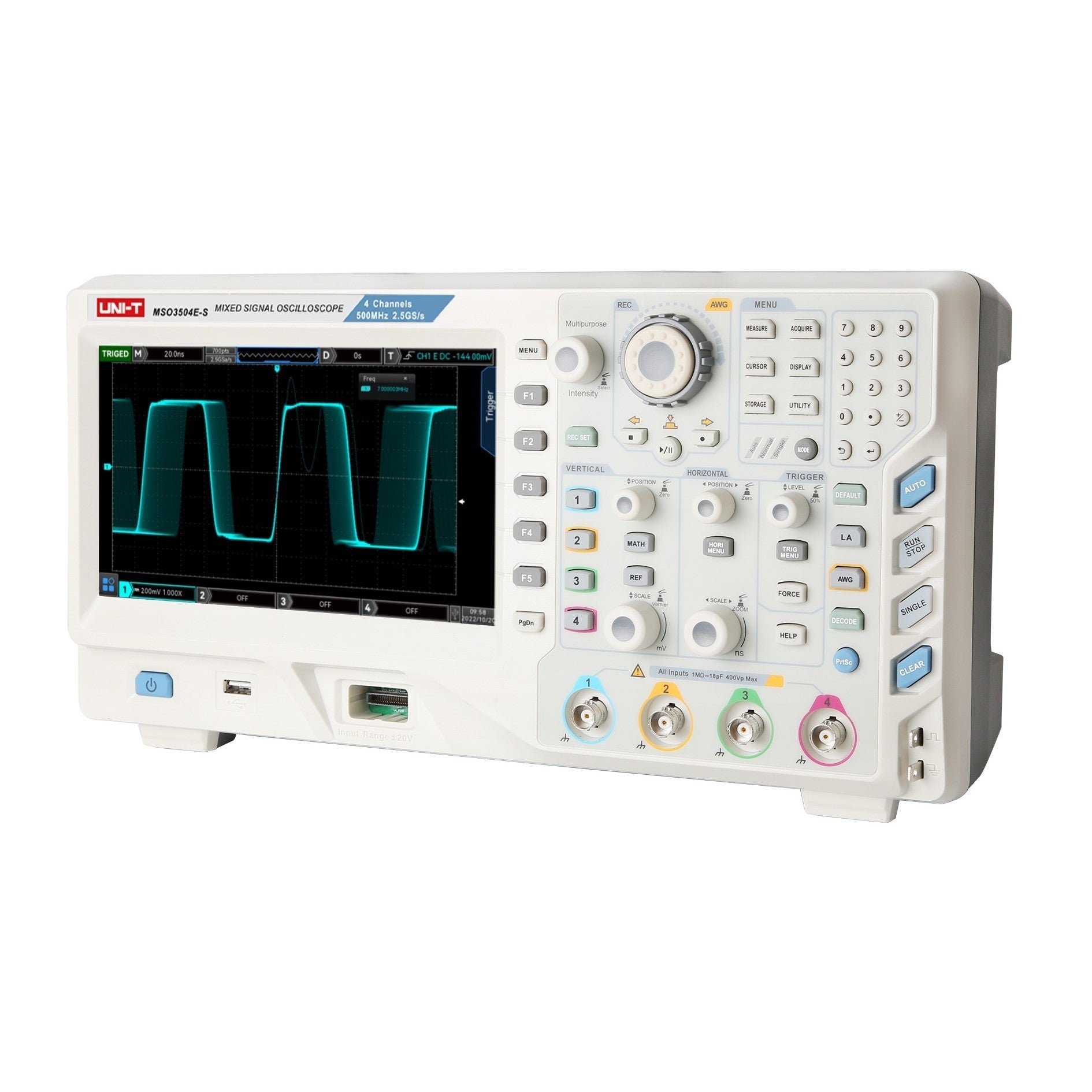

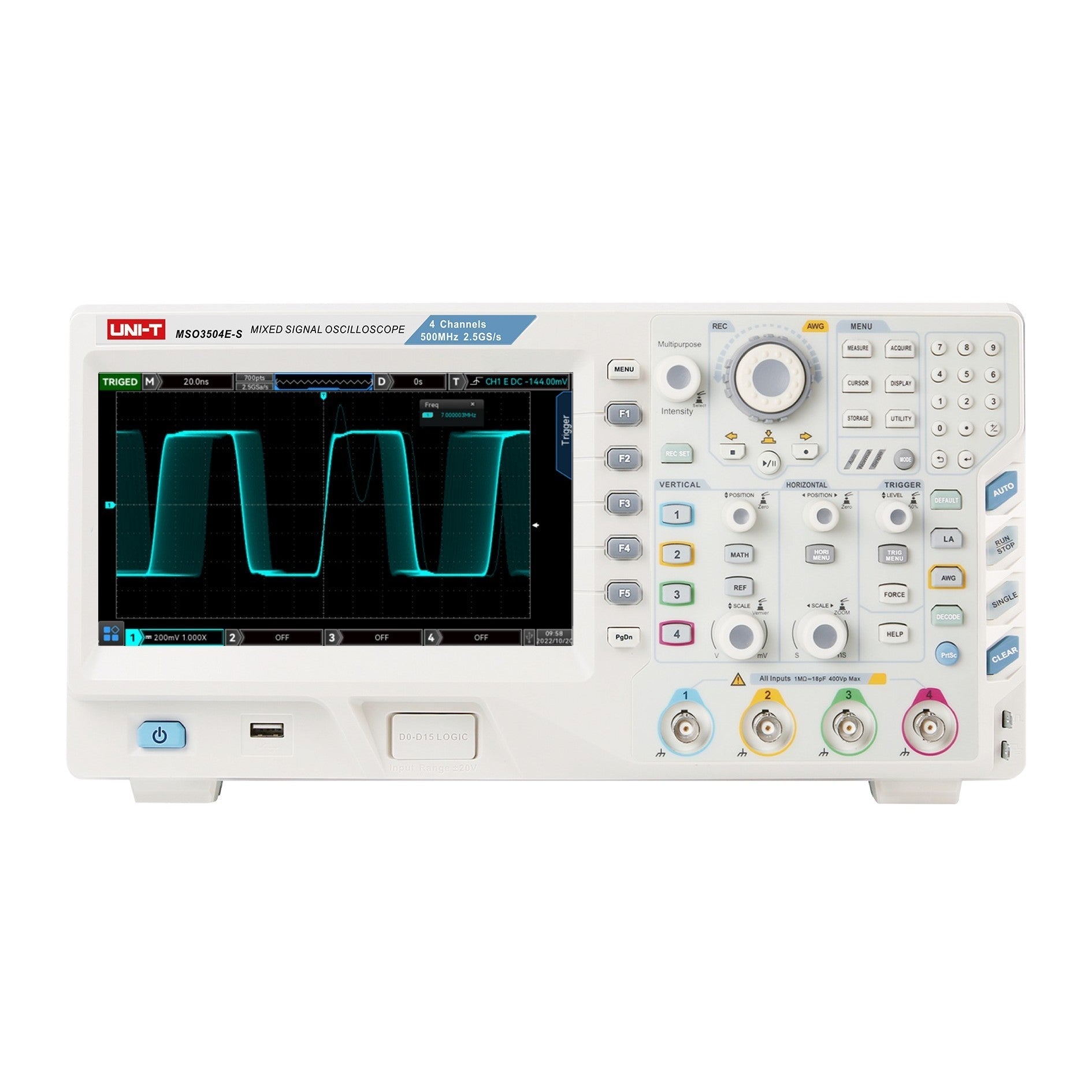

UNI-T MSO3504E-S — The MSO3504E is a 500 MHz mixed signal oscilloscope with 4 analog channels and 16 digital channels (logic analyzer included). It samples at 2.5 GSa/s with 250 Mpts memory depth and captures waveforms at up to 200,000 wfms/s on an 8-inch capacitive touchscreen. A built-in 50 MHz arbitrary waveform generator provides stimulus signals for closed-loop testing without external equipment. All MSO/UPO3000E-series instruments share the same platform — the same sample rate, memory, and measurement engine — with differences only in bandwidth, channel count, and included accessories. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

• 500 MHz Bandwidth, 4 Analog Channels — Four-channel capture at up to 500 MHz for mixed-signal debugging and signal analysis.
• 2.5 GSa/s Sample Rate — Captures fast edges and high-frequency content with accurate timing resolution.
• 250 Mpts Memory Depth — Deep memory for capturing long signal records without reducing sample rate.
• 200,000 wfms/s Capture Rate — Fast acquisition reveals infrequent glitches, runts, and timing violations that slower scopes miss.
• 16 Digital Channels (Logic Analyzer Included) — Mixed-signal debugging with time-correlated analog and digital views. Logic probe pod included.
• Built-In 50 MHz Signal Generator — Arbitrary waveform generator output for stimulus-response testing without external equipment.
• 36 Automated Measurements — Time, voltage, frequency, and statistical measurements with min/max/average/standard deviation tracking.

Technical Specifications

What's in the Box

• Power cord
• USB2.0 printing cable
• English download guide
• multi-language safety manual
• calibration report (COC)

Downloads

• UNI-T MSO3504E-S Product Page, Datasheet & Manual

Certifications: CE, RoHS | HS Code: 9030.20
