UNI-T MSO3054X 500 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s

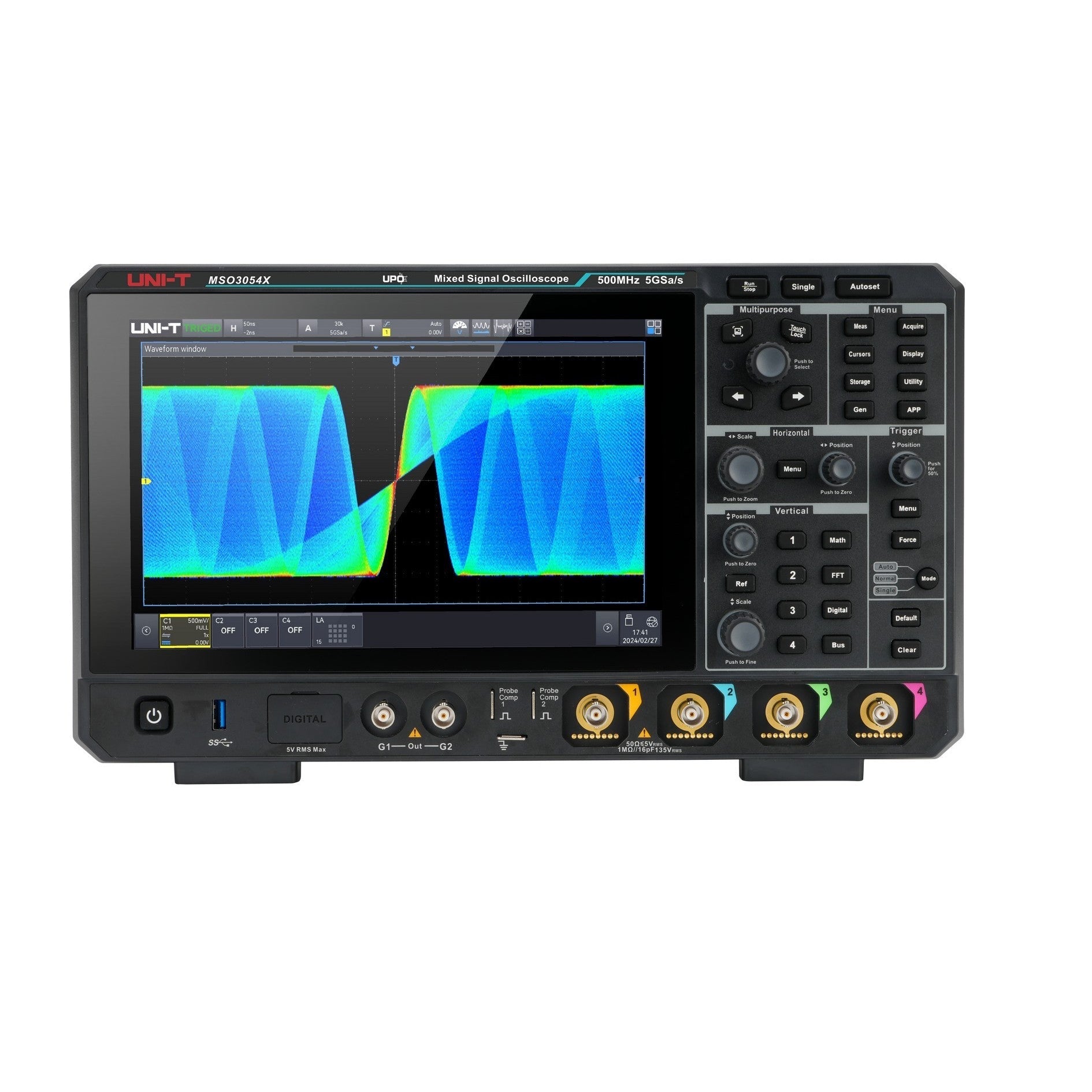

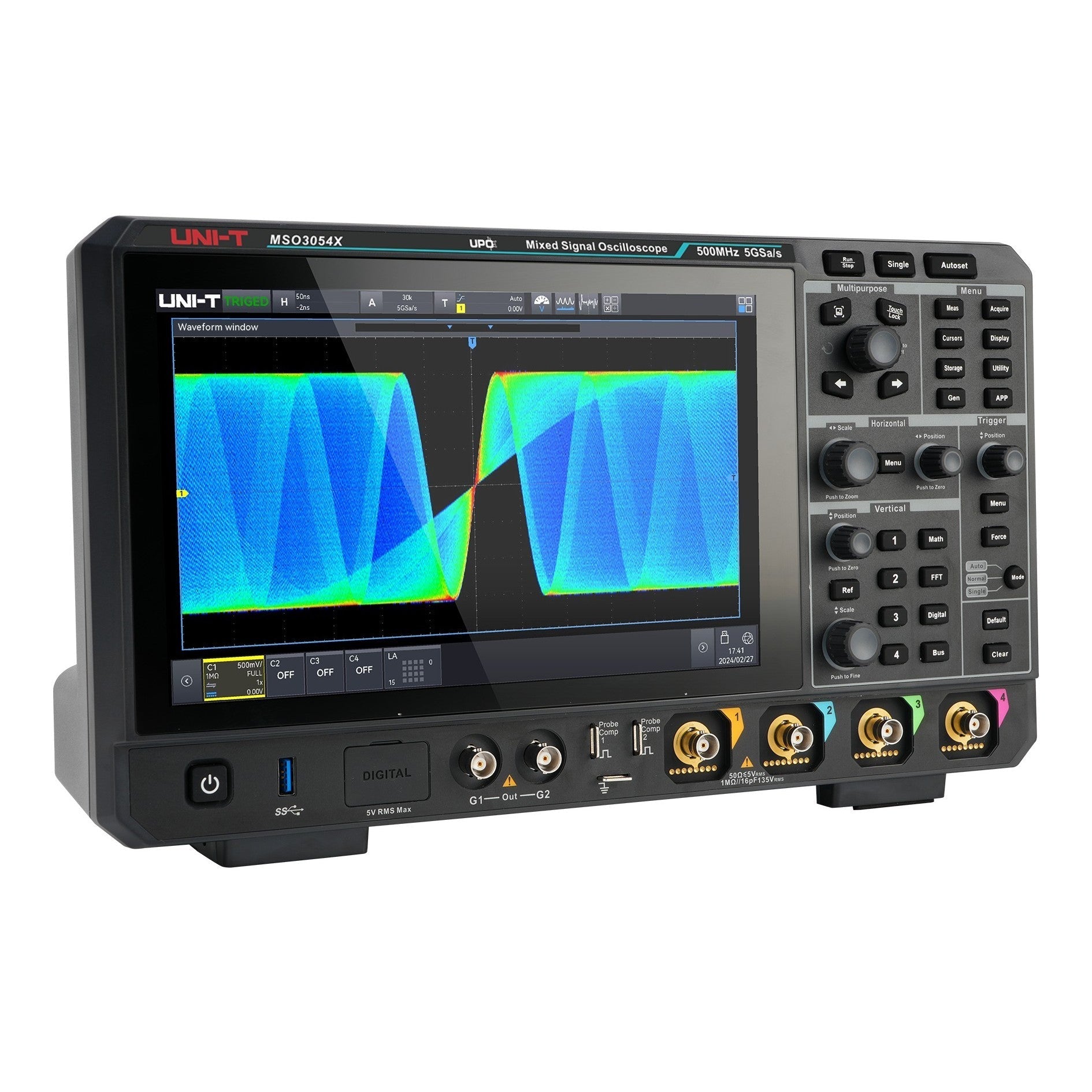

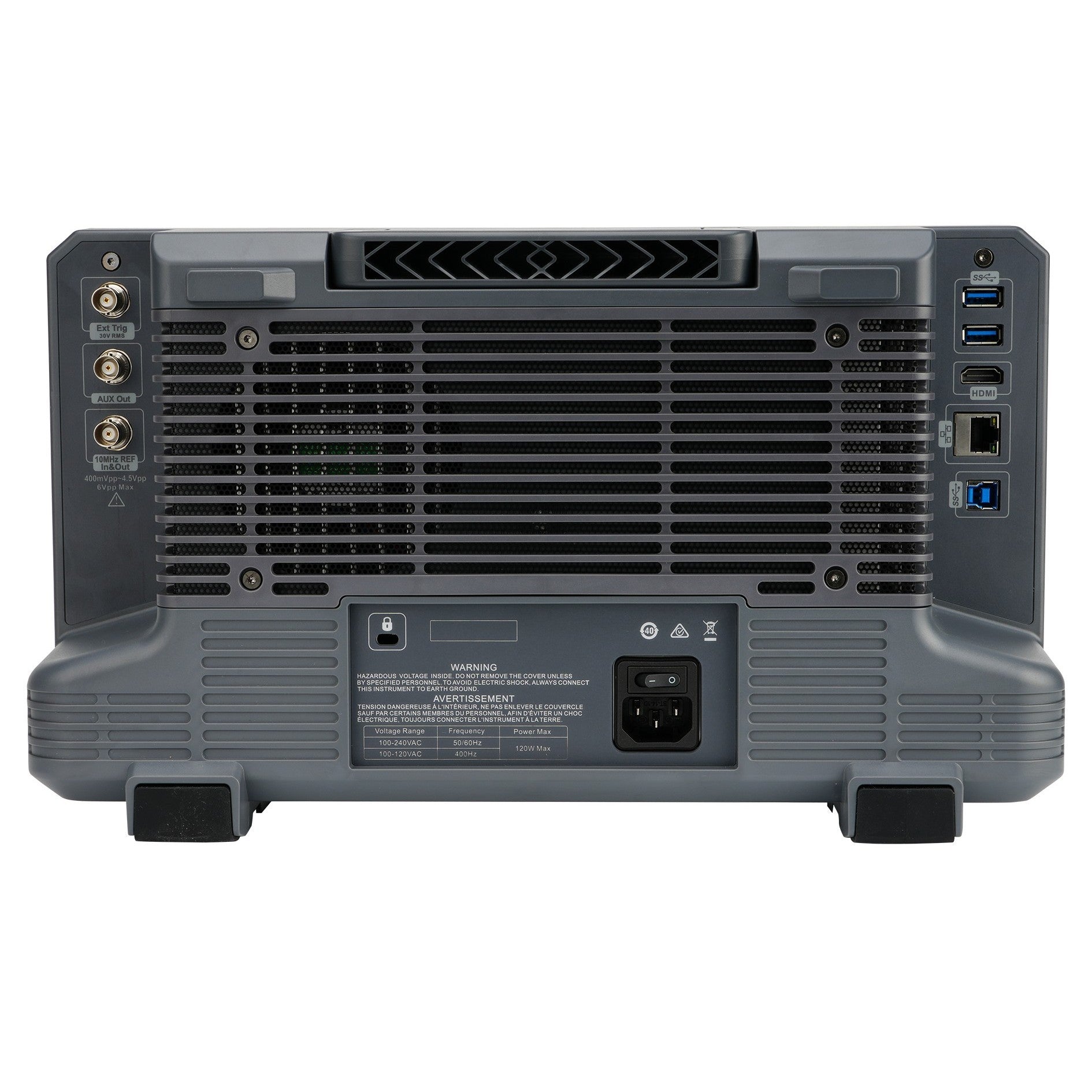

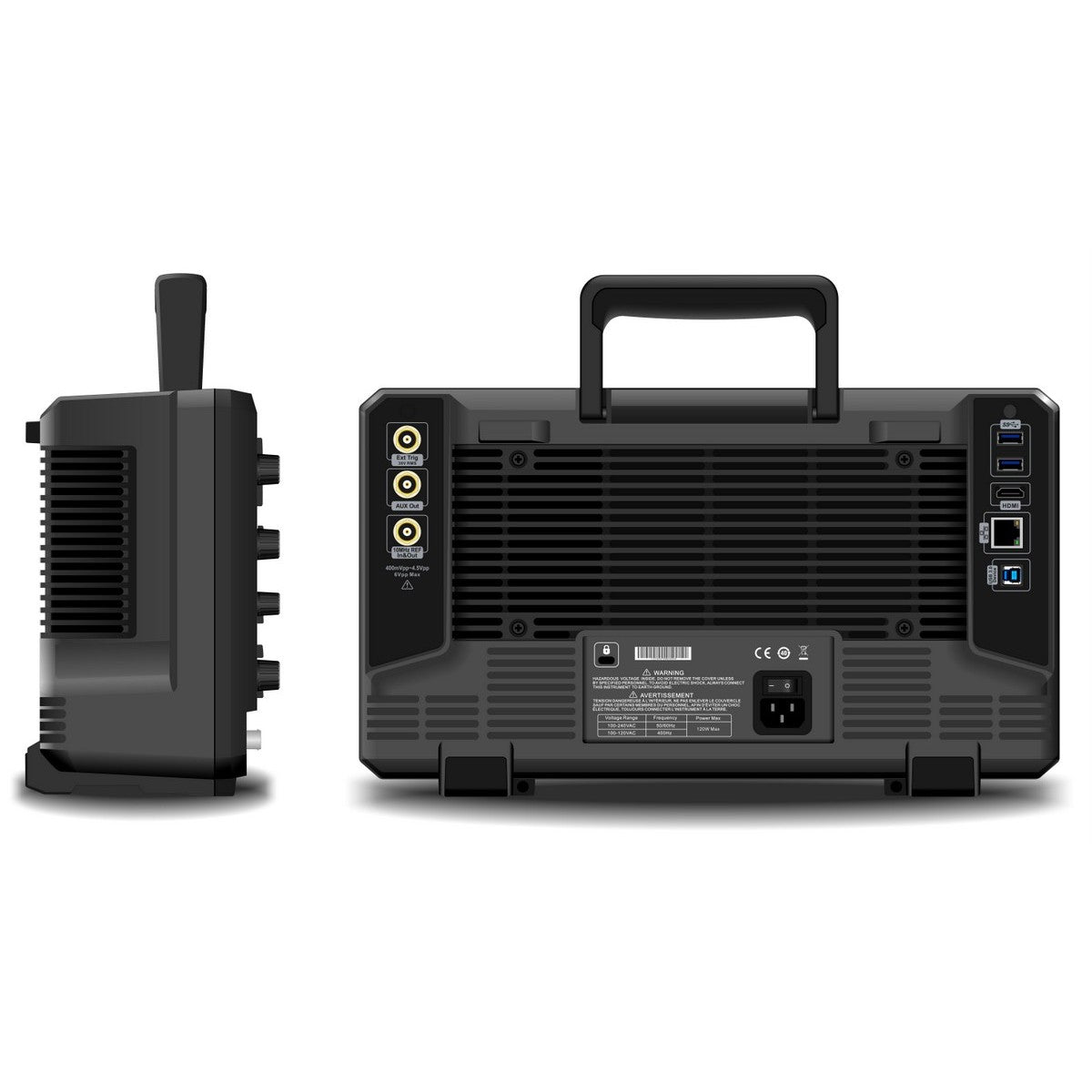

UNI-T MSO3054X — The MSO3054X is a 500 MHz, four-channel mixed-signal oscilloscope. With 5 GSa/s real-time sample rate, 500 Mpts of acquisition memory, 16 logic-analyzer channels (with the optional UT-M15 probe pod), and Ultra Phosphor 3.0 waveform mapping at up to 2,000,000 wfms/s in Sequential Mode, the MSO3054X consolidates nine bench instruments into one 10.1-inch capacitive multi-touch footprint — oscilloscope, logic analyzer, AWG, spectrum analyzer, DVM, frequency counter, protocol analyzer, Bode plot, and power analyzer. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 500 MHz Bandwidth, 4 Analog Channels — Four-channel acquisition at up to 500 MHz with 5 GSa/s sample rate (interleave) and calculated rise time of ≤0.7 ns — fast enough to capture leading-edge content on GaN and SiC switching devices, high-speed digital interfaces, and full-bandwidth signal-integrity analysis.
- 500 Mpts Memory Depth — Standard deep memory across all four channels for long capture windows without sample-rate trade.
- Ultra Phosphor 3.0 Display Technology — 256-level grayscale persistence with parallel FPGA mapping; up to 800,000 wfms/s standard, 2,000,000 wfms/s in Sequential Mode.

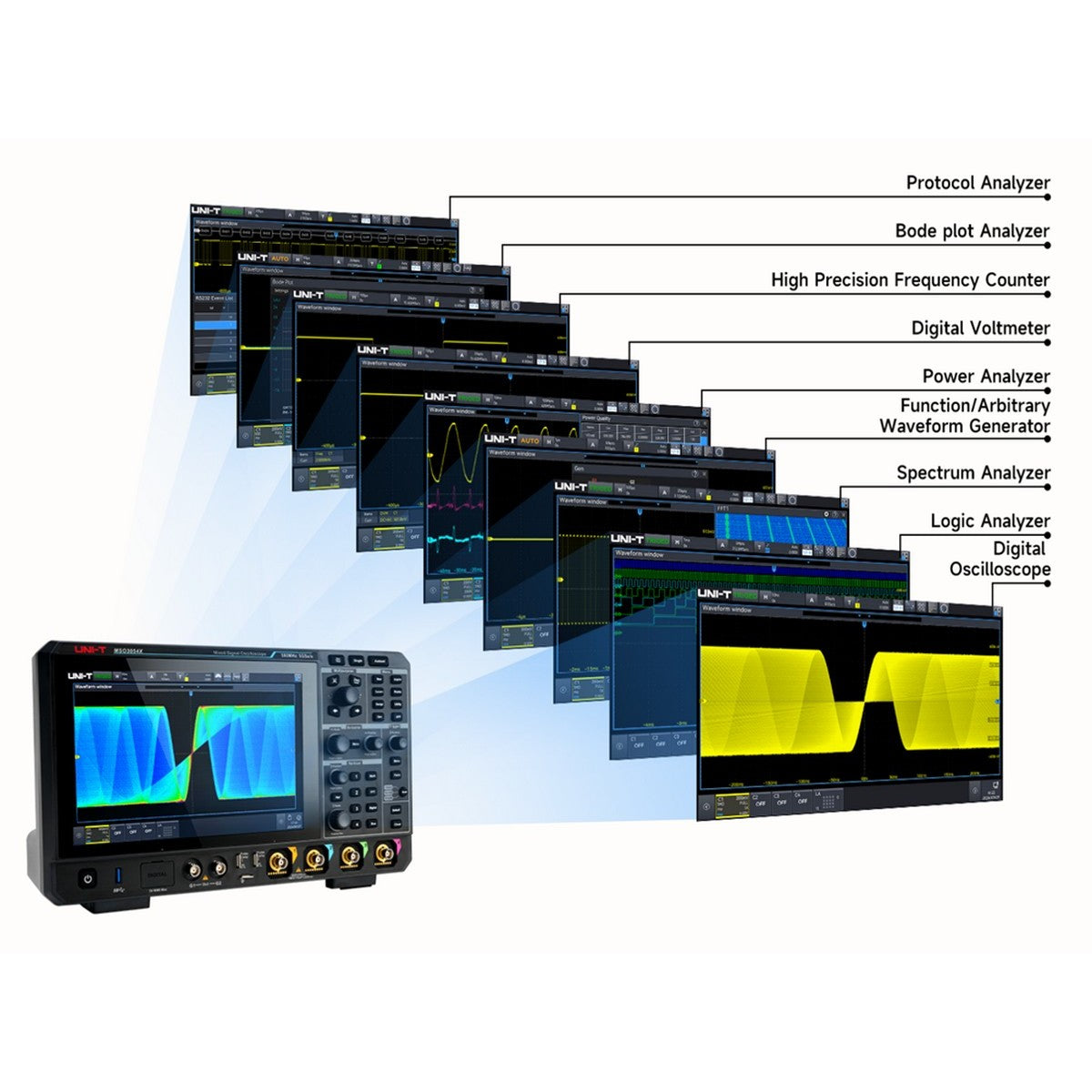

- Nine Instruments in One — Oscilloscope, 16-channel logic analyzer (optional probe), AWG (optional), 1.25 GHz spectrum analyzer, 4-digit DVM, 7-digit hardware frequency counter, protocol analyzer, Bode plot (with AWG), and six-measurement power analyzer (optional).
- Standard Protocol Decoding — RS-232/422/485/UART, I²C, and SPI included as standard.

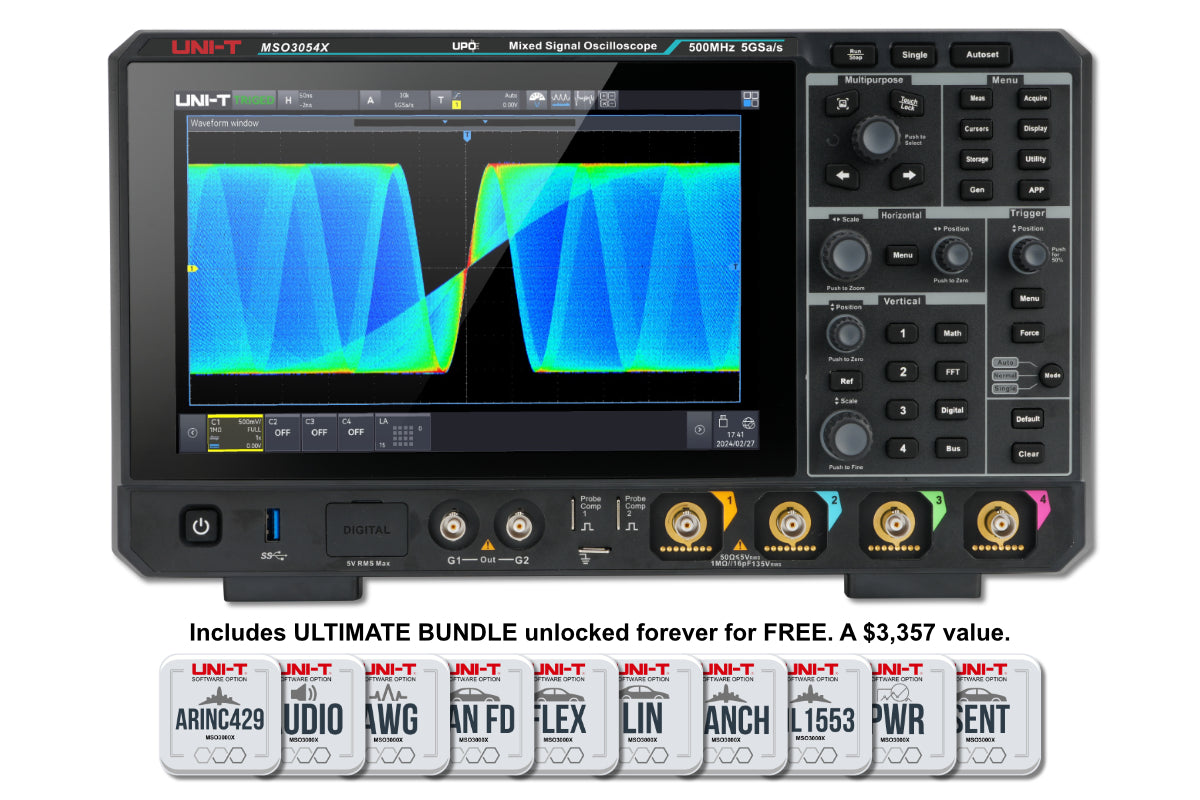

- Optional Protocol Decoding — CAN, CAN-FD, LIN, FlexRay, SENT, Audio (I²S/LJ/RJ/TDM), MIL-STD-1553B, ARINC 429, and Manchester — 12 protocols total across computer, automotive, audio, aerospace, and wireless domains.
- 16 Digital Channels (Optional) — Add mixed-signal capability with the UT-M15 logic probe pod; 1.25 GSa/s digital sample rate, 800 ps minimum detectable pulse width.
Technical Specifications
| Model Number | MSO3054X |
|---|---|
| Analog Bandwidth | 500 MHz |
| Calculated Rise Time (10% to 90%, typical) | ≤0.7 ns |
| Analog Channels | 4 (plus 1 external trigger channel) |
| Digital Channels | 16 (with optional UT-M15 probe pod) |
| Maximum Real-Time Sample Rate | 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave) |
| Maximum Digital Sample Rate | 1.25 GSa/s |
| Maximum Memory Depth | 500 Mpts |
| Vertical Resolution | 8-bit native; up to 12-bit via ERES |
| Standard Capture Rate | 800,000 wfms/s |
| Sequential Mode Capture Rate | 2,000,000 wfms/s (up to 200,000 frames recorded) |
| Trigger Types | Edge, pulse width, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup & hold, Nth edge, code pattern, video, zone |
What's in the Box
- Power cord
- USB3.0 printing cable
- English download guide
- multi-language safety manual
- calibration report (COC)
Downloads
Certifications: CE, RoHS | HS Code: 9030.20
