UNI-T MSO3054HD Mixed Signal Oscilloscope – 500 MHz, 4 Analog + 16 Digital Ch, 12-Bit, 2.5 GSa/s, 500 Mpts, 10.1" Touch, HD Bench Oscilloscope

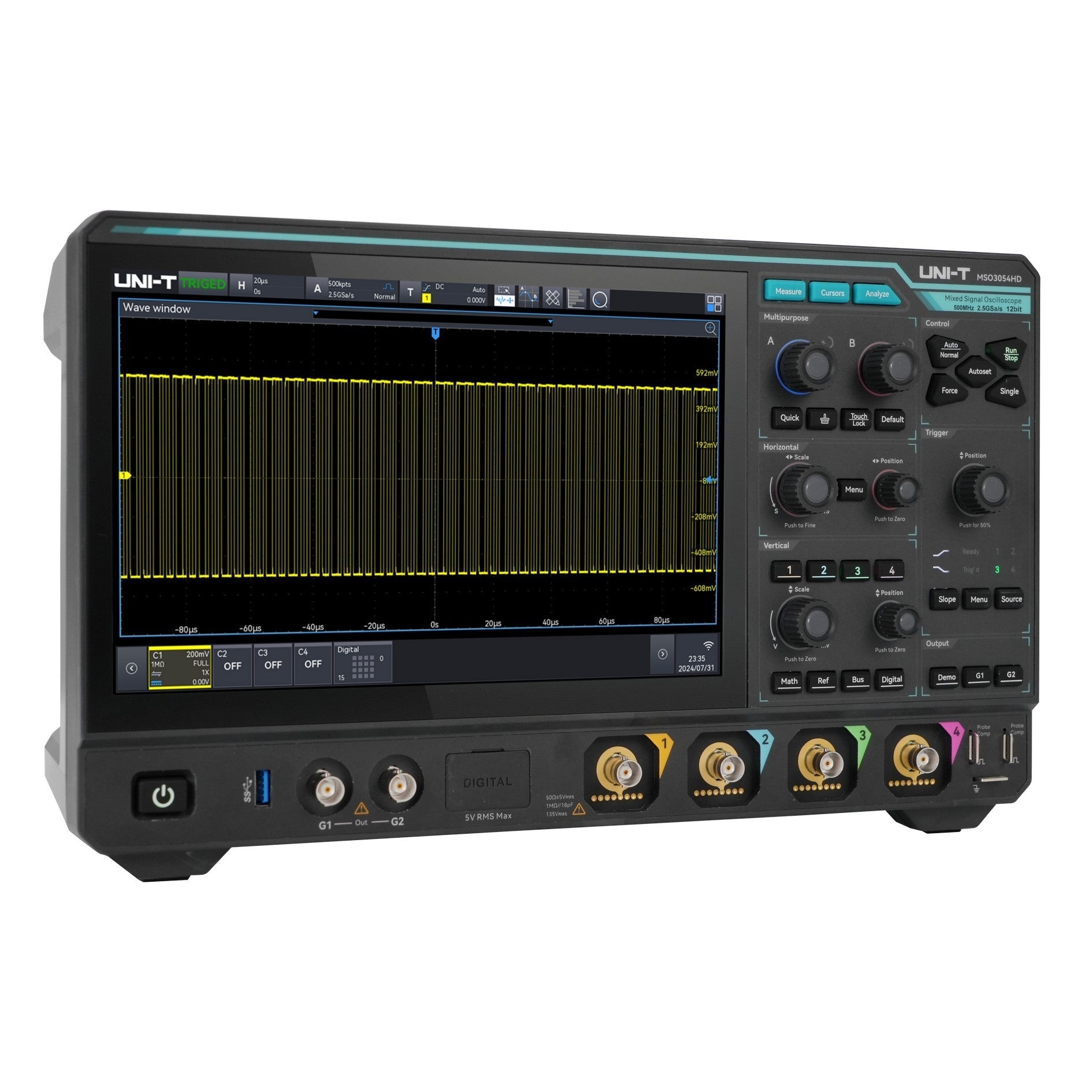

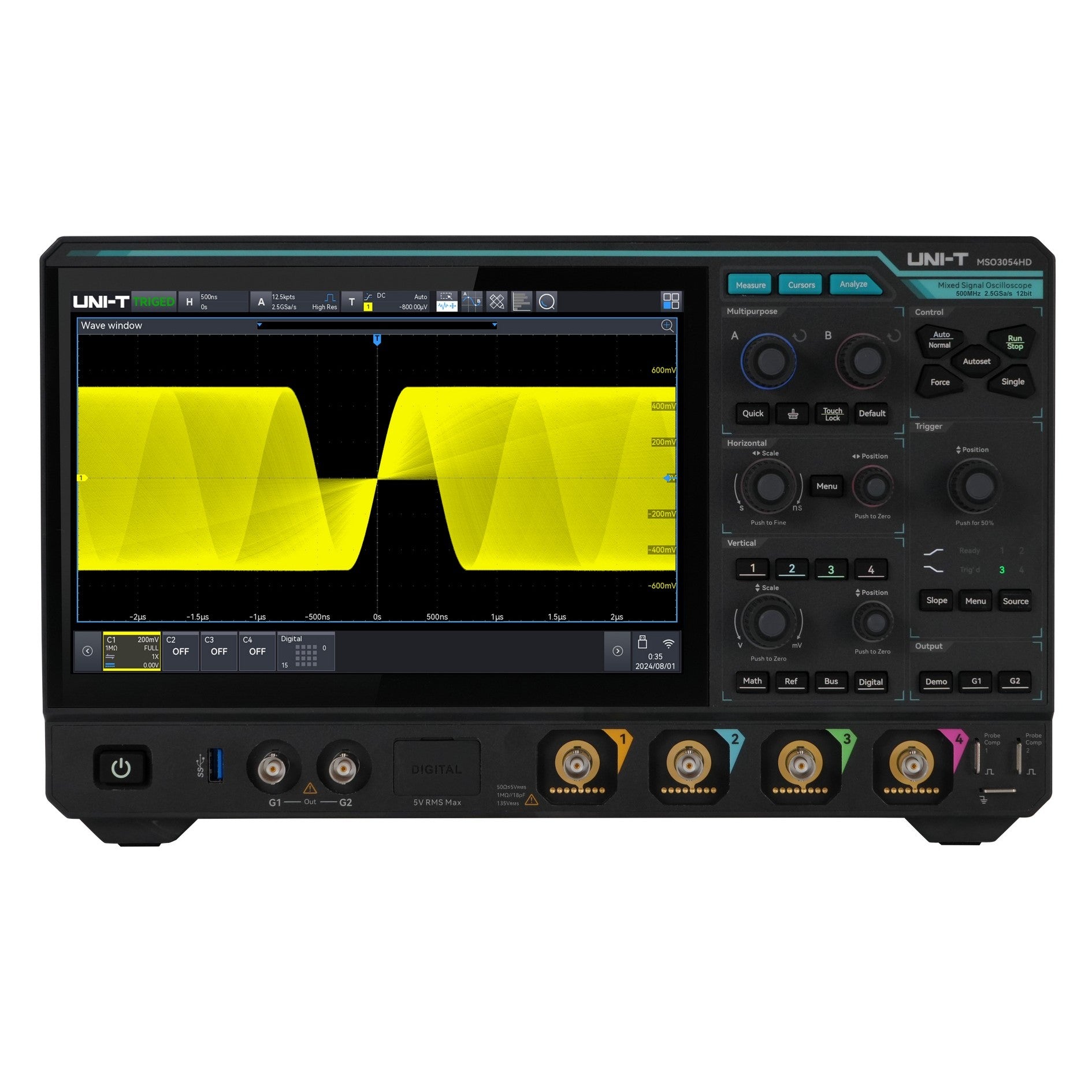

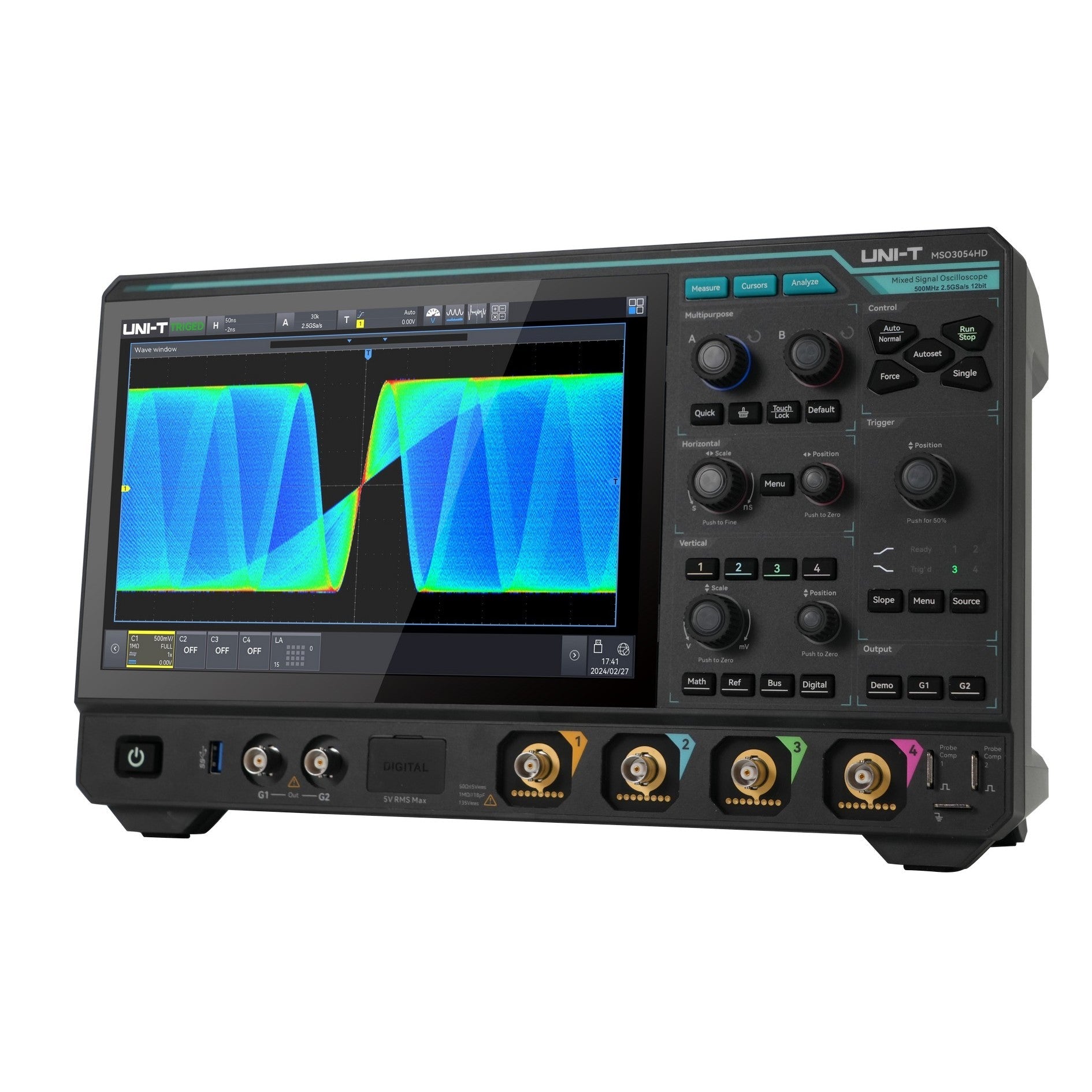

The UNI-T MSO3054HD is a lab-grade 500 MHz, 4-channel mixed signal oscilloscope built on a native 12-bit ADC architecture, with 2.5 GSa/s sample rate, 500 Mpts memory depth and a 10.1-inch capacitive multi-touch display. Nine instruments in one — oscilloscope, 16-channel logic analyzer (optional pod), spectrum analyzer, DVM, frequency counter and more — for high-resolution signal-integrity work and mixed-signal debug. Genuine UNI-T product supplied by Digilog.pk.
Key Features
- 500 MHz bandwidth on all 4 analog channels; ≤0.80 ns rise time, 70 µVrms noise floor
- Native 12-bit ADC (up to 16-bit with ERES) at full bandwidth
- 2.5 GSa/s sample rate, 500 Mpts max memory per channel
- 16 digital channels optional (UT-M15 logic probe pod) for mixed-signal debug
- 500,000 wfms/s capture (1,500,000 wfms/s Sequential mode)
- 12 protocol decoders (RS-232/UART, I²C, SPI, CAN standard; CAN-FD, LIN, FlexRay and more optional)
- 10.1-inch 1280×800 capacitive multi-touch display; WebServer & SCPI remote control
Technical Specifications
| Bandwidth | 500 MHz |
|---|---|
| Channels | 4 analog + 16 digital (optional UT-M15 pod) |
| Sample Rate | 2.5 GSa/s (interleave) / 1.25 GSa/s (non-interleave) |
| Vertical Resolution | 12-bit native (up to 16-bit with ERES) |
| Memory Depth | 500 Mpts max per channel |
| Waveform Capture Rate | 500,000 wfms/s (1,500,000 wfms/s Sequential) |
| Display | 10.1-inch 1280×800 capacitive multi-touch |
| Protocol Decode | RS-232/UART, RS-422/485, I²C, SPI, CAN (standard) |
| FFT / Spectrum | Up to 4 Mpts, 0–2.5 GHz, 4 traces |
| Built-in Instruments | Scope, logic analyzer, AWG (opt), spectrum, DVM, counter |

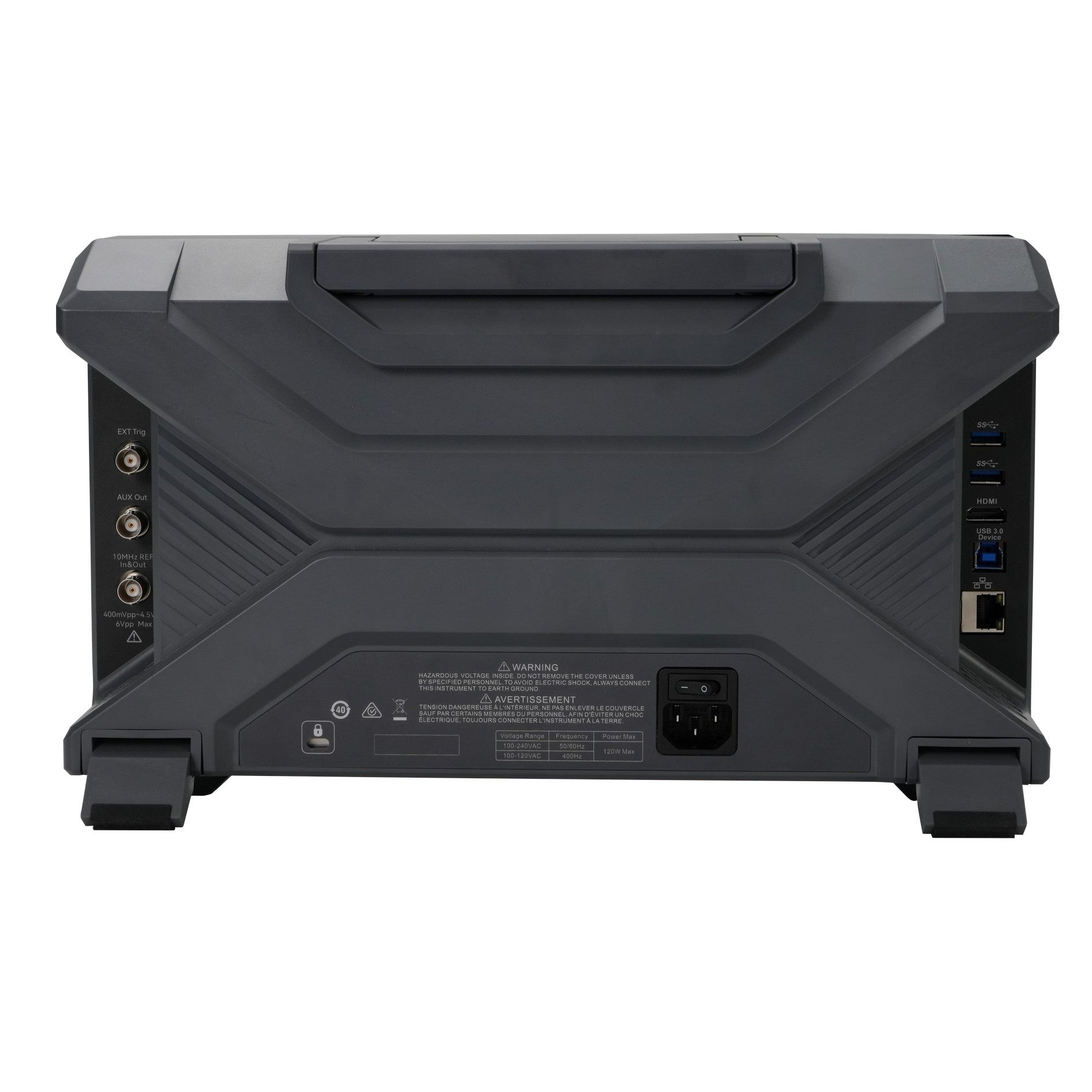

| Interfaces | USB 3.0 Host, USB Device, LAN, HDMI, EXT Trig, 10 MHz In/Out |
| Certifications | CE, cETLus |
What's in the Box
- MSO3054HD mixed signal oscilloscope
- Passive probes
- Power cord
- English user manual
Downloads
Certifications: CE, cETLus | HS Code: 9030.20
