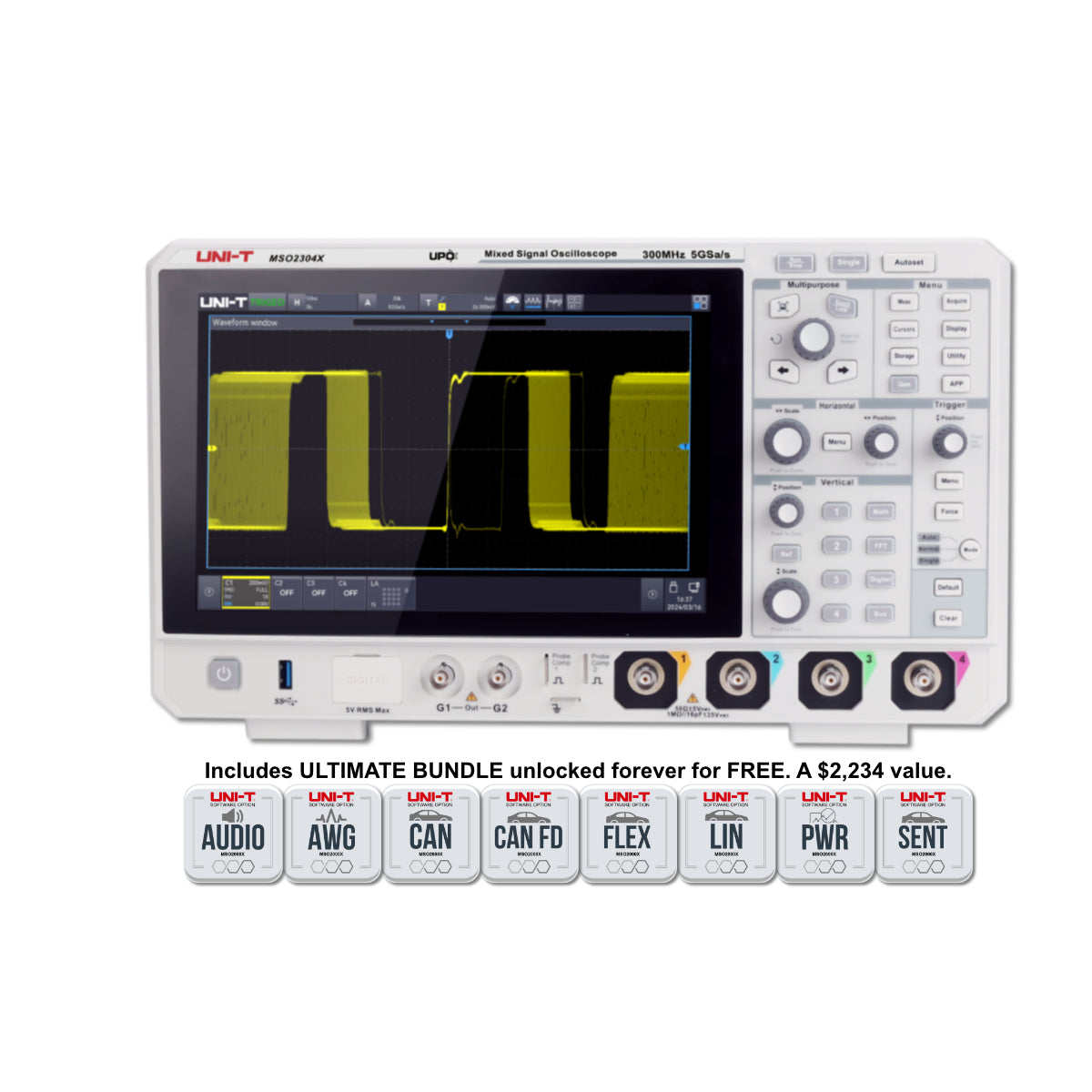

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s - a waveform on its screen, with front panel controls, ports, and eight software bundle icons below.

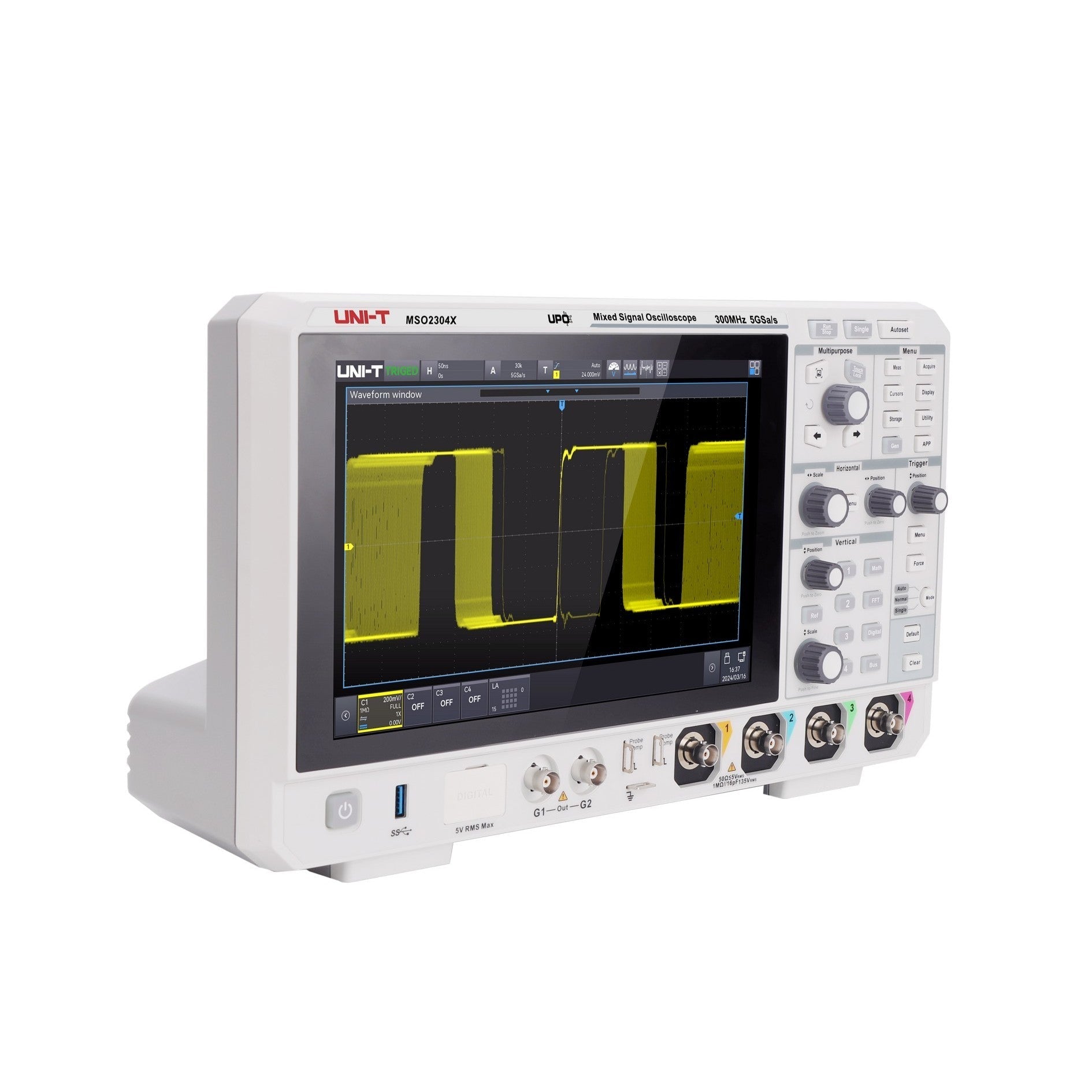

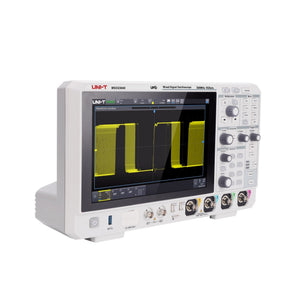

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s - a white front panel with a digital screen displaying yellow square waveforms, control knobs, buttons, and input ports.

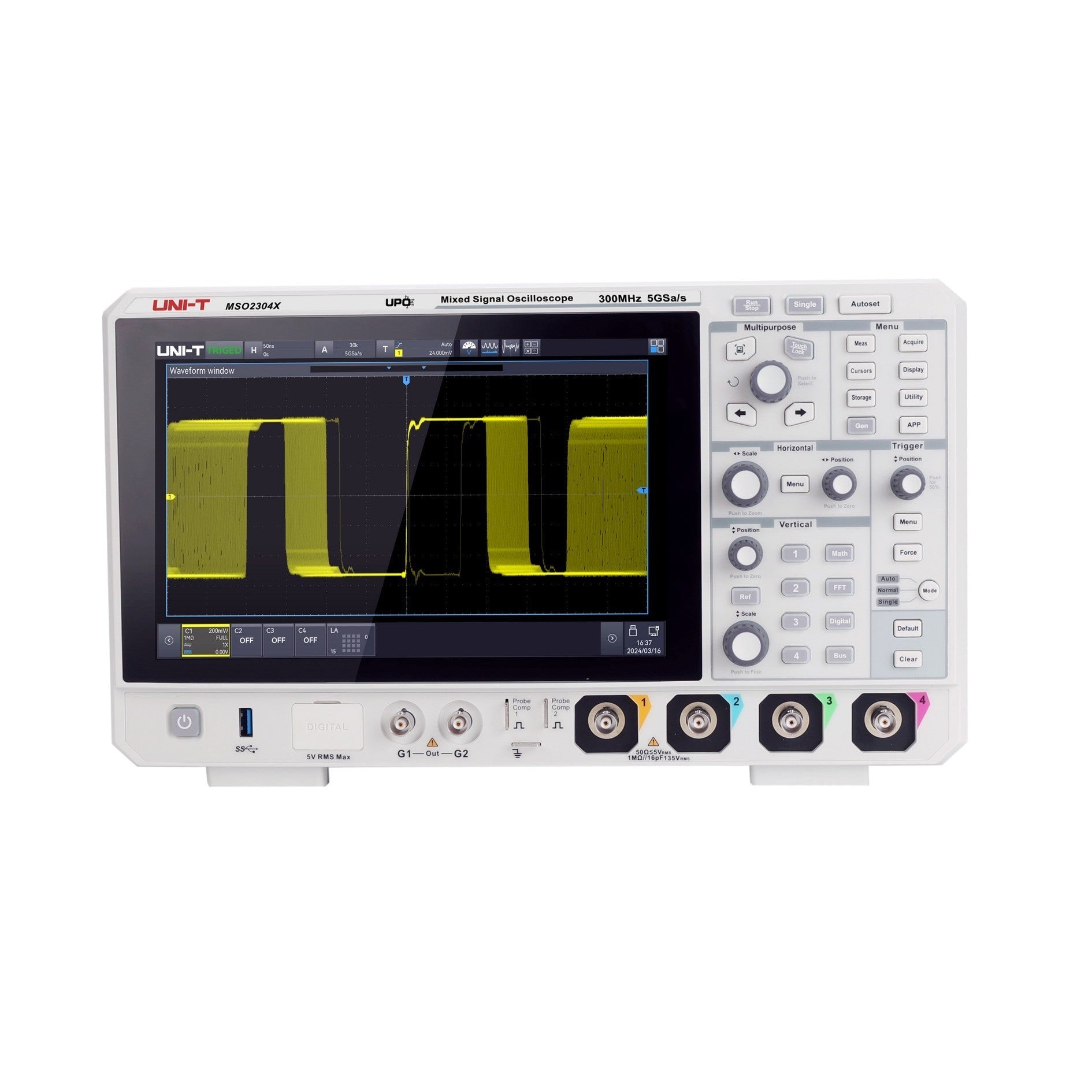

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s - a yellow square wave on its screen, with front-facing control knobs, buttons, and input ports.

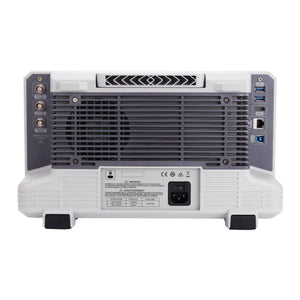

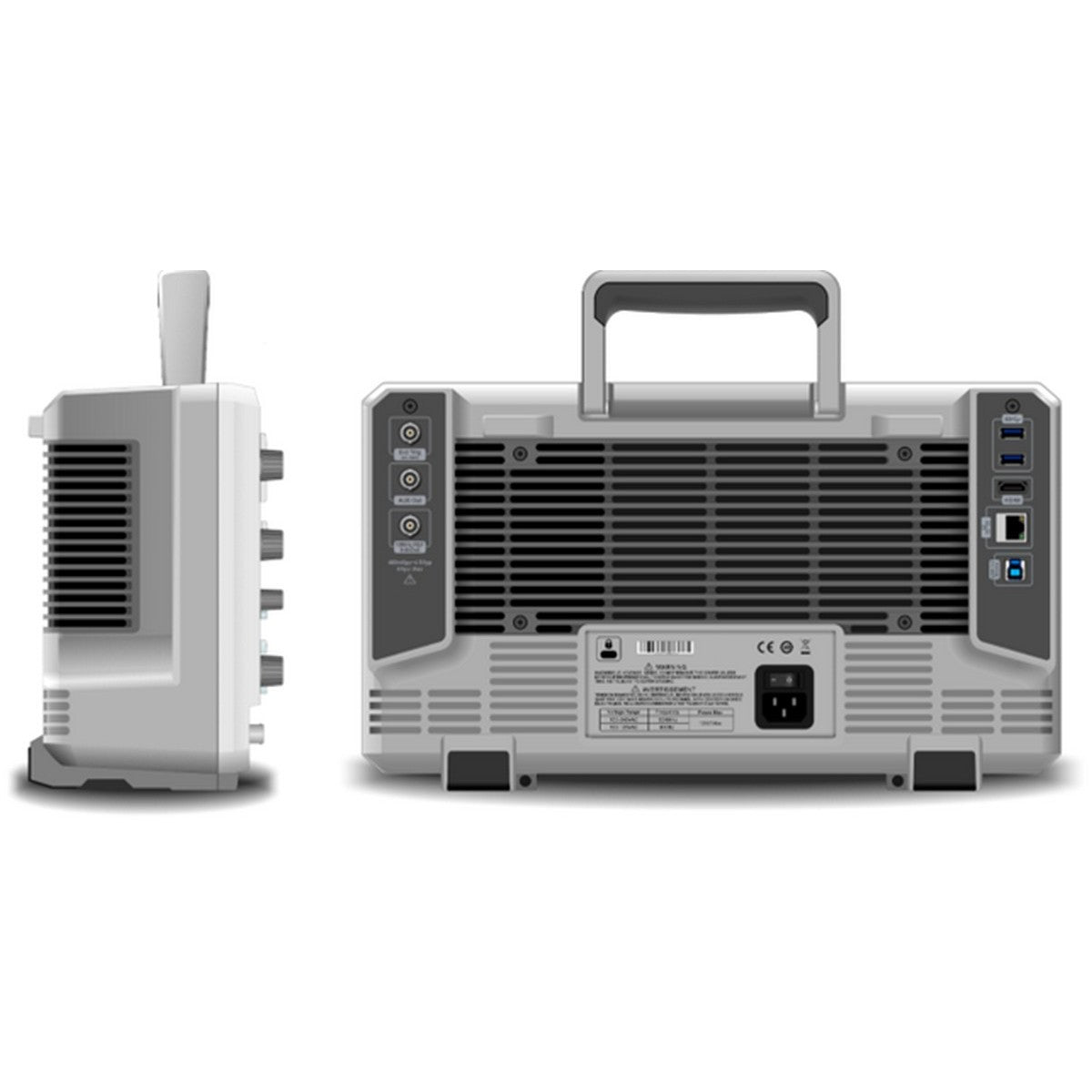

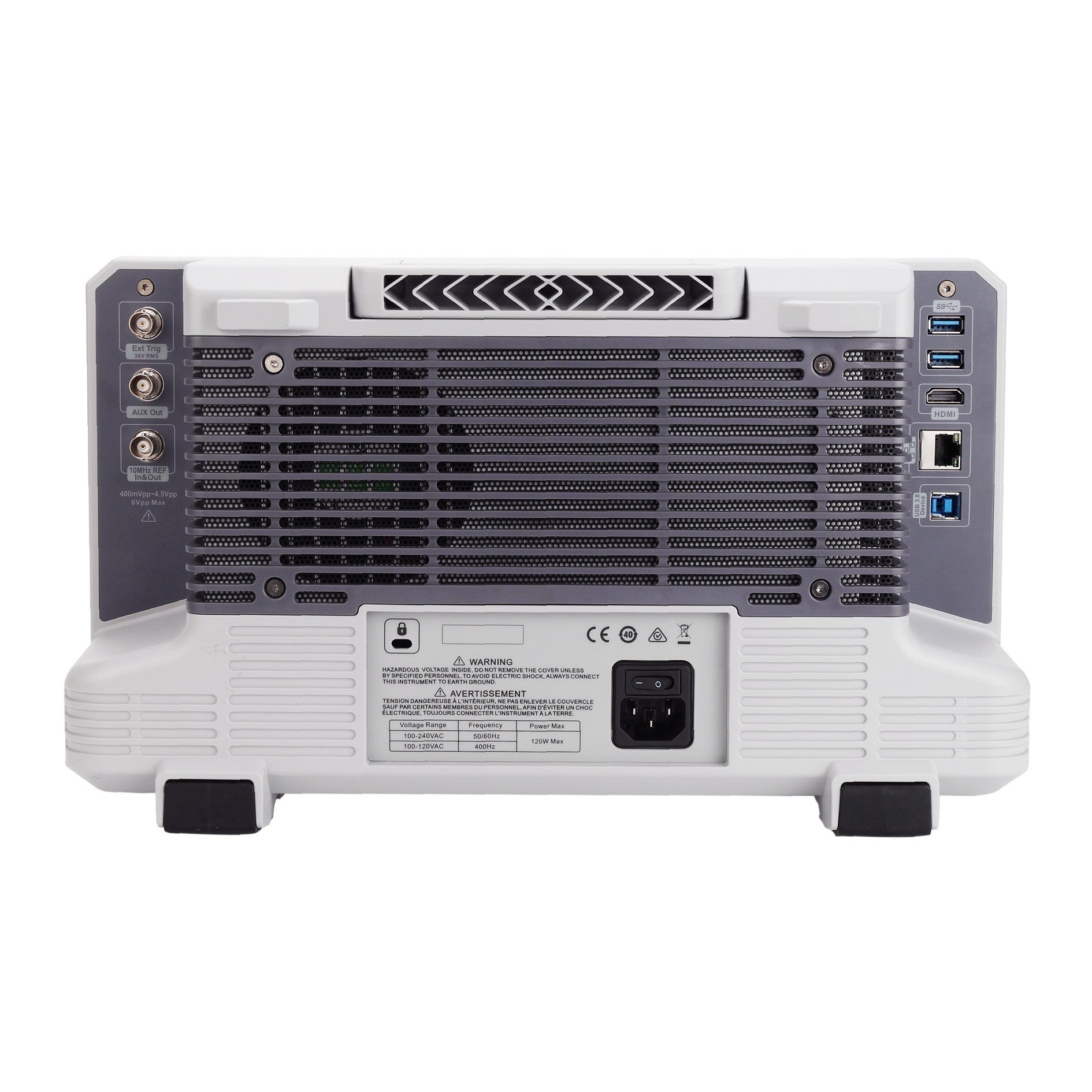

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s - the white chassis, ventilation grille, power input, BNC connectors, USB ports, HDMI port, and Ethernet port.

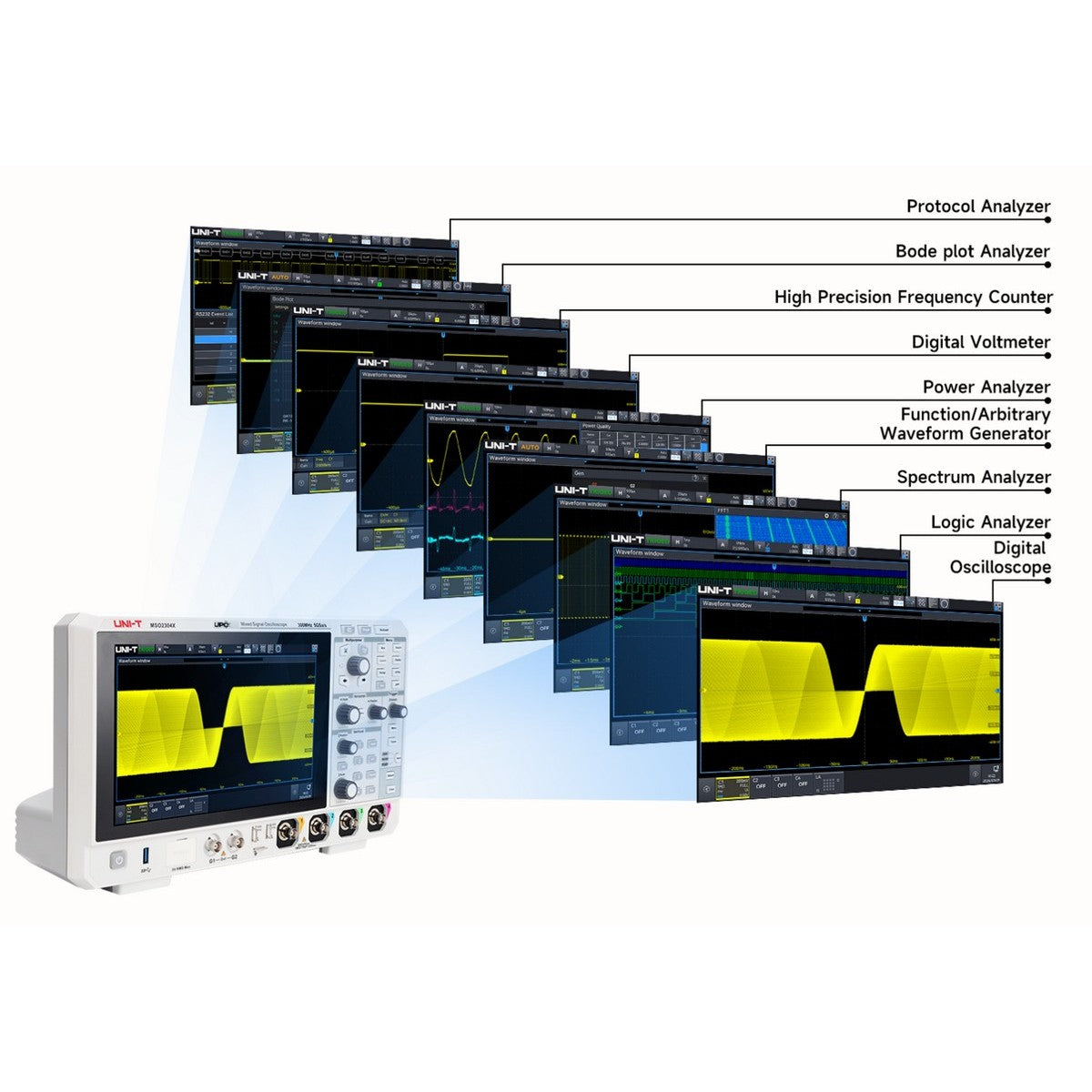

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s - white housing with a front-facing display, control knobs, and ports, shown with multiple overlapping screen overlays.

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s

Rs 812,500

SKU: MSO2304X

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T MSO2304X 300 MHz 4-Channel Mixed Signal Oscilloscope – 5 GSa/s (interleave) / 2.5 GSa/s (non-interleave), 1.25 GSa/s

Rs 812,500

UNI-T MSO2304X — The MSO2304X is a 300 MHz, four-channel mixed-signal oscilloscope. With 5 GSa/s real-time sample rate, 100 Mpts of memory depth, 16 logic-analyzer channels (with the optional UT-M15 probe pod), and Ultra Phosphor 3.0 waveform mapping at up to 2,000,000 wfms/s in Sequential Mode, the MSO2304X integrates nine bench instruments into one 10.1-inch capacitive multi-touch footprint — oscilloscope, logic analyzer, AWG, spectrum analyzer, DVM, frequency counter, protocol analyzer, Bode plot, and power analyzer. Genuine UNI-T product supplied by Digilog.pk with warranty.

Key Features

300 MHz Bandwidth, 4 Analog Channels — Four-channel acquisition at up to 300 MHz with 5 GSa/s sample rate (interleave) and calculated rise time of ≤1.17 ns.
100 Mpts Memory Depth — Standard deep memory across all four channels for long capture windows without sample-rate trade.
Ultra Phosphor 3.0 Display Technology — 256-level grayscale persistence with parallel FPGA mapping; up to 500,000 wfms/s standard, 2,000,000 wfms/s in Sequential Mode.
Nine Instruments in One — Oscilloscope, 16-channel logic analyzer (optional probe), AWG (optional), 2.5 GHz spectrum analyzer, 4-digit DVM, 7-digit hardware frequency counter, protocol analyzer, Bode plot (with AWG), and power analyzer (optional).
Standard Protocol Decoding — RS-232/UART, I²C, and SPI included as standard.
Optional Protocols — CAN, CAN-FD, LIN, FlexRay, SENT, and Audio (I²S/LJ/RJ/TDM) available as software licenses.
16 Digital Channels (Optional) — Add mixed-signal capability with the UT-M15 logic probe pod; 1.25 GSa/s digital sample rate, 800 ps minimum detectable pulse width.

Technical Specifications

Model Number	MSO2304X
Analog Bandwidth	300 MHz
Calculated Rise Time (10% to 90%, typical)	≤1.17 ns
Analog Channels	4
Digital Channels	16 (with optional UT-M15 probe pod)
Maximum Real-Time Sample Rate	5 GSa/s (interleave) / 2.5 GSa/s (non-interleave)
Maximum Digital Sample Rate	1.25 GSa/s
Maximum Memory Depth	100 Mpts
Vertical Resolution	8-bit native; up to 12-bit via ERES
Standard Capture Rate	500,000 wfms/s
Sequential Mode Capture Rate	2,000,000 wfms/s
Hardware Real-Time Recording	125,000 frames
