UNI-T LM573LD-II 3D Green Laser Level – 12 Lines (3×360°), ±3 mm/10 m, Self-Leveling, Outdoor Pulse, Remote Control, Rechargeable Li-ion

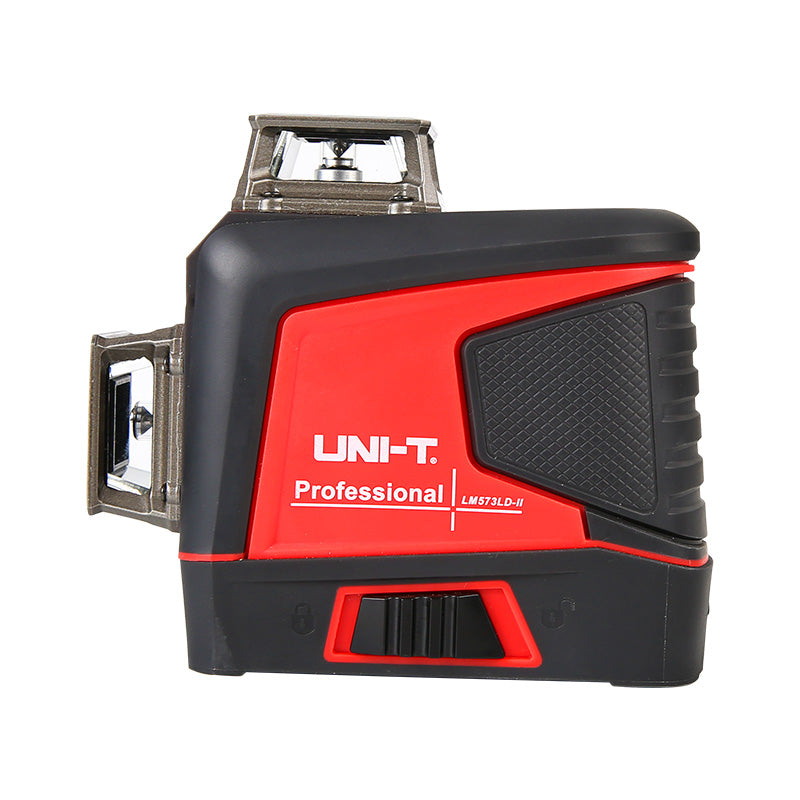

The UNI-T LM573LD-II is a 3D green laser level that projects 12 lines across three 360° planes — wrapping level and plumb lines right around the room for floor tiling, dropped ceilings, partitions and fit-outs, with no repositioning.
The bright 520 nm Osram-class green beams self-level automatically within ±3° and reach up to 40 m, with an outdoor pulse mode for use with a receiver and a bundled remote control. A rechargeable 5200 mAh Li-ion battery gives 6+ hours per charge. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features
- 🟢 12 green lines in 3×360° planes — level & plumb all around the room
- 🎯 Accuracy ±3 mm / 10 m; working range up to 40 m
- ☀️ Outdoor pulse mode for use with a laser receiver in daylight
- 🎮 Remote control included; automatic self-leveling (±3°, <3 s)
- 🔋 Rechargeable 5200 mAh Li-ion — 6+ hours per charge
- 🟩 520 nm Class 2 green laser; rugged professional body
Technical Specifications
| Laser type | Green LD (line laser) |
|---|---|
| Laser lines | 12 lines (3 × 360°) |
| Laser wavelength | 520 nm |
| Laser class | Class 2 |
| Operating distance | 40 m |
| Accuracy | ±3 mm / 10 m |
| Outdoor pulse mode | Yes |
| Remote control | Yes (included) |
| Self-leveling range | ±3° |
| Self-leveling time | <3 s |
| Working time | >6 h |
| Battery | 3.7V Li-ion 5200 mAh (rechargeable) |
| Dimensions | 119 × 89 × 138 mm |
| Weight | 694 g |
What's in the Box
- LM573LD-II 3D green laser level
- Remote control
- Rechargeable Li-ion battery
- Charging adapter & cable
- LM312A bracket
- Tool box
- English user manual
Downloads
Certifications: CE, UKCA | HS Code: 9015.30
