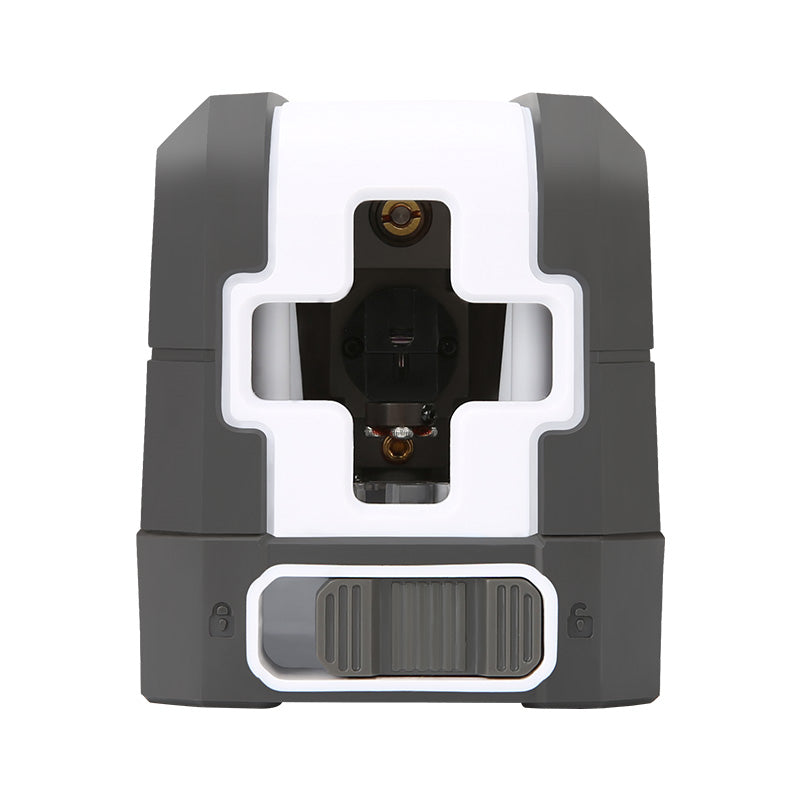

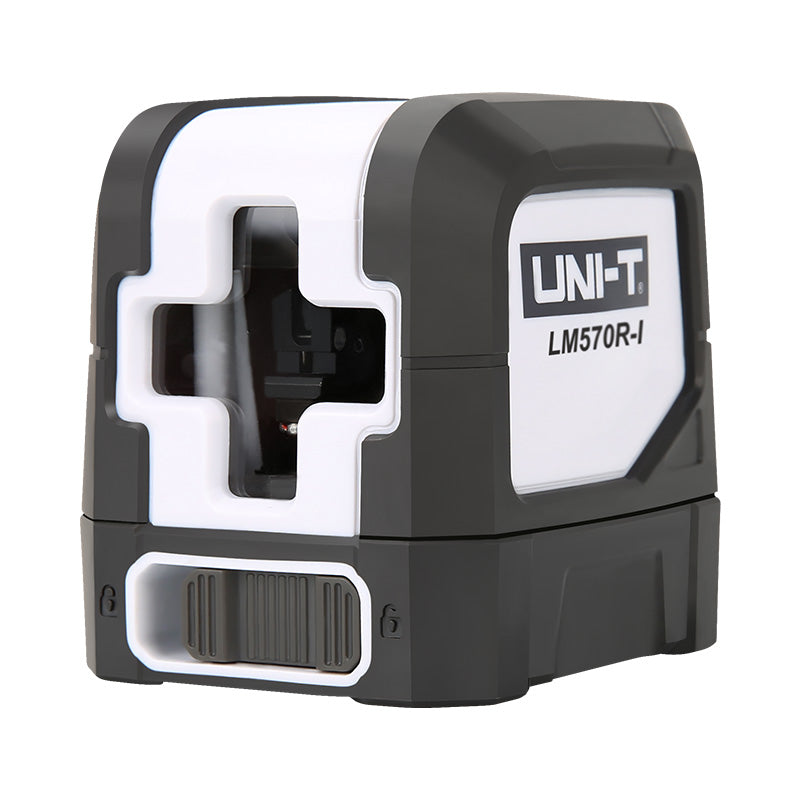

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a compact black and white device with a cross-shaped lens aperture and a sliding lock switch on the front.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a grey and white device with a central cross-shaped lens opening and a sliding lock switch at the base.

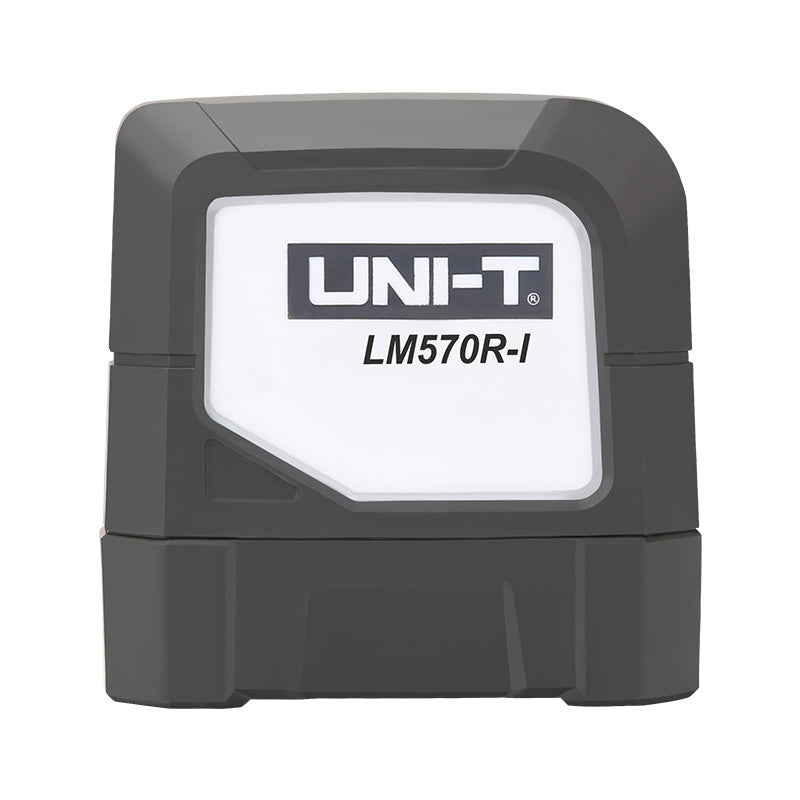

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - compact housing with a white front panel displaying the brand name and model number.

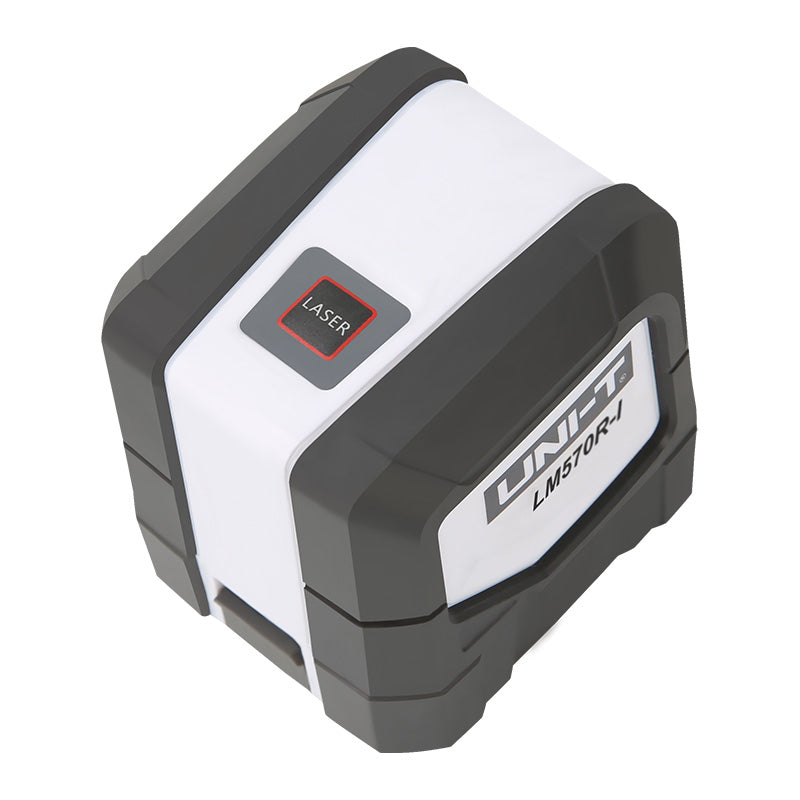

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a white and grey cubic device featuring a top button labeled LASER and branding on the side.

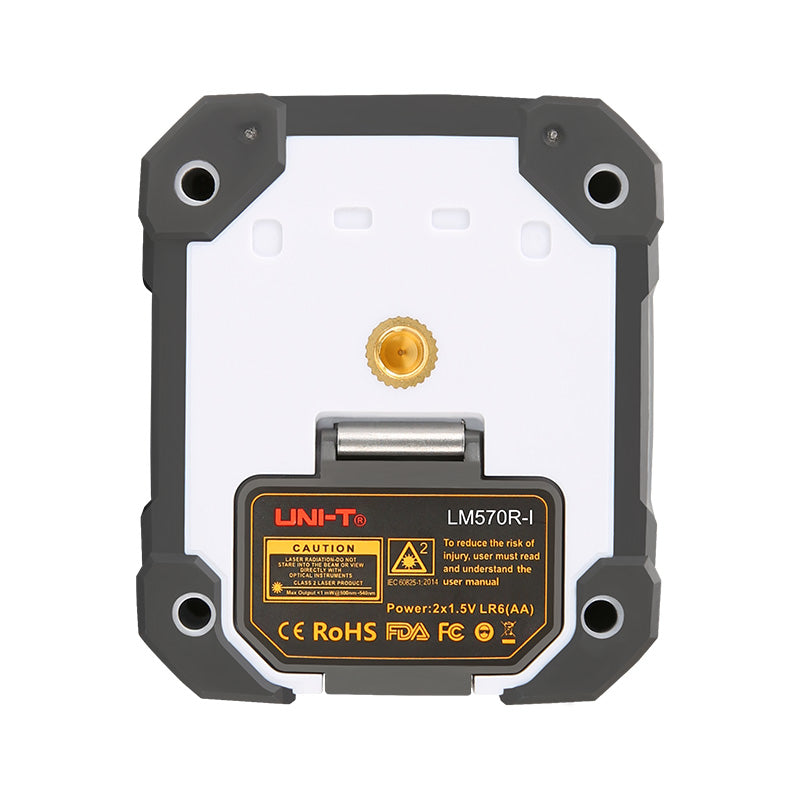

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - the white and grey housing, a central gold-colored tripod mount, and a black label with laser safety and power details.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a compact black and white device with a cross-shaped lens aperture and a sliding lock switch on the front.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a grey and white device with a central cross-shaped lens opening and a sliding lock switch at the base.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - compact housing with a white front panel displaying the brand name and model number.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a white and grey cubic device featuring a top button labeled LASER and branding on the side.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - the white and grey housing, a central gold-colored tripod mount, and a black label with laser safety and power details.

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount

Sale price Rs 10,000
SKU: LM570R-I
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a compact black and white device with a cross-shaped lens aperture and a sliding lock switch on the front.

UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount - a compact black and white device with a cross-shaped lens aperture and a sliding lock switch on the front.
UNI-T LM570R-I Cross Line Laser Level – Red 1V1H, ±3 mm/10 m, Self-Leveling, 110° Lines, 15–30 m, Tripod Mount
Sale priceRs 10,000

UNI-T LM570R-I — self-leveling cross-line laser level projecting one horizontal and one vertical red line (1V1H) for tiling, cabinets, framing and general alignment. Genuine UNI-T product supplied by Digilog.pk with user manual and warranty.

Key Features

  • 1 vertical + 1 horizontal red line (1V1H), 110° fan angle
  • Accuracy ±3 mm / 10 m; automatic self-leveling (±3°, 3 s)
  • Working range 15–30 m (line); Class 2, 635 nm, 10 mW
  • >12 h runtime on 2 × AA; tripod mounting hole
  • Compact 170 g; carrying bag included

Technical Specifications

Laser Lines 1V1H (red)
Accuracy ±3 mm / 10 m
Fan Angle H 110° / V 110°
Self-Leveling ±3° (3 s)
Working Distance 15 – 30 m
Laser Class 2, 635 nm, 10 mW
Runtime >12 h
Power 2 × AA (LR6)
Dimensions / Weight 59 × 28 × 137 mm / 170 g

What's in the Box

  • LM570R-I cross line laser level
  • Carrying bag
  • USB interface cable
  • Batteries
  • English user manual

Downloads

Certifications: CE, UKCA | HS Code: 9015.30
