UNI-T LM570LD-II Green Cross Line Laser Level – 2 Lines (1H + 1V), ±3 mm/10 m, Self-Leveling, 520 nm, 10 m Range, Magnetic Bracket
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T LM570LD-II Green Cross Line Laser Level – 2 Lines (1H + 1V), ±3 mm/10 m, Self-Leveling, 520 nm, 10 m Range, Magnetic Bracket

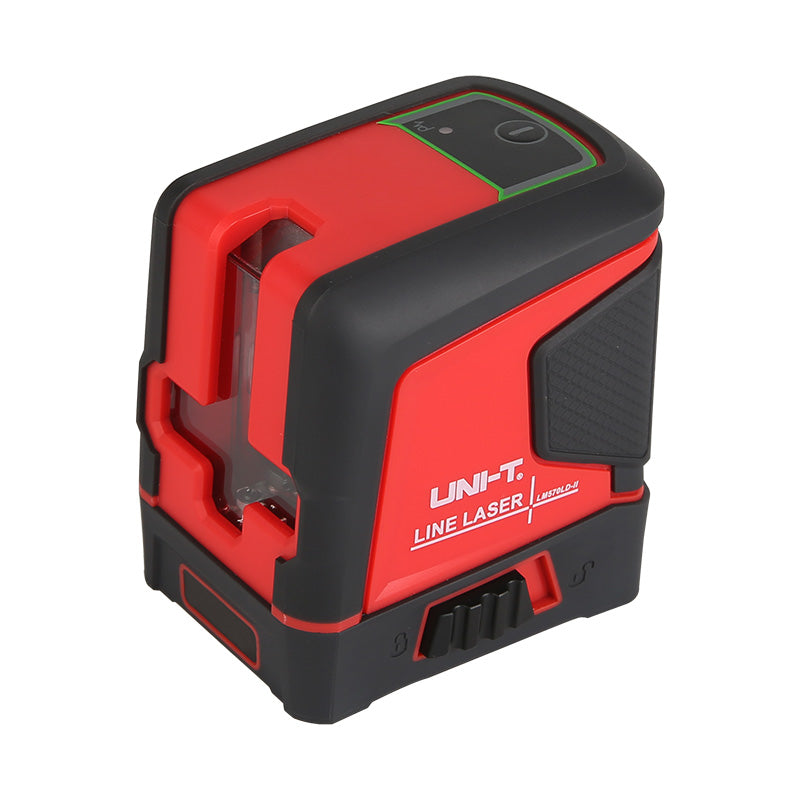

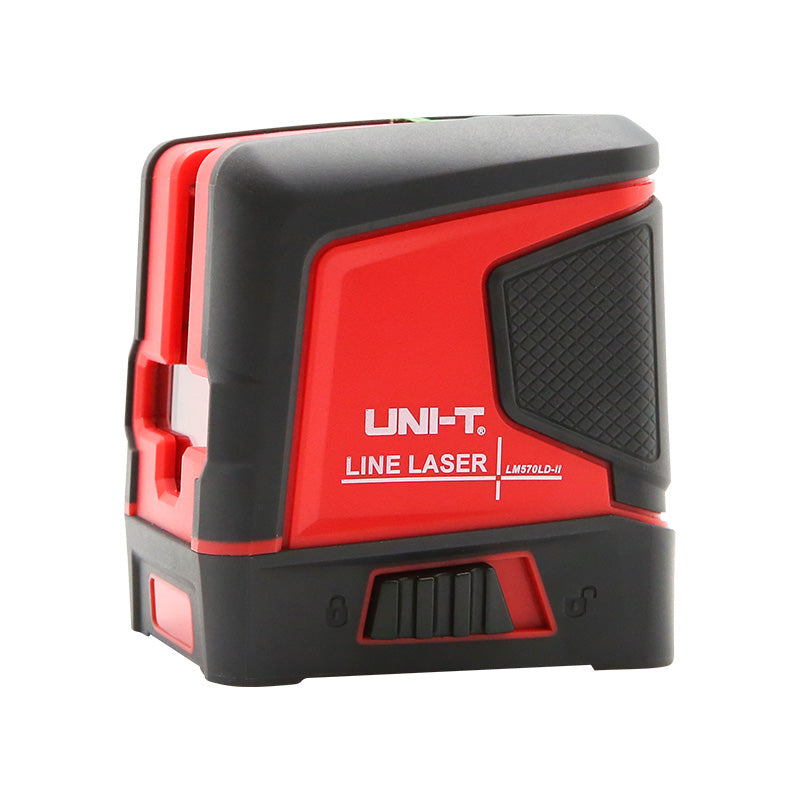

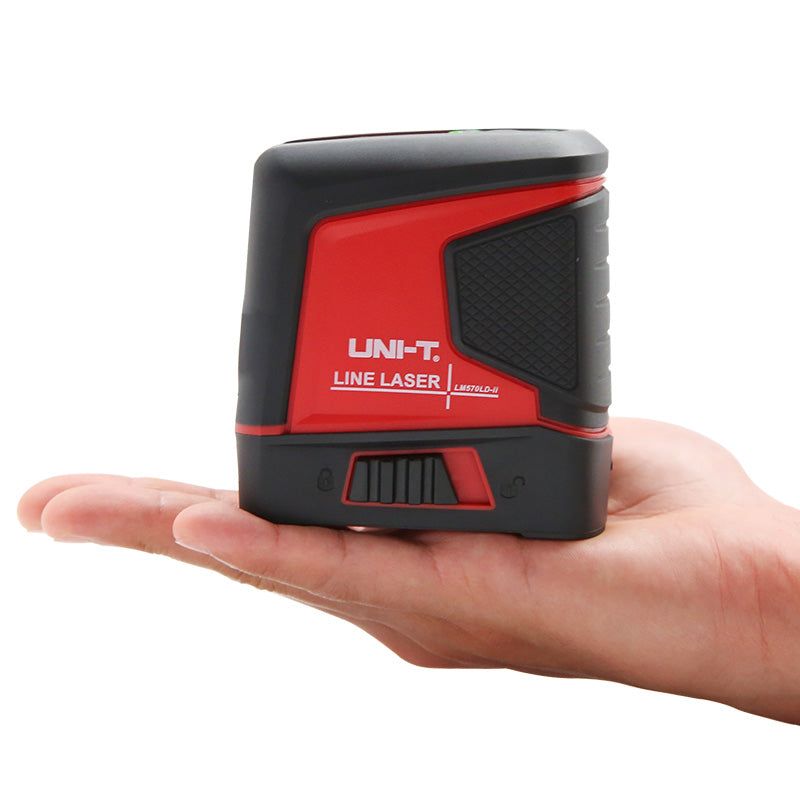

The UNI-T LM570LD-II is a compact green cross line laser level that projects one horizontal and one vertical line for fast, accurate alignment — tiling, shelving, cabinets, dado rails, wiring and picture hanging. The bright 520 nm green beam is far easier to see indoors than a red laser.
It self-levels automatically within 3°±1° and locks the pendulum for transport, holds ±3 mm at 10 m, and runs on ordinary AA batteries. A magnetic bracket and tripod thread let you mount it on brackets, tripods or steel surfaces. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features

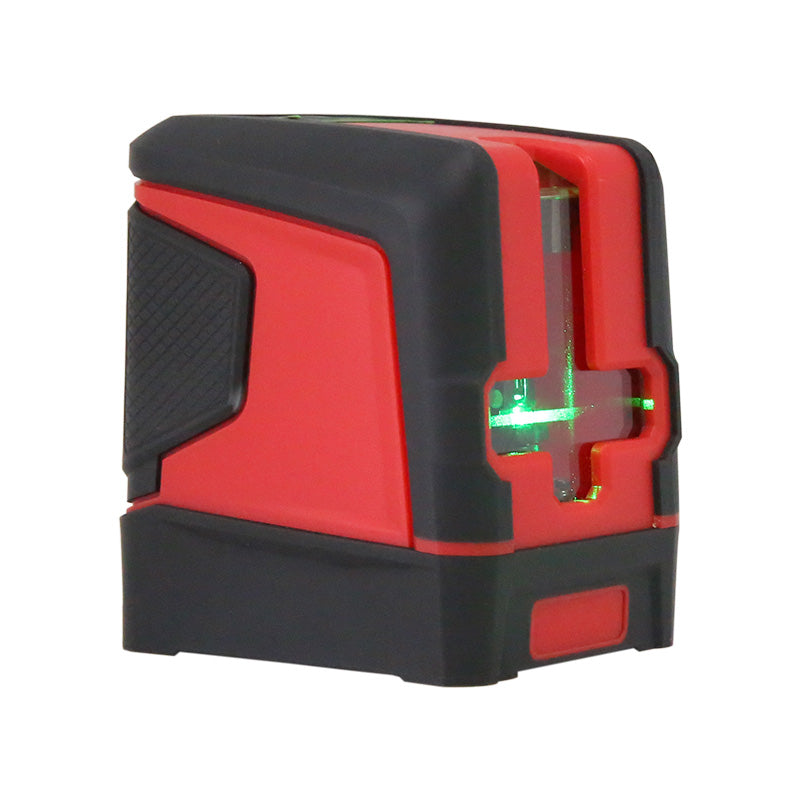

- 🟢 Bright 520 nm green cross lines — 1 horizontal + 1 vertical, easy to see indoors
- 🎯 Accuracy ±3 mm / 10 m; operating range up to 10 m
- ⚙️ Automatic self-leveling (3°±1°, ~3 s) with pendulum lock for transport

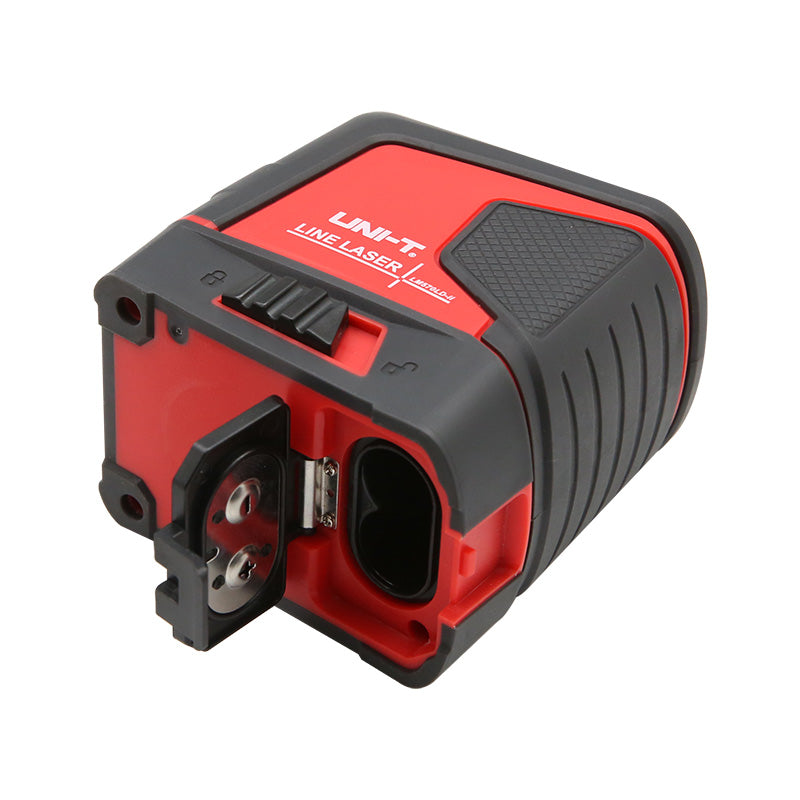

- 🧲 Magnetic bracket + tripod thread for flexible mounting
- 🔋 Runs on 2×AA batteries; up to ~4 h working time
- 🟥 Class 2 laser; rugged rubber-armoured body
Technical Specifications
| Laser type | Green LD (line laser) |
|---|---|
| Laser lines | 2 lines (1 horizontal + 1 vertical) |
| Laser wavelength | 520 nm |
| Laser class | Class 2 |
| Operating distance | 10 m |
| Accuracy | ±3 mm / 10 m |
| Self-leveling range | 3°±1° |
| Self-leveling time | ~3 s |
| Working time | ~4 h |
| Battery | 2 × AA |
| Mounting | Magnetic bracket + tripod thread |
| Dimensions | 85.5 × 62 × 90.3 mm |
| Weight | 240 g |
What's in the Box
- LM570LD-II green cross line laser level
- Magnetic bracket
- 2 × AA batteries
- Gift box
- English user manual
Downloads
Certifications: CE, UKCA | HS Code: 9015.30
