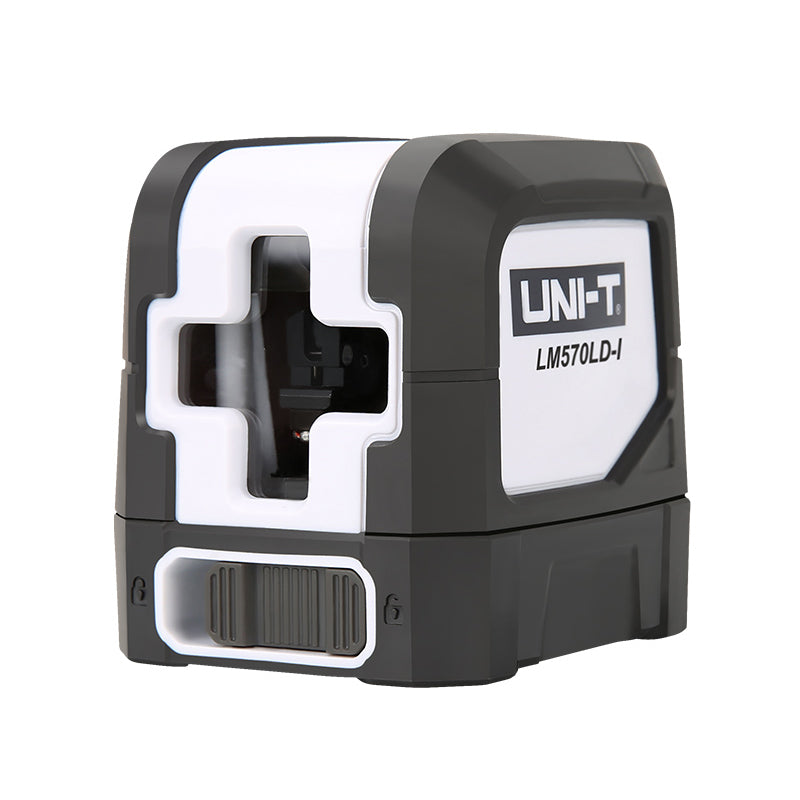

UNI-T LM570LD-I Green Cross Line Laser Level – 1V1H, ±3 mm/10 m, Self-Leveling, 510 nm, 110° Lines, Tripod Mount
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T LM570LD-I Green Cross Line Laser Level – 1V1H, ±3 mm/10 m, Self-Leveling, 510 nm, 110° Lines, Tripod Mount
The UNI-T LM570LD-I is a green cross line laser level that projects one horizontal and one vertical line (1V1H) for quick, accurate layout — tiling, partitions, cabinets, wiring and levelling. The 510 nm green beam is bright and easy to follow indoors.
It self-levels automatically within 3°±1° and locks for transport, holds ±3 mm at 10 m, and reaches 20 m (up to ~40 m with a detector). Wide 110° fan lines and a tripod thread make it easy to set up on brackets, walls or a tripod. Genuine UNI-T product supplied by Digilog.pk with warranty and English manual.
Key Features
- 🟢 510 nm green cross lines (1 horizontal + 1 vertical), easy to see indoors
- 🎯 Accuracy ±3 mm / 10 m; line range 20 m (up to ~40 m with detector)
- 📐 Wide fan angle H110° / V110° for more coverage per line
- ⚙️ Automatic self-leveling (3°±1°, ~3 s) with pendulum lock
- 🔩 Tripod mounting hole for stable setups
- 🟥 Class 2 laser, 10 mW; up to ~4 h working time
Technical Specifications
| Laser colour | Green |
|---|---|
| Laser type | 1V1H cross line |
| Laser wavelength | 510 nm |
| Laser class | Class 2 (10 mW) |
| Expanded angle | H 110° / V 110° |
| Accuracy | ±3 mm / 10 m |
| Self-leveling range | 3°±1° |
| Self-leveling time | ~3 s |
| Working distance (line) | 20 m (up to ~40 m with detector) |
| Operating time | >4 h (all lasers on) |
| Tripod mounting hole | Yes |
What's in the Box
- LM570LD-I green cross line laser level
- Batteries
- Gift box
- English user manual
Downloads
Certifications: CE, UKCA | HS Code: 9015.30
